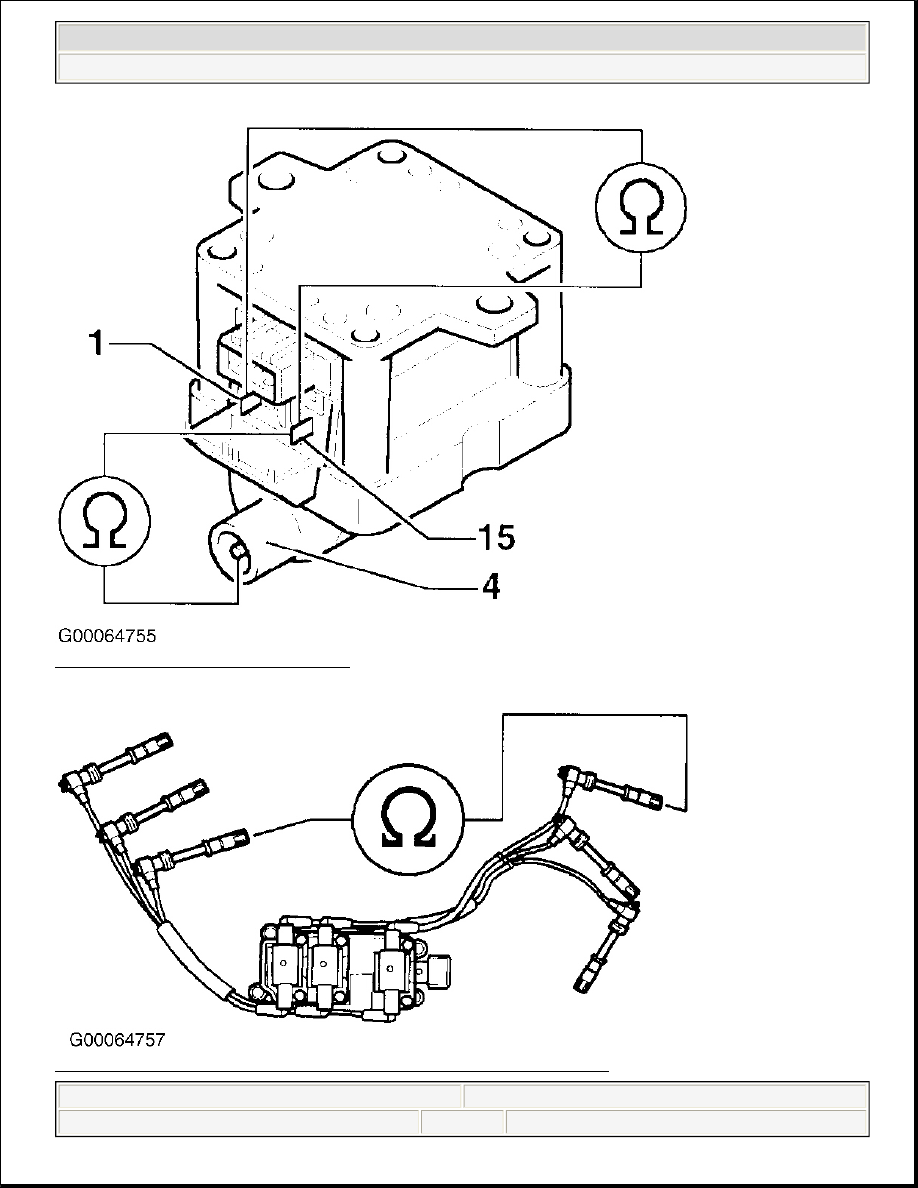

Fig. 3: Coil Resistance Check (Cabrio)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 4: Coil & High Tension Wire Resistance Check (Passat - 2.8L ATQ)



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 22

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

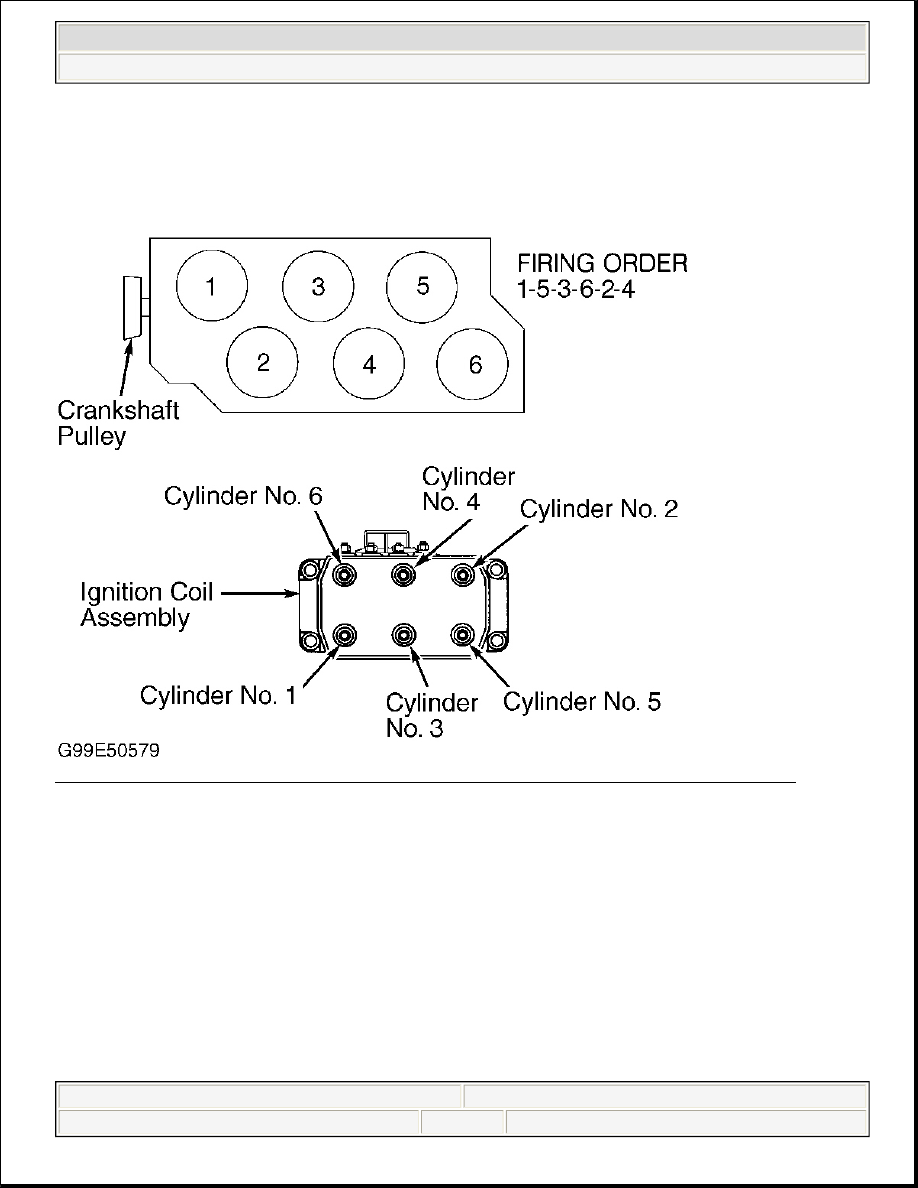

Fig. 5: Identifying Cylinder Numbers & Firing Order (EuroVan - 2.8L, GTI & Jetta - 2.8L AFP)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

EuroVan with engine code AXK uses ignition coil on spark plug type ignition
system.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 23

© 2004 Mitchell Repair Information Company, LLC.

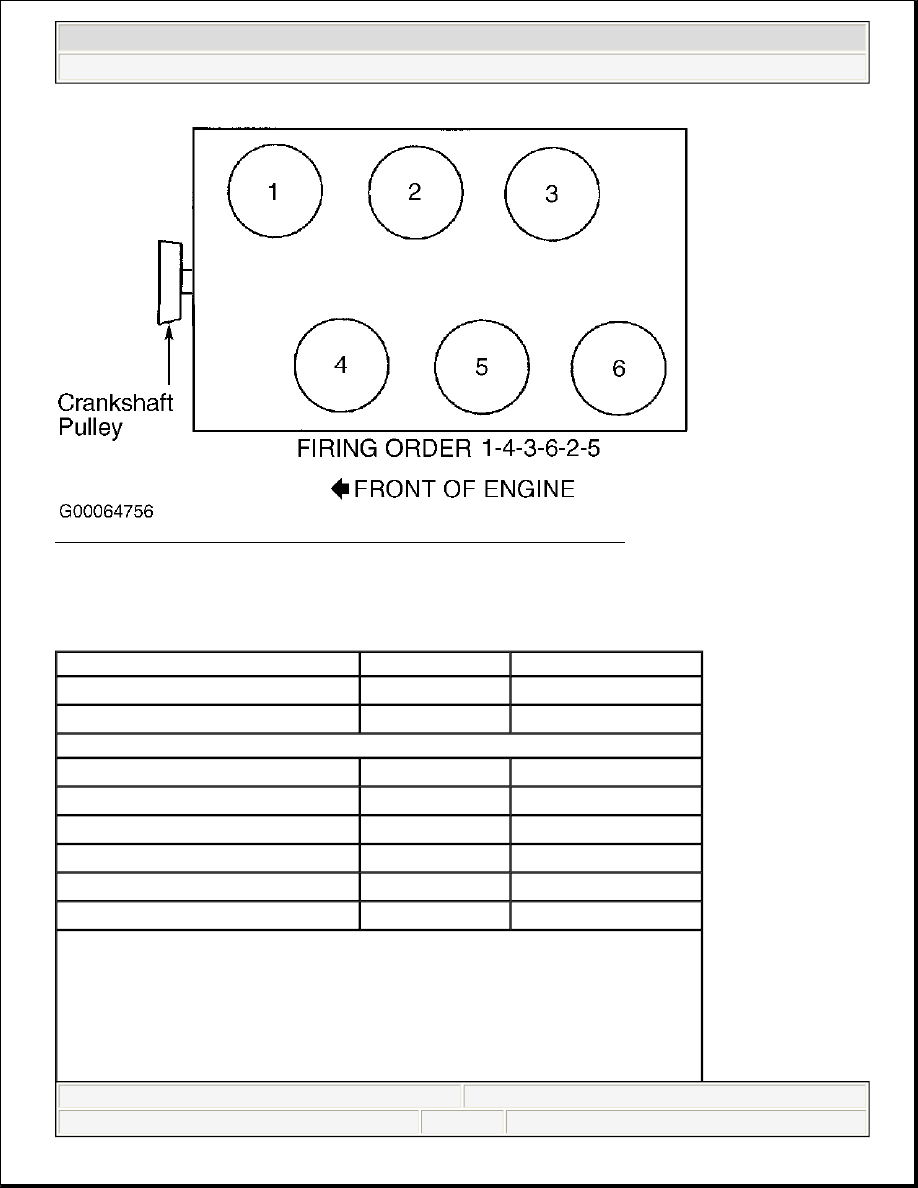

Fig. 6: Identifying Cylinder Numbers & Firing Order (Passat - 2.8L ATQ)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

IGNITION TIMING

IGNITION TIMING - (Degrees BTDC)

(1)



Application

Base Timing

Advance Timing

Beetle 1.8L Turbo & 2.0L

(2)

(2)

Cabrio 2.0L

(3)

 0-5

(2)

EuroVan

2.8L (AES)

(4)

 11-13

(5)

 0-50

2.8L (AXK)

(2)

(2)

Golf 1.8L Turbo & 2.0L

(2)

(2)

GTI 1.8L Turbo, 2.0L & 2.8L

(2)

(2)

Jetta 1.8L Turbo, 2.0L & 2.8L

(2)

(2)

Passat 1.8L Turbo & 2.8L

(2)

(2)

(1)

Manufacturer recommends using Scan Tool (VAG 1551/1552) when checking
ignition timing with radiator cooling fan, A/C and all accessories turned off.

(2)

Ignition timing is nonadjustable and ignition timing specification is not available
from manufacturer.

(3)

Specification should be displayed in display field No. 3 on scan tool with engine at
800-880 RPM and display field No. 4 on scan tool should display a maximum of



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 24

© 2004 Mitchell Repair Information Company, LLC.

FUEL SYSTEM

FUEL INJECTION PUMP

FUEL INJECTION PUMP TIMING - (Degrees BTDC @ Idle)

(1)



FUEL PUMP

FUEL PUMP PERFORMANCE & REGULATED FUEL PRESSURE

plus or minus 2 degrees from reading in display field No. 3 with engine at 800-880
RPM. Timing is not adjustable, specifications are for checking ignition timing only.

(4)

Specification should be displayed in display field No. 3 on scan tool with engine at
650-750 RPM and display field No. 4 on scan tool should display a maximum of
plus or minus 2 degrees from reading in display field No. 3 with engine at 650-750
RPM. Timing is not adjustable, specifications are for checking ignition timing only.

(5)

Specification should be displayed in display field No. 3 on scan tool with engine at
650-6000 RPM and display field No. 4 on scan tool should display 0-40 degrees
with engine at 650-6000 RPM. Timing is not adjustable, specifications are for
checking ignition timing only.

Application

Specification

Beetle, Golf & Jetta

1.9L Turbo Diesel

(2)

 7-9

(1)

Manufacturer recommends using Scan Tool (VAG 1551/1552) when checking fuel
injection pump timing.

(2)

Specification should be initially displayed in display field No. 3 on scan tool and
then after 10 seconds, display should decrease to 3-5 degrees which is the retarded
fuel injection pump timing.

Application

Pressure At Idle

psi (bar)

Volume In 30

Seconds

(1)

Residual Pressure

psi (bar)

Beetle 1.8L Turbo &
2.0L

(2)

 36 (2.5)

(3)

(4)

29 (2.0)

Cabrio 2.0L

(2)

 36 (2.5)

(5)

(4)

29 (2.0)

EuroVan 2.8L (AES)

(2)

 36 (2.5)

(6)

(4)

29 (2.0)

EuroVan 2.8L (AXK)

(2)

 36 (2.5)

(3)

(4)

29 (2.0)

Golf 1.8L Turbo & 2.0L

(2)

 36 (2.5)

(3)

(4)

29 (2.0)

GTI 1.8L Turbo, 2.0L &
2.8L

(2)

 36 (2.5)

(3)

(4)

29 (2.0)

Jetta 1.8L Turbo, 2.0L &
2.8L

(2)

 36 (2.5)

(3)

(4)

29 (2.0)
