SPARK PLUG SPECIFICATIONS

2.0L (AEG)

BKUR6ET-10

2.0L (AVH & AZG)

PZFR5D-11

Cabrio 2.0L

FR8DS

EuroVan

2.8L (AES)

BKR5EKUP

2.8L (AXK)

PZFR5D-11

Golf

1.8L Turbo

PFR6Q

2.0L

BKUR6ET-10

GTI

1.8L Turbo

PFR6Q

2.0L

BKUR6ET-10

2.8L

BKR5EKUP

Jetta

1.8L Turbo

PFR6Q

2.0L (AEG)

BKUR6ET-10

2.0L (AVH & AZG)

PZFR5D-11

2.8L (AFP)

BKR5EKUP

Passat

1.8L Turbo

PFR6Q

2.8L

BKR6EKUB

Application

Gap In. (mm)

Torque Ft. Lbs. (Nm)

Beetle

1.8L Turbo

0.32 (.80)

22 (30)

2.0L

.035-.043 (.90-1.10)

22 (30)

Cabrio 2.0L

.032 (.80)

22 (30)

EuroVan

2.8L (AES)

(1)

 .028 (.70)

22 (30)

2.8L (AXK)

.035-.043 (.90-1.10)

22 (30)

Golf

1.8L Turbo

.032 (.80)

22 (30)

2.0L

.035-.043 (.90-1.10)

22 (30)

GTI

1.8L Turbo

.032 (.80)

22 (30)

2.0L

.035-.043 (.90-1.10)

22 (30)

2.8L

(1)

 .028 (.70)

18 (25)

Jetta



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.

FIRING ORDER

FIRING ORDER

1.8L Turbo

.032 (.80)

22 (30)

2.0L

.035-.043 (.90-1.10)

22 (30)

2.8L

(1)

 .028 (.70)

18 (25)

Passat

1.8L Turbo

.032 (.80)

22 (30)

2.8L

.024 (.60)

22 (30)

(1)

Gap is between ground electrode and center electrode insulator.

Application

Firing Order

Beetle

1.8L Turbo

(1)

 1-3-4-2

1.9L Turbo Diesel

(2)

 1-3-4-2

2.0L (AEG)

(3)

 1-3-4-2

2.0L (AVH & AZG)

(4)

 1-3-4-2

Cabrio 2.0L

(2)

 1-3-4-2

EuroVan

2.8L (AES)

(5)

 1-5-3-6-2-4

2.8L (AXK)

(5)

 1-5-3-6-2-4

Golf

1.8L Turbo

(1)

 1-3-4-2

1.9L Turbo Diesel

(2)

 1-3-4-2

2.0L (AEG)

(3)

 1-3-4-2

GTI

1.8L Turbo

(1)

 1-3-4-2

2.0L

(3)

 1-3-4-2

2.8L

(5)

 1-5-3-6-2-4

Jetta

1.8L Turbo

(1)

 1-3-4-2

1.9L Turbo Diesel

(2)

 1-3-4-2

2.0L (AEG)

(3)

 1-3-4-2

2.0L (AVH & AZG)

(4)

 1-3-4-2

2.8L (AFP)

(5)

 1-5-3-6-2-4



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

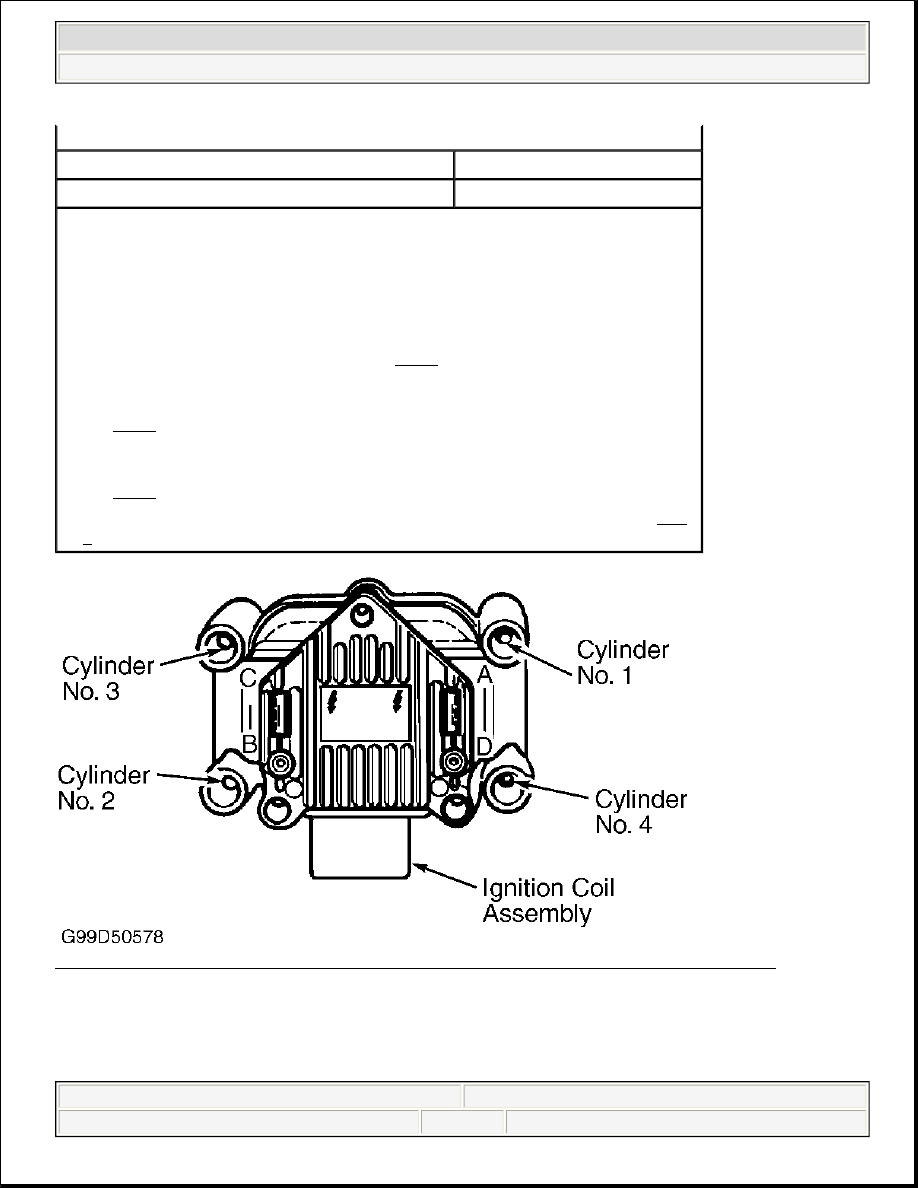

Fig. 1: Identifying Cylinder Numbers On Ignition Coil (Beetle, Golf, GTI & Jetta - 2.0L AEG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Passat

1.8L Turbo

(1)

 1-3-4-2

2.8L

(6)

 1-4-3-6-2-5

(1)

Ignition coil on spark plug type ignition system is used. Cylinder No. 1 is at timing
belt end of engine and cylinder No. 4 is at flywheel end of engine.

(2)

Cylinder No. 1 is located at timing belt end of engine. Cylinder No. 4 is located at
flywheel end of engine.

(3)

System uses a Distributorless Ignition System (DIS) with 2 ignition coils in one
ignition coil assembly. Cylinders No. 1 and 4 use the same ignition coil. Cylinders
No. 2 and 3 use the same ignition coil. See Fig. 1 . Cylinder No. 1 is located at
timing belt end of engine. Cylinder No. 4 is located at flywheel end of engine.

(4)

System uses a Distributorless Ignition System (DIS) with one ignition coil assembly.
See Fig. 2 for cylinder No. to coil identification. Cylinder No. 1 is located at timing
belt end of engine. Cylinder No. 4 is located at flywheel end of engine.

(5)

System uses a Distributorless Ignition System (DIS) with one ignition coil assembly.
See Fig. 5 for ignition coil and cylinder number identification.

(6)

System uses a Distributorless Ignition System (DIS) with one ignition coil. See Fig.
6 for cylinder number identification.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

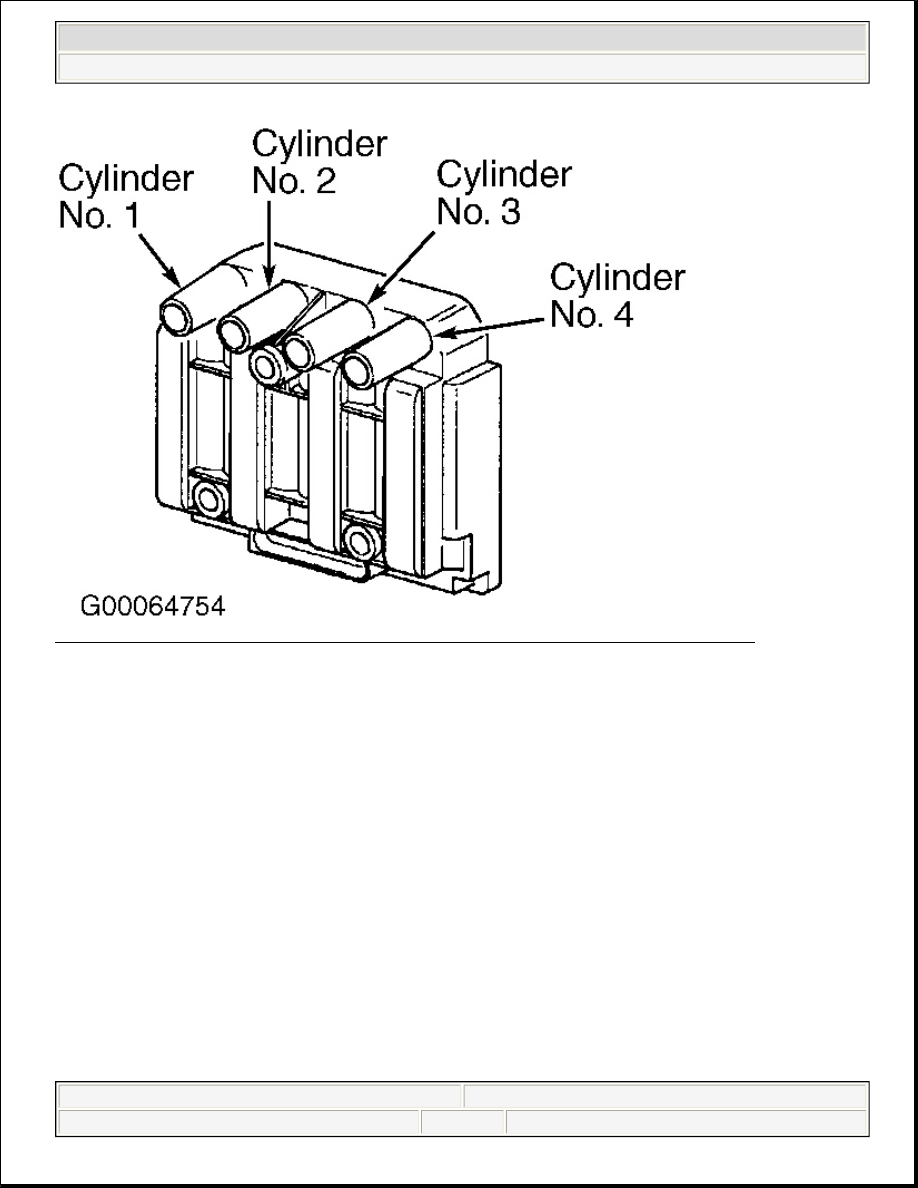

Fig. 2: Identifying Cylinder Numbers On Ignition Coil (Beetle & Jetta - 2.0L AVH & AZG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
