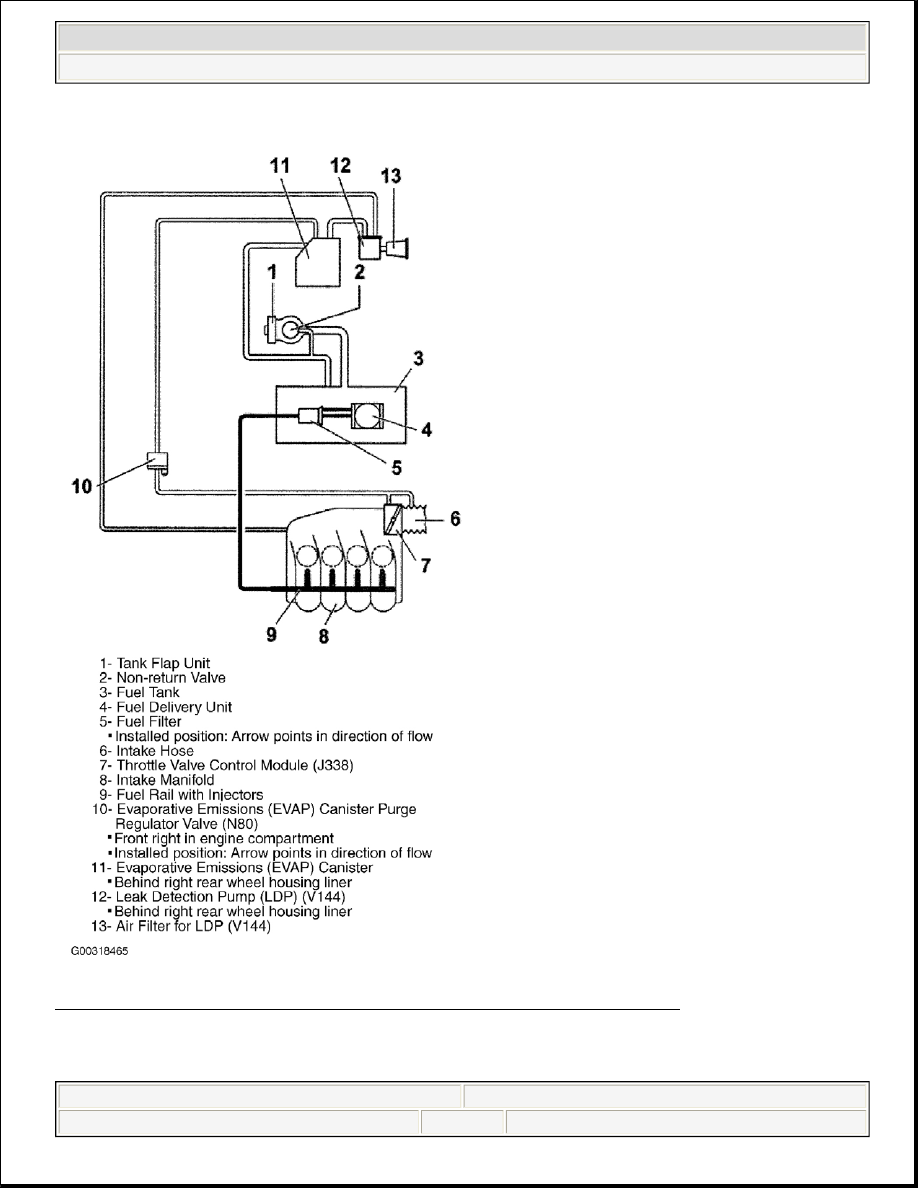

Fig. 11: Vacuum Diagram EVAP System (Golf & Jetta: 2.0L, Engine Code BBW)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

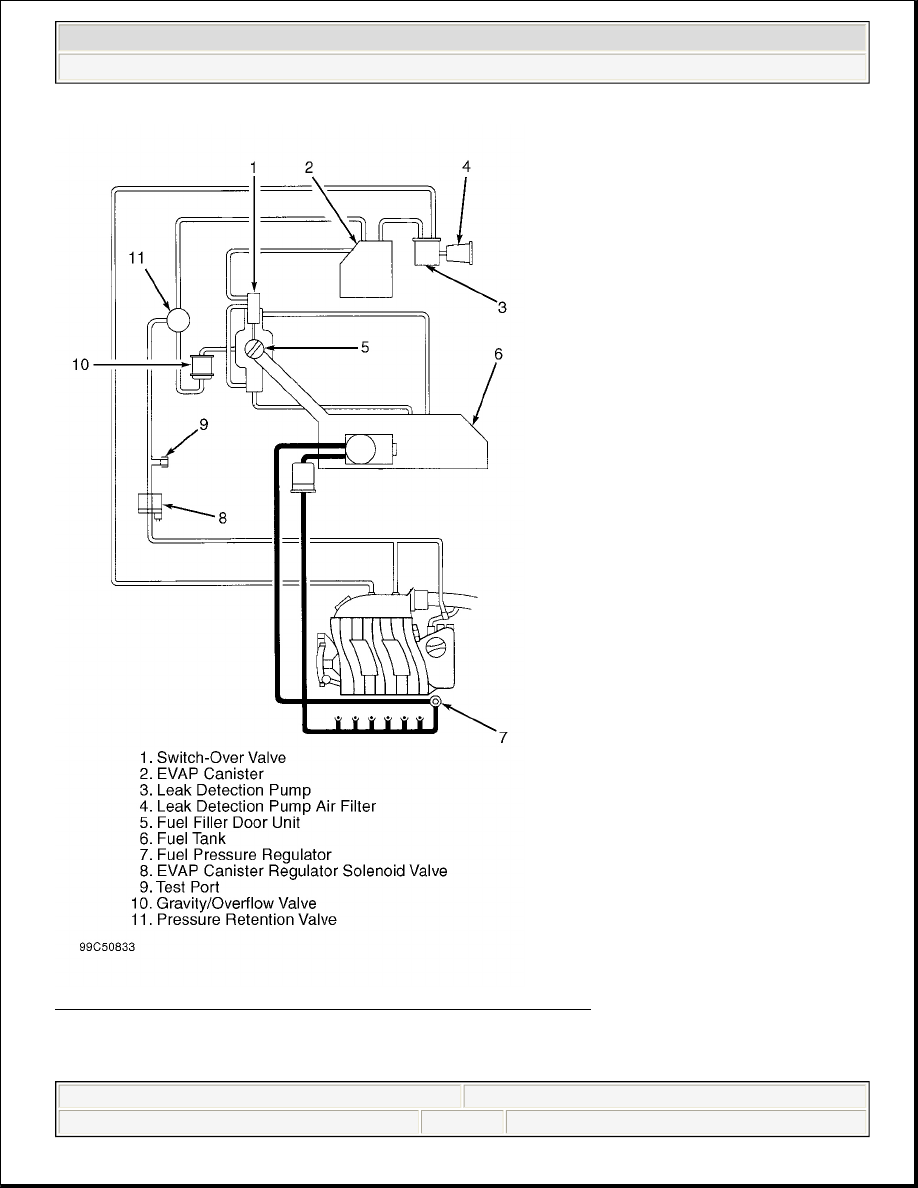

Fig. 12: Vacuum Diagram EVAP System (GTI & Jetta: 2.8L VR6 4V)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

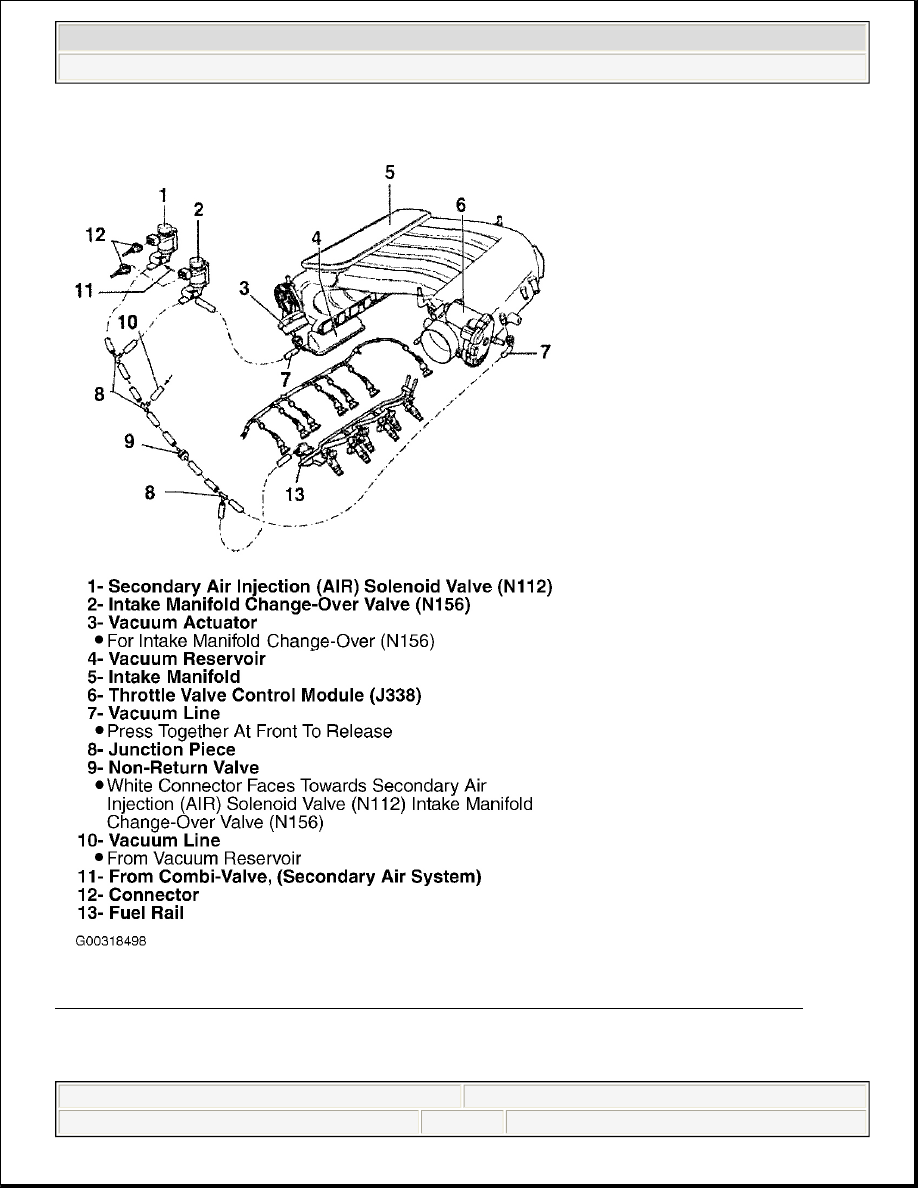

Fig. 13: Vacuum Diagram Intake Manifold, With Vacuum Solenoids (GTI & Jetta: 2.8L VR6 4V)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

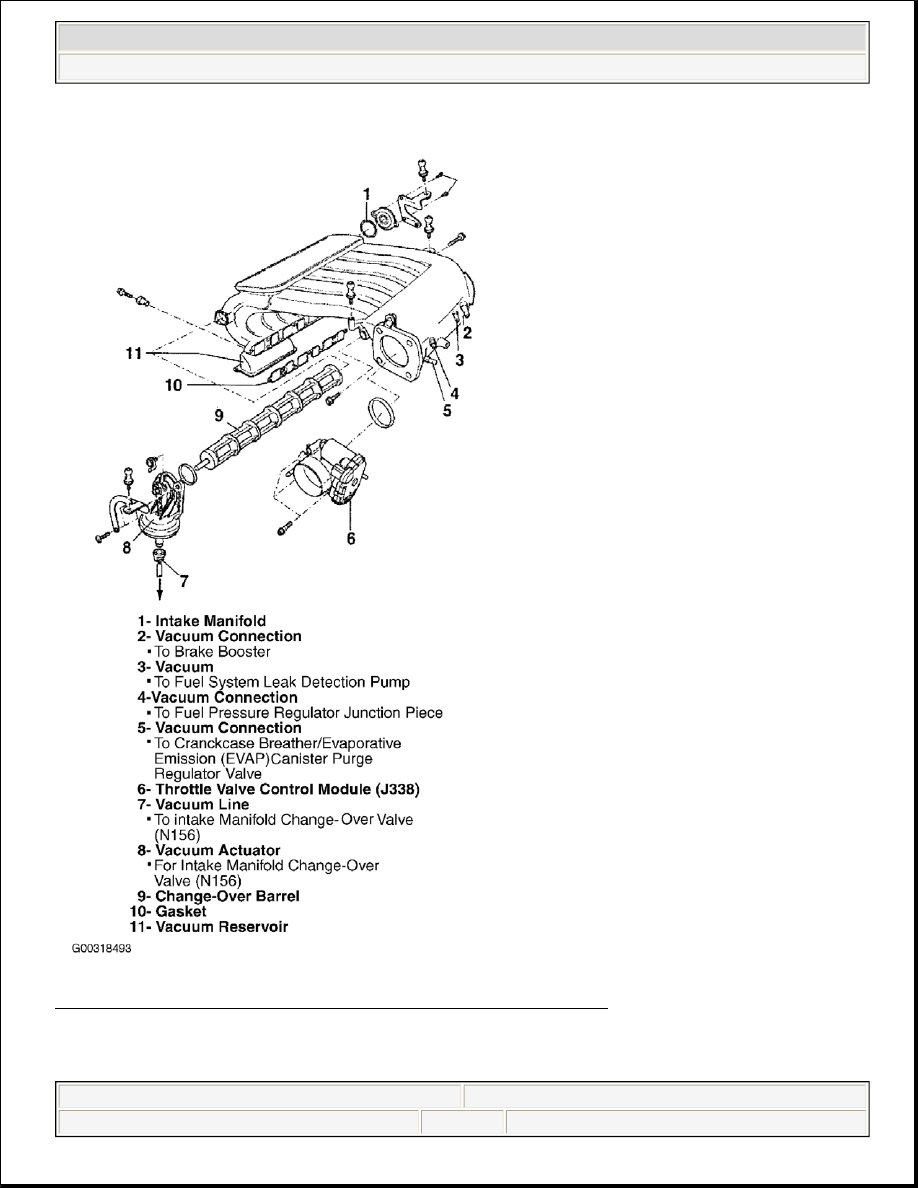

Fig. 14: Vacuum Diagram Intake Manifold (GTI & Jetta: 2.8L VR6 4V)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.
