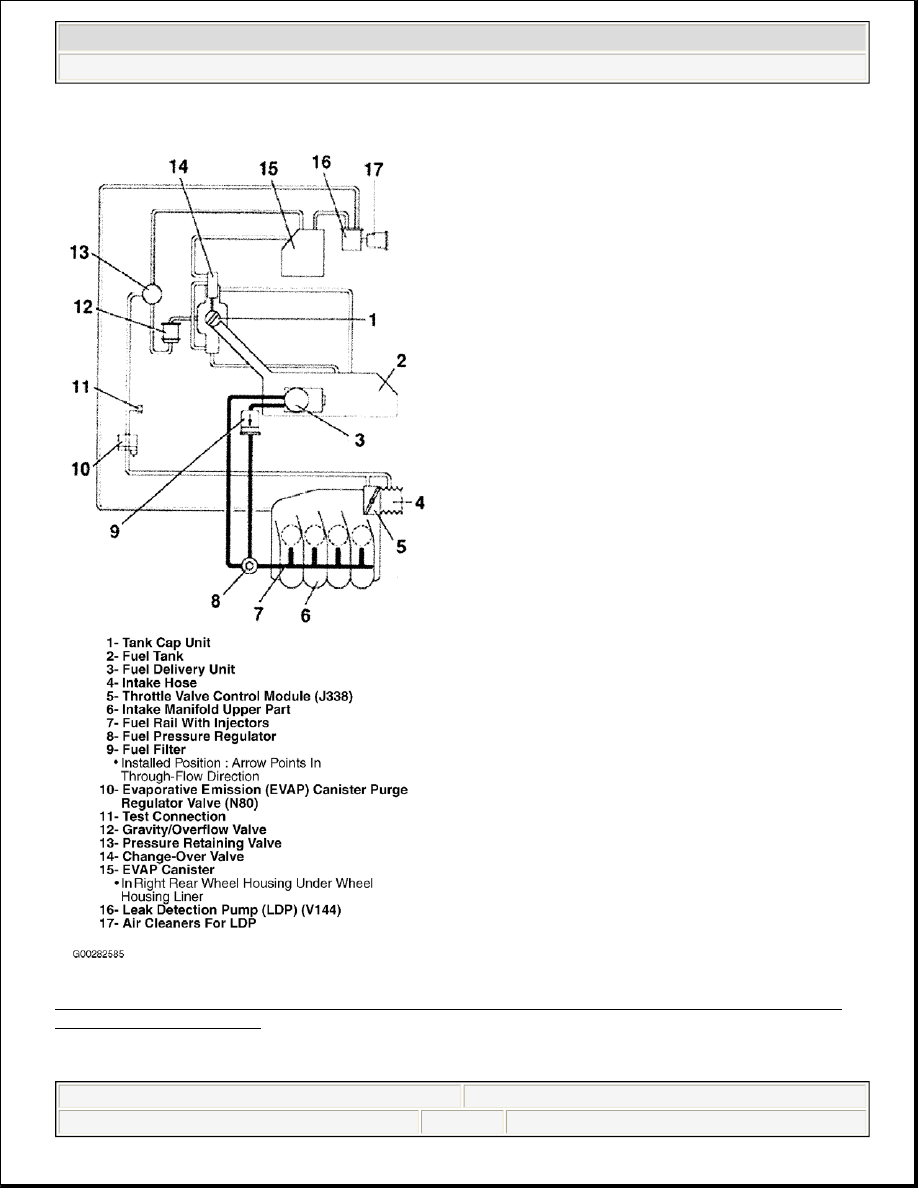

Fig. 3: Vacuum Diagram EVAP System (Beetle, Golf & Jetta: 2.0L, Engine Codes AVH, AZG & BDC)
(GTI & Jetta: 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

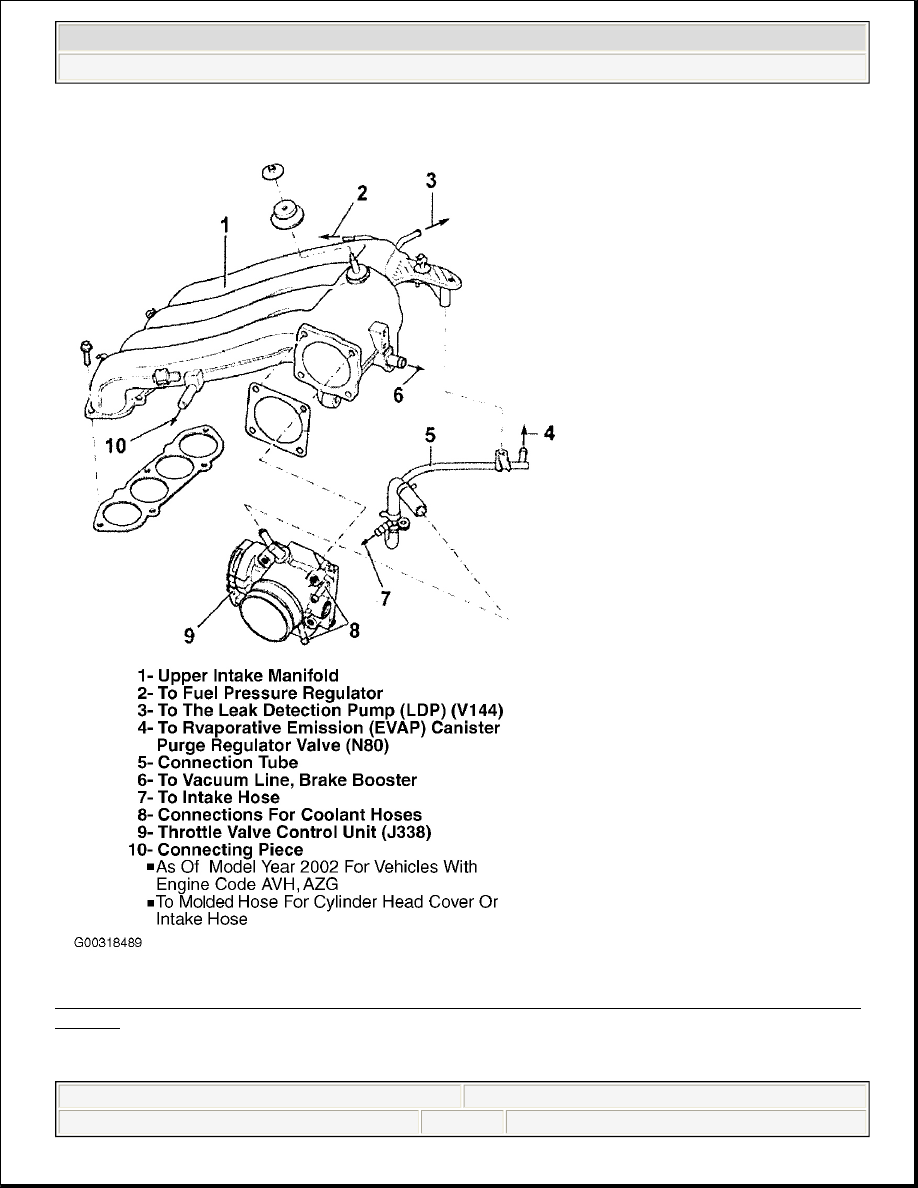

Fig. 4: Vacuum Diagram Intake Manifold, Upper Section (Beetle, Golf & Jetta: 2.0L, Engine Codes AVH
& AZG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

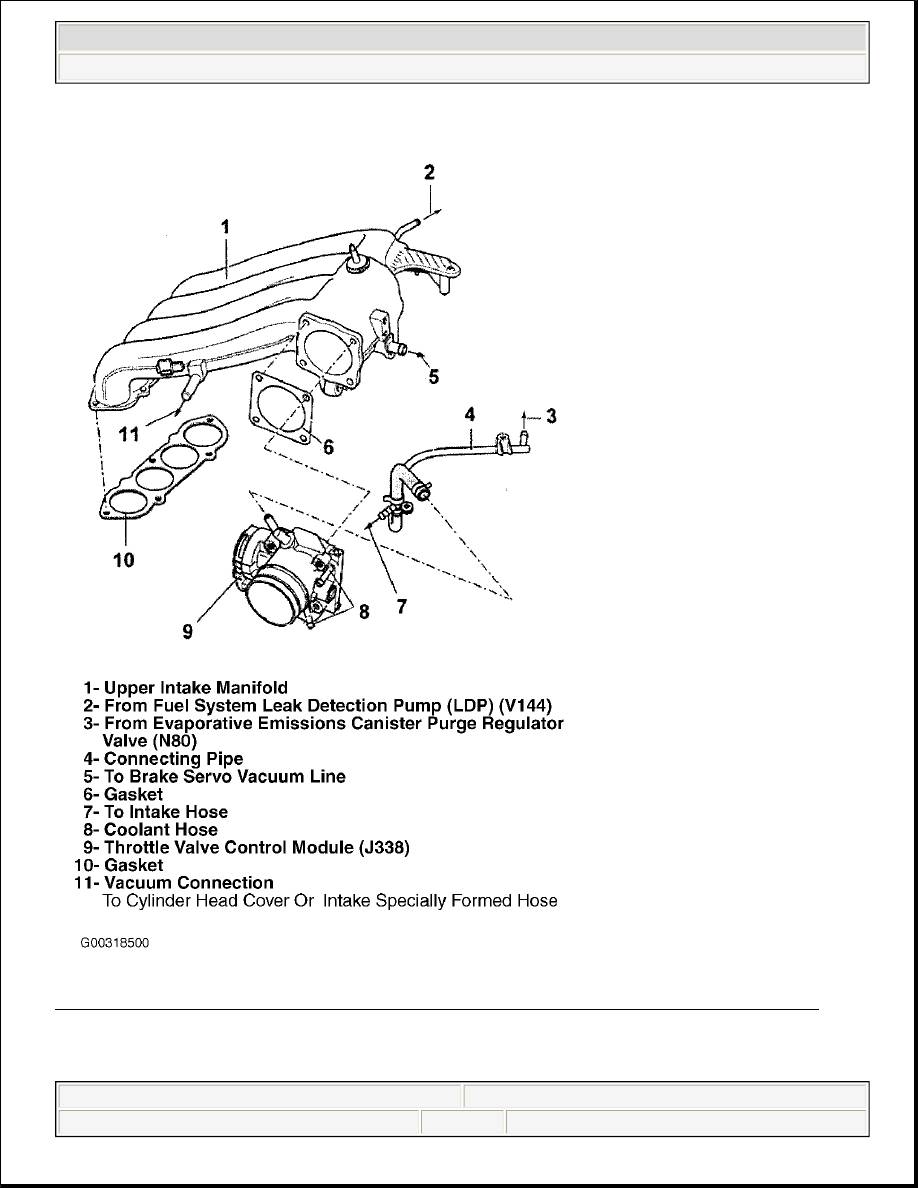

Fig. 5: Vacuum Diagram Intake Manifold, Upper Section (Beetle & Jetta: 2.0L, Engine Code BBW)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

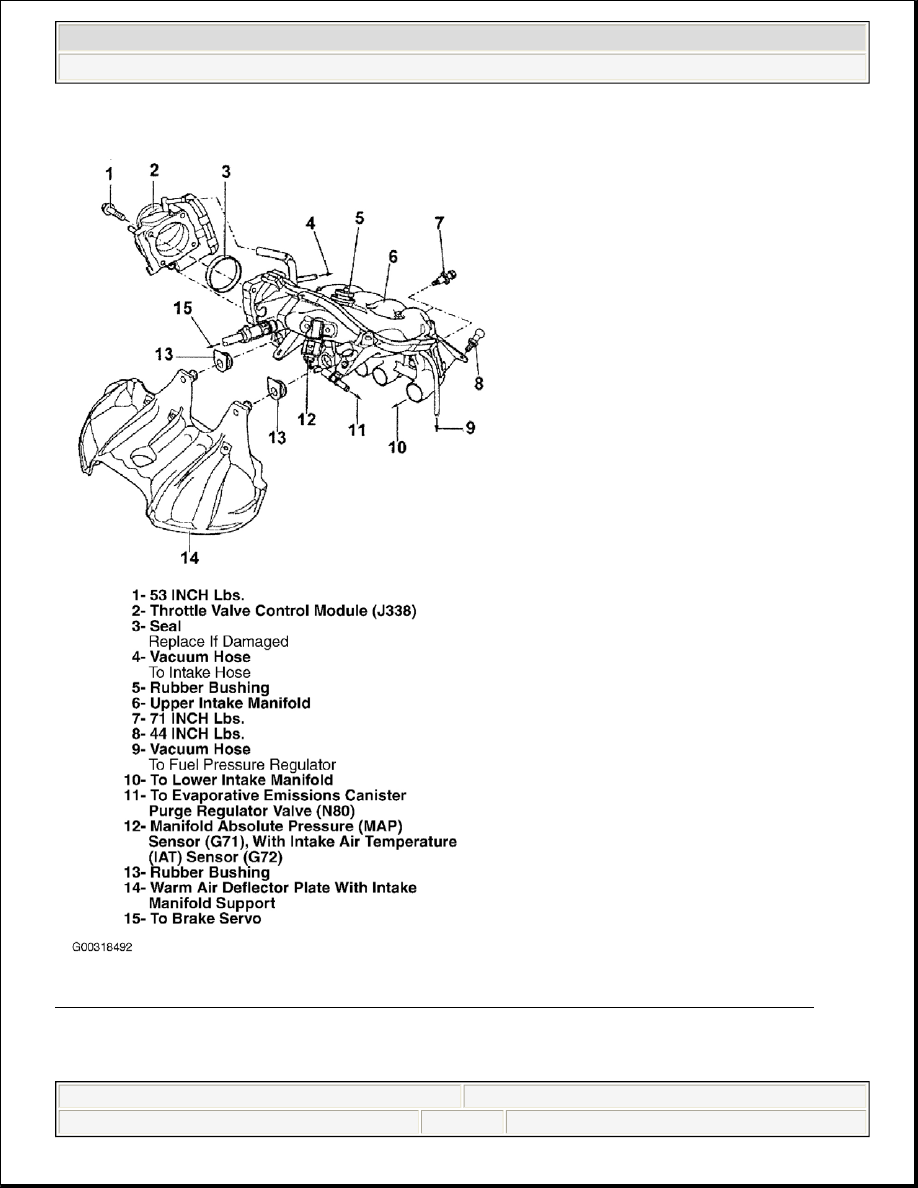

Fig. 6: Vacuum Diagram Intake Manifold, Upper Section (Beetle & Jetta: 2.0L, Engine Code BER)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.
