Volkswagen New Beetle. Manual - part 182

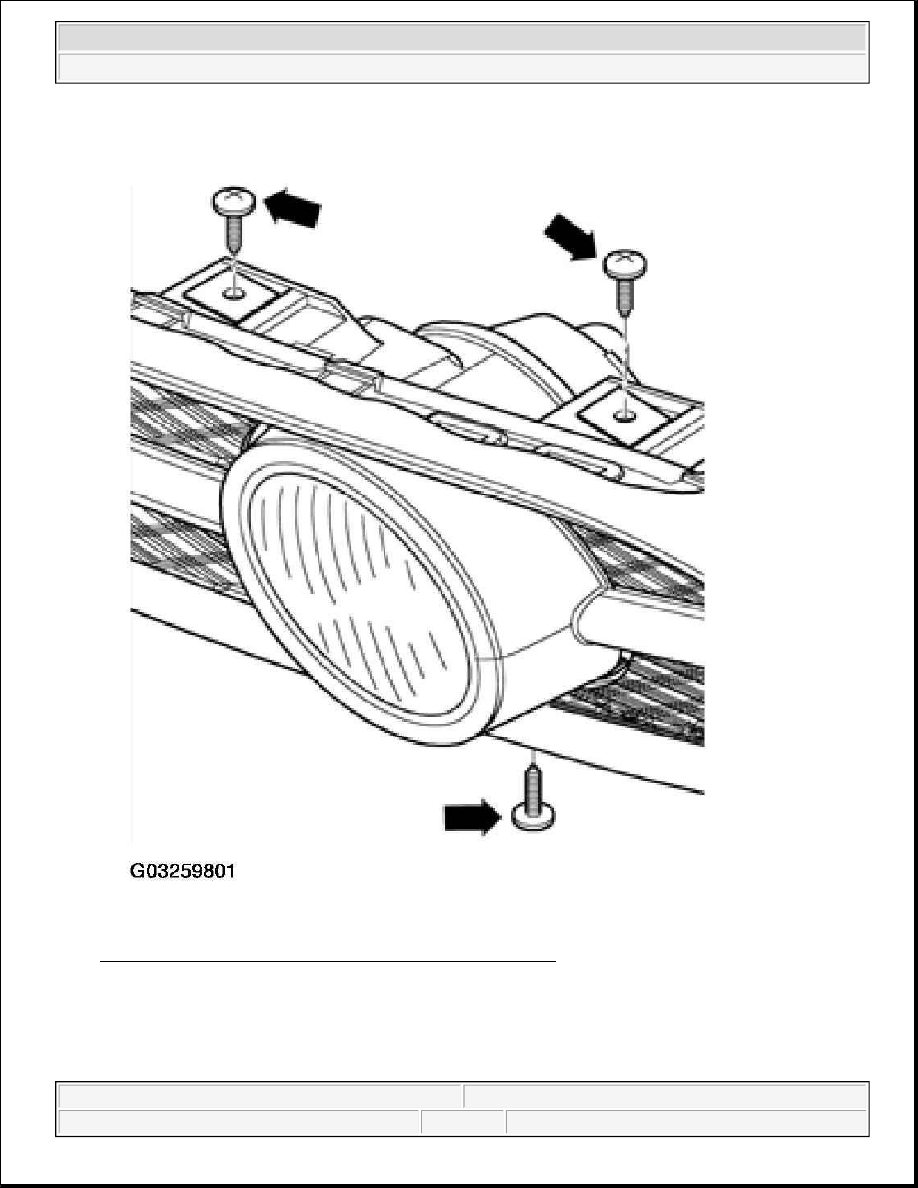

Fig. 15: Locating Fog Lamp Assembly Screws (From 07.00)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Insert fog lamp assembly in air grille and secure with screws.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Reinstall air grille.

See FRONT END, ASSEMBLY OVERVIEW .

z

Connect electrical connection.

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check fog lamp aim

See FOG LAMP, ALIGNMENT .

FOG LAMPS, ADJUSTING

See FOG LAMP, ALIGNMENT .

Fog lamp (left)

z

Turn adjustment screw -arrow- to adjust beam height. Lateral adjustments are not possible.

Adjustment screw on right fog lamp is a mirror image.

NOTE:

Always adjust fog lamps with optical headlight aimer VAS 5107, using detailed
aiming procedure and specifications



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

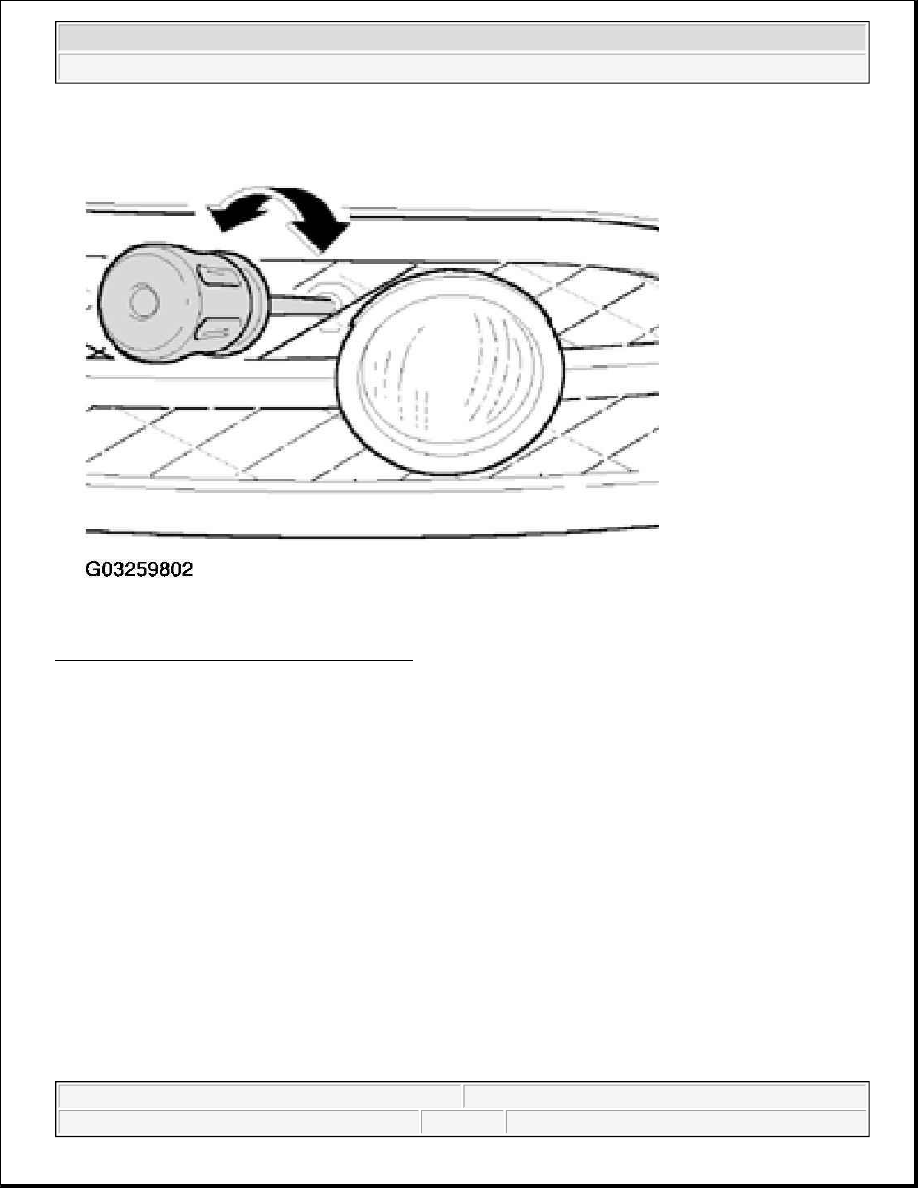

Fig. 16: Turning Fog Lamp Adjustment Screw
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FOG LAMP BULB, REPLACING

Removing

z

Disconnect electrical connection at fog lamp assembly.

z

Turn sealing cap on rear of assembly and remove.

z

Disconnect electrical connection from fog lamp bulb.

z

Release spring retaining clip.

z

Remove bulb from reflector.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

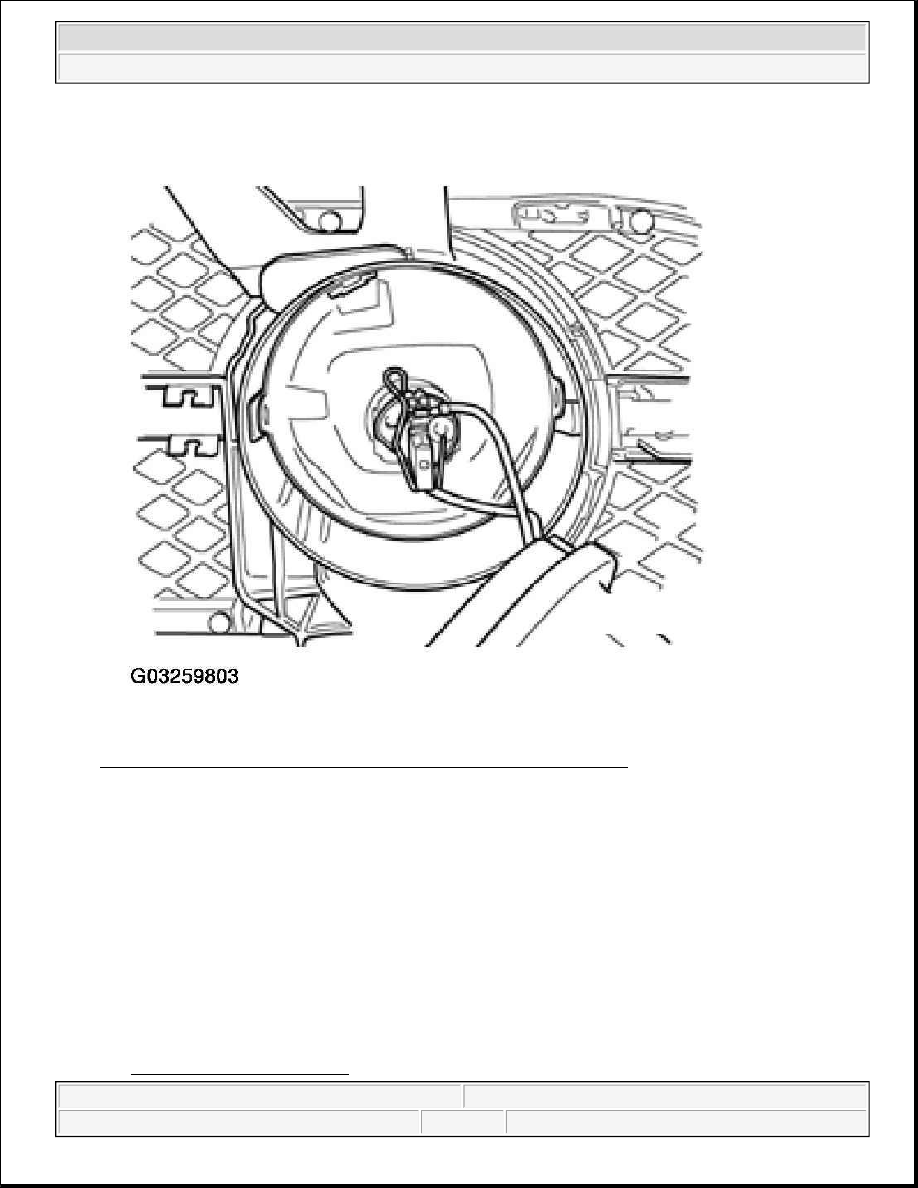

Fig. 17: Disconnecting Electrical Connection At Fog Lamp Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Insert new bulb so lugs on plate align with grooves in reflector.

z

Connect electrical connection to bulb and reinstall cap, on assembly.

z

Connect electrical connection to fog lamp assembly.

z

Check fog lamp aim

See FOG LAMP, ALIGNMENT .

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.
