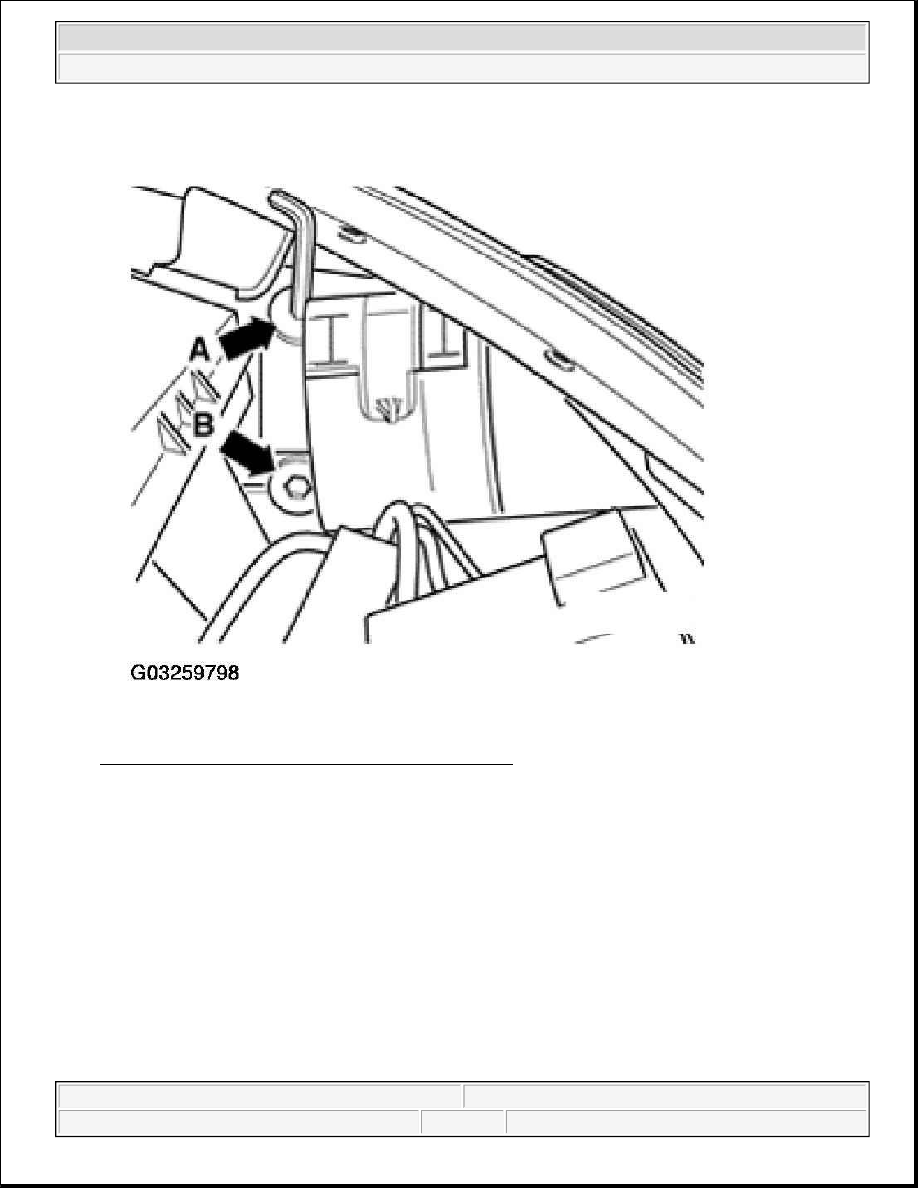

Fig. 12: Identifying Left Headlight Adjustment Points
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Right headlight:

A. Height adjustment

B. Lateral adjustment

{

Turn adjusting screws for lateral adjustment -B- and height adjustment -A- until correct setting is
achieved.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

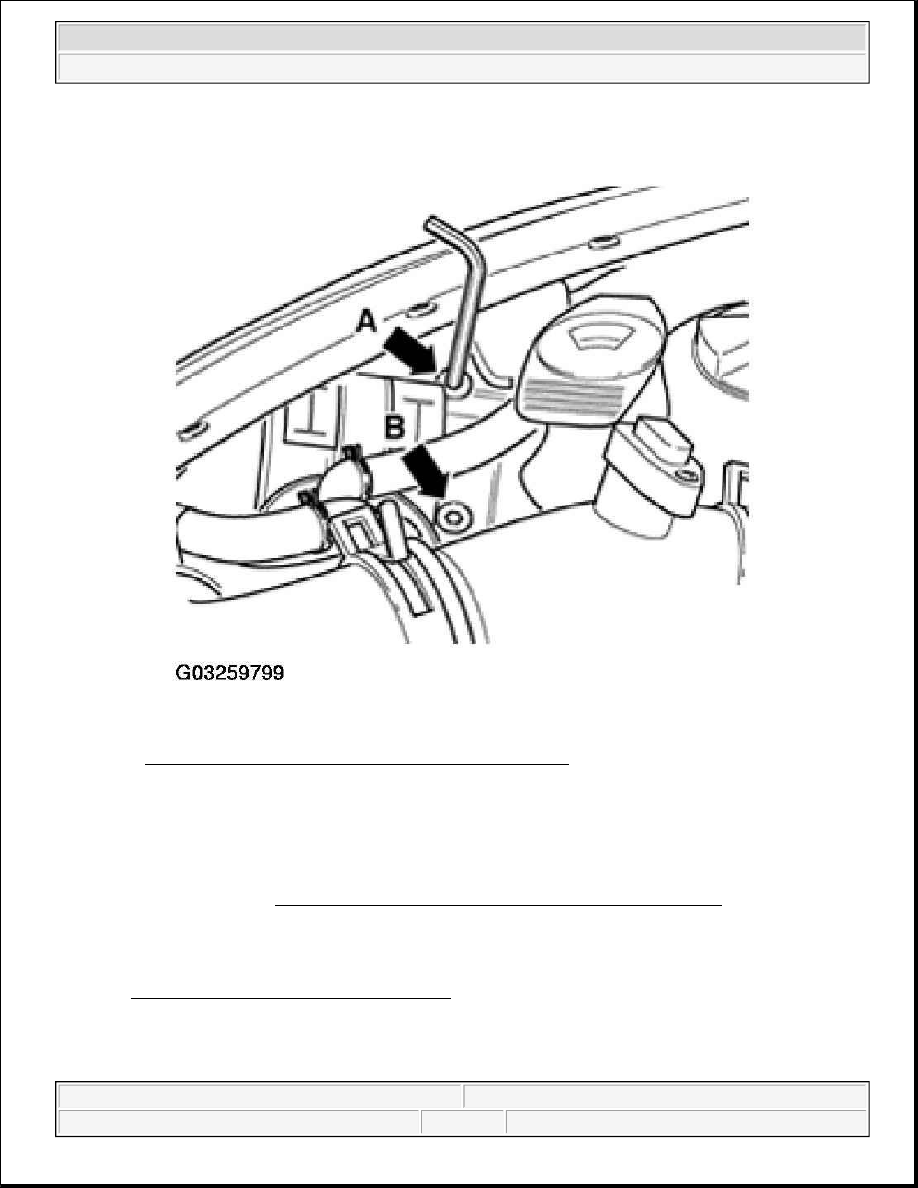

Fig. 13: Identifying Right Headlight Adjustment Points
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FOG LAMPS THROUGH 06.00, REMOVING AND INSTALLING

Removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Disconnect electrical connection at fog lamp assembly.

z

Remove front end assembly

See FRONT END, ASSEMBLY OVERVIEW .

z

Remove screws -arrows- on inside of front bumper.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

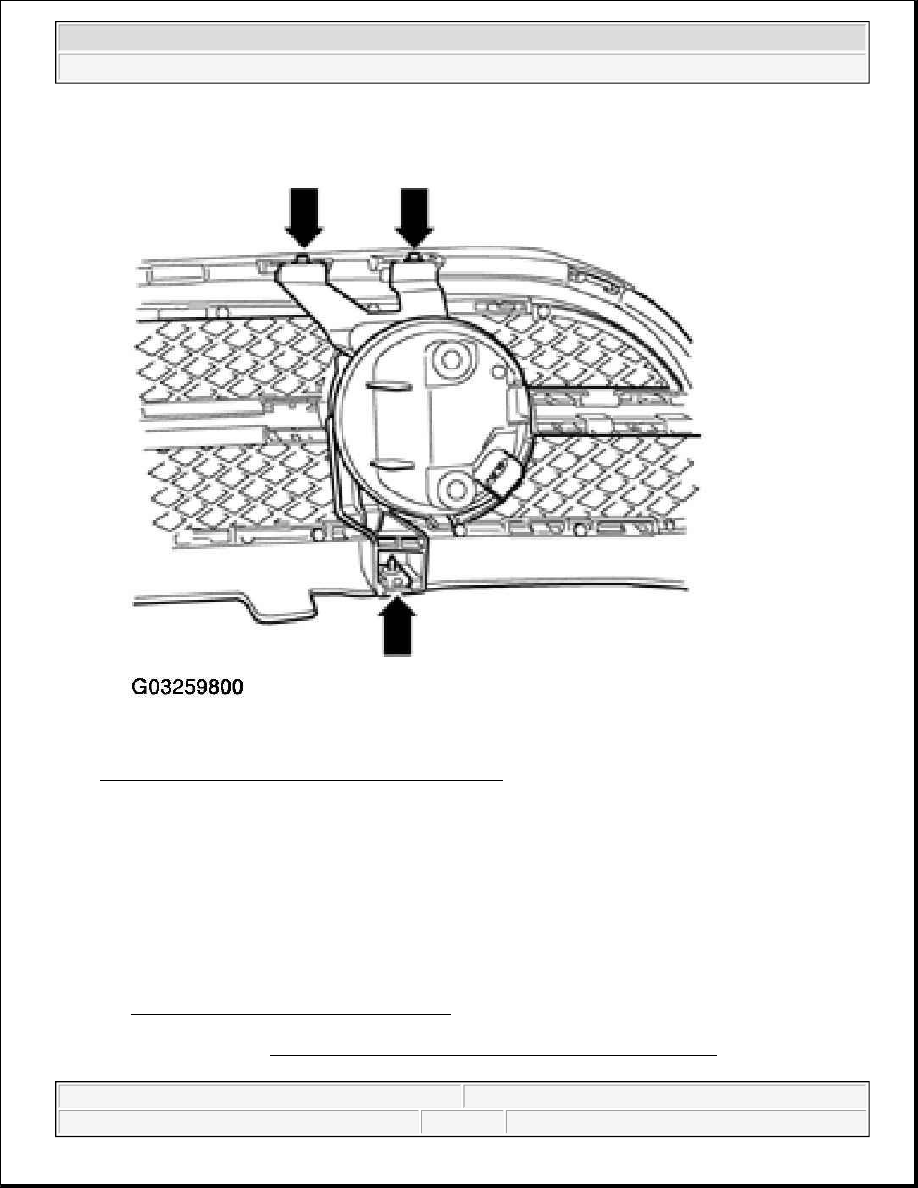

Fig. 14: Locating Fog Lamp Screws (Through 06.00)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove fog lamp assembly.

Installing

z

Insert fog lamp assembly into front bumper and secure with screws.

z

Connect electrical connection.

z

Reinstall front end.

See FRONT END, ASSEMBLY OVERVIEW .

z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check fog lamp aim



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



See HEADLIGHT ADJUSTMENT, CHECKING .

FOG LAMPS FROM 07.00, REMOVING AND INSTALLING.

Removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Disconnect electrical connections at fog lamp assembly.

z

Remove lower front air grille

See FRONT END, ASSEMBLY OVERVIEW .

z

Remove screws -arrows-.

z

Remove fog lamp assembly.

NOTE:

z

A revised front end with removable air grille was introduced from 07.00
production.

z

The air grille is unclipped from the lower portion of the front end and
removed together with the fog lamps.
