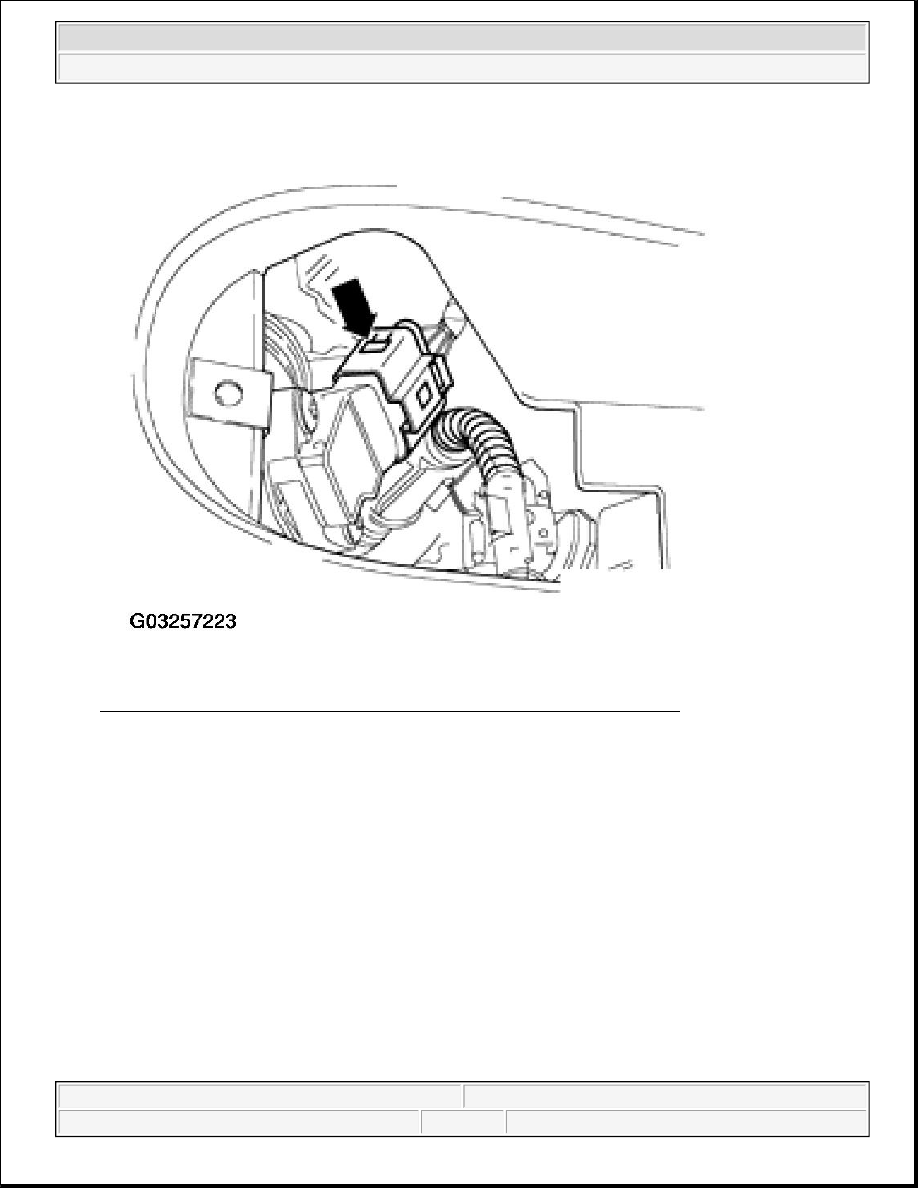

Fig. 10: Disconnecting Connector From Manifold Absolute Pressure Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove lower charge air pipe -1-.

z

Remove bolt/screw -2- and release connector (arrow).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW

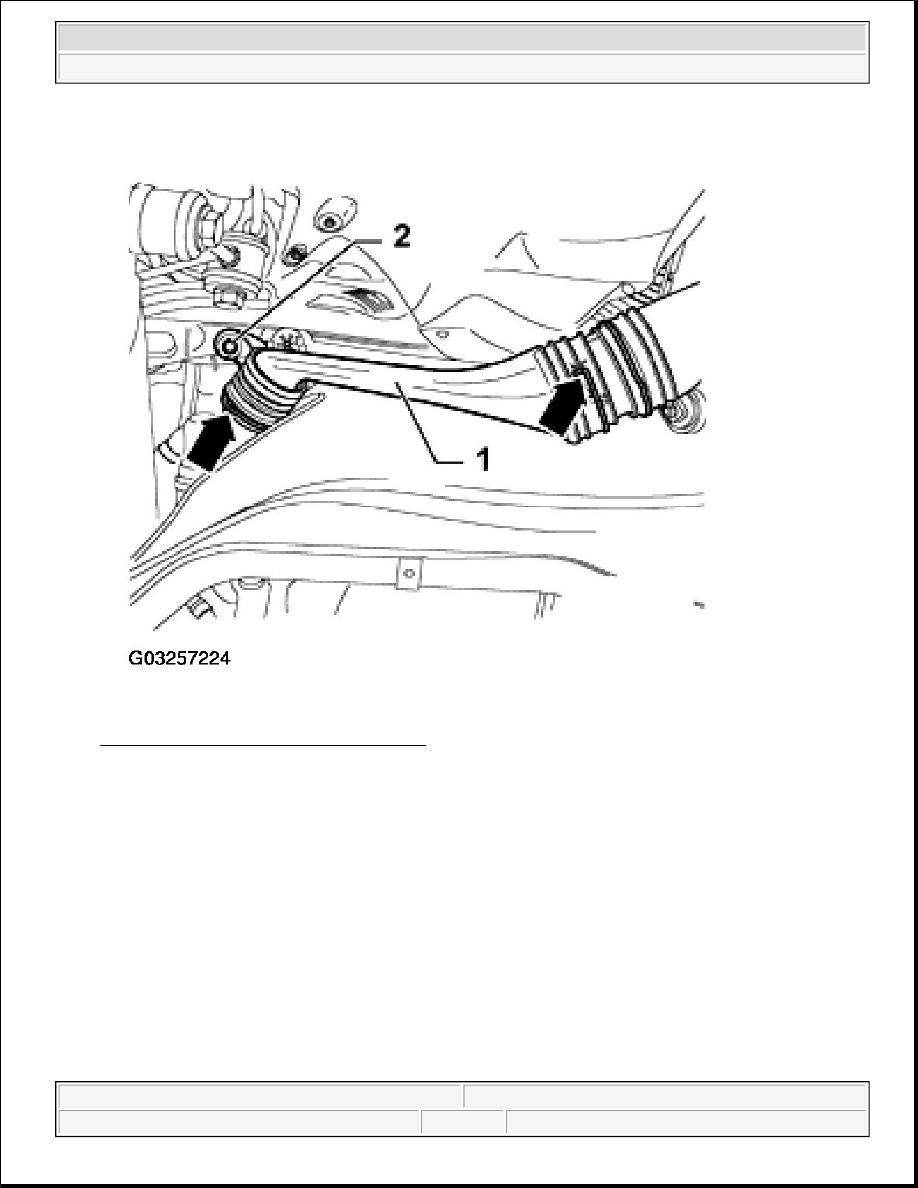

Fig. 11: Removing Lower Charge Air Pipe
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove center and right side sound insulation.

z

Remove charge air cooler securing bolts (arrows).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW

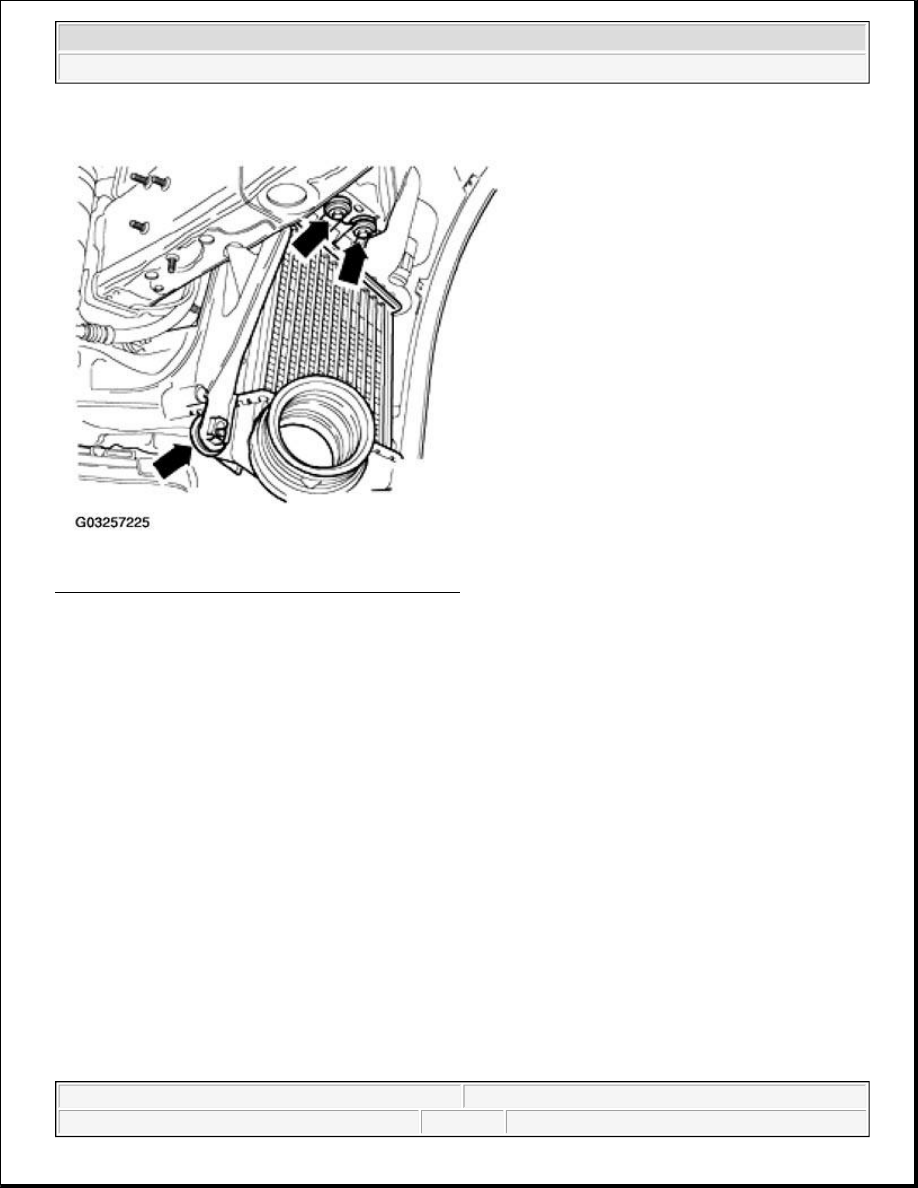

Fig. 12: Removing Charge Air Cooler Securing Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Install in reverse order.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



1998-2004 ENGINE PERFORMANCE

Turbocharger, G-Charger - New Beetle

TURBOCHARGER G-CHARGER

CHARGE AIR SYSTEM WITH TURBOCHARGER

Turbocharger with attachments, removing and installing

Observe rules for cleanliness. See RULES OF CLEANLINESS .

WARNING:

Observe the following for all installations, especially in engine
compartment due to dense construction:

z

Route lines of all types (e.g. for fuel, hydraulics, coolant and
refrigerant, brake fluid, vacuum) and electrical wiring so that the
original path is re-established.

z

Watch for sufficient clearance to all moving or hot components.

NOTE:

z

All hose connections are secured with clamps.

z

VAS5024A spring clip installation tool is recommended for installing
spring-type clamps.
