1. Vacuum unit

z

For variable intake manifold

2. Vacuum unit

z

For bypass flap for exhaust gas recirculation cooler

3. Vacuum unit

z

For charge pressure control

z

Integral part of turbocharger cannot be replaced

4. Intake Manifold Runner Control (IMRC) valve -N316-

z

Installed position, See Fig. 8

5. Non-return valve

z

White connection to distributor, item 8

6. Wastegate bypass regulator valve N75-

z

Installed position, See Fig. 8

7. Exhaust Gas Recirculation (EGR) cooler switch-over valve -N345-

z

Installed position, See Fig. 8

8. Distributor

9. Air cleaner

10. Vacuum union

z

Between tandem pump and brake booster

z

With non-return valve

11. Vacuum reservoir

NOTE:

The following list refers to items in Fig. 7 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW

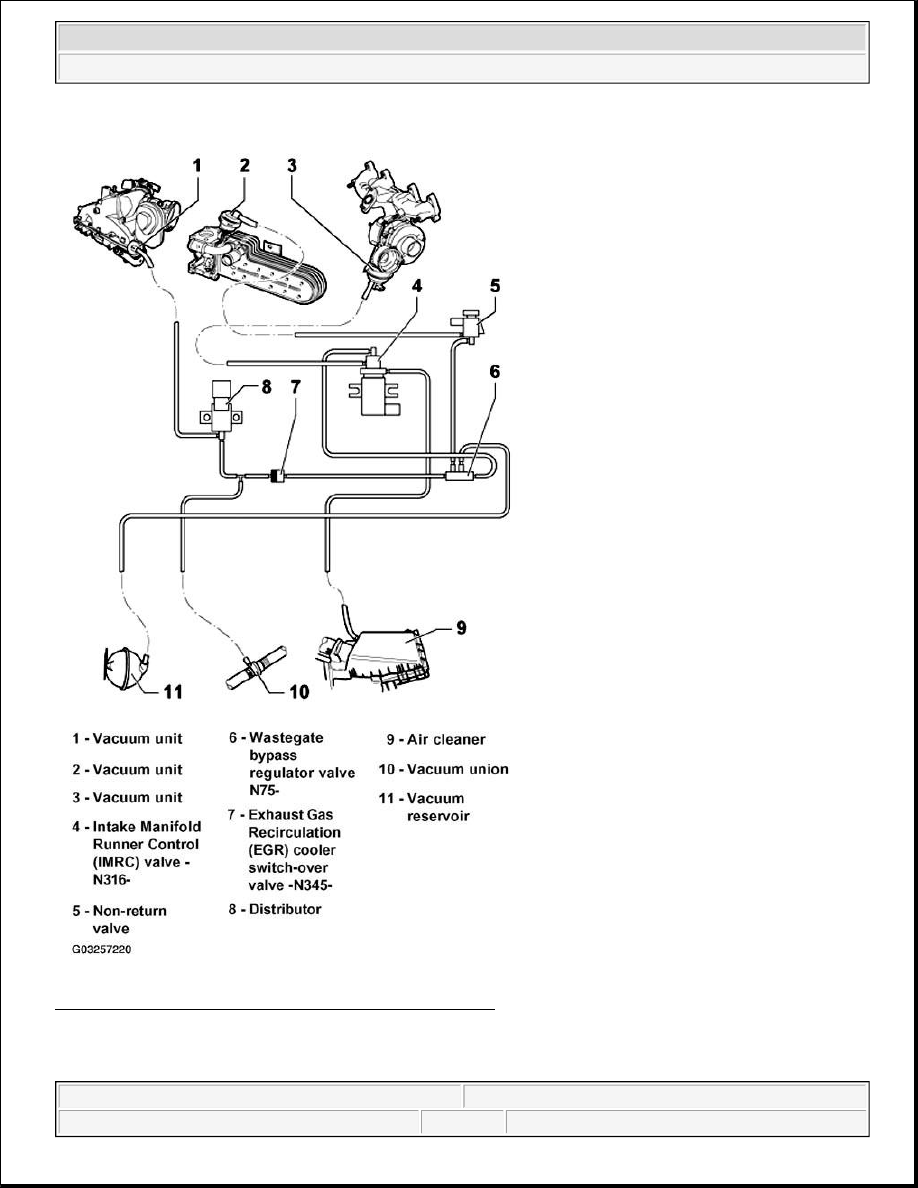

Fig. 7: Turbocharger Vacuum Hose Connection Diagram
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Solenoid valves, installed position



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



The bracket with the solenoid valves is installed onto plenum chamber sealing cover right side.

The valve connectors are not coded, only the protective sleeves are different.

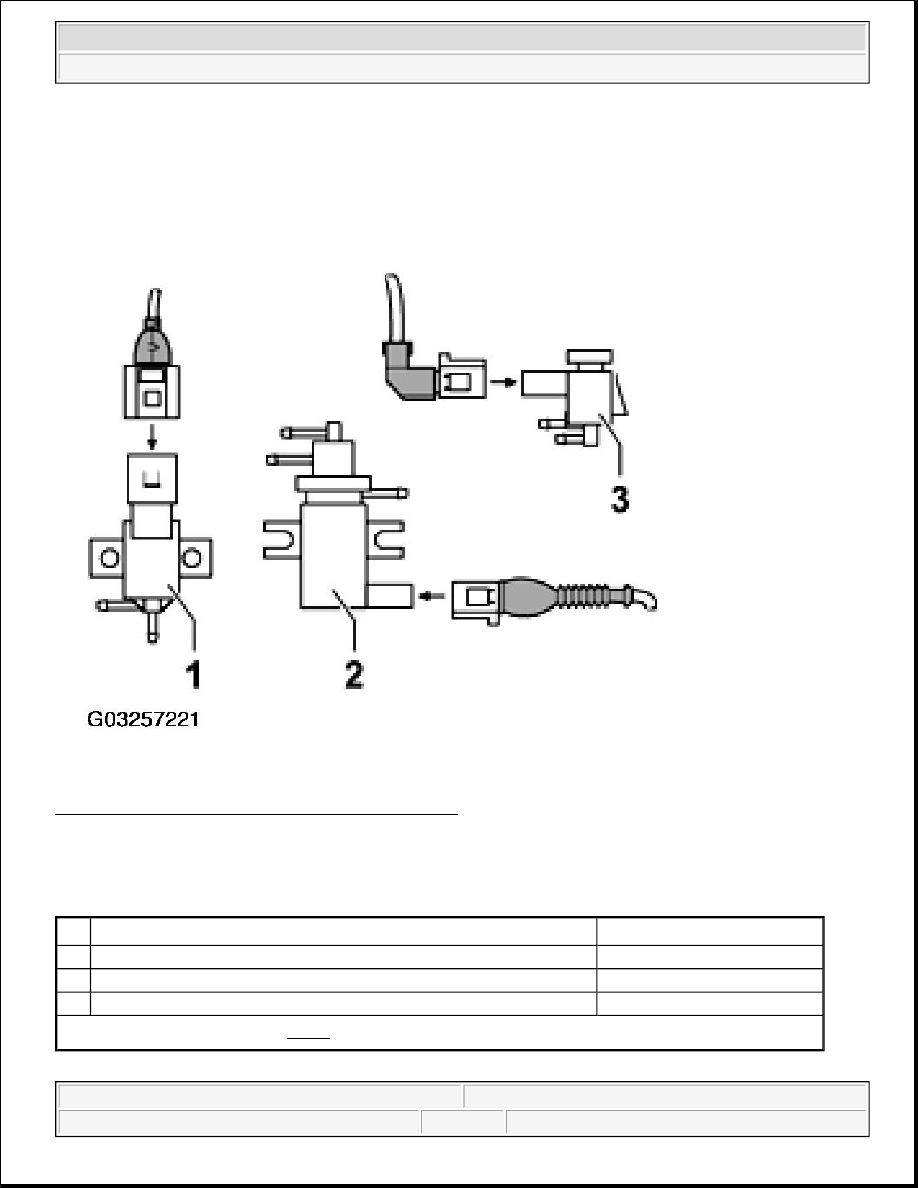

Fig. 8: Identifying Solenoid Valves Installed Position
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Connector application

SOLENOID VALVE CONNECTOR APPLICATION

No.

Component

(1)

 Connector

1

Intake Manifold Runner Control (IMRC) Valve -N316-

with straight protective sleeve

2

Wastegate Bypass Regulator Valve -N75-

with rubber grommet

3

Exhaust Gas Recirculation (EGR) Cooler Switch-over Valve -N345-

with angled protective sleeve

(1)

To identify connectors, see Fig. 8 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G-Charger - New Beetle, 1.9L 4-Cyl. - BEW



CHARGE AIR COOLER, REMOVING AND INSTALLING

Removing

z

Remove upper charge air pipe -1- with connecting hose -2- by removing bolt/screw -3- and releasing
connector (arrow).

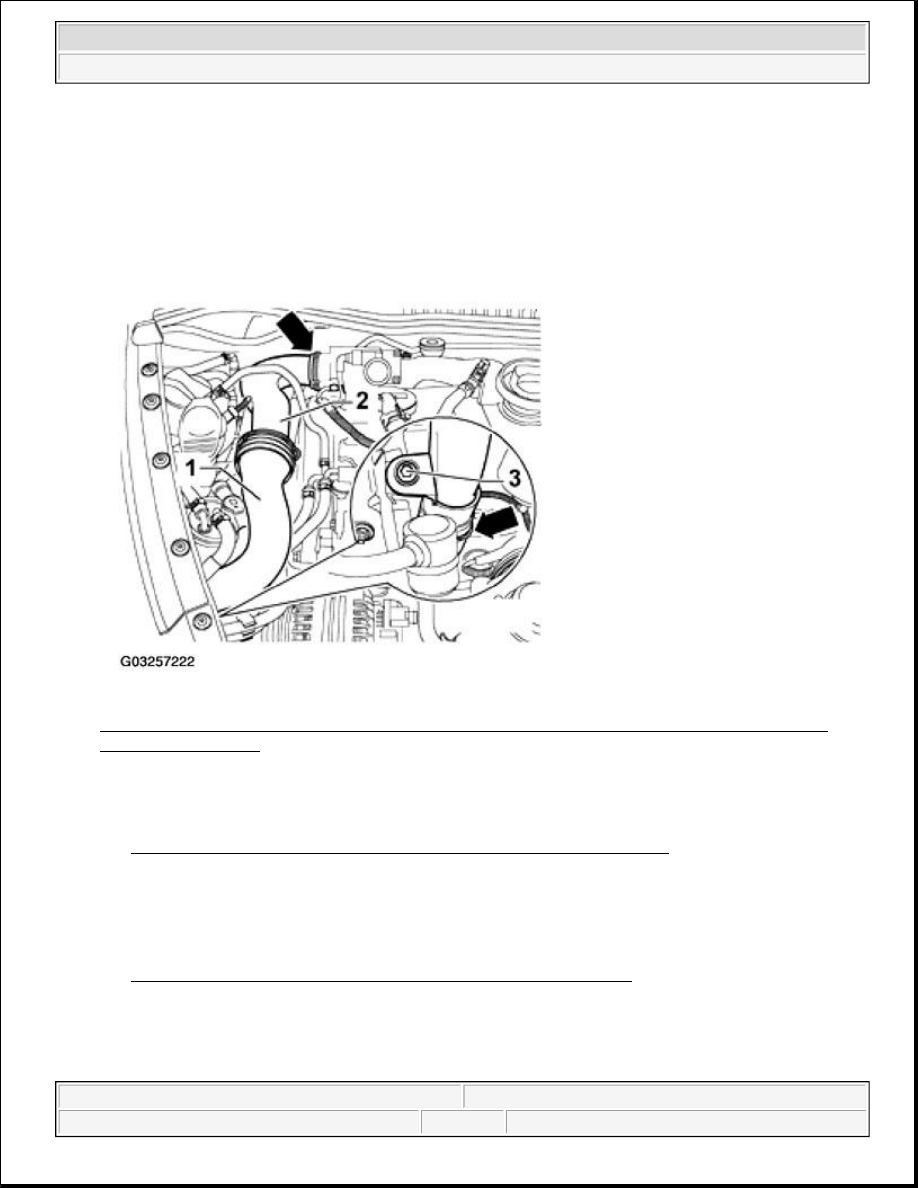

Fig. 9: Removing Upper Charge Air Pipe With Connecting Hose By Removing Bolt/Screw And
Releasing Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove front turn signal, right side.

See FRONT TURN SIGNAL LIGHTS, REMOVING AND INSTALLING .

z

Disconnect connector (arrow) from Manifold Absolute Pressure (MAP) sensor -G71- with Intake Air
Temperature (IAT) sensor -G72-.

z

Remove front right wheelhouse liner.

See FRONT WHEEL HOUSING LINER, ASSEMBLY OVERVIEW
