MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If no sensor malfunction is detected:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



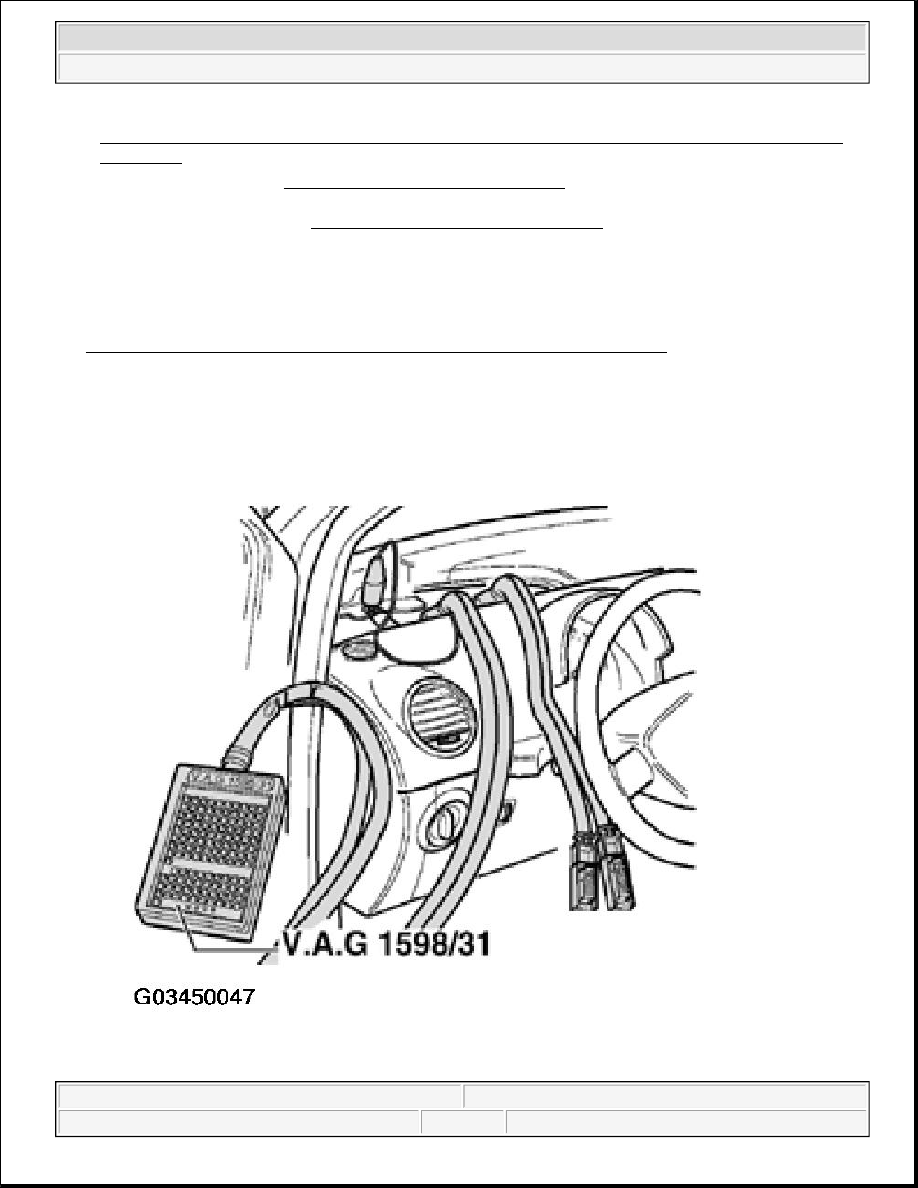

Fig. 72: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 3 -pin connector using Electrical Wiring Diagram.

z

terminal 1 + socket 108

z

terminal 2 + socket 90

z

terminal 3 + socket 82

Wire resistance: Max. 1.5

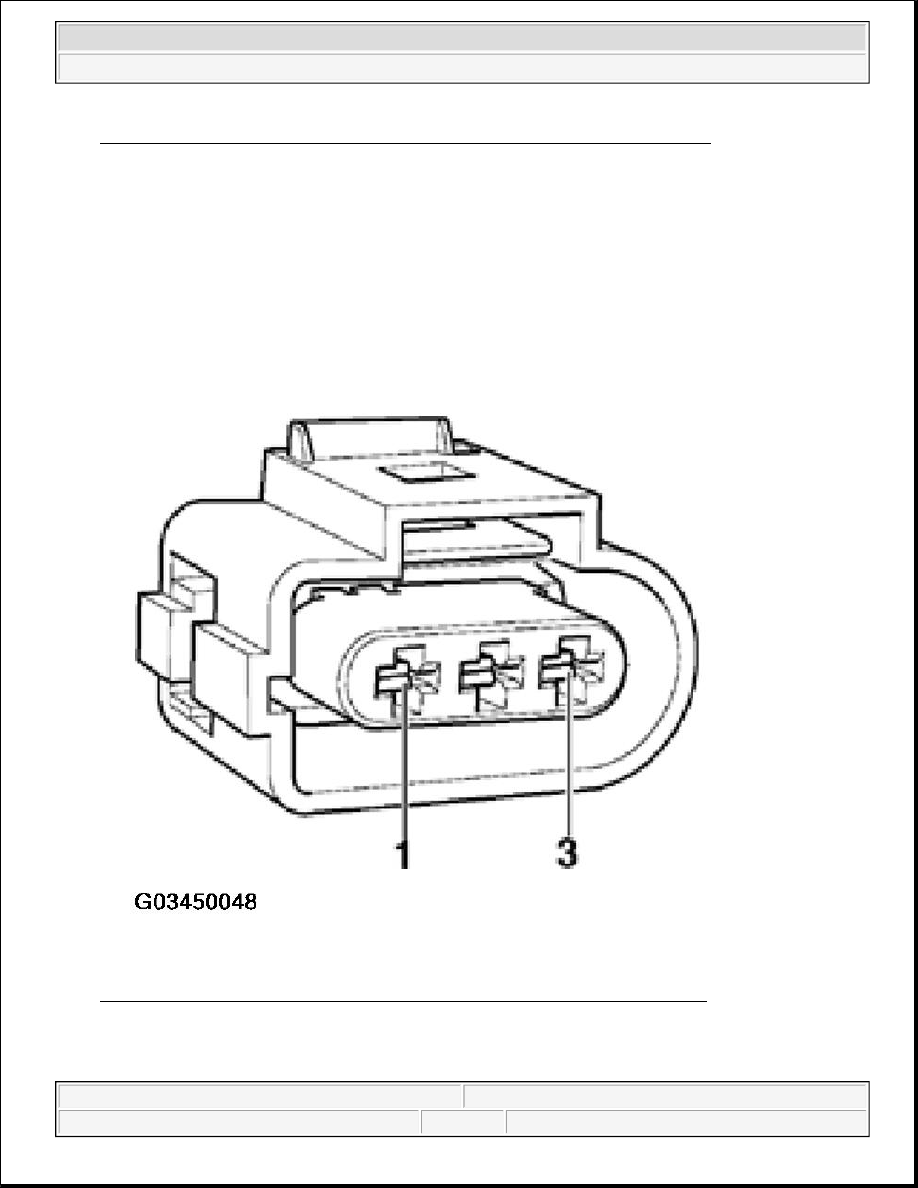

Fig. 73: Identifying Engine Speed (RPM) Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Additionally check wires for short to one another.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If no wiring malfunction is found:

z

Remove sensor and check sensor wheel for secure fit, damage and run -out.

If no malfunction is detected on sensor wheel:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .

Fuel injectors, checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1527 voltage tester

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder is located behind access panel at far left end of dash.

NOTE:

There is a larger gap on the sensor wheel. This gap is the reference mark
and does not mean that the sensor wheel is damaged.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

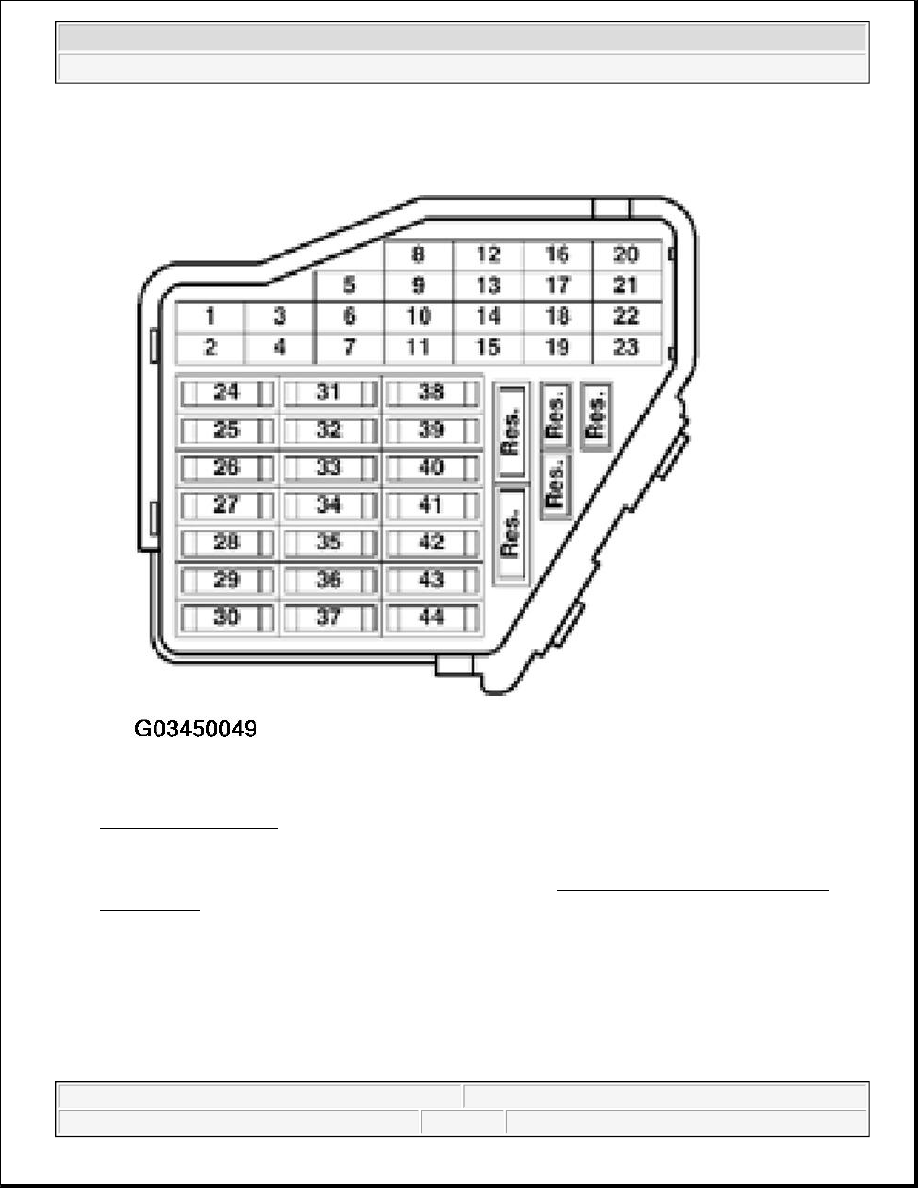

Fig. 74: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Engine Speed (RPM) Sensor -G28- must be OK, checking, see ENGINE SPEED (RPM) SENSOR,
CHECKING

z

Battery voltage must be at least 11.5 V

z

Fuel pump relay must be OK

Test sequence

Checking resistance of fuel injectors

z

Disconnect connectors from fuel injectors.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
