If the specification is not obtained:

z

Replace Intake Air Temperature (IAT) sensor -G42-, see item 26 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If there is no malfunction in the wiring and the resistance measurement values are OK:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .

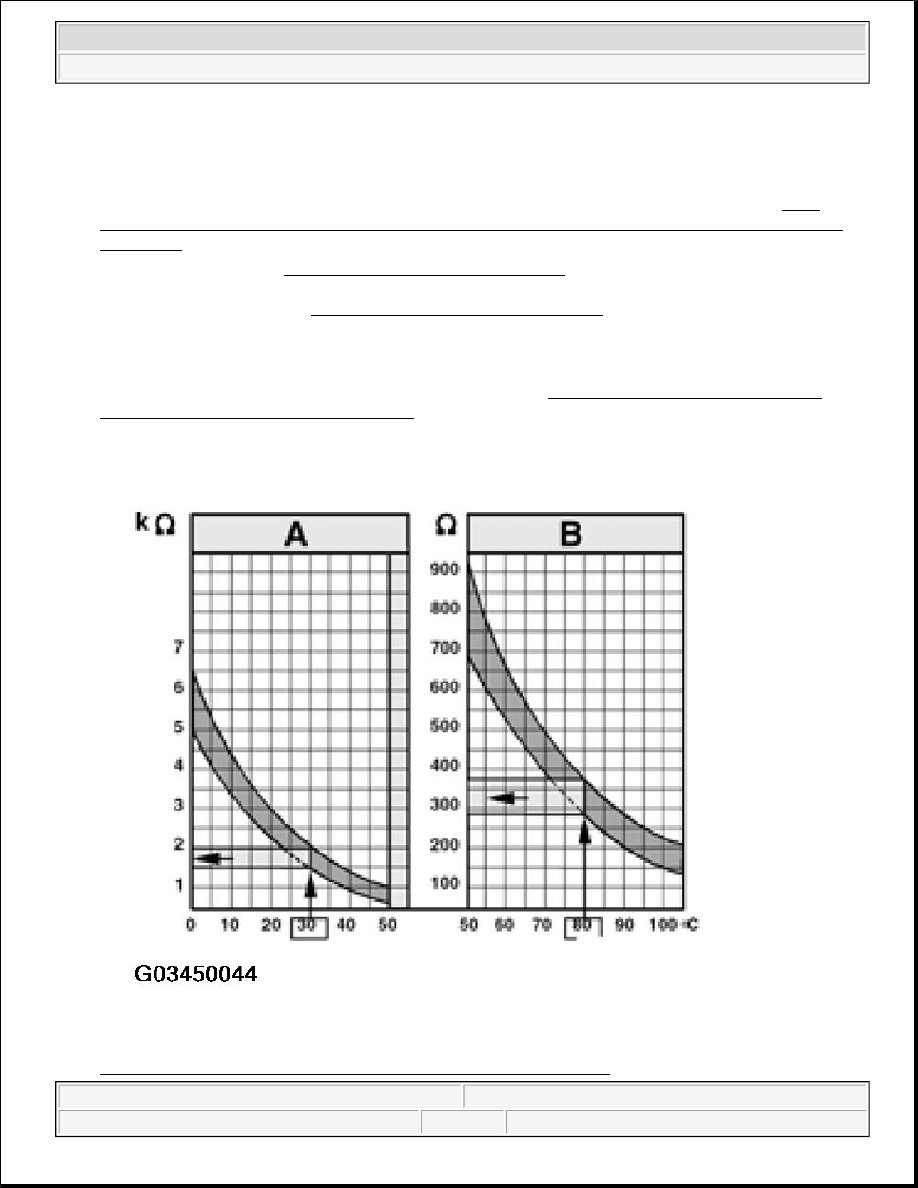

Fig. 69: IAT Sensor Resistance Versus Temperature Range Graph



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine speed (RPM) sensor, checking

The Engine Speed (RPM) Sensor -G28- is a speed and reference mark sensor. The engine will not start if there
is no speed signal. If the speed signal fails when the engine is running, it will cause the engine to stall
immediately.

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test sequence

z

Separate gray 3 -pin connector -1- to Engine Speed (RPM) Sensor -G28-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



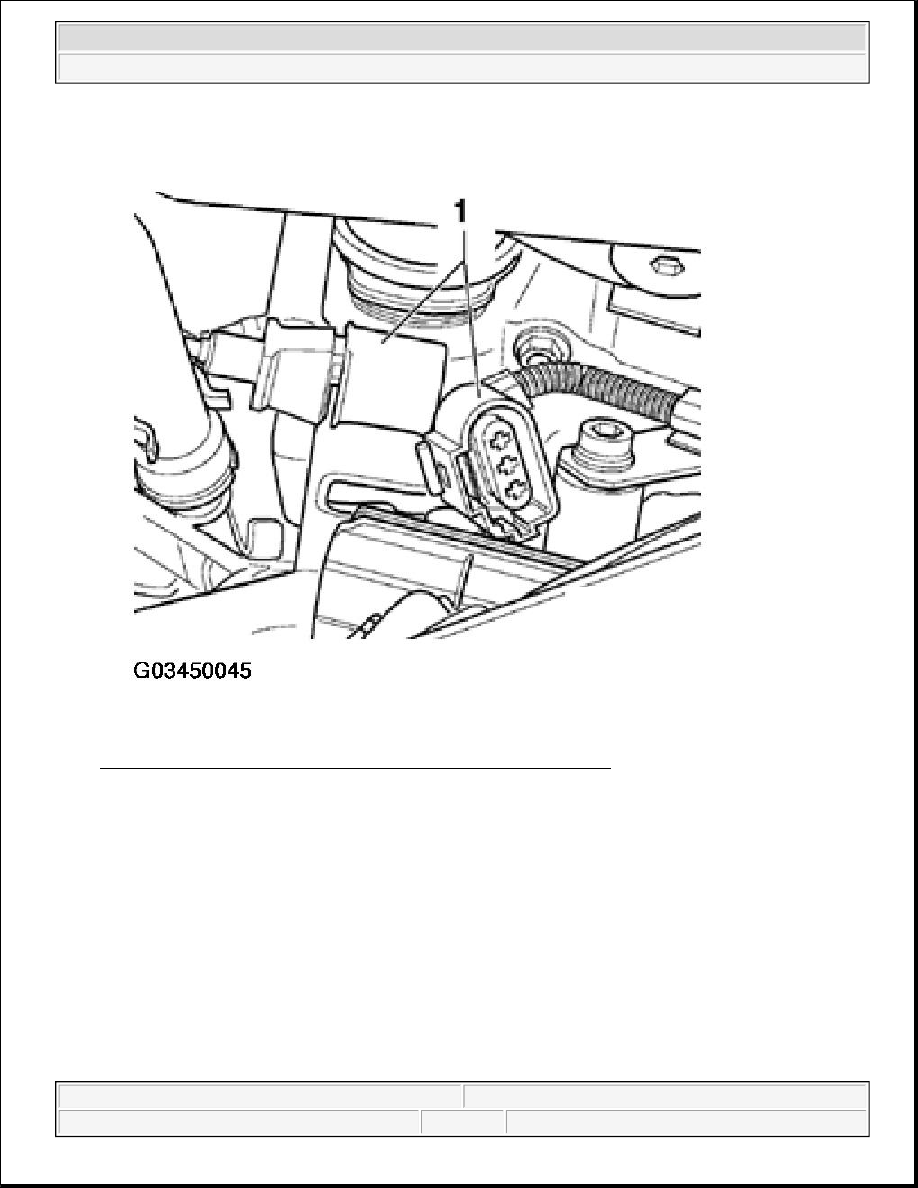

Fig. 70: Separating Pin Connector To Engine Speed (RPM) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure sensor resistance between terminals 2 + 3 of connector to sensor.

Specification: 730 to 1000 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



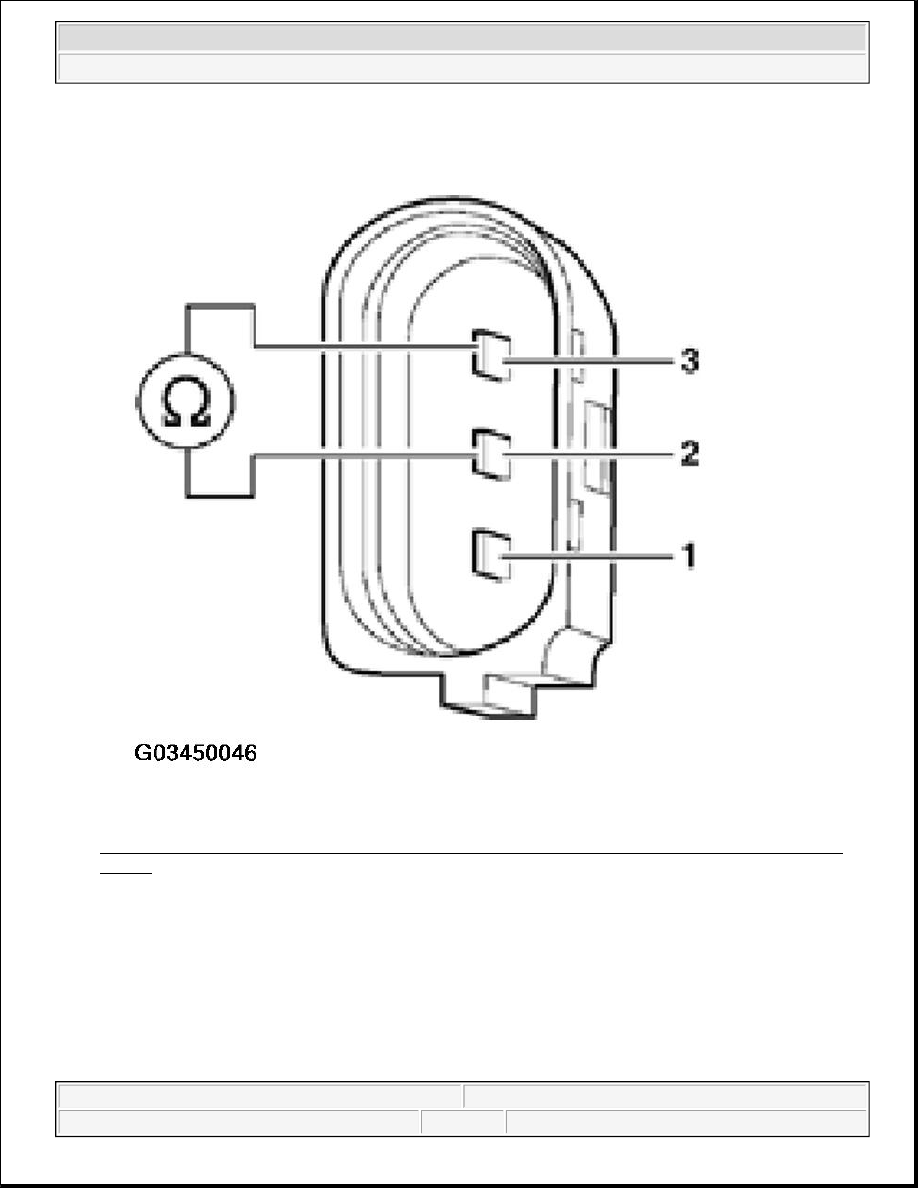

Fig. 71: Measuring Sensor Resistance Between Terminals Of Connector To Engine Speed (RPM)
Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check sensor for short between terminals 1 + 2 as well as 1 + 3.

Specification: INFINITY ohm

If the specifications are not obtained:

z

Replace Engine Speed (RPM) Sensor -G28-, see item 13 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
