Fig. 57: Identifying Scan Tool Display - Checking IAT Sensor (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

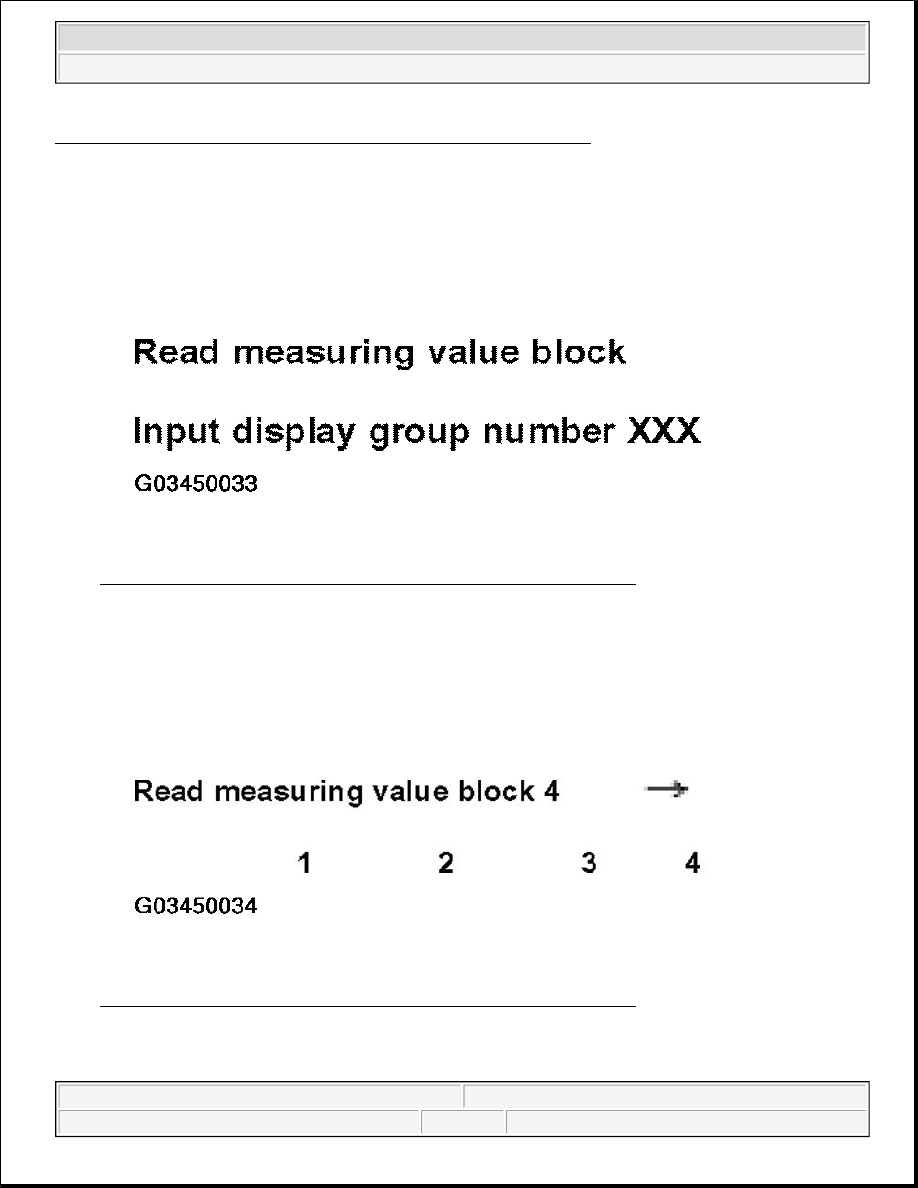

Fig. 58: Identifying Scan Tool Display - Checking IAT Sensor (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -4- for "Display group number 4" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)

Fig. 59: Identifying Scan Tool Display - Checking IAT Sensor (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Read off intake air temperature value in display zone 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: approx. ambient temperature

DISPLAY GROUP 4: GENERAL ENGINE DATA

If the specification is not obtained:

z

Perform check according to following table:

Evaluating display group 4, display zone 4 - Intake air temperature

EVALUATING DISPLAY GROUP 4, DISPLAY ZONE 4 - INTAKE AIR TEMPERATURE



Display zones

1

2

3

4

Display group 4: General engine data
Display

xxxx RPM

xx.xxx V

xxx.x °C

xxx.x °C

Indicated

Engine

speed (in

steps of 40)

Supply voltage for

Motronic Engine

Control Module (ECM)

-J220-

Engine Coolant

Temperature

(ECT)

Intake air temperature

Working
range

0 to 6800

RPM

12.000 to 15.000 V

-48.0 to 143.0 °C

-48.0 to 143.0 °C

Specification 760 to 810

RPM

(1)



700 to 750

RPM

(2)

12.000 to 15.000 V

-

Approx. ambient temperature

(3)

-

-

-

If the specification is not

obtained, see CHECKING

WIRING , Evaluating display

group 4

(1)

Engine idling at normal operating temperature for manual transmission

(2)

Engine idling at normal operating temperature for automatic transmission

(3)

If a temperature is displayed which is less than the ambient temperature of the sensor, check sensor
wiring for transfer resistances. When doing this be aware that when stationary the sensor can be
heated -up by radiated heat.

Display group: 4

Possible cause

Corrective action

Display zone: 4

Approx. -48.0 °C

(1)

z

Wiring open circuit or

short to positive

z

Continuation, see CHECKING WIRING

Approx. 143.0 °C

(1)

z

Short to Ground (GND)

z

Continuation, see CHECKING WIRING

Approx. ambient
temperature

z

Signal periodically

interrupted

z

Check sensor, see CHECKING WIRING ,

continuation for ambient temperature



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

Continuation of check when display = ambient temperature:

z

Disconnect 2-pin connector -arrow- from Intake Air Temperature (IAT) sensor -G42-.

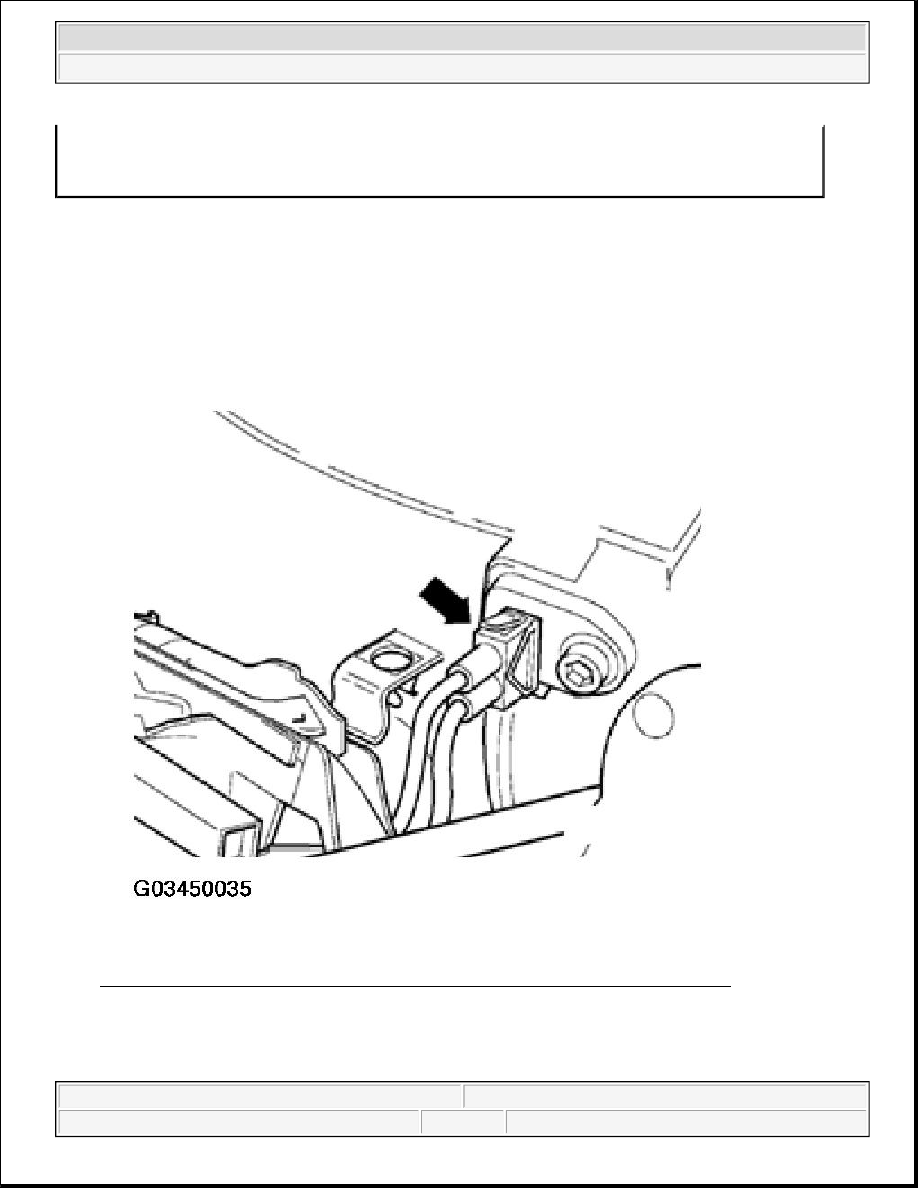

Fig. 60: Disconnecting Pin Connector From Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove Intake Air Temperature (IAT) sensor -arrow-.

(1)

If a temperature is displayed which is below the ambient air temperature of the sensor, check sensor
wiring for transfer resistances. Note when doing this that sensor is heated from external sources, e.g.
radiated heat when engine is not running.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

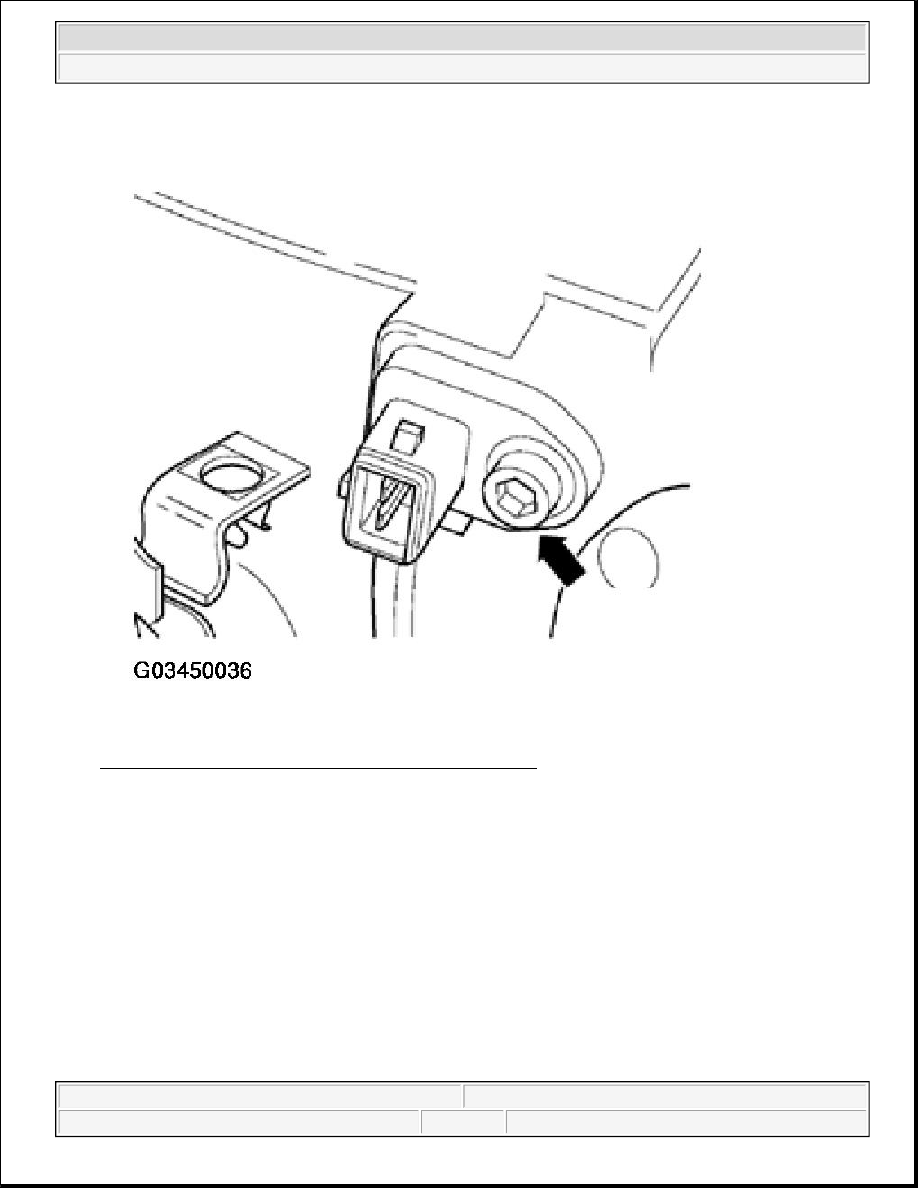

Fig. 61: Removing Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Re-connect 2-pin connector.

z

Note intake air temperature value in display zone 4.

z

Spray sensor -arrow- with commercial chilling agent while observing temperature value.
