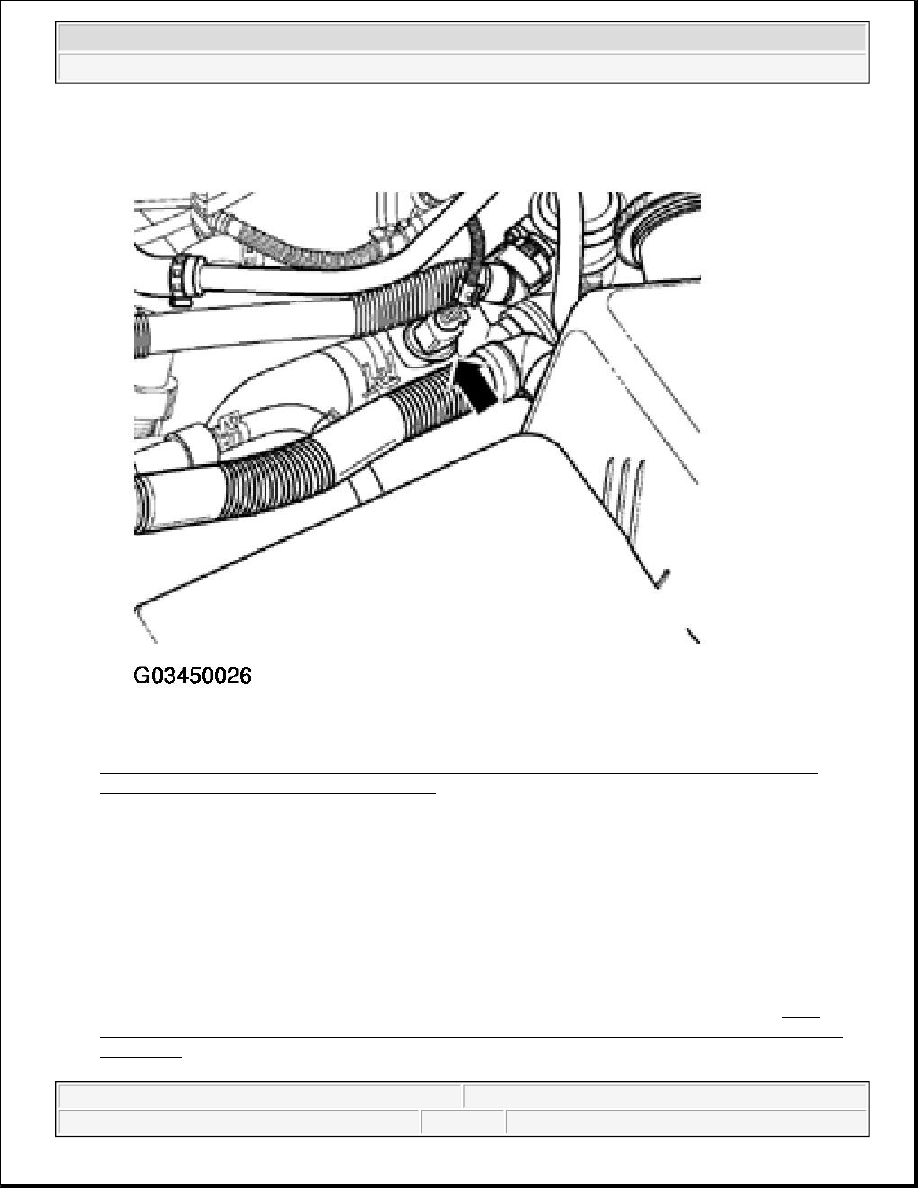

Fig. 51: Disconnecting Pin Connector From Engine Coolant Temperature (ECT) Sensor With
Engine Coolant Temperature (ECT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If display jumps to approx. -48.0 C:

z

Press -->button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

z

Replace Engine Coolant Temperature (ECT) sensor -G62- with Engine Coolant Temperature (ECT)
sensor -G2-, see item 28 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If display remains at approx. 143.0 °C:

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

z

Check wiring using Electrical Wiring Diagram, see CHECKING WIRING .

Checking wiring

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 52: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect 4-pin connector from Engine Coolant Temperature (ECT) sensor -G62- with Engine Coolant
Temperature (ECT) sensor -G2- -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



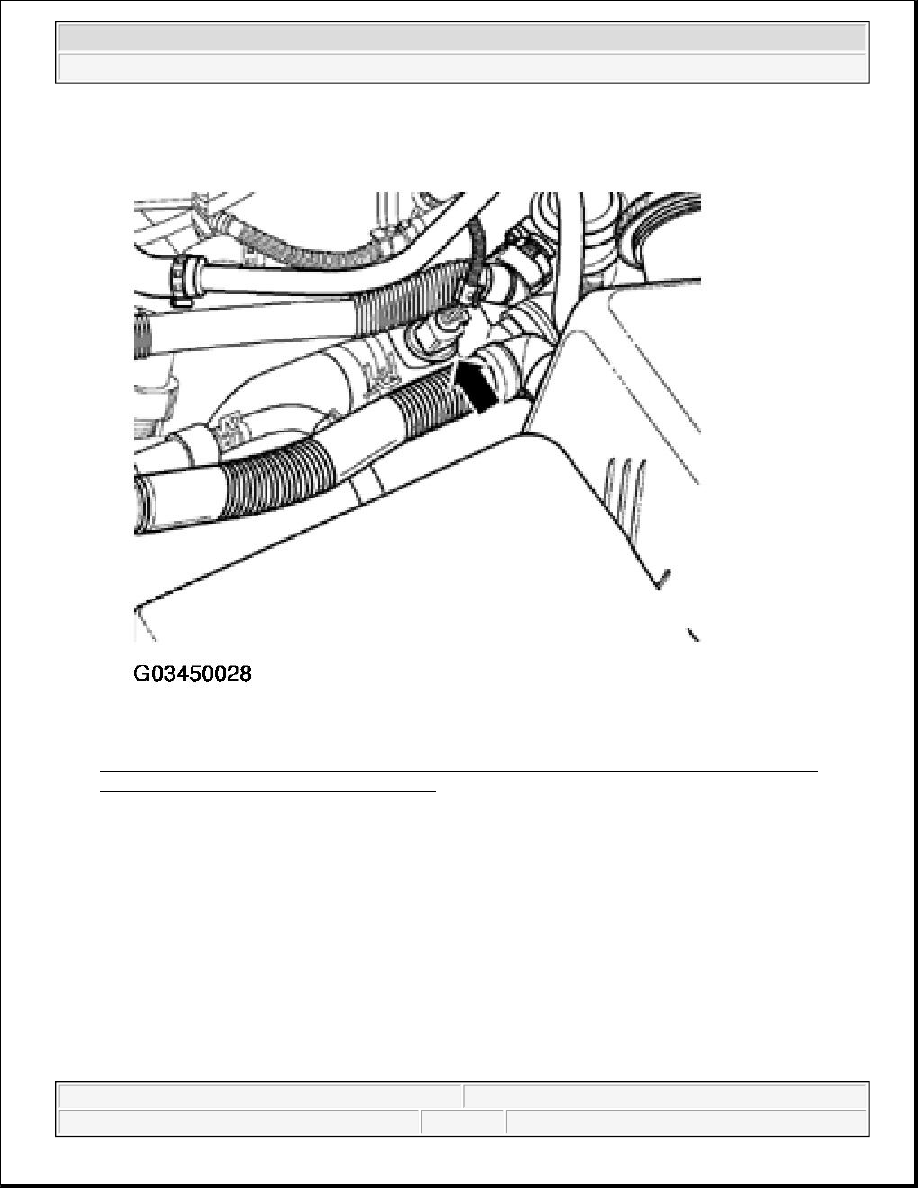

Fig. 53: Disconnecting Pin Connector From Engine Coolant Temperature (ECT) Sensor With
Engine Coolant Temperature (ECT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wire for open circuit between test box and 4 -pin connector using Electrical Wiring Diagram.

z

terminal 3 + Socket 93

z

terminal 4 + Socket 108

Wire resistance: max. 1.5
