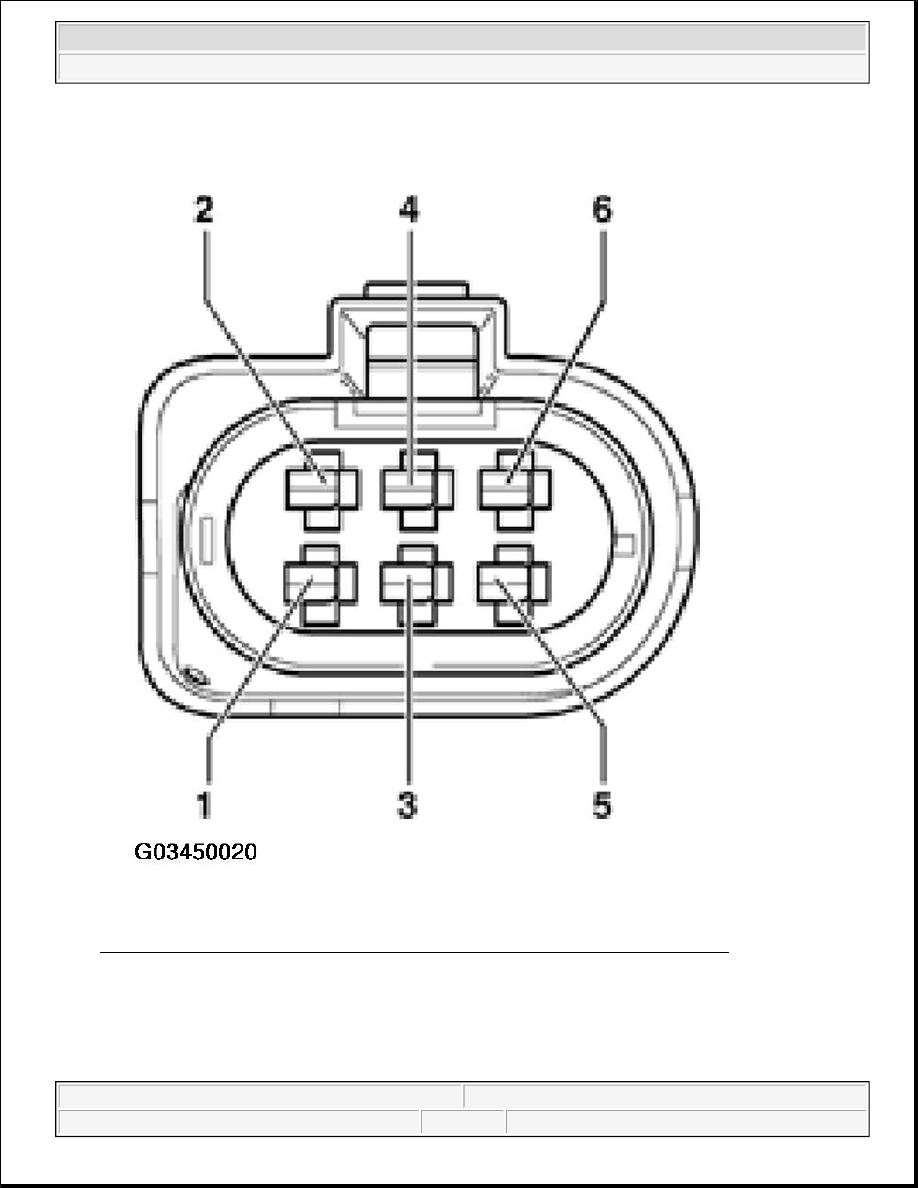

Fig. 45: Identifying Throttle Valve Control Module Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine Coolant Temperature (ECT) sensor -G62-, checking

NOTE:

The Motronic Engine Control Module (ECM) - J220- will use a replacement
temperature value for an engine start as soon as there is a DTC stored in the



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

Engine must be cold

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module with "Address word" 01. Connecting scan tool and selecting Motronic Engine Control Module
(ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC ENGINE
CONTROL MODULE (ECM) -J220- .

Indicated on display

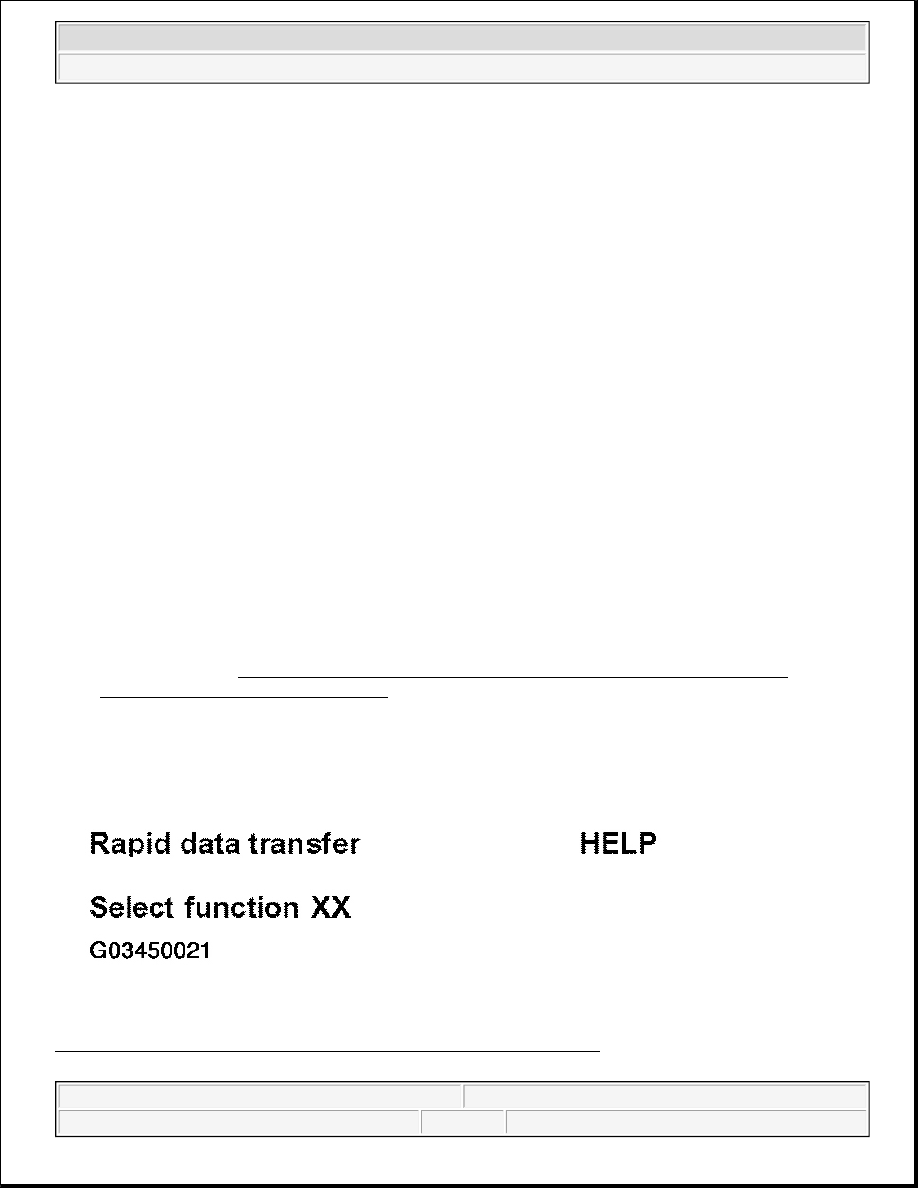

Fig. 46: Identifying Scan Tool Display - ECT Sensor, Checking (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DTC memory which affects the Engine Coolant Temperature (ECT) sensor -
G62-. The temperature then rises according to a model stored in the ECM. When
the engine has reached normal working temperature a fixed replacement value
will be displayed after a certain period. This fixed value is also dependent on
intake air temperature.

NOTE:

Only gold-plated terminals must be used to repair the terminals 3 and 4 in the
connector for the Engine Coolant Temperature (ECT) sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

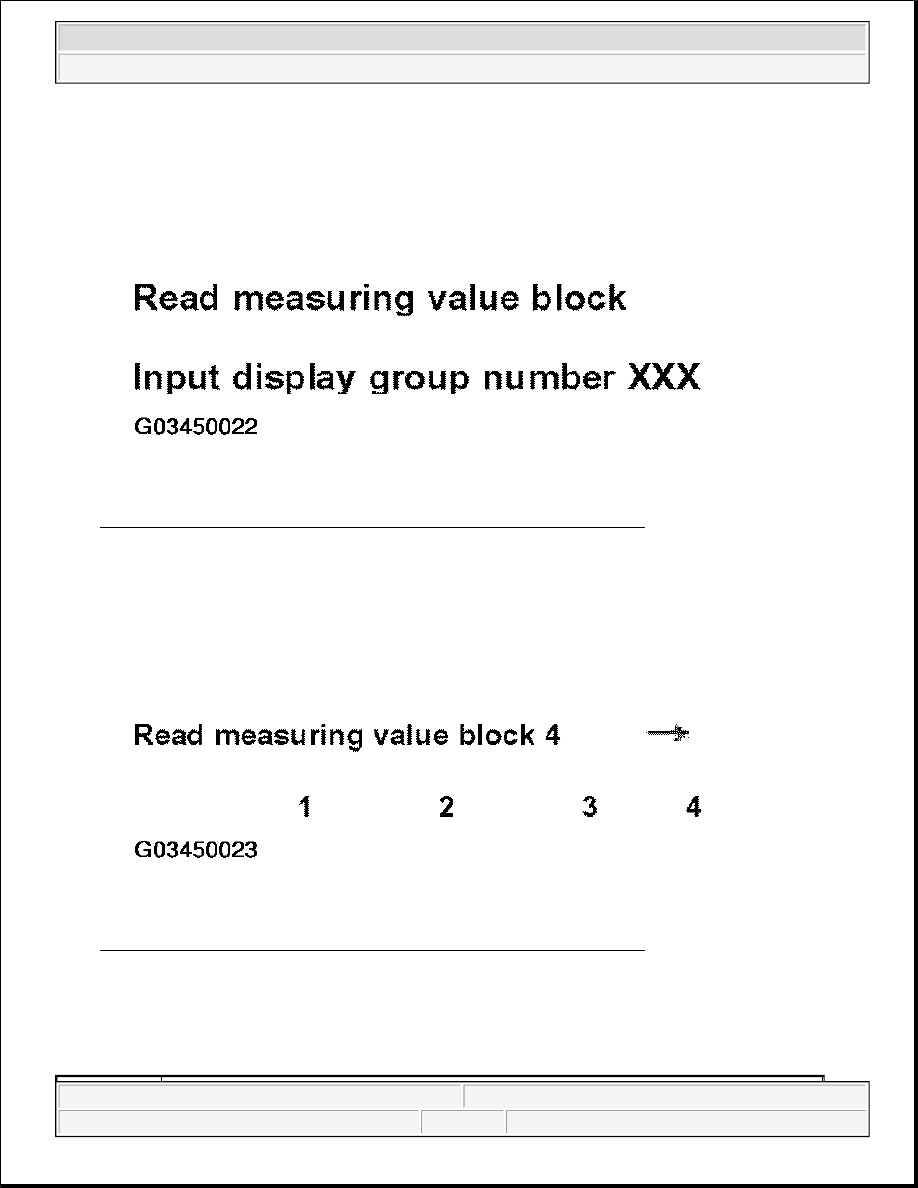

Fig. 47: Identifying Scan Tool Display - ECT Sensor, Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -4- for "Display group number 4" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)

Fig. 48: Identifying Scan Tool Display - ECT Sensor, Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Read Engine Coolant Temperature (ECT) value in display zone 3. Specification: approx. Engine Coolant
Temperature (ECT)

DISPLAY GROUP 4: GENERAL ENGINE DATA



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is not obtained:

z

Perform check according to following table:

Evaluating display group 4, display zone 3 - Engine Coolant Temperature (ECT)

EVALUATING DISPLAY GROUP 4, DISPLAY ZONE 3 - ENGINE COOLANT TEMPERATURE
(ECT)



Display zones

1

2

3

4

Display group 4: General engine data
Display

xxxx RPM

xx.xxx V

xxx.x °C

xxx.x °C

Indicated

Engine

speed (in

steps of

40)

Supply voltage for

Motronic Engine

Control Module

(ECM) -J220-

Engine Coolant Temperature (ECT)

Intake air

temperature

Working
range

0 to 6800

RPM

12.000 to 15.000 V

-48.0 to 143.0 °C

-48.0 to

143.0 °C

Specification 760 to 810

RPM

(1)



700 to 750

RPM

(2)

12.000 to 15.000 V

Approx. ambient air temperature

(3)

-

-

-

If the specifications are not obtained, see

CONTINUATION OF CHECK WHEN

DISPLAY APPROX. - 48 °C: ,

Evaluating display group 4

-

(1)

Engine idling at normal operating temperature for manual transmission

(2)

Engine idling at normal operating temperature for automatic transmission

(3)

If a temperature is displayed which deviates greatly from the ambient temperature of the sensor,
check sensor wiring for transfer resistances/open circuit.

Display
group: 4

Possible cause

Corrective action

Display zone:
3
Approx. -48.0
°C

(1)

z

Wiring open circuit or

short to positive

z

Continuation, see CONTINUATION OF CHECK

WHEN DISPLAY APPROX. - 48 °C:

Approx. 143.0
°C

(1)

z

Short to Ground

(GND)

z

Continuation, see CHECKING WIRING

(1)

If a temperature is displayed which deviates greatly from the ambient temperature of the sensor,
check sensor wiring for transfer resistances. Note when doing this that sensor is heated from external
sources, e.g. radiated heat when engine is not running.
