Volkswagen New Beetle. Manual - part 1660

Fig. 17: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test sequence

z

Connect VAG 1551 scan tool (or VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- .

Indicated on display

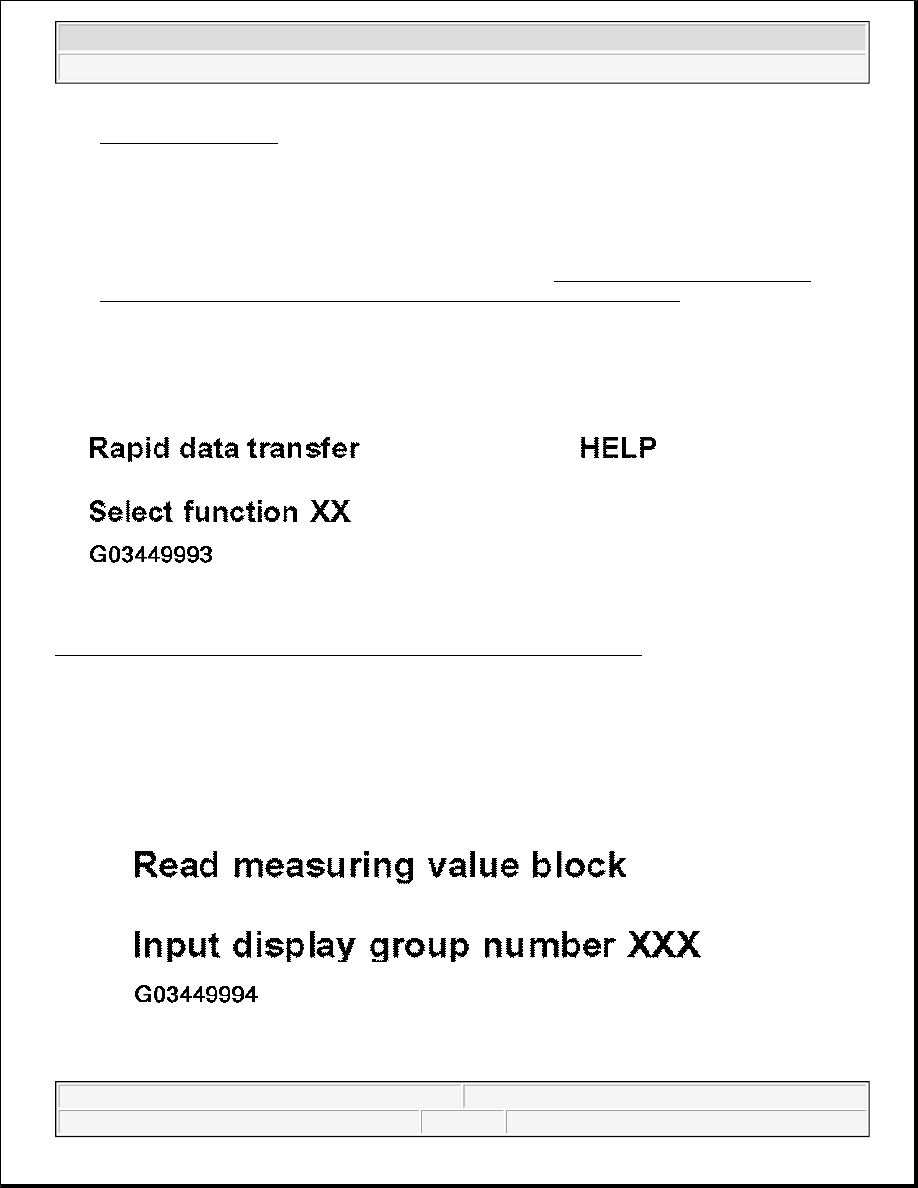

Fig. 18: Identifying Scan Tool Display - Checking HO2S After TWC (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 19: Identifying Scan Tool Display - Checking HO2S After TWC (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -4- and -1- for "Display group number 41" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)

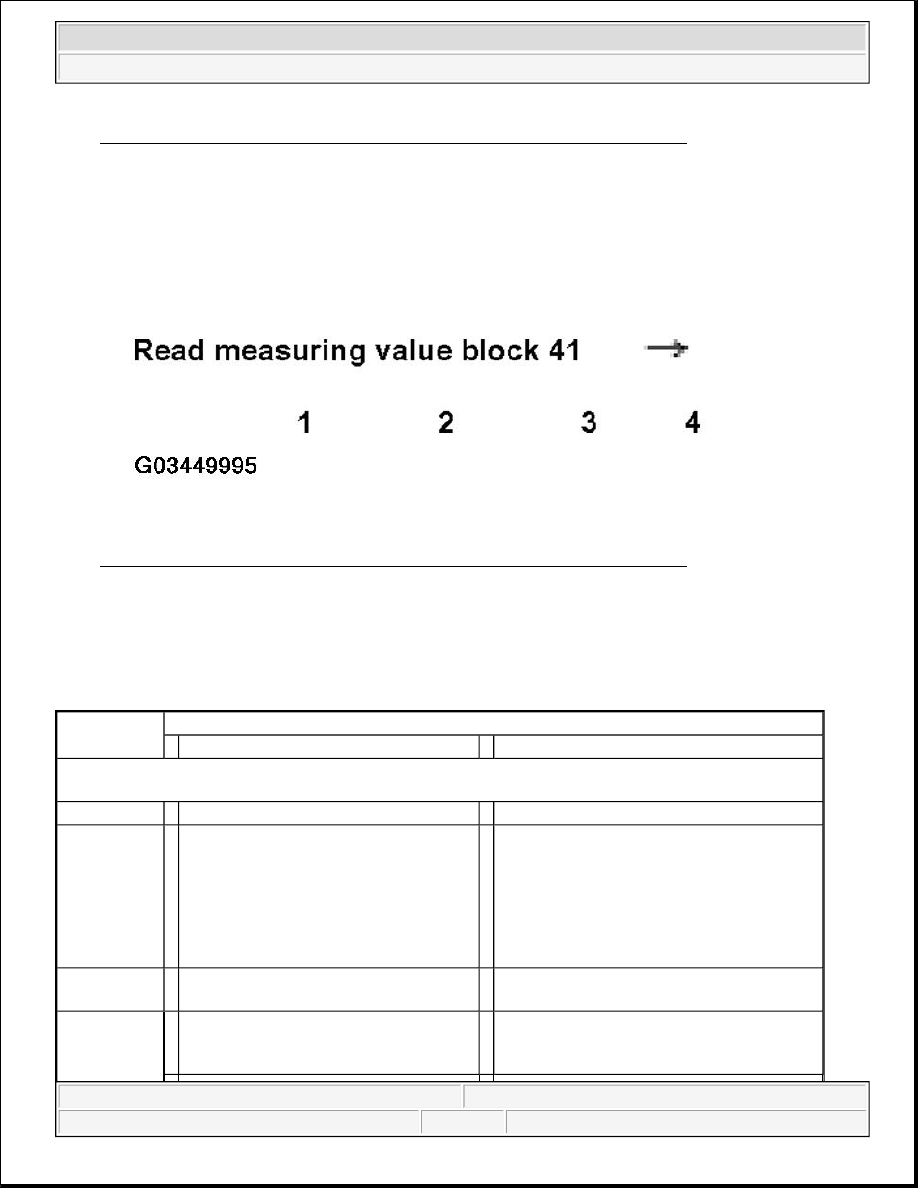

Fig. 20: Identifying Scan Tool Display - Checking HO2S After TWC (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check status of Heated Oxygen Sensor (HO2S) behind Three Way Catalytic Converter (TWC) in display
field 4: Display: Htg.aC.ON, Htg.aC.OFF (alternating)

DISPLAY GROUP 41: HEATED OXYGEN SENSOR (HO2S) BEFORE AND AFTER THREE WAY
CATALYTIC CONVERTER (TWC)



Display zones

1

2

3

4

Display group 41: Heated Oxygen Sensor (HO2S) before and after Three Way Catalytic Converter
(TWC)
Display

-

Htg.bC.ON / Htg.bC.OFF

-

Htg.aC.ON / Htg.aC.OFF

Indicated

- Heated Oxygen Sensor (HO2S) before

Three Way Catalytic Converter (TWC)

ON

or

Heated Oxygen Sensor (HO2S) before

Three Way Catalytic Converter (TWC)

OFF

-

Heated Oxygen Sensor (HO2S) after Three

Way Catalytic Converter (TWC) ON

or

Heated Oxygen Sensor (HO2S) after Three

Way Catalytic Converter (TWC) OFF

Working
range

-

-

-

-

Specification -

-

-

Htg.aC.ON

Htg.aC.OFF

(occasionally alternating)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the specifications are not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Remove protective cover -arrows- and separate 4-pin connector (brown/black) -1- to Oxygen sensor after
Three Way Catalytic Converter (TWC) -G130-.

-

-

-

If the specification is not achieved, see

CHECKING VOLTAGE SUPPLY ,

Continuation

NOTE:

The Heated Oxygen Sensor (HO2S) may be switched ON or OFF depending on
the operating conditions of the engine, therefore the display in display zone 4
may show "Htg.aC.ON" or alternating from "Htg.aC.ON" to "Htg.aC.OFF."



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

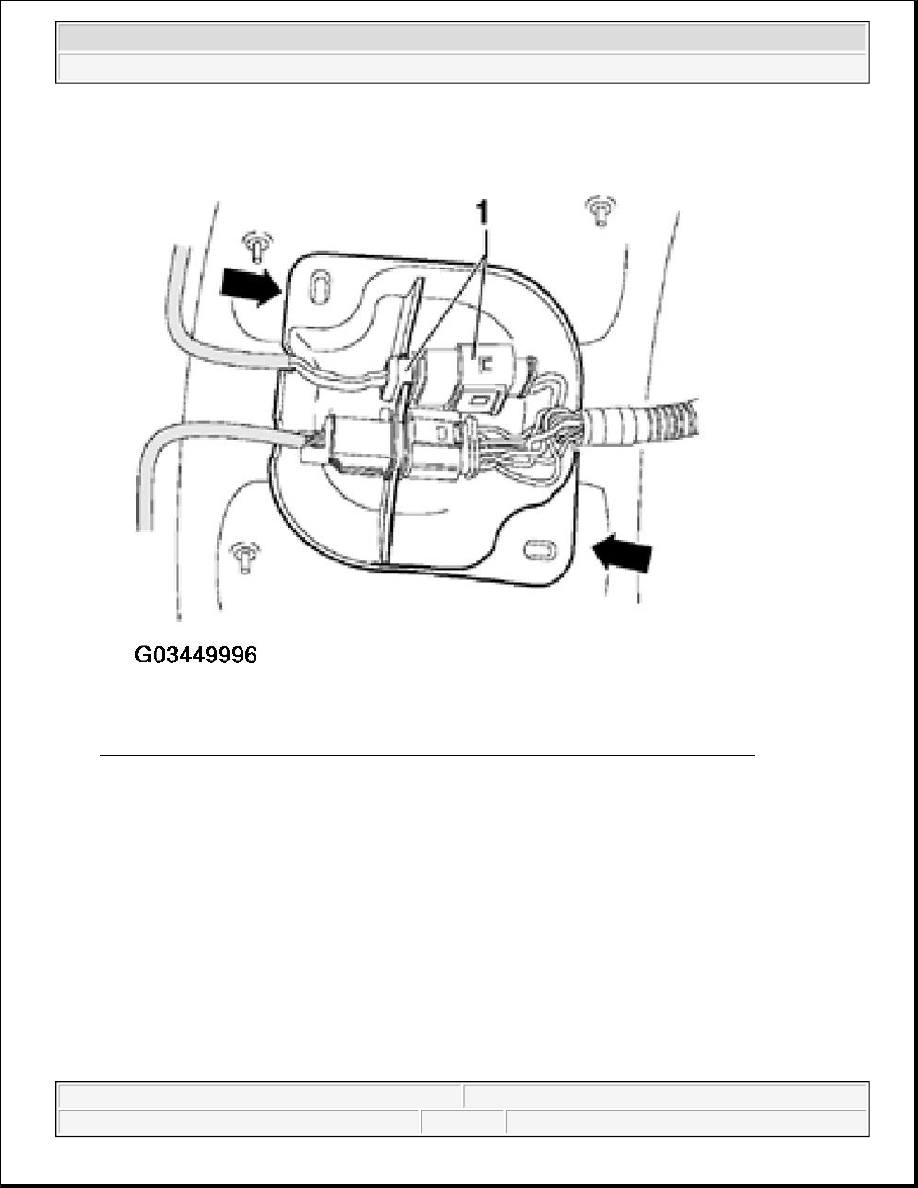

Fig. 21: Separating 4-Pin Connector (Brown/Black) -1- For HO2S -G130- After TWC
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Set multimeter to check resistance and connect it to terminals 1 + 2 of Oxygen Sensor connector. Check
Oxygen Sensor heating for continuity



2003 Volkswagen New Beetle GLS
