Fig. 14: Measuring Voltage Between Terminal 3 And 4 On HO2S -G39- Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure voltage supply and note display group 41, display zone 2.

Display: Htg.bC.ON:

z

Specification: 11.0 to 14.5 V

Display: Htg. bC.ON/Htg.bC.OFF (alternating):

z

Specification: Between 0.0 to 12.0 V fluctuating

z

Switch off ignition.

If no voltage is present:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 15: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 6 -pin connector according to Electrical Wiring
Diagrams.

terminal 4 + socket 5

Wire resistance: Max. 1.5

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

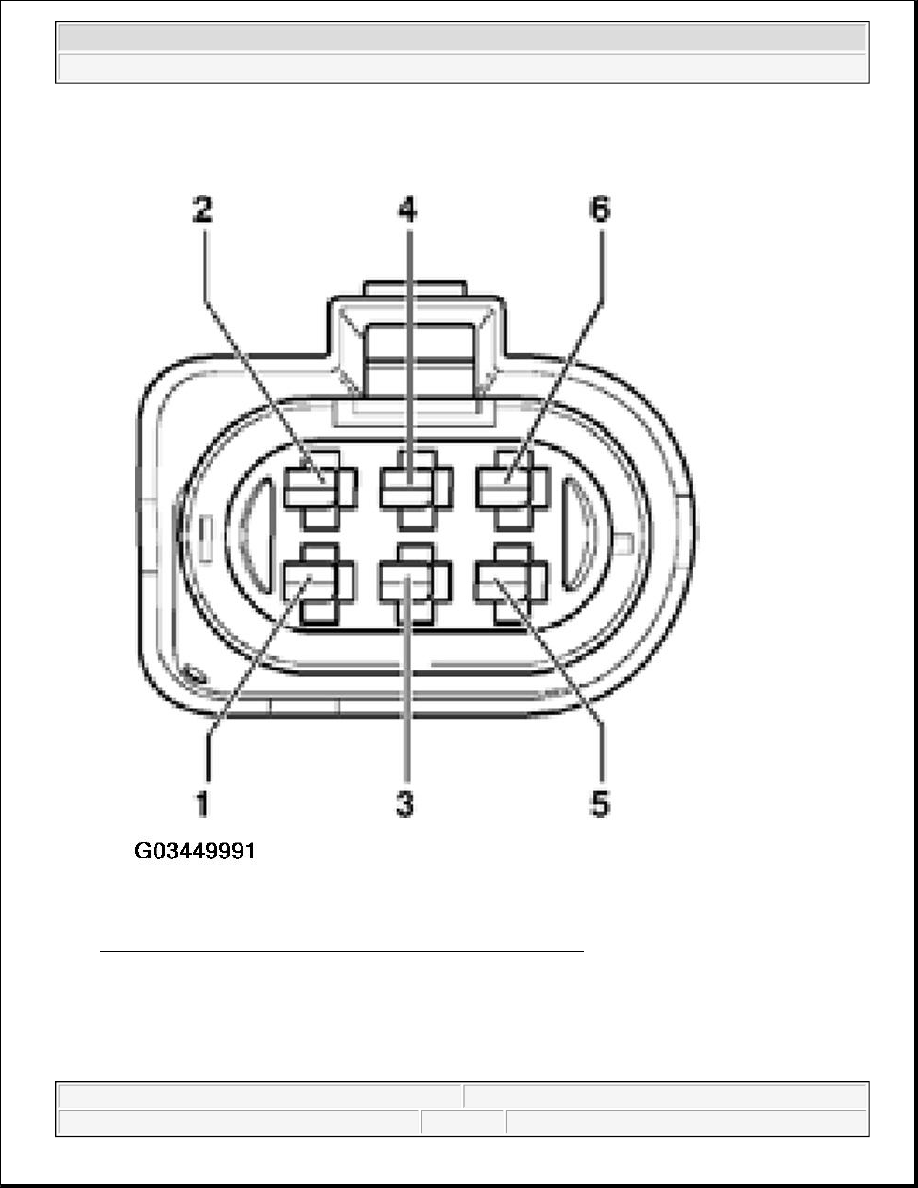

Fig. 16: Identifying HO2S -G39- Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Heated Oxygen Sensor (HO2S) for oxygen sensor after Three Way Catalytic Converter (TWC), checking

Special tools, test equipment and auxiliary items



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagrams

Test conditions

z

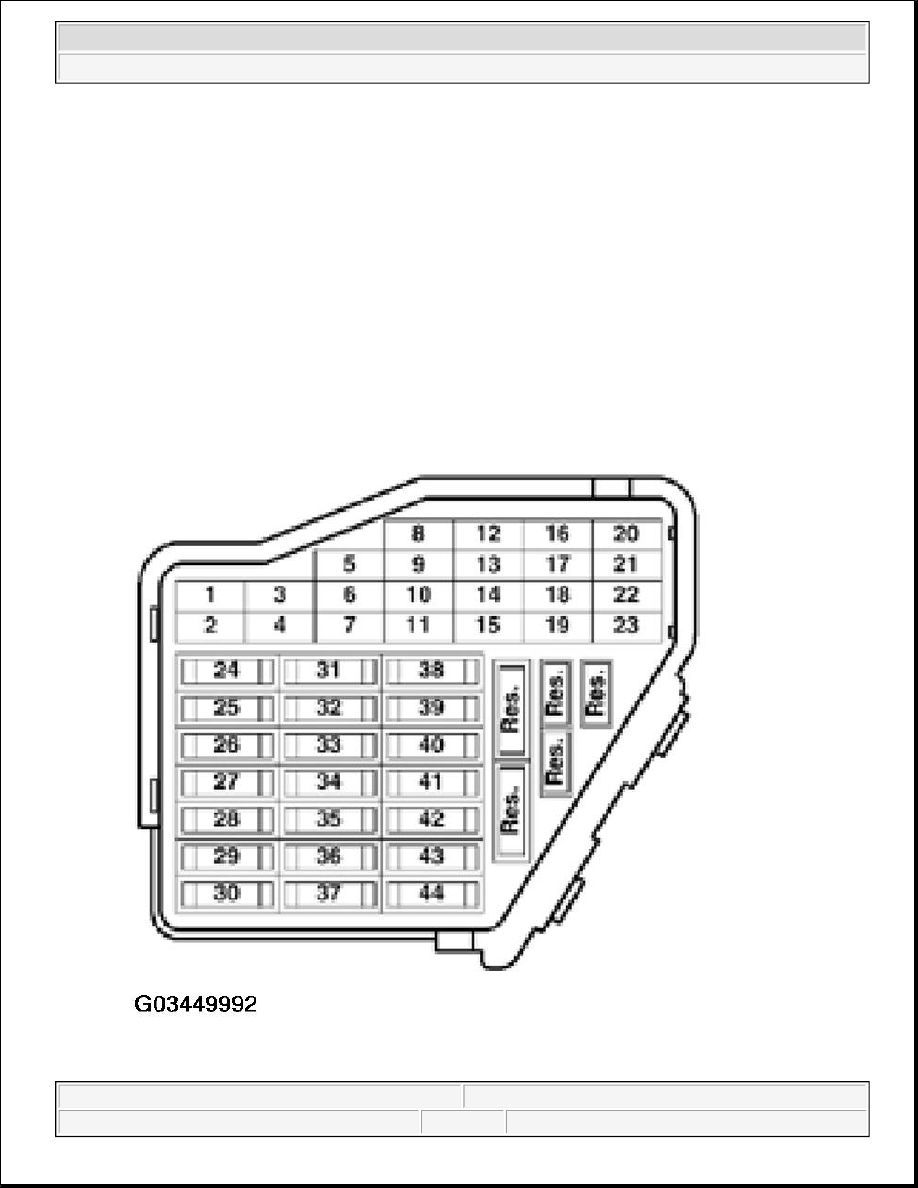

All fuses must be OK. Fuse holder is located behind access panel at far left end of dash

z

Battery voltage must be at least 11.5 V

z

Fuel pump relay must be OK
