Diagram.

If the specification is obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.

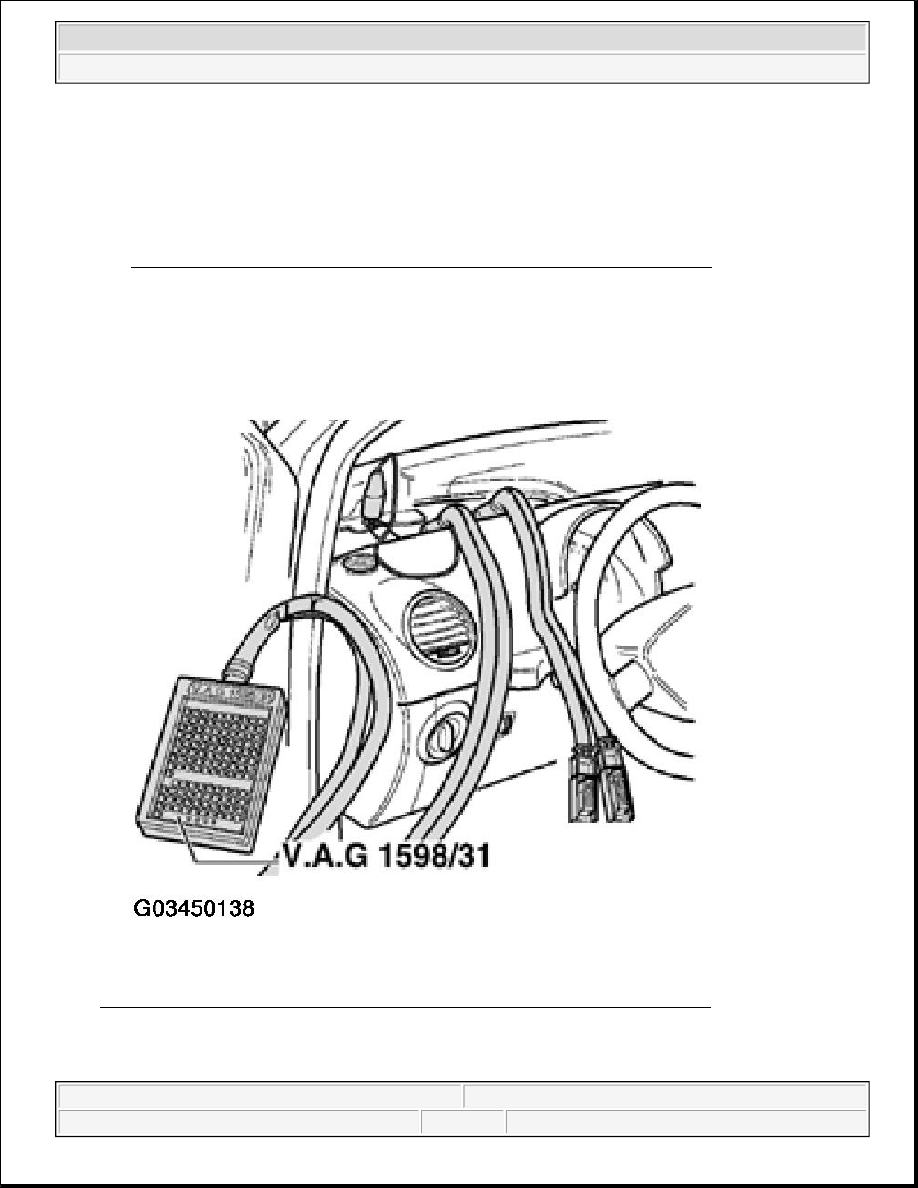

Fig. 163: Connecting Vag 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and connector using Electrical Wiring Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

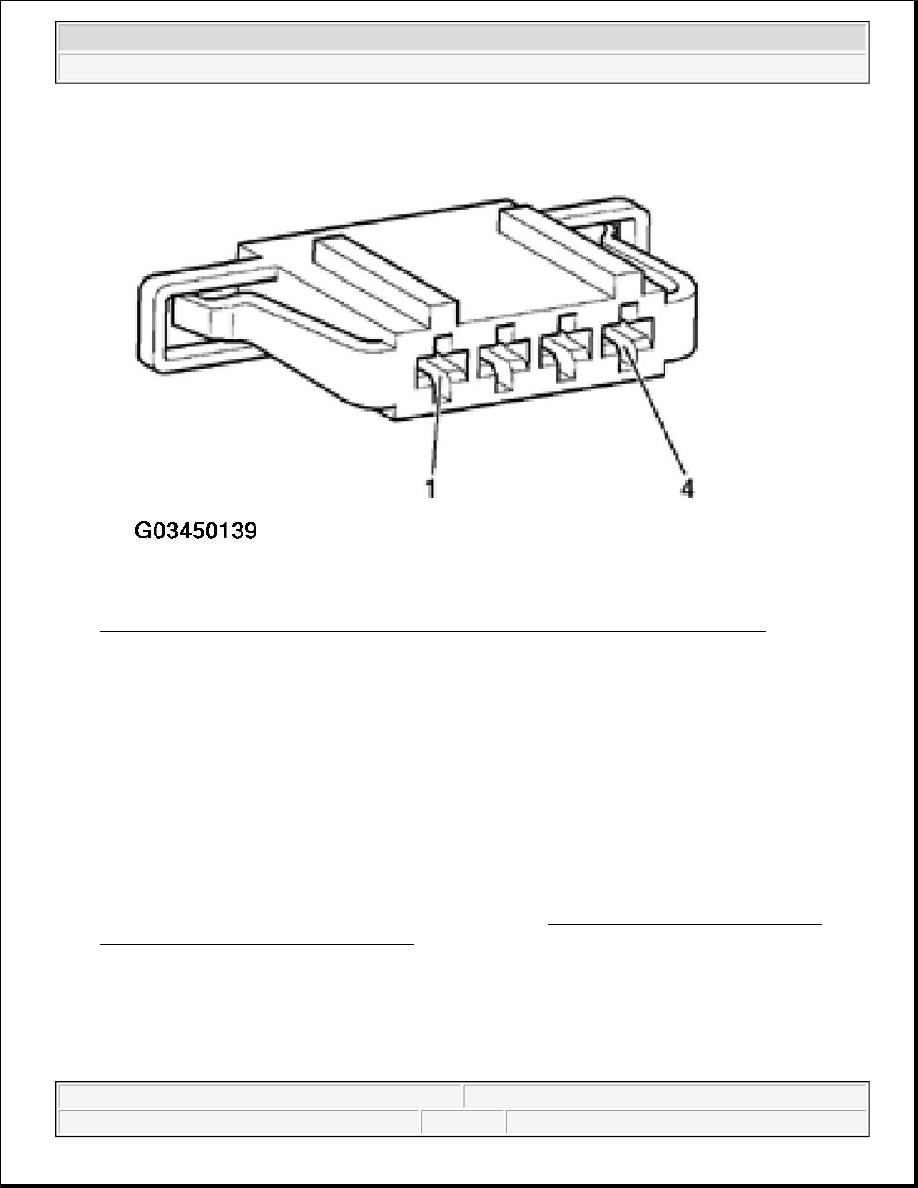

Fig. 164: Identifying Clutch Vacuum Vent Valve Switch Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

terminal 3 + socket 39

Wire resistance: Max. 1.5 ohm

If the specification is obtained:

z

Additionally check wires for short to one another.

z

Additionally check wiring for short to battery positive or Ground GND).

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .

Signal from Clutch Vacuum Vent Valve Switch -F36-, checking, vehicles through MY 2000

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder is located behind access panel at far left end of dash.

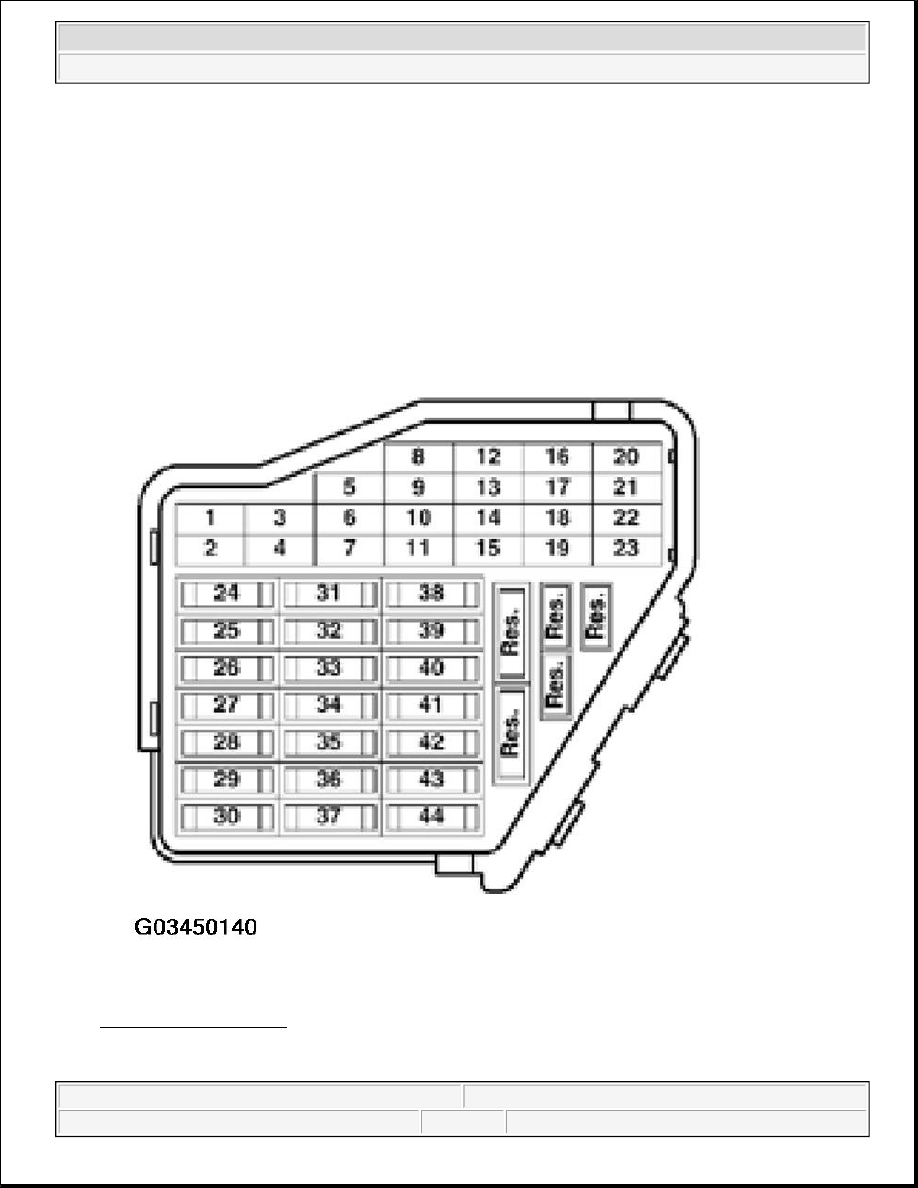

Fig. 165: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220- .

Indicated on display

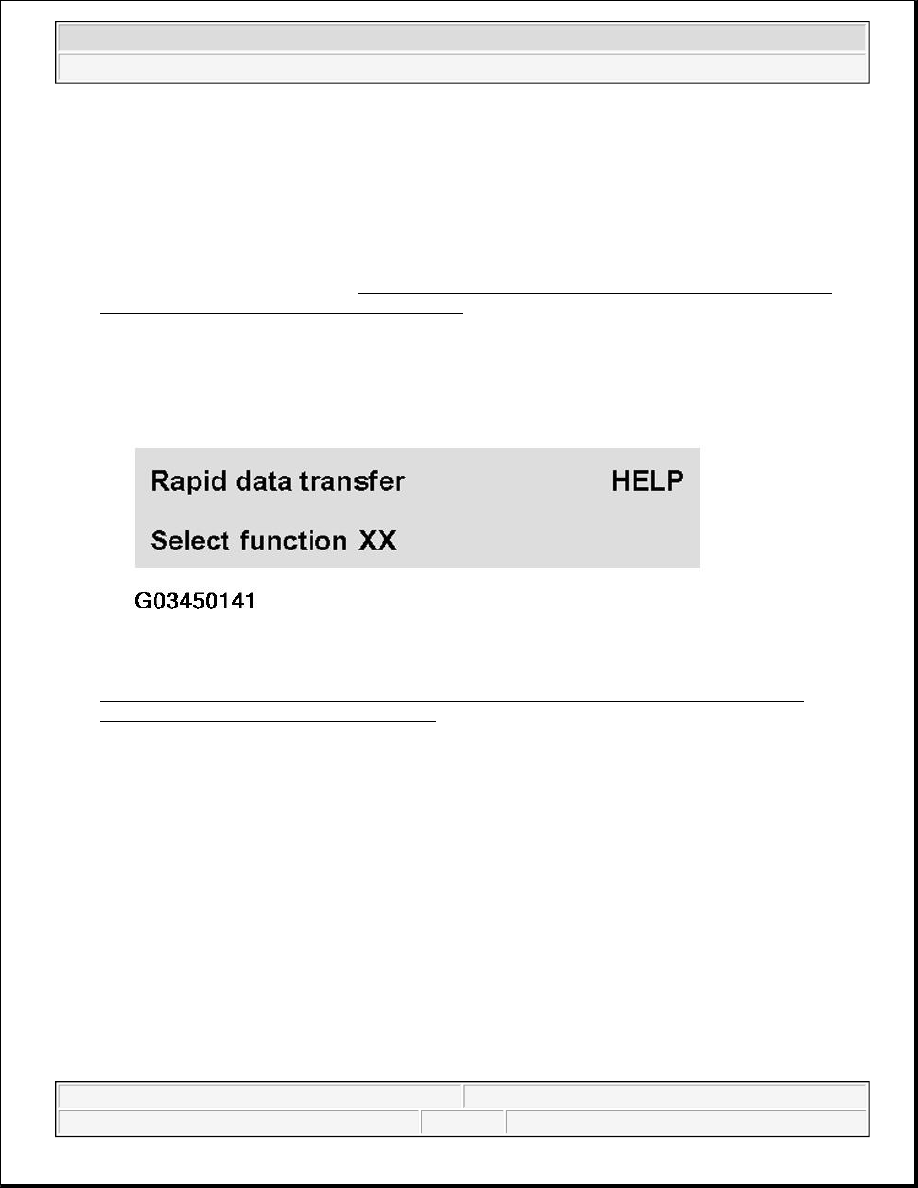

Fig. 166: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
