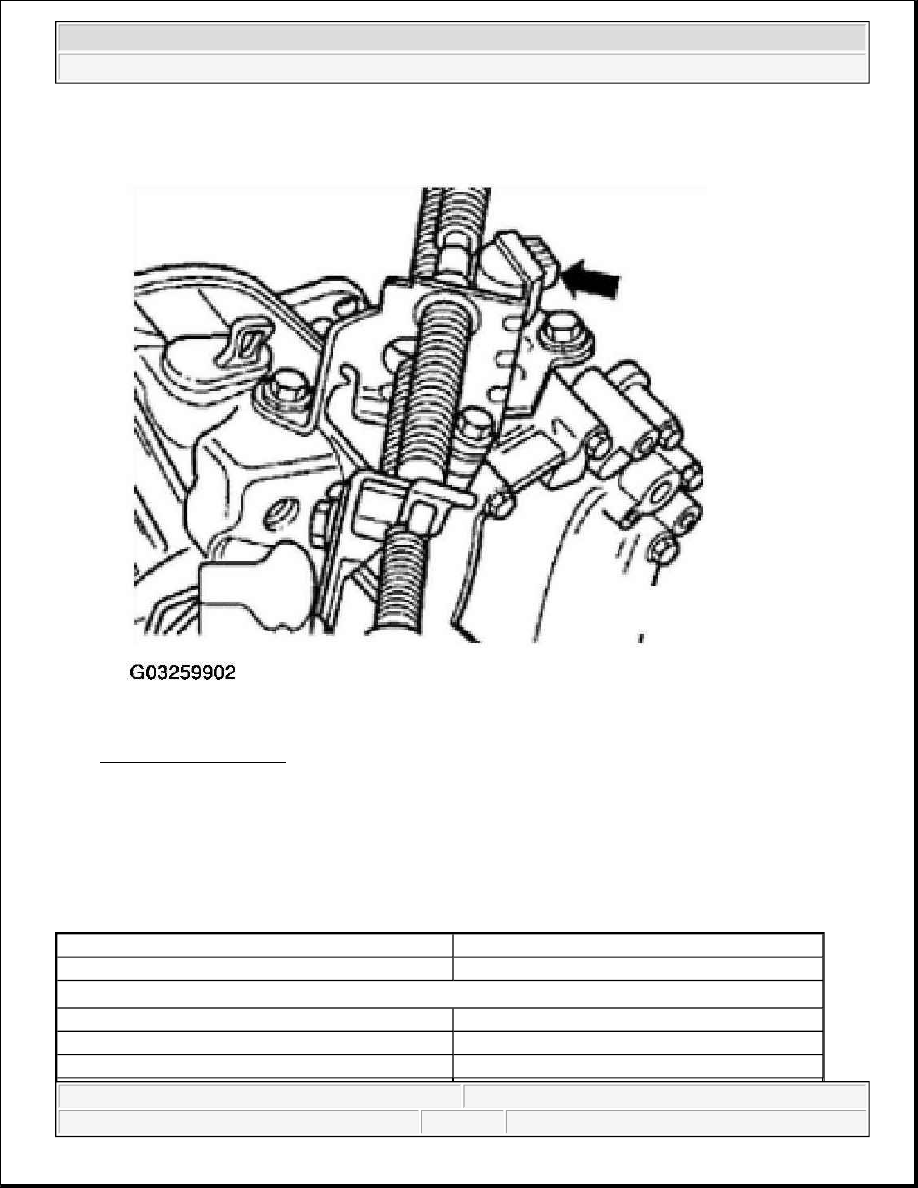

Fig. 2: Disconnecting 4-Pin Connector From Power Output Stage For Ignition Coils
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull fuse No. 32 out of fuse holder.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L APH - New Beetle



Fig. 3: Identifying Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test data, spark plugs

ENGINE CODE

NOTE:

Removing fuse 32 interrupts the voltage supply to the injectors. Fuse holder is
located behind access panel at far left end of dash.

Engine code

APH

Firing order

1-3-4-2

Spark plugs

(1)

VW

101 000 063 AA

Manufacturer ID

NGK PFR 6 Q

Electrode gap

max. 0.8 mm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L APH - New Beetle



Camshaft Position (CMP) sensor -G40-, checking

Special tools, test equipment and auxiliary items

z

Test box V.A.G 1598/31

z

Multimeter Fluke 83 (or equivalent)

z

Adapter set V.A.G 1594

z

Wiring diagram

Check conditions

z

Camshaft Position (CMP) sensor attached tightly

z

Battery voltage must be at least 11.5 V

Test sequence

z

Disconnect 3-pin connector from Camshaft Position (CMP) sensor -G40- -arrow-.

Tightening torque

30 Nm

(1)

Remove and install spark plugs with 3122B.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L APH - New Beetle



Fig. 4: Disconnecting 3-Pin Connector From Camshaft Position (CMP) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect multimeter to measure voltage with adapter cables from V.A.G 1594 to contacts 1 (positive) and
3 (Ground) on Camshaft Position (CMP) sensor connector.
