Fig. 76: Scan Tool Display - Fuel Temperature Sensor (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

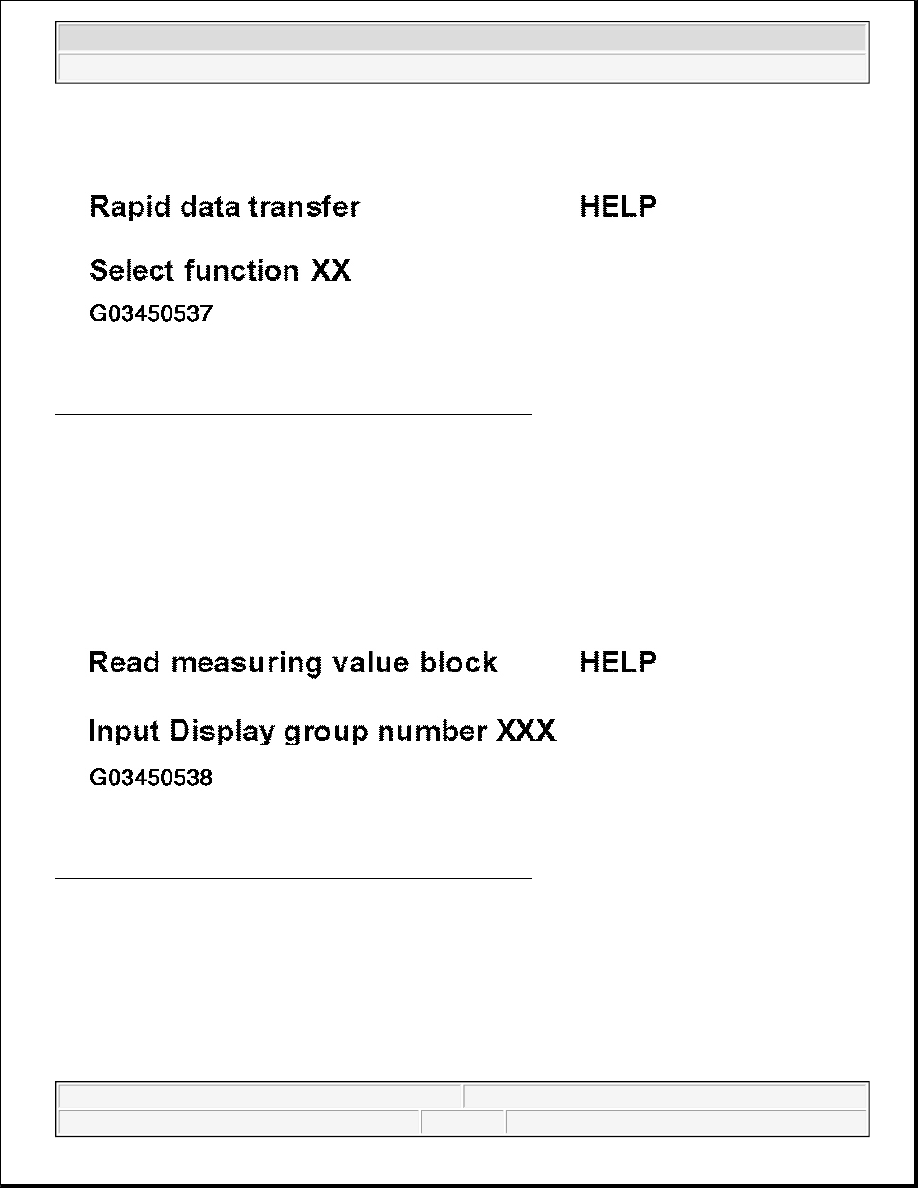

Fig. 77: Scan Tool Display - Fuel Temperature Sensor (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block"

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 78: Scan Tool Display - Fuel Temperature Sensor (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -7- to select "Display group 7".

z

Press -Q- button to enter input.

z

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

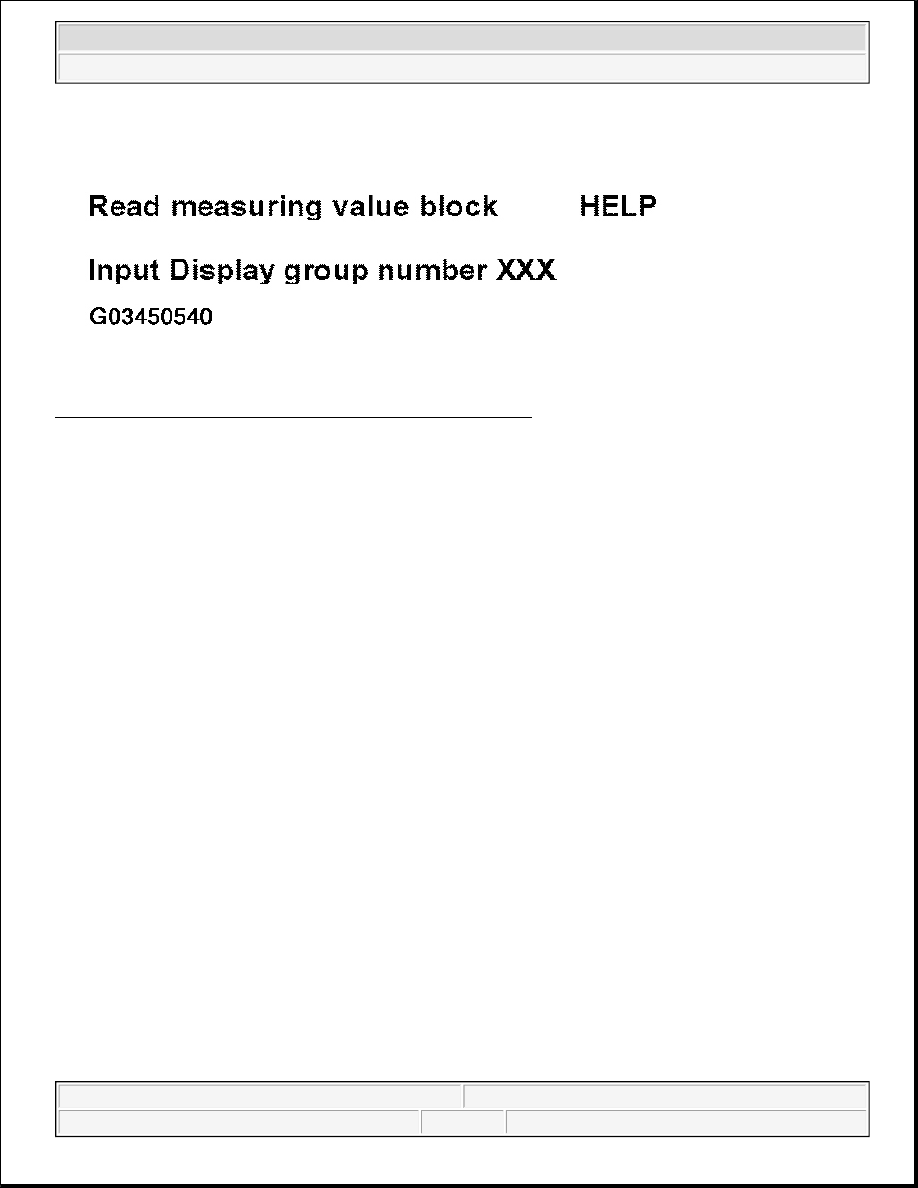

Fig. 79: Scan Tool Display - Fuel Temperature Sensor (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If an unrealistic value appears in Display zone 1 or a substitute temperature of -5.4 C is displayed:

z

Check Fuel Temperature Sensor -G81- and wiring to sensor as follows:

z

Press --> button.

Display will appear as shown.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 80: Scan Tool Display - Fuel Temperature Sensor (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Switch OFF ignition.

z

Disconnect 10-pin -G81- harness connector (connection to Diesel injection pump metering control).
