Volkswagen New Beetle. Manual - part 1220

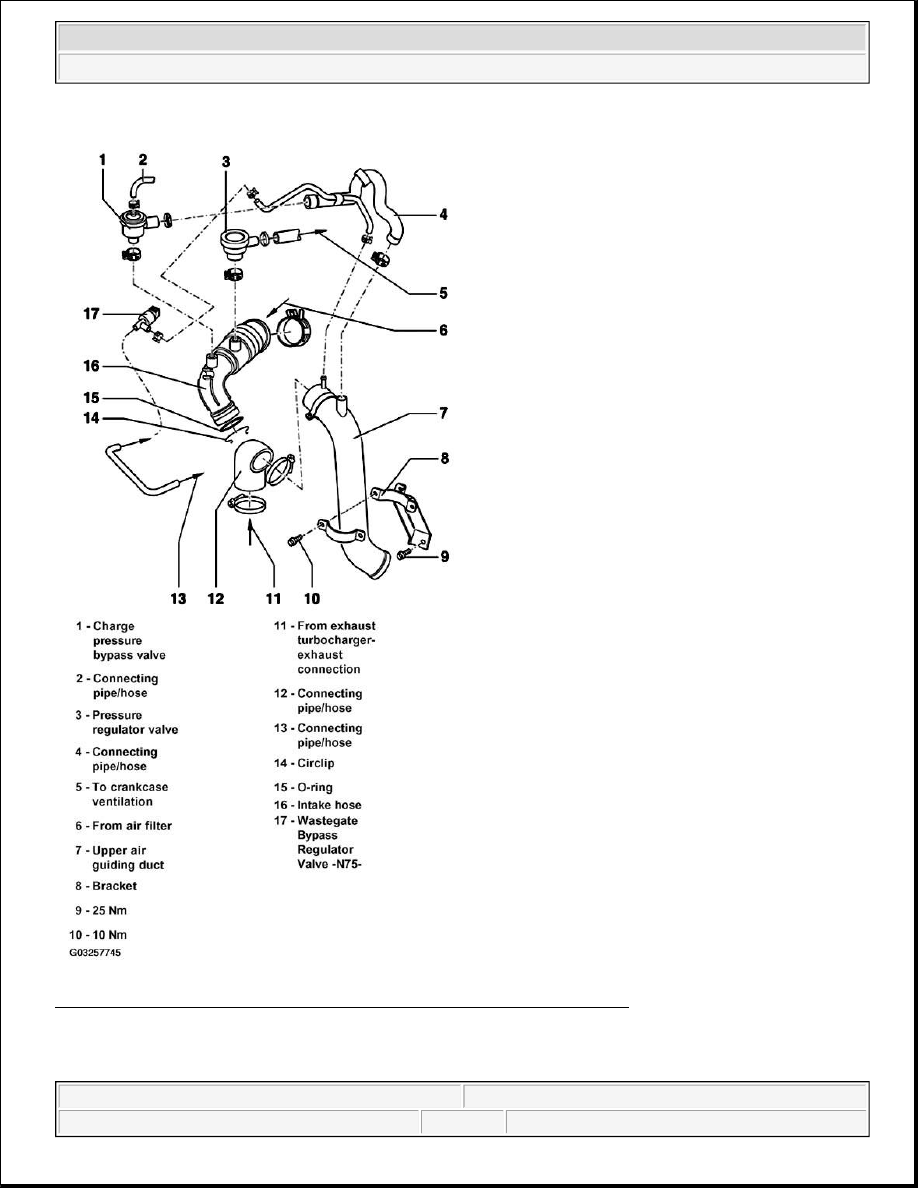

13. Connecting pipe/hose

z

To vacuum diaphragm for Wastegate Bypass Regulator Valve -N75-

14. Circlip

15. O-ring

z

Always replace

16. Intake hose

z

To intake connection of exhaust turbocharger

17. Wastegate Bypass Regulator Valve -N75-

z

The valve will be activated from engine control module (pulsed)

„

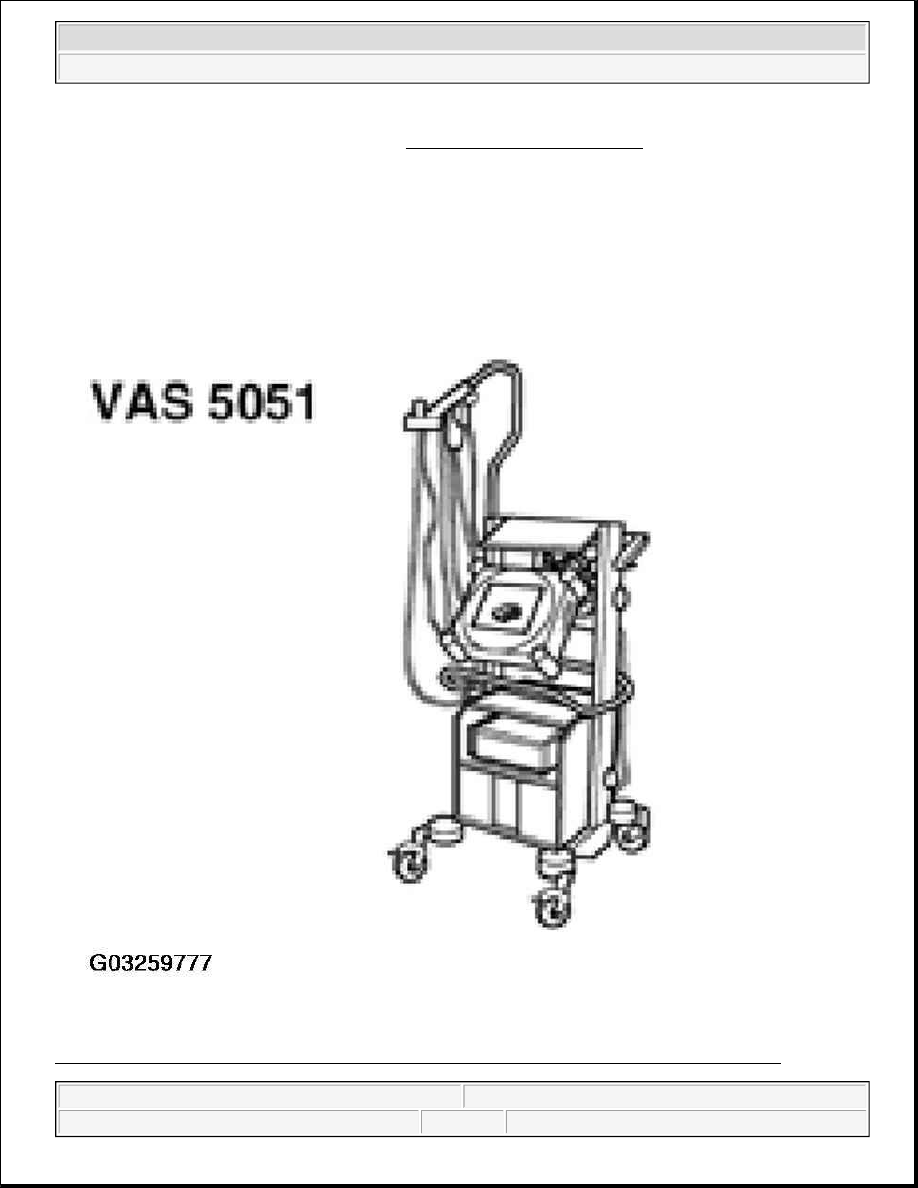

Check activation with output Diagnostic Test Mode (DTM).

See Output Diagnostic Test Mode (DTM)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 2: Removing And Installing Turbocharger With Attachments - Part II
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine codes AWP, AWV



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



1. Pressure regulator valve

z

For crankcase ventilation

2. To crankcase ventilation

3. Charge pressure bypass valve

z

Checking charge air pressure regulation. See CHARGE AIR PRESSURE SYSTEM,
CHECKING

4. Connecting pipe/hose

z

To recirculating valve for turbocharger (N249)*/**. See 16

5. Connecting pipe/hose

z

From charge pressure bypass valve to upper air duct

6. From air filter

7. Upper air guiding duct

z

Observe installed position of heat protection mat

z

Vehicles with Engine Code AWP, AWV; with quick release connection (with O-ring and securing
brace)

8. Bracket

9. 40 N.m

10. 25 N.m

11. For connecting hose of connecting piece/charge air cooler at bottom

12. O-ring

z

Replace

13. Circlip

z

Replace

14. 10 N.m

15. From exhaust turbocharger-exhaust connection

16. Connecting pipe/hose

17. Connecting pipe/hose

z

To vacuum diaphragm for Wastegate Bypass Regulator Valve -N75-

18. Circlip

z

Check seated securely

19. O-ring

z

Replace

20. Intake hose

z

To intake connection of exhaust turbocharger

21. Connecting pipe/hose

z

To vacuum booster.

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



z

Check Turbocharging diagram. See ENGINE CODES AWP, AWV

22. Wastegate Bypass Regulator Valve (N75)*/**

z

The valve will be activated from engine control module (pulsed)

z

Check activation with Output Diagnostic Test Mode (DTM).

See Output Diagnostic Test Mode (DTM)

Fig. 3: Removing And Installing Turbocharger With Attachments - Engine Codes AWP, AWV
Courtesy of VOLKSWAGEN OF AMERICA, INC.
