Volkswagen Golf Variant / Jetta. Manual - part 420

❑ Black 6-pin

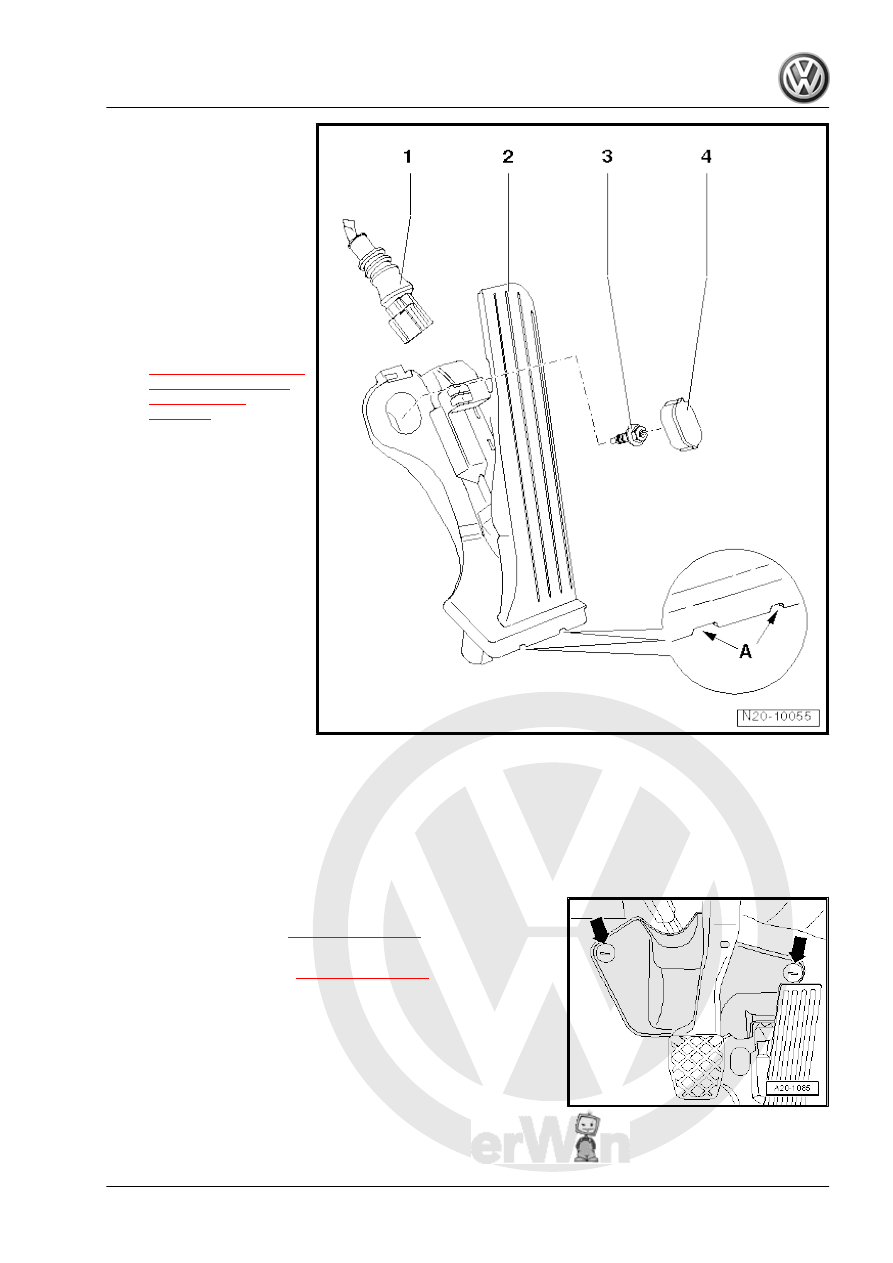

2 - Accelerator Pedal Module

❑ With Accelerator Pedal

Position Sensor - G79-

and Accelerator Pedal

Position Sensor 2 -

G185-

❑ Not adjustable
❑ -A- Openings for Re‐

lease Tool

❑ Removing and instal‐

ling. Refer to

⇒ “7.3 Accelerator Ped‐

al Module, Removing

and Installing”,

page 263

 .

❑ Checking. Refer to Ve‐

hicle Diagnostic Tester .

3 - Bolt

❑ 9 Nm

4 - Cap

7.3

Accelerator Pedal Module, Removing

and Installing

Special tools and workshop equipment required
♦ Accelerator Pedal Module Release Tool - T10238-
Removing:
– Remove the steering column cover -arrows-.
– Pry out the cap -item 4-

⇒ Item 4 (page 263)

 using a screw‐

driver.

– Remove the bolt -item 3-

⇒ Item 3 (page 263)

 .

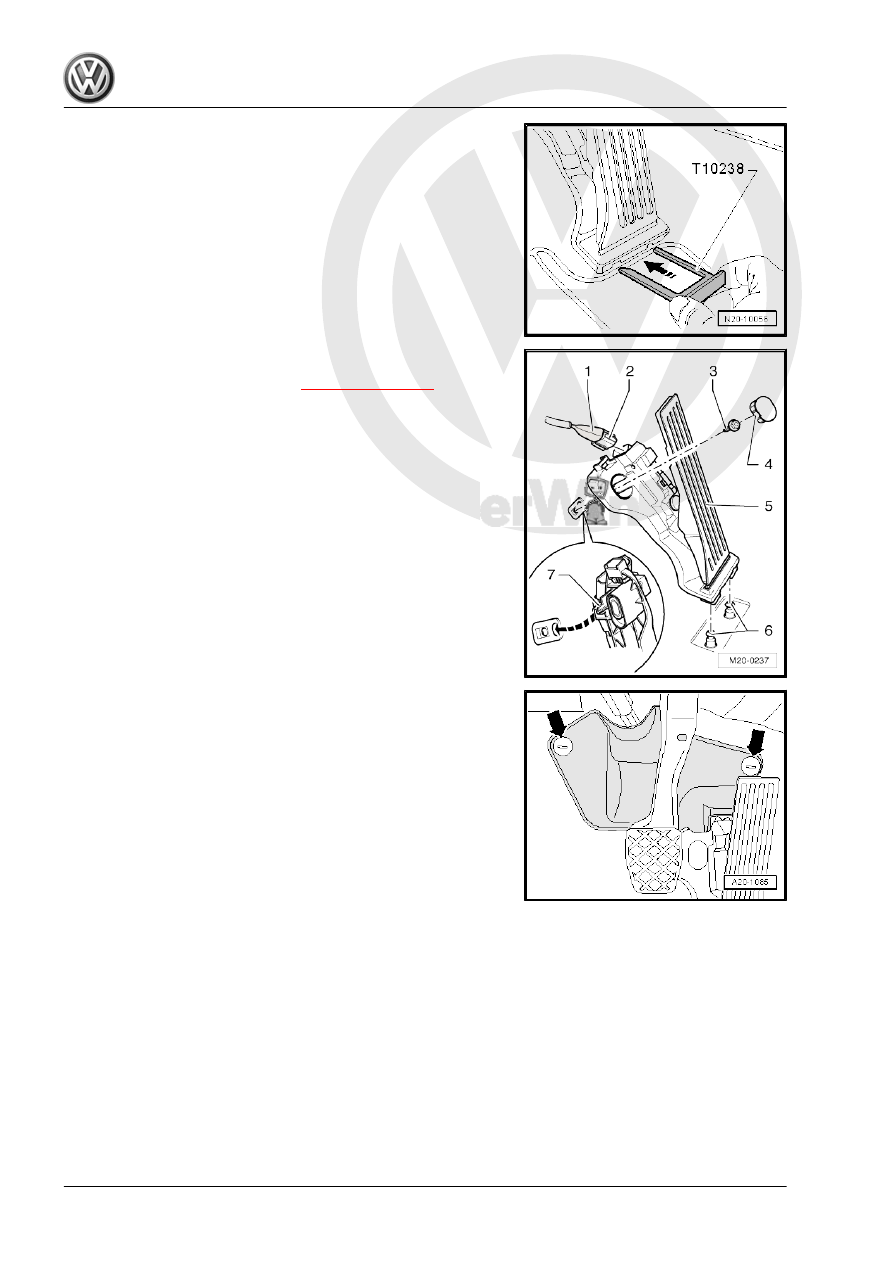

– Slide the Accelerator Pedal Module Release Tool - T10238-

into the designated openings for it until it stops and remove

accelerator pedal module.

7. Electronic Engine Output Control (EPC)

263

-5- and push the rubber grommet -1- onto the connector again.

– Press the accelerator pedal module onto the retaining pins

-6-.

– Insert centering pin -7- into hole on vehicle floor.

– Secure the accelerator pedal module with the bolt -3-.
• Tightening specification -item 3-

⇒ Item 3 (page 263)

 .

– Install the cap -4-.

– Install the steering column cover -arrows-.

264

Special Tools

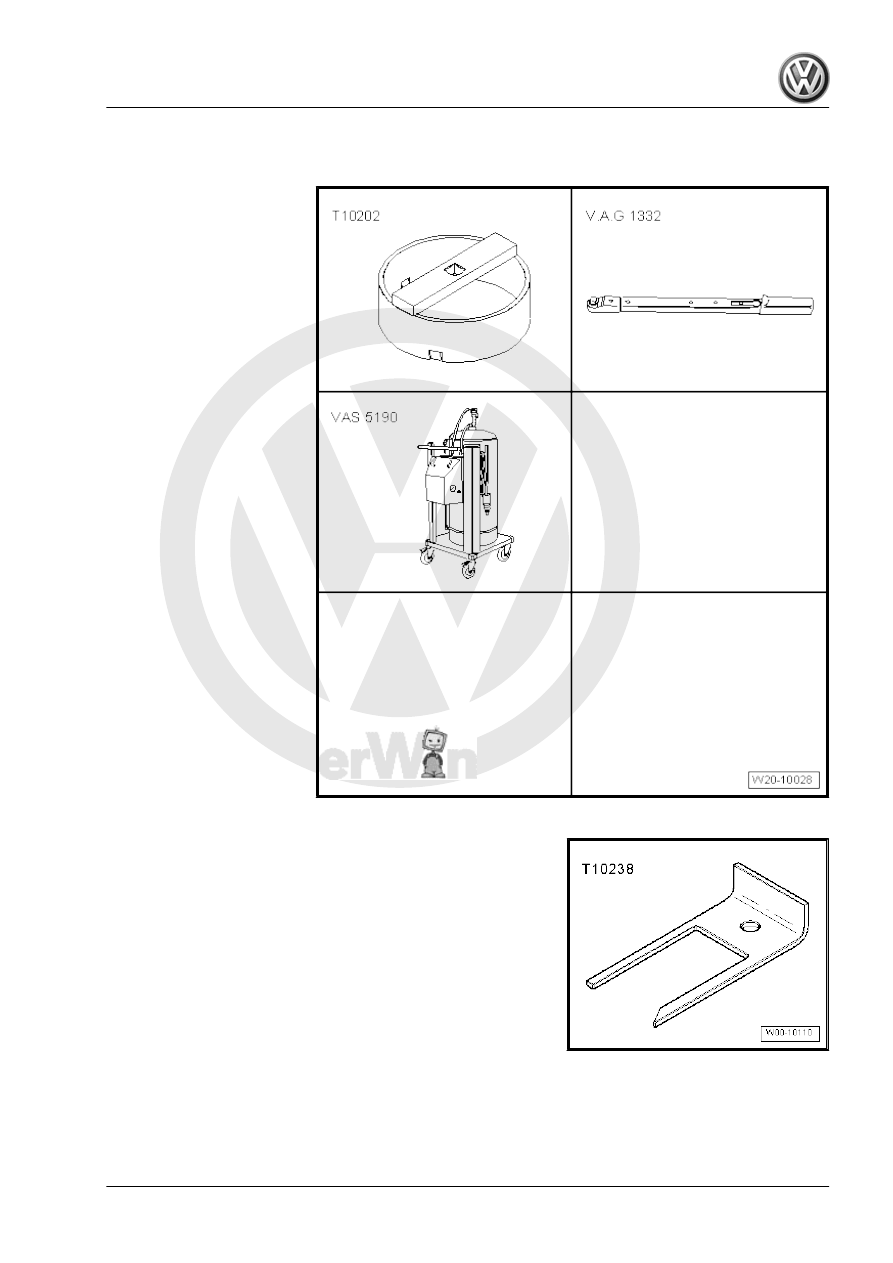

Special tools and workshop

equipment required
♦ Wrench - Fuel Sending Unit

- T10202-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Fuel Siphoning Device -

VAS5190A-

♦ Accelerator Pedal Module Release Tool - T10238-

8. Special Tools

265

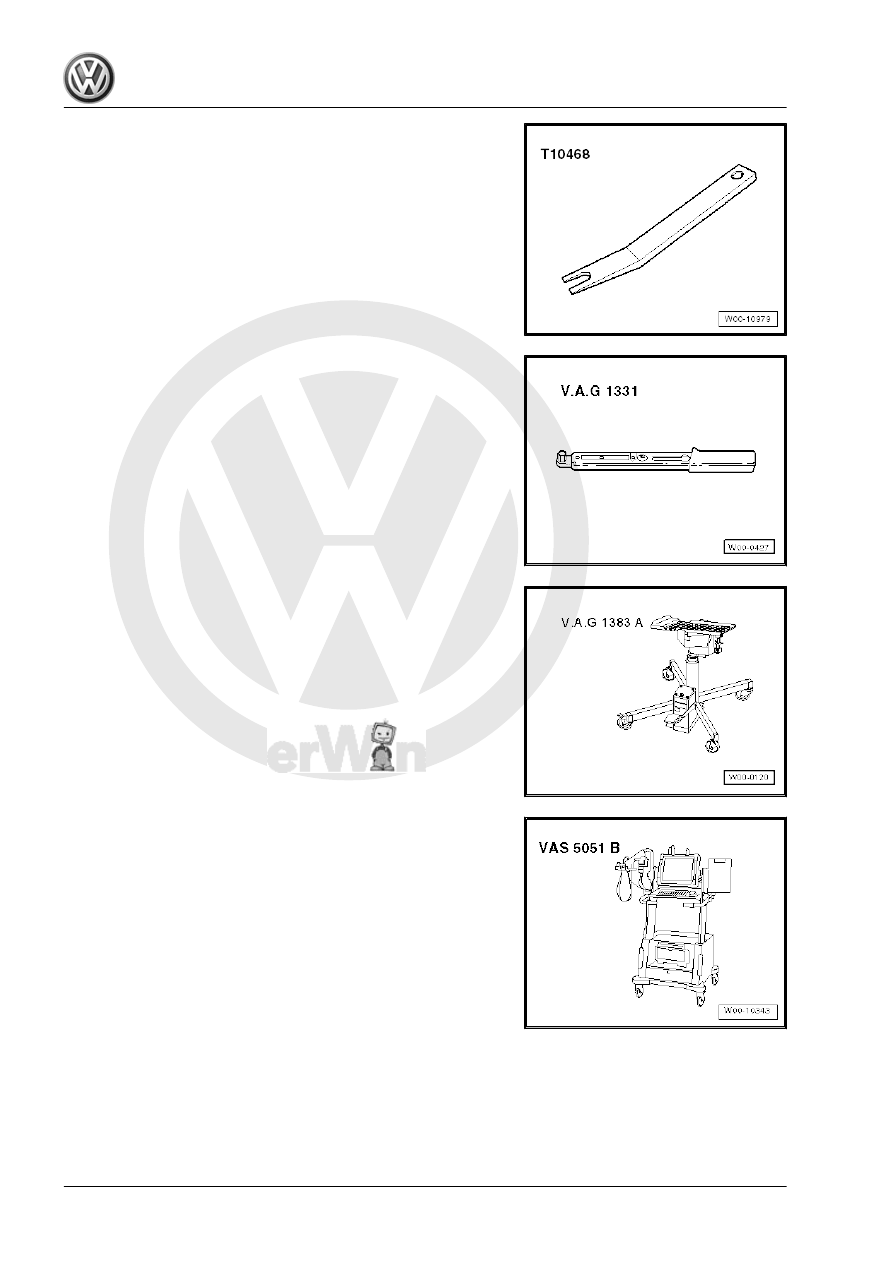

♦ Torque Wrench 1331 5-50Nm - VAG1331-

♦ Engine/Gearbox Jack - VAG1383A-

♦ Vehicle Diagnosis System - VAS5051B-

266
