Volkswagen Golf Variant / Jetta. Manual - part 278

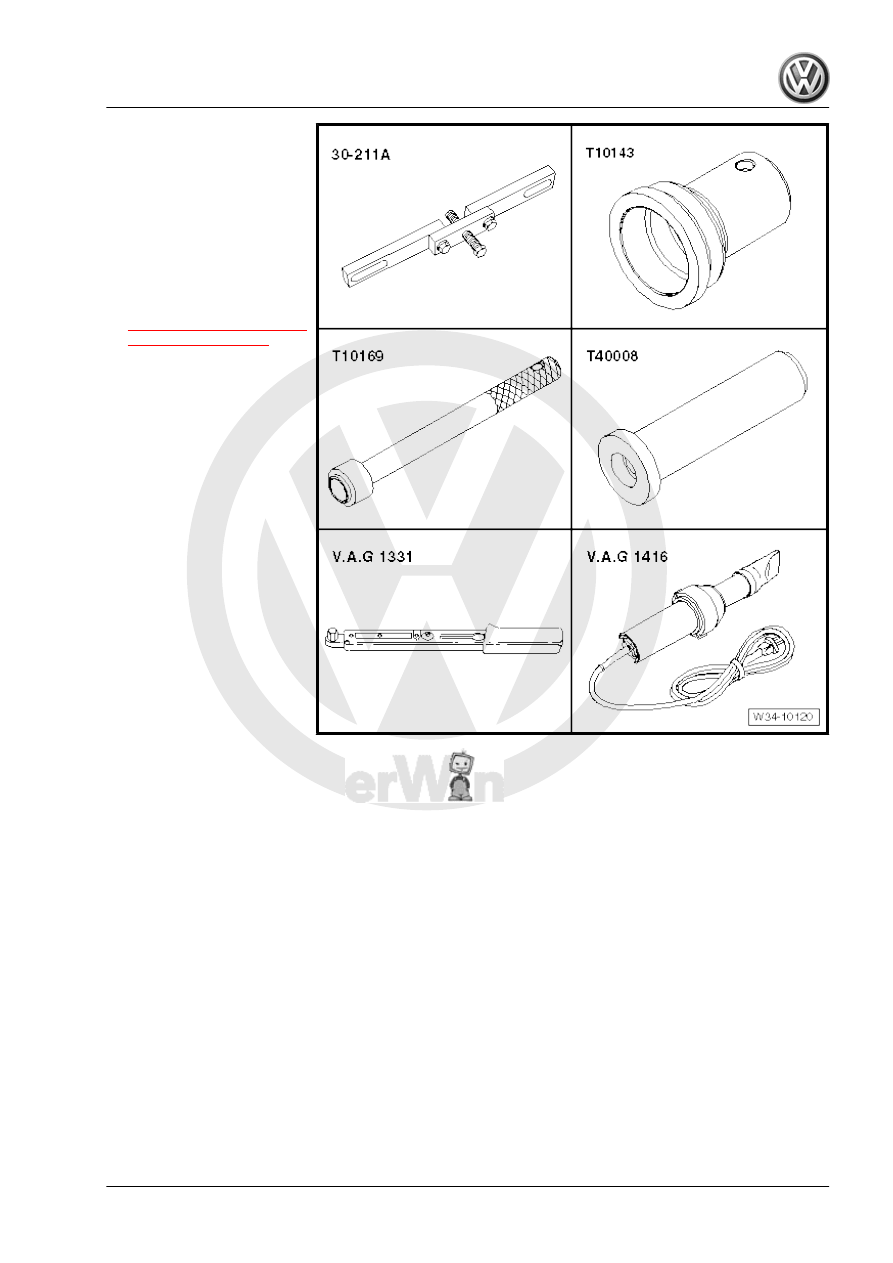

30-211A-

♦ Seal Installer - Drive Flange

- T10143- or Seal Installer -

Output Shaft Oil Seal -

T10180-

♦ Locking Sleeve Drift -

T10169-

♦ or Locking Sleeve Drift -

T10362-

⇒ Fig. ““Lock Sleeve Differ‐

entiation”“ , page 266

♦ Seal Installer - Driveshaft -

T40008-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Hot Air Blower - VAG1416-

16. Special Tools

287

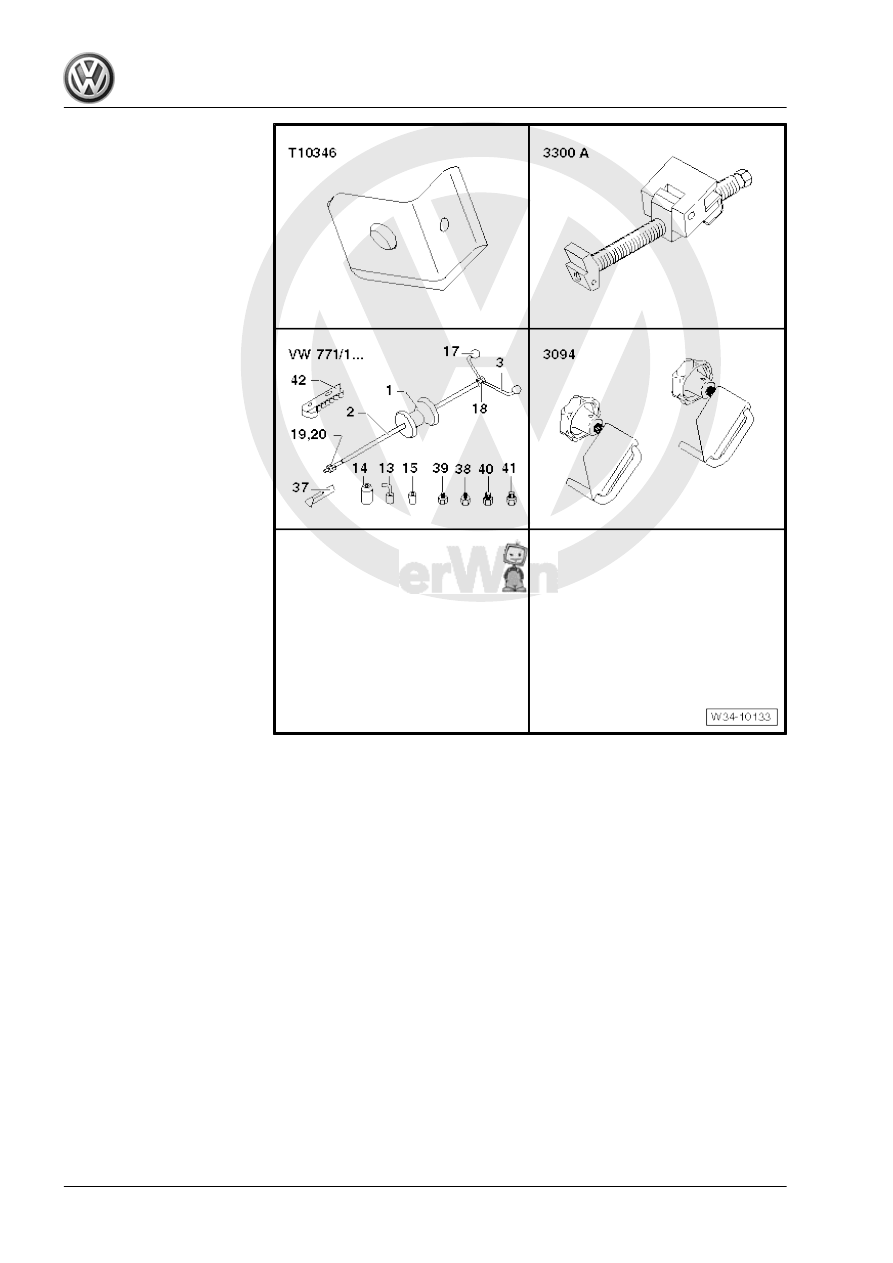

Gearbox Bracket - T10346-

quantity: 2

♦ Engine Support Device -

3300A-

♦ Slide Hammer Set - Adapt‐

er 40 - VW771/40-

♦ Hose Clamps - Up To

25mm - 3094-

♦ Grease for Clutch Disc

Shaft Splines - G 000 100-

288

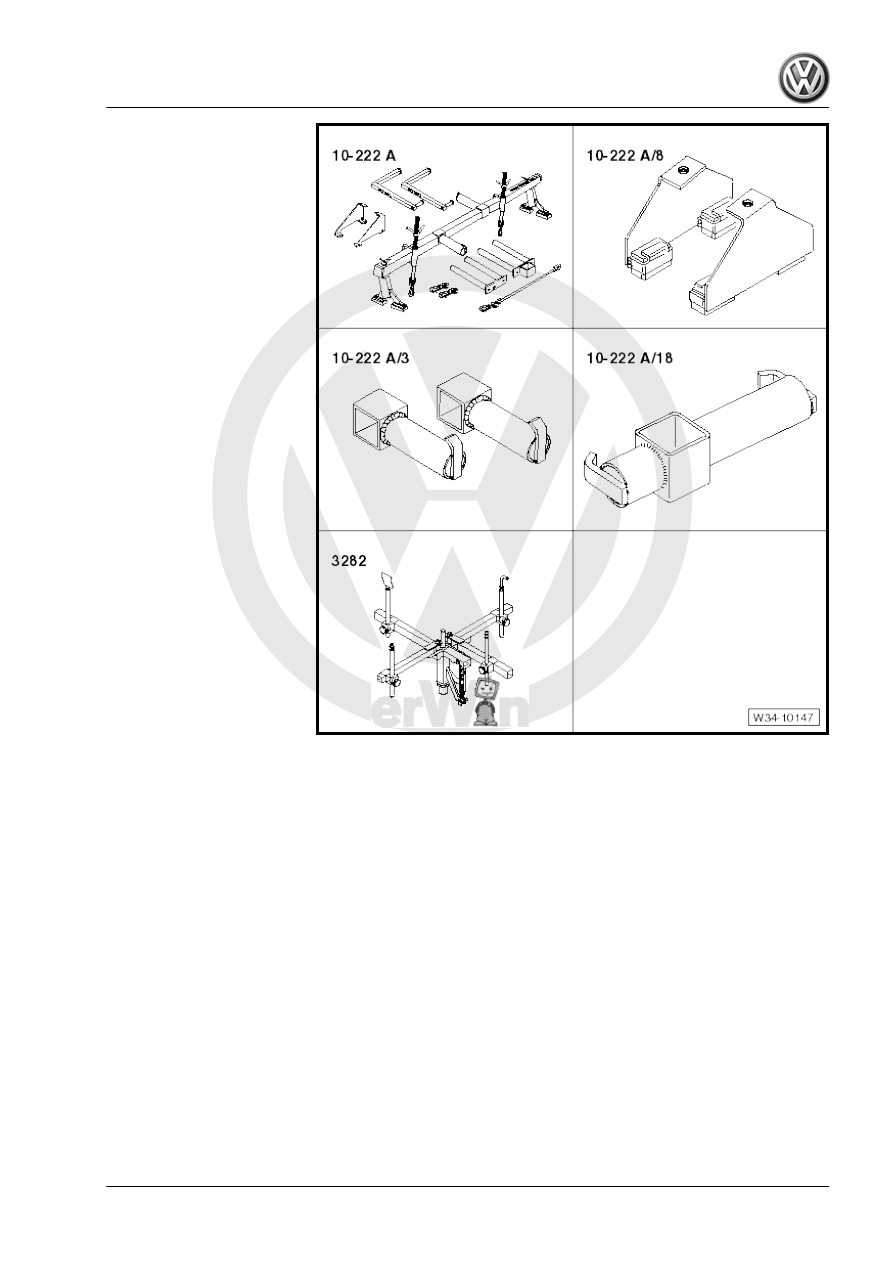

10-222A-

♦ Engine Support Bridge -

Engine Support Feet -

10-222A/8-

♦ Engine Support Bridge -

Engine Support 3 -

10-222A /3-

♦ Engine Support Bridge -

Engine Support 18 -

10-222A /18-

♦ Transmission Support -

3282-

16. Special Tools

289

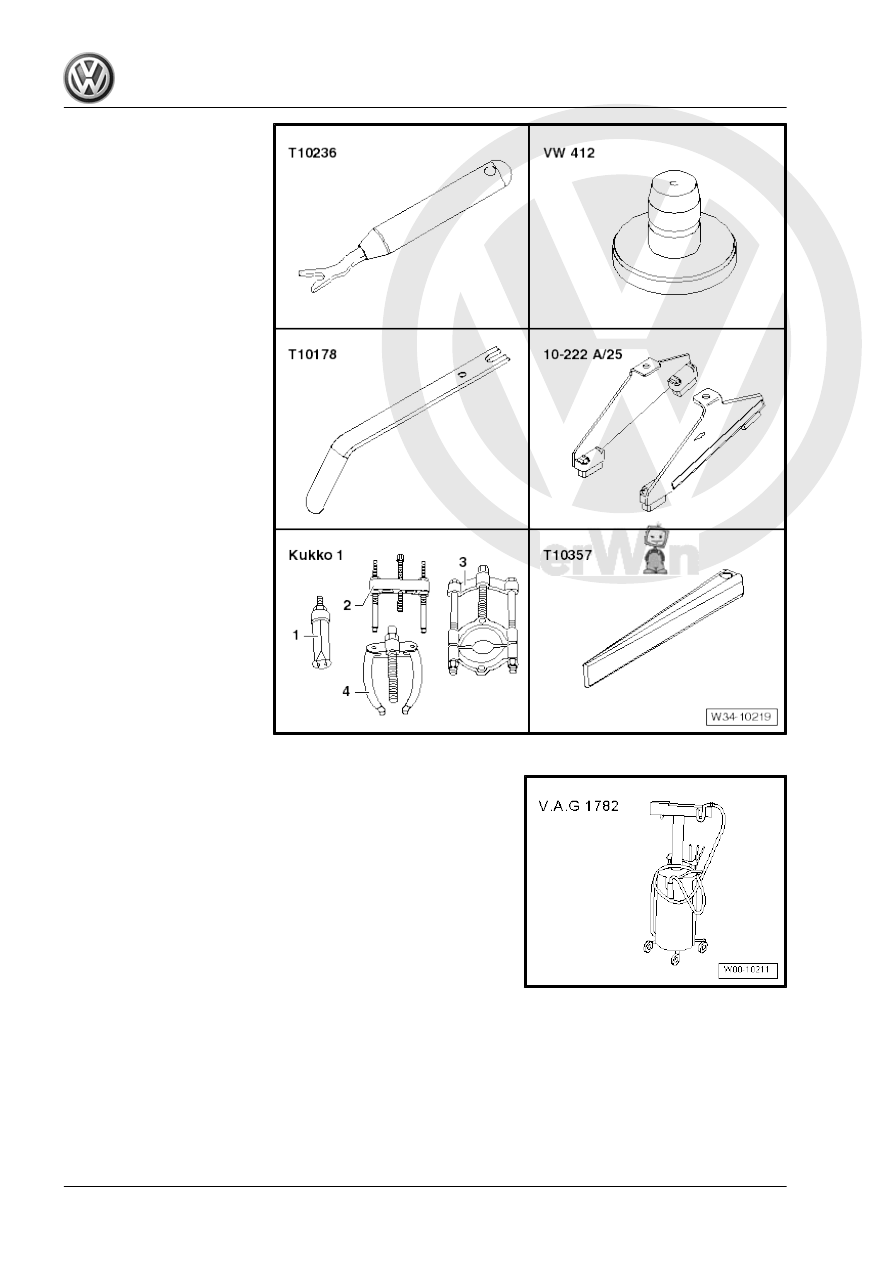

flat iron, 200 x 25 x 5

♦ Adapter - 10-222A/25- or

flat iron, 350 x 30 x 5

♦ -4- Counter-Support , for

example -Kukko 22/4-

♦ Wedge - T10357-
♦ Thrust Block - T10083-

♦ Used Oil Collection and Extraction Unit - SMN372500-

290
