Volkswagen Golf Variant / Jetta. Manual - part 277

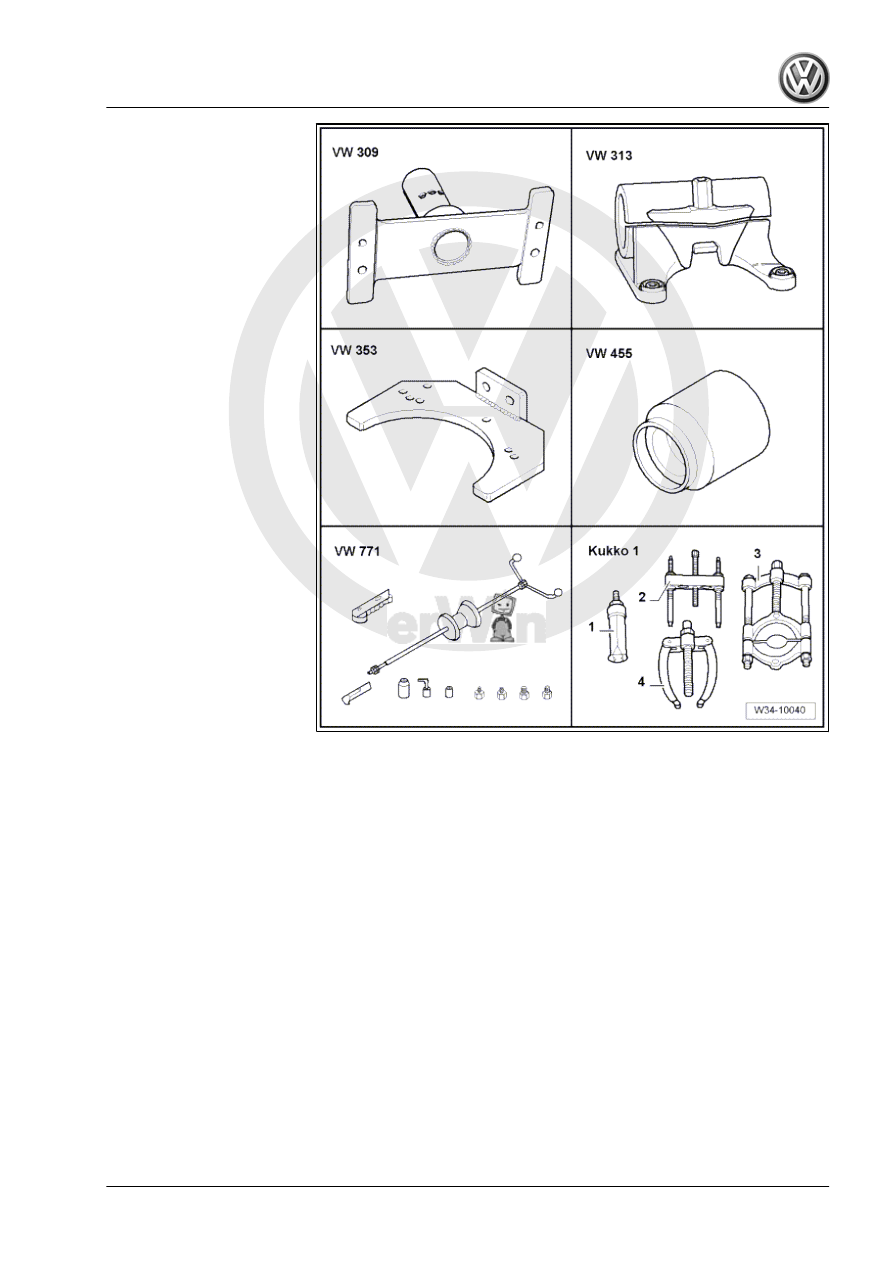

VW353-

♦ Press Piece - Multiple Use

- VW455- or Press Piece -

Front Wishbone - 3160-

♦ Slide Hammer Set -

VW771-

♦ -1- Puller - Kukko Internal -

12-16mm - 21/1-

♦ -3- Puller - Kukko Quick Ac‐

tion Separating Tool -

5-60mm - 17/0-

♦ -4- Puller - Kukko Counter‐

stay - 22/1-

16. Special Tools

283

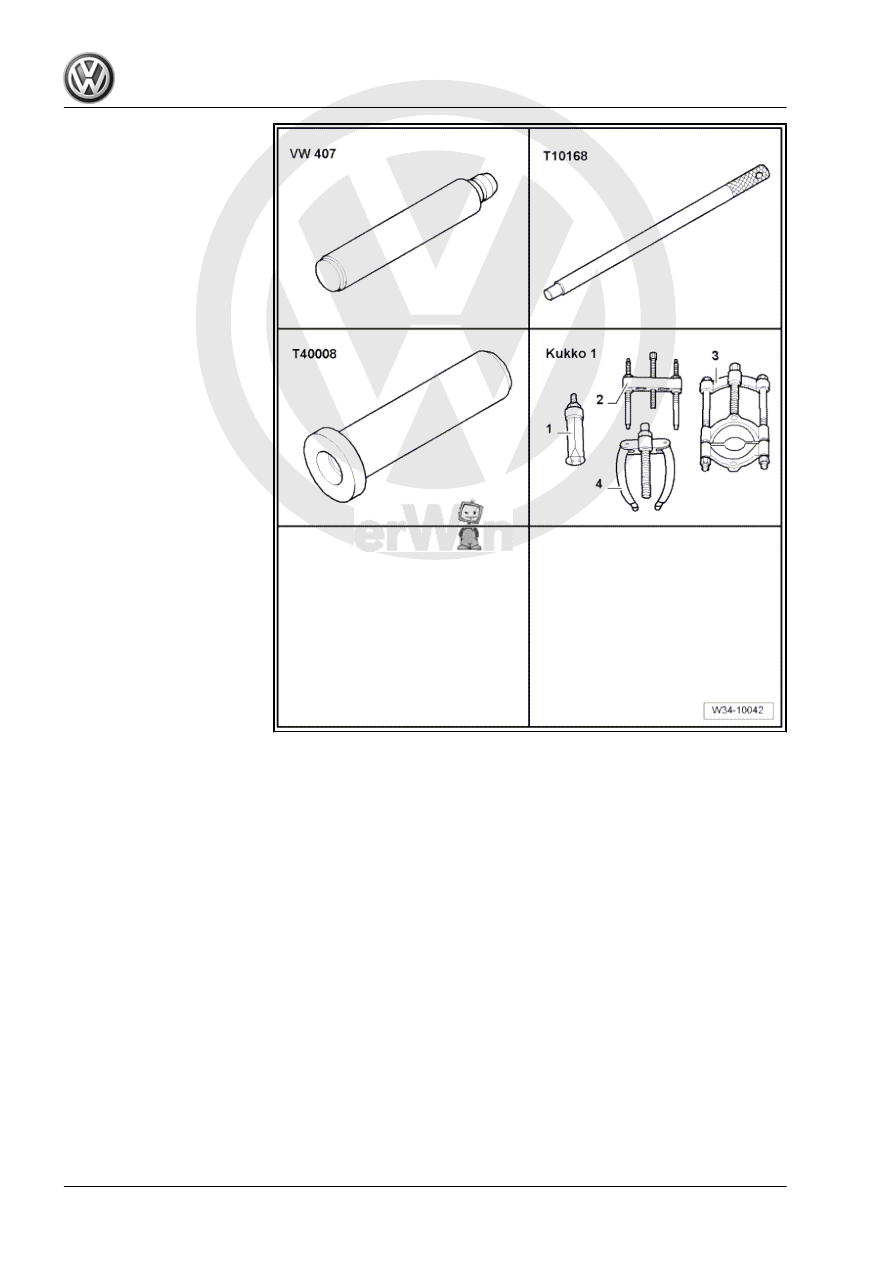

VW407-

♦ Bushing Driver - Selector

Shaft - T10168-

♦ Seal Installer - Driveshaft -

T40008-

♦ -1- Puller - Kukko Internal -

14-19mm - 21/2-

♦ -1- Puller - Kukko Internal -

20-30mm - 21/4-

♦ -4- Puller - Kukko Counter‐

stay - 22/1-

♦ -4- Puller - Kukko Counter‐

stay - 22/2-

284

mission (determine when

mounting the Mounting

Plate on the Transmission

Support )

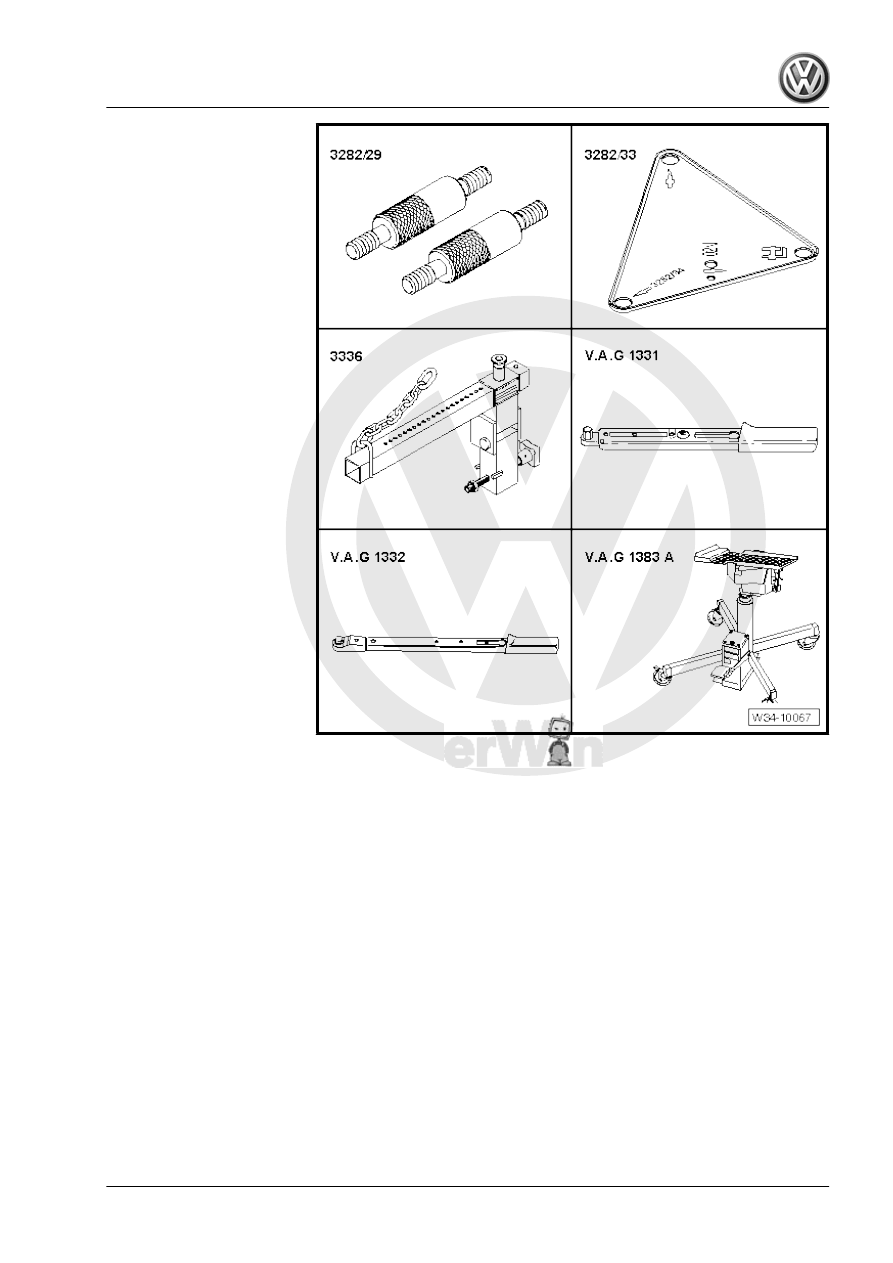

♦ Transmission Support -

Mounting Plate 33 -

3282/33-

♦ Transmission Support Jig -

3336- to transport the

transmission.

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine and Gearbox Jack -

VAS6931-

16. Special Tools

285

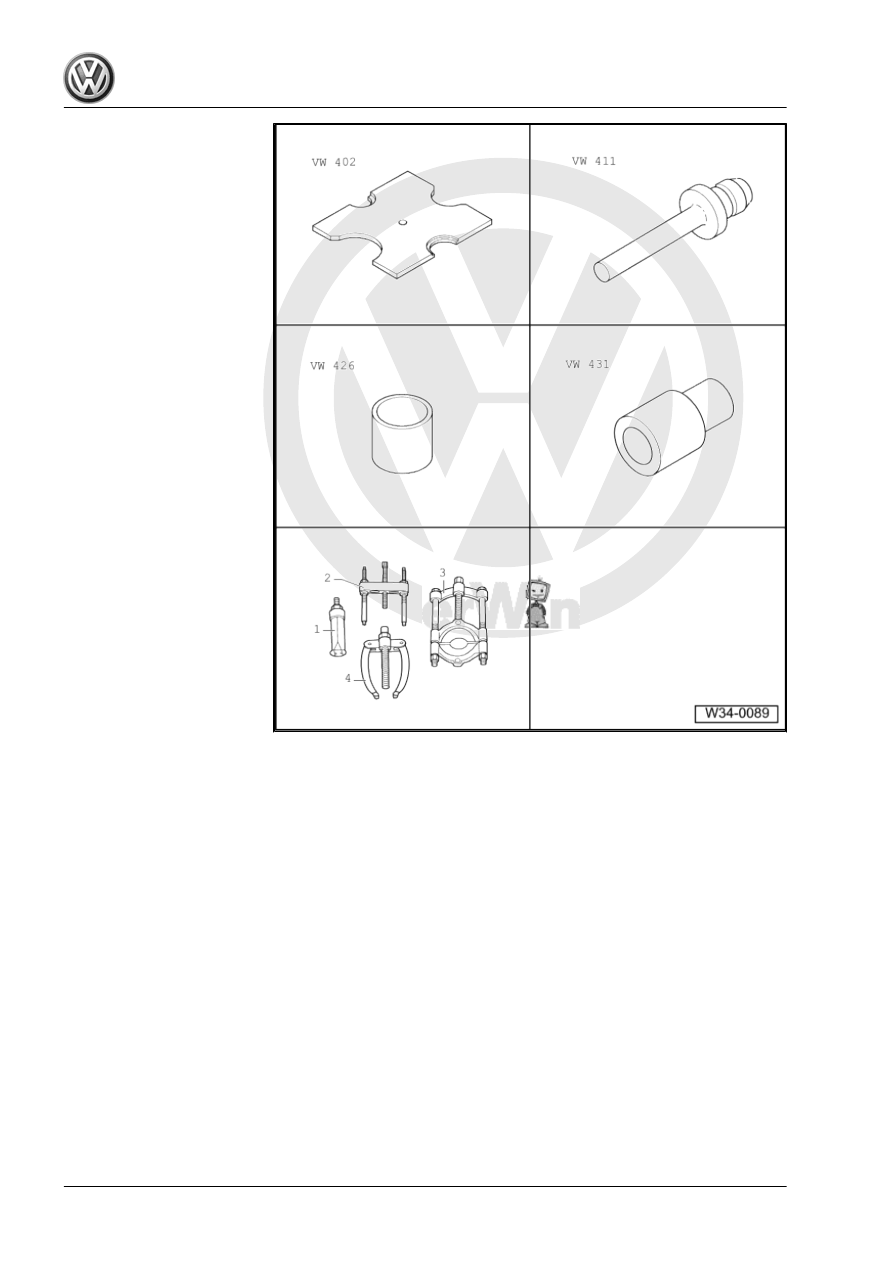

VW411-

♦ Press Piece - Multiple Use

- VW426-

♦ Press Piece - Multiple Use

- VW431-

♦ -1- Puller - Kukko Internal -

18.5-23.5mm - 21/3-

♦ -4- Puller - Kukko Counter‐

stay - 22/1-

286
