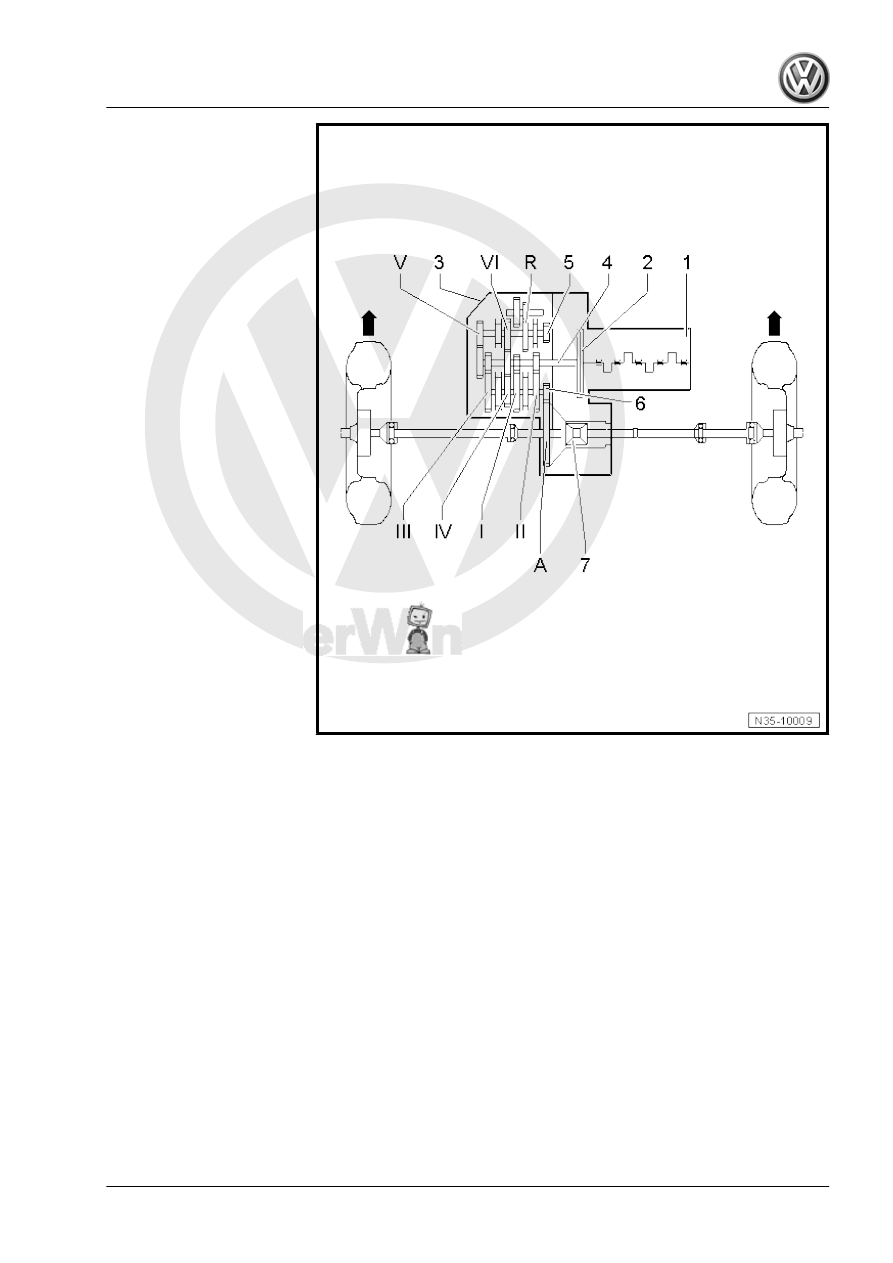

3. Overview - Transmission, FWD

11

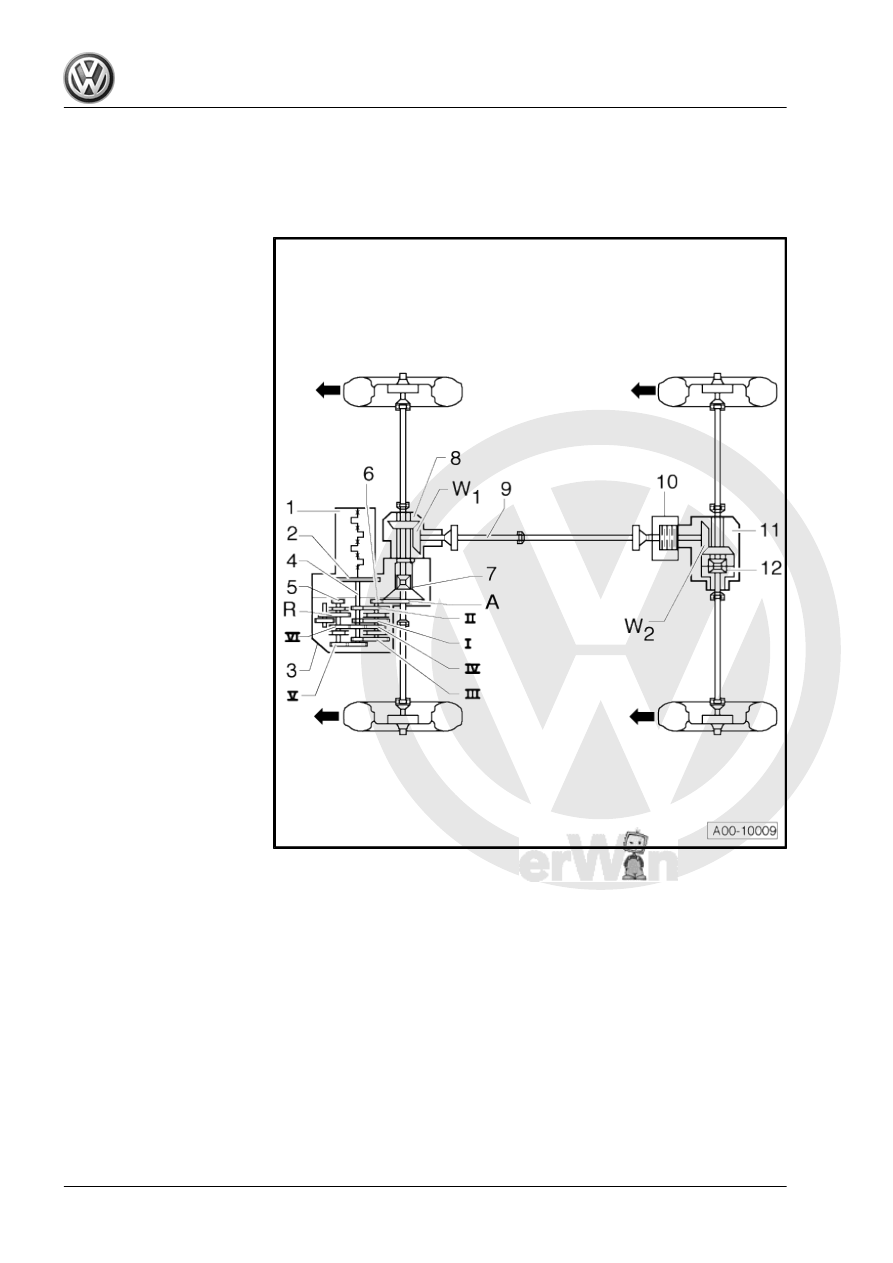

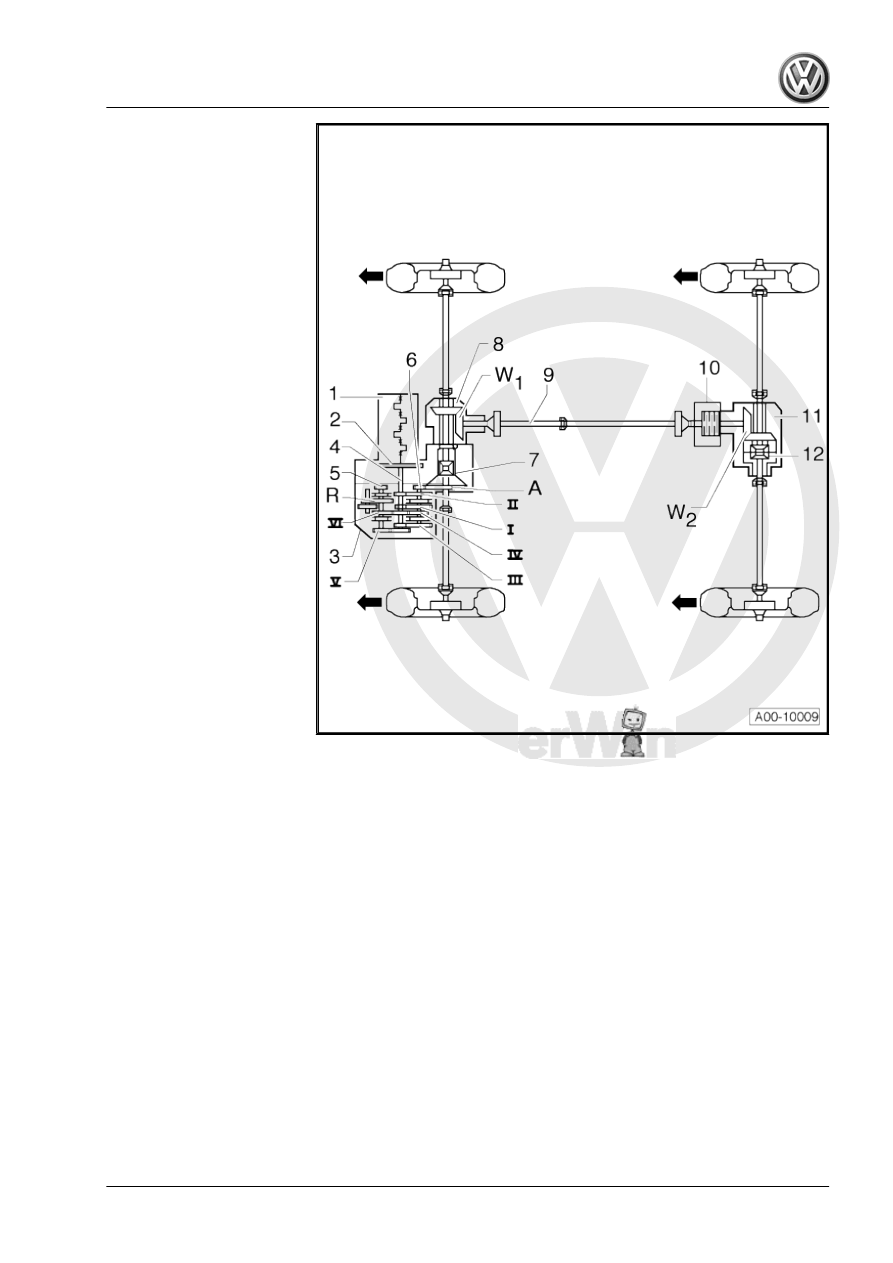

Overview - Transmission, AWD

Components
The -arrows- point in the direction of travel.

1 - Engine
2 - Clutch
3 - Manual Transmission
4 - Input Shaft
5 - Output Shaft for 5th, 6th and

Reverse Gears (output shaft II)
6 - Output Shaft for 1st through

4th Gear (output shaft I)
7 - Differential
8 - Bevel Box
9 - Driveshaft
10 - Haldex Clutch
11 - Rear Final Drive
12 - Differential

Ratio
The -arrows- point in the direction of travel.

12

4. Overview - Transmission, AWD

13

Transmission Ratio “i”, Calculating

Example



6th Gear

Final Drive

Drive gear

ZG1 = 43

ZA1 = 25

Driven gear

ZG2 = 35

ZA2 = 69

i = ZG2 : ZG1

1)

iG = gear ratio = ZG2 : ZG1 = 35 : 43 = 0.814
iA = Axle ratio = ZG2 : ZG1 = 69 : 25 = 2,760
itotal = total ratio = iG x iA = 0.814 x 2.760 = 2.247

1) Z1 = Number of teeth on the drive gear, Z2 = Number of teeth on the driven

gear
