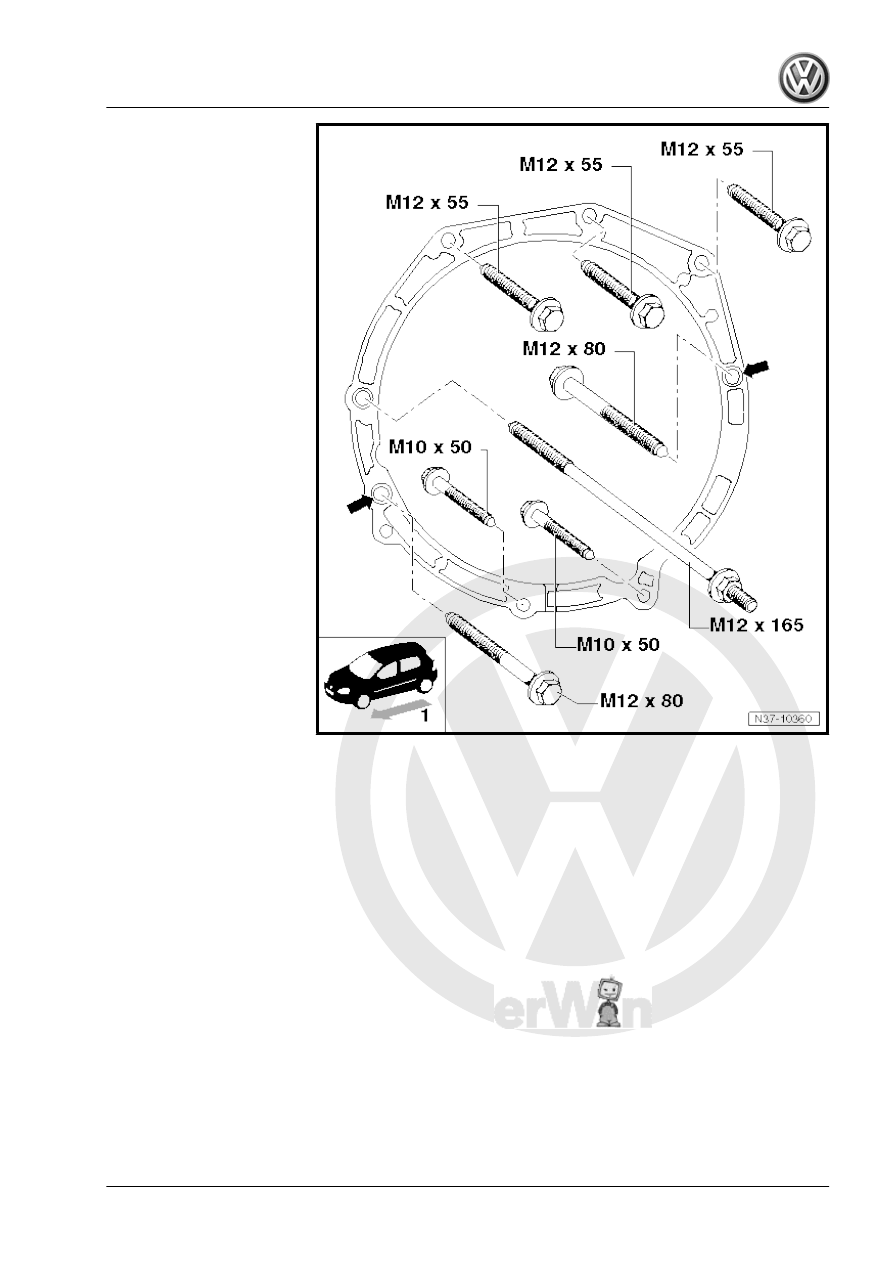

❑ When using the Insert

Tool - 18mm - T10179- :

65 Nm.

M10 - 40 Nm

❑ These bolts are located

inside the lower flange

❑ In conjunction with the

cover plate the bolt

length is 35 mm

7. Transmission, Removing and Installing, Jetta from MY 2011

103

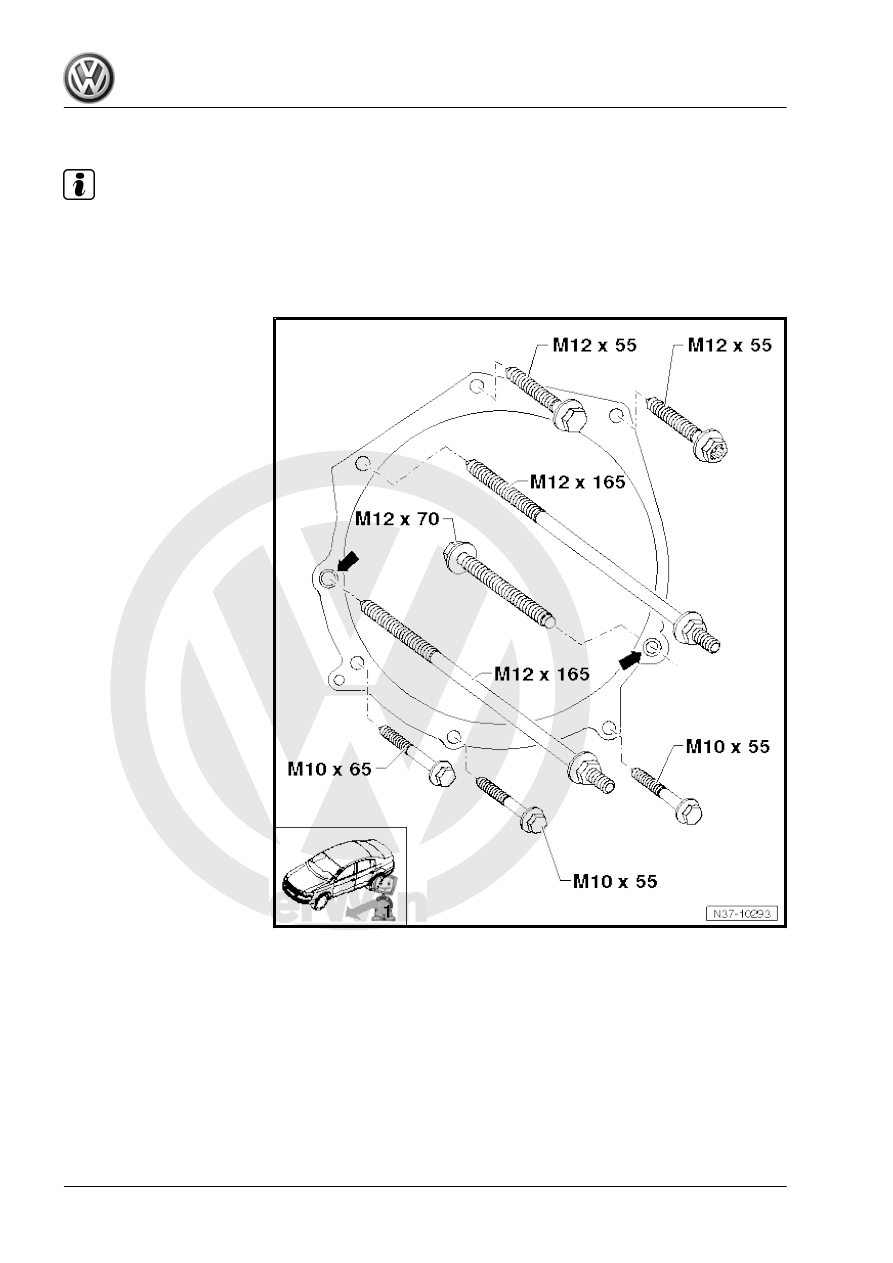

Tightening Specifications, Jetta MY 2011, 2.0L 85 kW Engine

Note

♦

The -arrows- point to the alignment sleeves in the engine.

♦

When removing and installing pay attention to the different bolt lengths.

♦

If necessary the bolt length may differ from the illustration.

1 - Direction of Travel
M12 - 80 Nm

❑ When using the Insert

Tool - 18mm - T10179- :

65 Nm.

M10 - 40 Nm

❑ These bolts are located

inside the lower flange

104

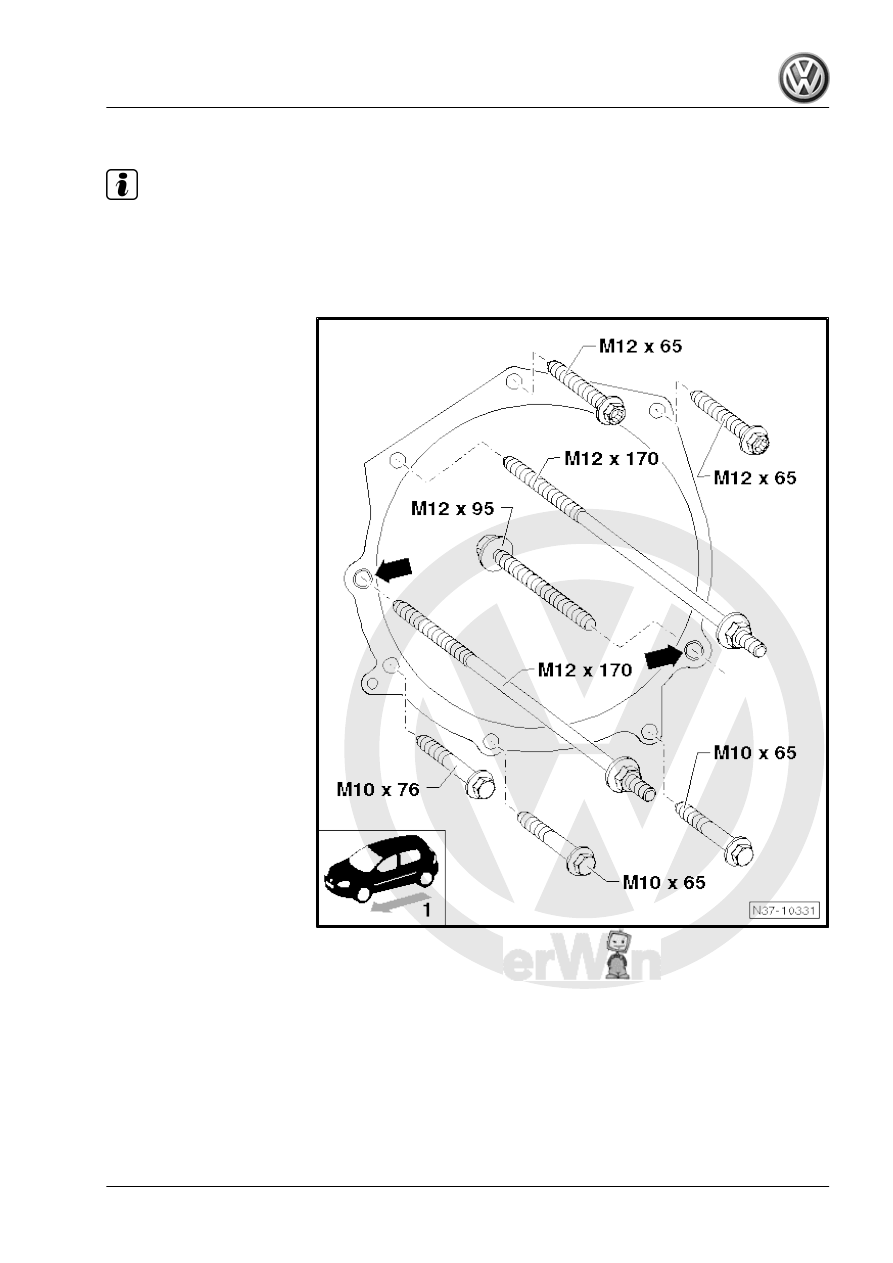

Tightening Specifications, Jetta MY 2011, 2.5L 125 kW Engine

Note

♦

The -arrows- point to the alignment sleeves in the engine.

♦

When removing and installing pay attention to the different bolt lengths.

♦

If necessary the bolt length may differ from the illustration.

1 - Direction of Travel
M12 - 80 Nm

❑ When using the Insert

Tool - 18mm - T10179- :

65 Nm.

M10 - 40 Nm

❑ These bolts are located

inside the lower flange

7. Transmission, Removing and Installing, Jetta from MY 2011

105

Transmission, Transporting

Special tools and workshop equipment required
♦ Engine/Gearbox Support Shackle (2 pc.) - 10-222A/12-
♦ Shop Crane - VAS6100-
The Engine/Gearbox Support Shackle (2 pc.) - 10-222A/12- can

be used when transporting the automatic transmission and for

setting up the Transmission Support - 3282- .

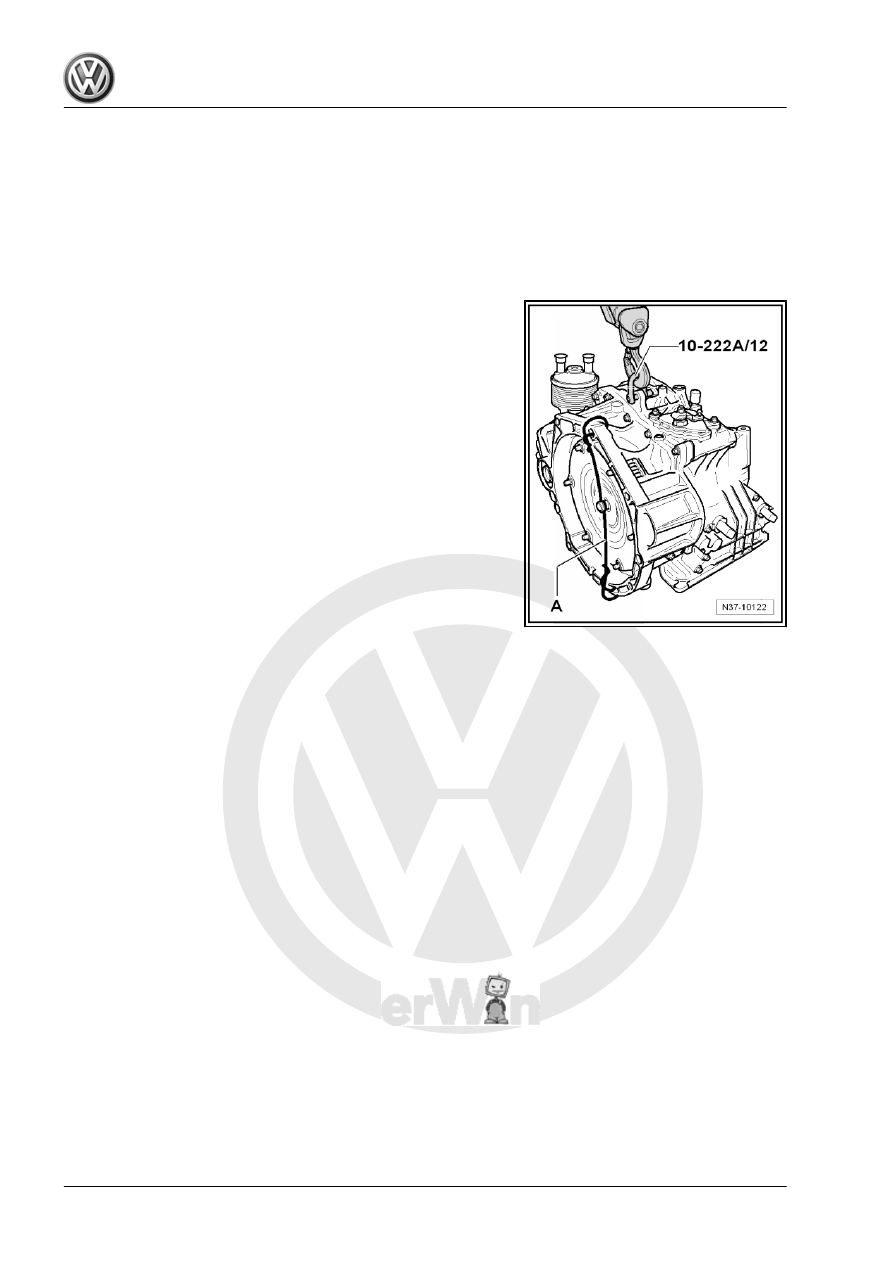

– Secure the torque converter for example with a wire -A- to

prevent it from falling when being transported.

– Secure the Engine/Gearbox Support Shackle (2 pc.) -

10-222A/12- at the top of the transmission housing.

– Engage the hook of the Shop Crane - VAS6100- into the

shackles a shown in the illustration.

– Lift the transmission with the Shop Crane - VAS6100- and En‐

gine/Gearbox Support Shackle (2 pc.) - 10-222A/12- .
