2-2. Instrument cluster
WARNING
■ Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ The information display at low temperatures
2
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
221
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.

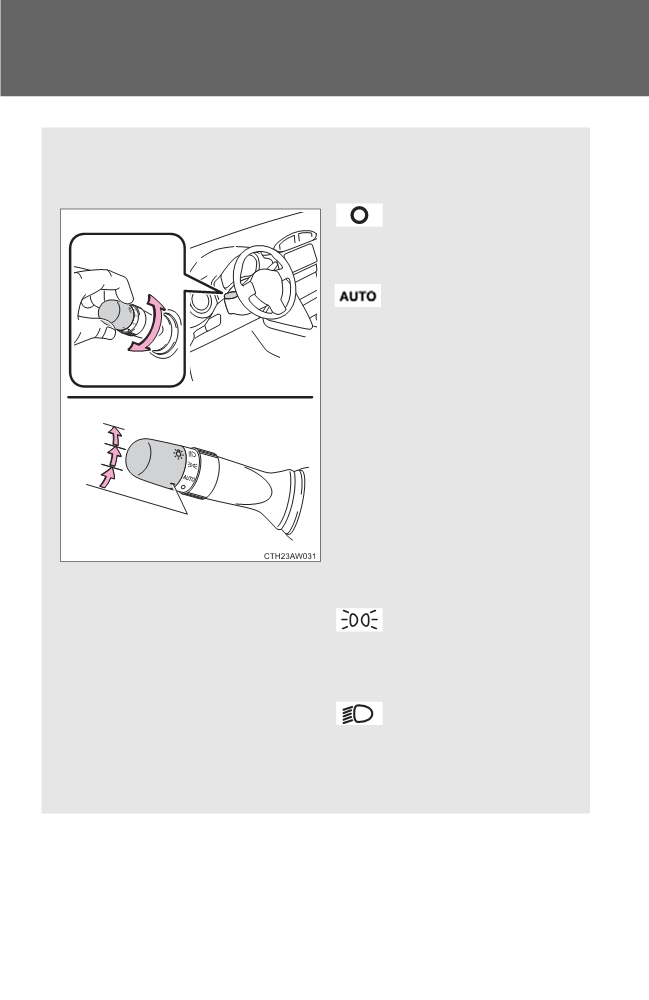

Turning the end of the lever turns on the lights as follows:
Off
The daytime running lights
turn on. (P. 224)
The headlights, park-
ing/daytime
running
lights (P. 224) and so
on turn on and off auto-
matically.
(Vehicles
without a smart key
system: When the
engine switch is in the
“ON” position
Vehicles with a smart
key system: When the
“ENGINE
START
STOP” switch is in
IGNITION ON mode)
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
the lights listed above
(except daytime run-
ning lights) turn on.
222
2-3. Operating the lights and windshield wipers
Turning on the high beam headlights

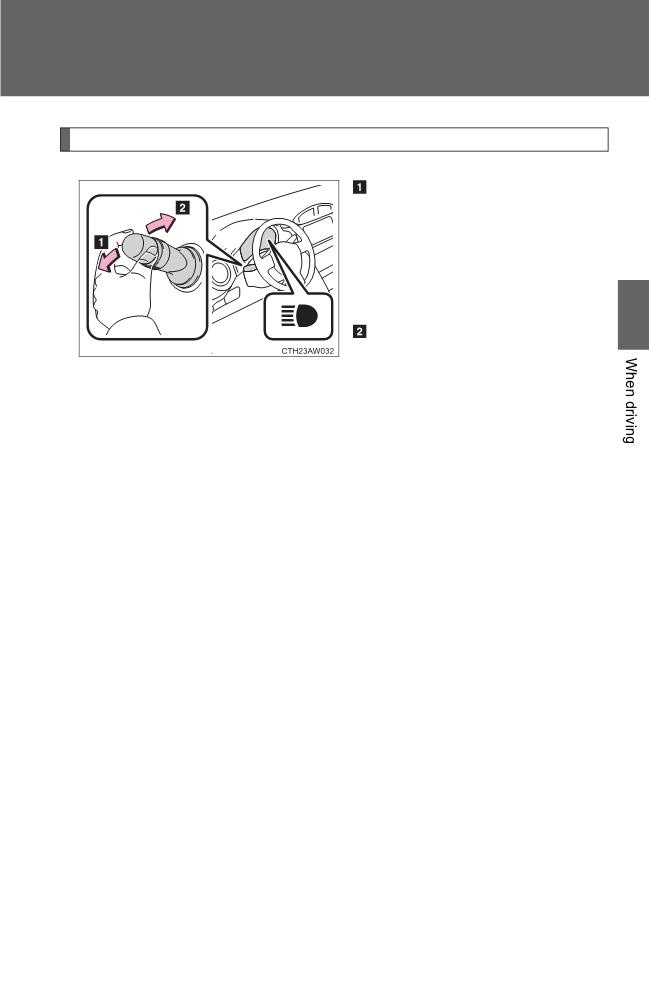

With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
2
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
223
2-3. Operating the lights and windshield wipers
■ Daytime running light system
● The daytime running lights illuminate using the same lights as the parking
lights and illuminate brighter than the parking lights.
● To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically when all of the following
conditions are met. (The daytime running lights are not designed for use
at night.)
• The engine is running
• The shift lever is shifted out of P (Vehicles with an automatic transmis-
sion)
• The parking brake is released
• The headlight switch is off or in the “AUTO”* position
*:When the surroundings are bright
The daytime running lights remain on after they illuminate even if the parking
brake is set again.
● When the turn signal indicators are flashing, the daytime running light on
the side that the turn signals are flashing will turn off.
● When the emergency flashers are flashing, both daytime running lights
will turn off.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
224
2-3. Operating the lights and windshield wipers
■ Headlight control sensor

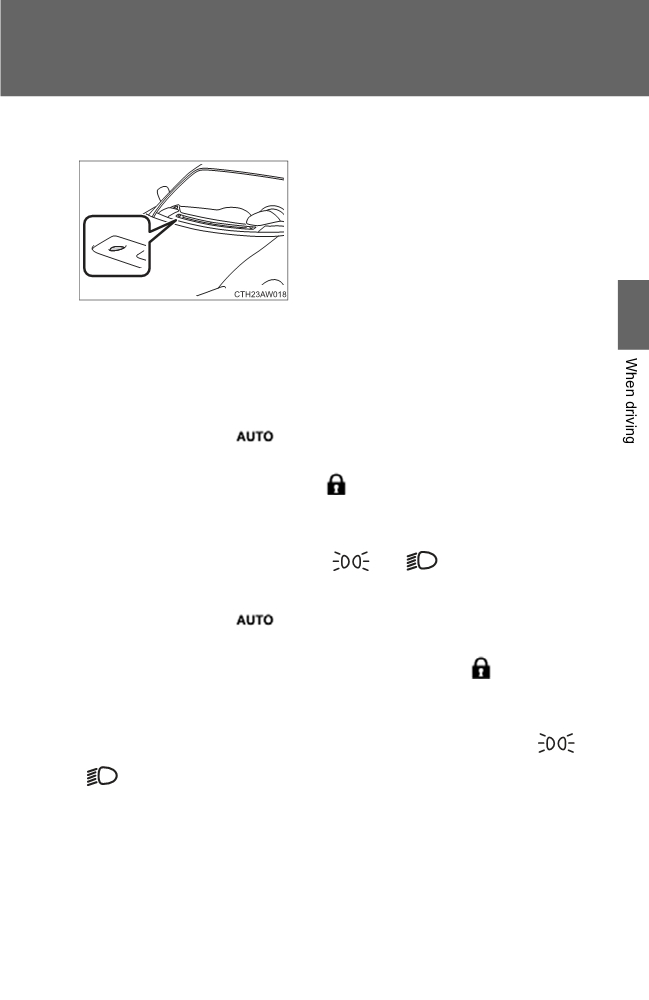

Headlight control sensor is located on the
passenger's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
2
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
■ Automatic light off system
Vehicles without a smart key system
The light switch is in
, the headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the engine switch is turned off.
(The lights turn off immediately if
on the key is pressed after all the
doors are locked.)
To turn the lights on again, turn the engine switch to “ON” position, or turn
the light switch off and then back to
or
Vehicles with a smart key system
The light switch is in
, the headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP”
switch is turned off. (The lights turn off immediately if
on the key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off and then back to
or
225
2-3. Operating the lights and windshield wipers
■Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the engine switch is turned to “LOCK” position and
the driver's door is opened with the key removed from the engine switch
while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the “ENGINE START STOP” switch is turned off and
the driver's door is opened while the lights are turned on.
■ Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ Battery-saving function
In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:
● The headlights and/or tail lights are on.
● The key is removed from the engine switch (vehicles without a smart key
system) or the “ENGINE START STOP” switch is turned off (vehicles with
a smart key system).
● The light switch is in
or
This function will be canceled in any of the following situations:
● When the engine switch is turned to the “ON” position (vehicles without a
smart key system) or the “ENGINE START STOP” switch is turned to
IGNITION ON mode (vehicles with a smart key system)
● When the light switch is operated
● When the door is opened or closed
■ Customization that can be configured at your Toyota dealer
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 487)
226
2-3. Operating the lights and windshield wipers
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
2
227
2-3. Operating the lights and windshield wipers
Fog light switch
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.

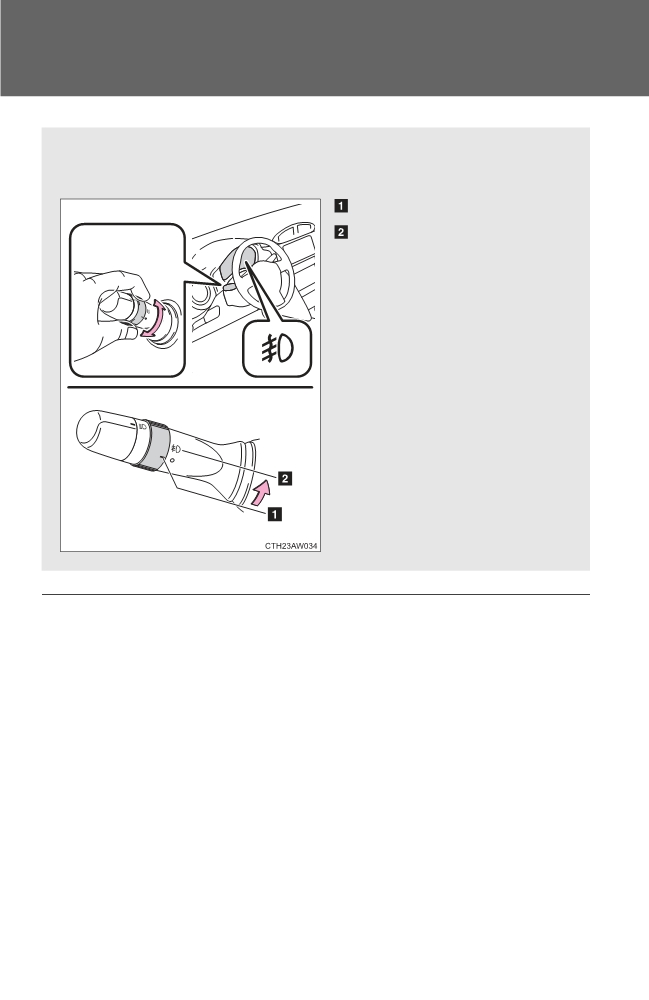

Turns the front fog lights off
Turns the front fog lights on
■ Fog lights can be used when
The headlights are on in low beam.
: If equipped
228
2-3. Operating the lights and windshield wipers
Windshield wipers and washer
When intermittent windshield wiper operation is selected, the wiper
interval can be adjusted.

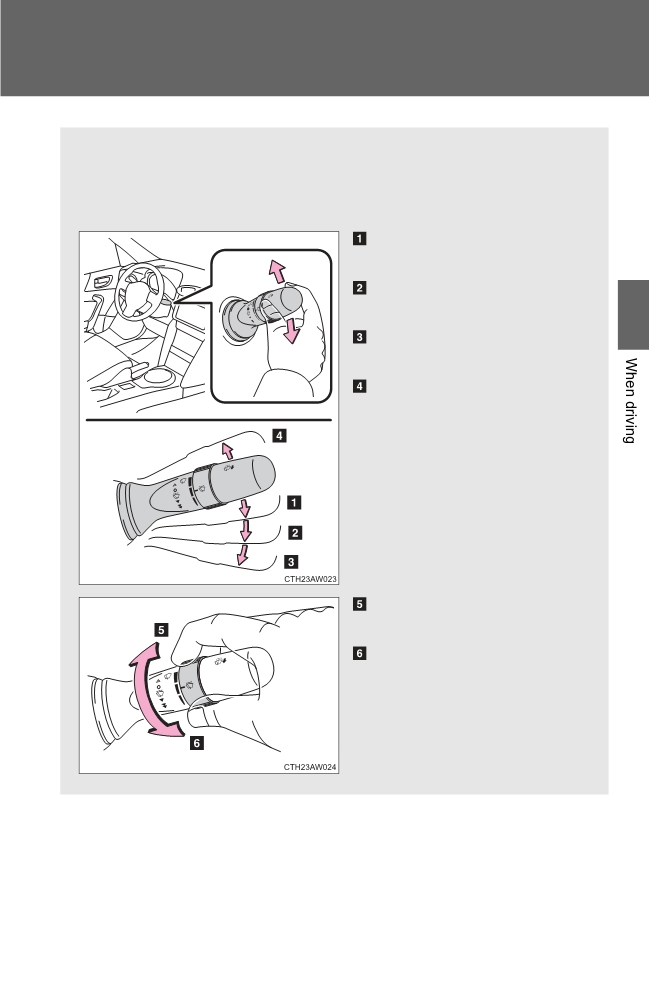

The wiper operation is selected by moving the lever as follows.
Intermittent
windshield
wiper operation
Low speed windshield wiper
operation
2
High speed windshield
wiper operation
Temporary operation
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency
229
2-3. Operating the lights and windshield wipers

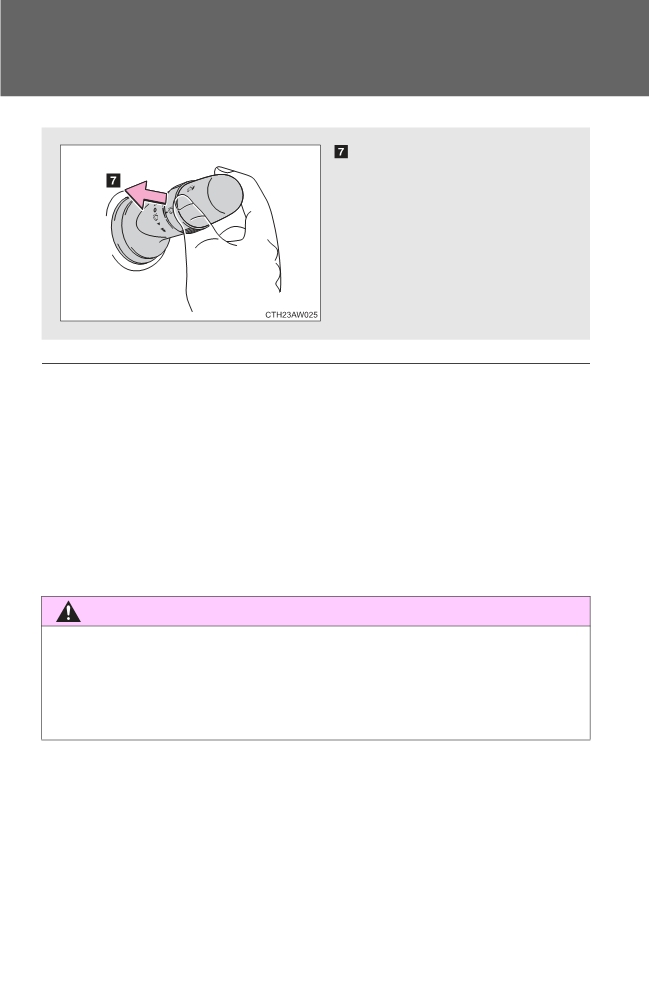

Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.
■ The windshield wipers and washer can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid tank.
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
230
2-3. Operating the lights and windshield wipers
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
2
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
231
2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch

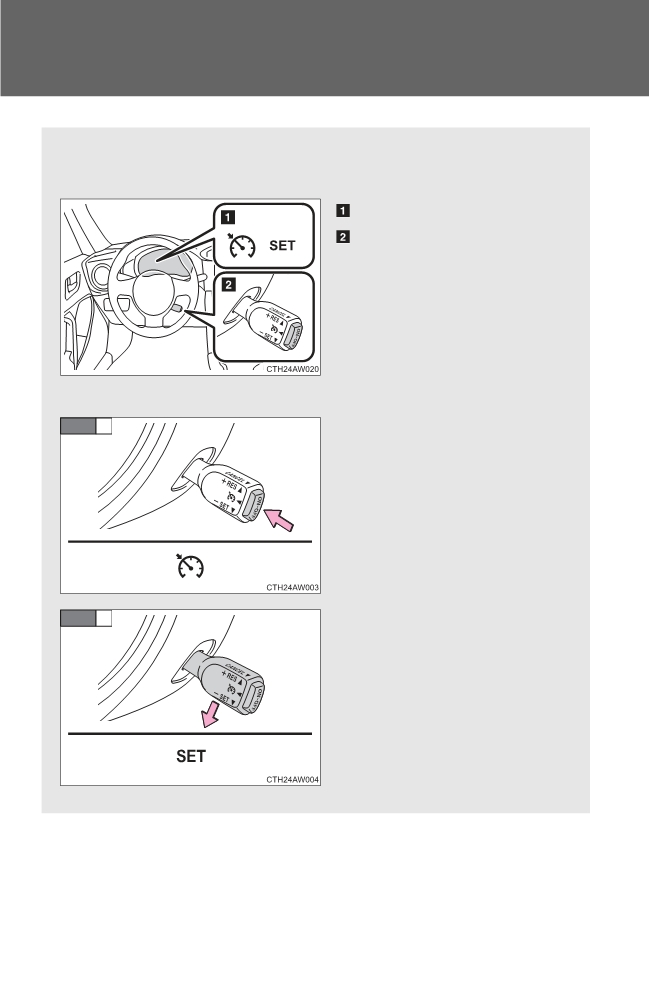

■ Setting the vehicle speed
STEP
1
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator (green)
will come on.
Press the button again to
deactivate the cruise control.
STEP
2
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
232
2-4. Using other driving systems
■ Adjusting the set speed

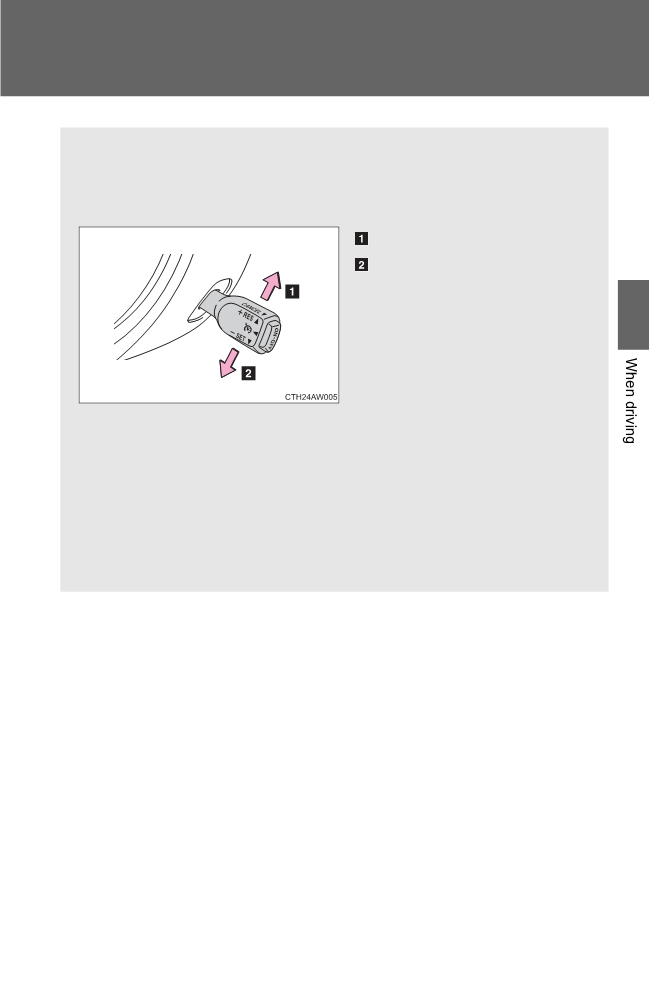

To change the set speed, operate the lever until the desired set
speed is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
2
direction.
Large adjustment: Hold the
lever in the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment (vehicles with a km/h odometer display): By approxi-
mately 0.6 mph (1 km/h) each time the lever is operated.
Fine adjustment (vehicles with an mph odometer display): By approxi-
mately 1 mph (1.6 km/h) each time the lever is operated.
Large adjustment: The set speed can be increased or decreased con-
tinually until the lever is released.
233
2-4. Using other driving systems
■ Canceling and resuming the constant speed control

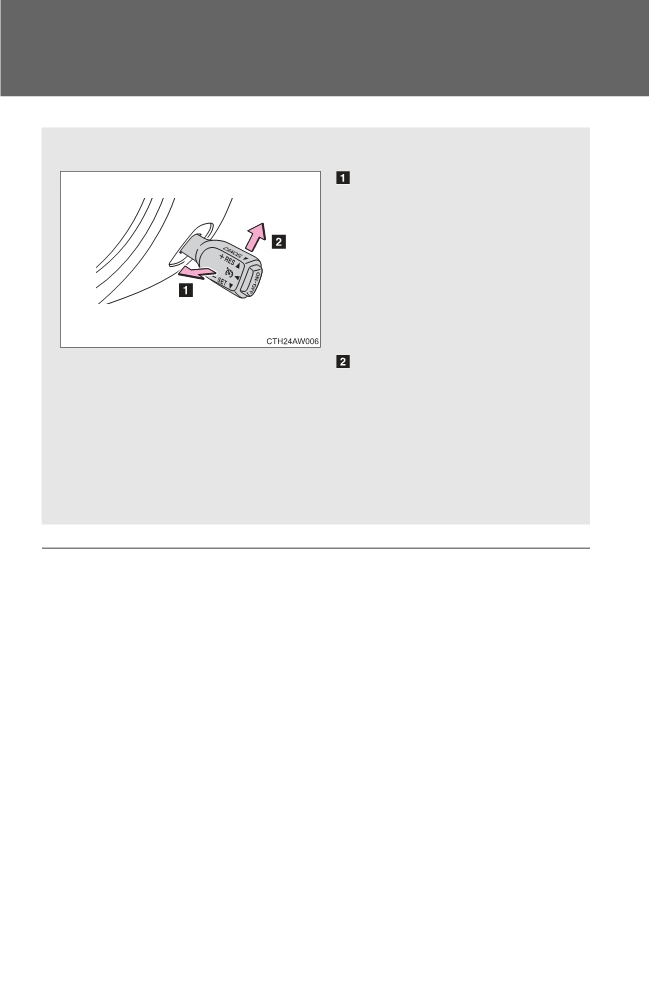

Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also can-
celed when the brakes are
applied or the clutch pedal
(manual transmission only) is
depressed.
Pushing the lever up
resumes the constant
speed control.
Resuming is available when
the vehicle speed is more
than approximately
20 mph
(30 km/h).
■ Cruise control can be set when
Vehicles with an automatic transmission
● The shift lever is in D or M and the vehicle is in the 2nd gear or higher.
● Vehicle speed is above approximately 25 mph (40 km/h).
Vehicles with a manual transmission
● The vehicle is in the 2nd gear or higher.
● Vehicle speed is above approximately 25 mph (40 km/h).
234
2-4. Using other driving systems
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
● Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
2
● Actual vehicle speed is below approximately 20 mph (30 km/h).
● VSC is activated.
■ The system may be malfunctioning when
In the following situations, the system may be malfunctioning. Have the vehi-
cle inspected by your Toyota dealer.
● The cruise control indicator light comes on in yellow.
● The cruise control indicator does not come on even when the “ON-OFF”
button is pressed while the engine is running.
235
2-4. Using other driving systems
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● During emergency towing
236
2-4. Using other driving systems
Rear view monitor system

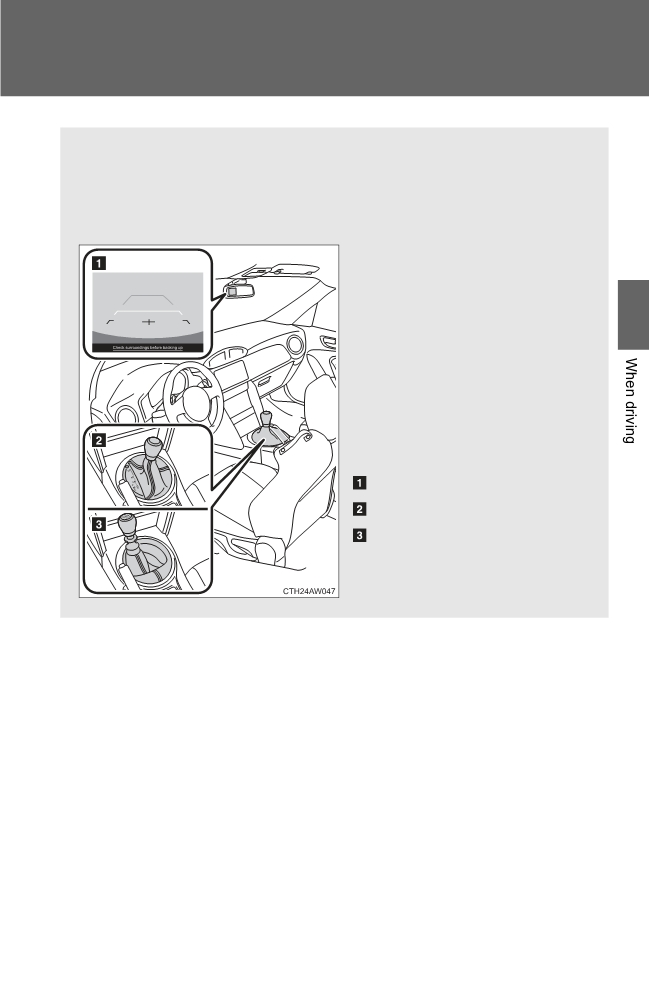

The rear view monitor assists the driver by displaying an image of
the area behind the vehicle while reversing. The image is displayed
in reverse on the screen. This reversed image is a similar image to
the one on the inside rear view mirror.
The rear view image will be
displayed on the rear view
monitor within a few seconds
2
after the shift lever is shifted to
R.
When the shift lever is shifted
to a position other than R, the
image will continue to be dis-
played for approximately
5
seconds.
Screen
Automatic transmission
Manual transmission
237
