Toyota 86 (2018 year). Manual - part 2

Vehicle data recordings

Your Toyota is equipped with several sophisticated computers that will record

certain data, such as:

• Accelerator status

• Brake status

• Vehicle speed

The recorded data varies according to the vehicle grade level and options

with which it is equipped. These computers do not record conversations or

sounds, and only record images outside of the vehicle in certain situations.

● Data Transmission

Your vehicle may transmit the data recorded in these computers to Toyota

without notification to you.

●Data usage

Toyota may use the data recorded in these computers to diagnose malfunc-

tions, conduct research and development, and improve quality.

Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if

the vehicle is leased

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by Toyota in a lawsuit

• For research purposes where the data is not tied to a specific vehicle or

vehicle owner

● To learn more about the vehicle data collected, used and shared by

Toyota, please visit www.toyota.com/privacyvts/.

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main pur-

pose of an EDR is to record, in certain crash or near crash-like situations,

such as an air bag deployment or hitting a road obstacle, data that will assist

in understanding how a vehicle’s systems performed. The EDR is designed

to record data related to vehicle dynamics and safety systems for a short

period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fas-

tened;

• How far (if at all) the driver was depressing the accelerator and/or brake

pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in

which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-

ation occurs; no data are recorded by the EDR under normal driving condi-

tions and no personal data (e.g., name, gender, age, and crash location) are

recorded. However, other parties, such as law enforcement, could combine

the EDR data with the type of personally identifying data routinely acquired

during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access

to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,

other parties, such as law enforcement, that have the special equipment, can

read the information if they have access to the vehicle or the EDR.

● Disclosure of the EDR data

Toyota will not disclose the data recorded in an EDR to a third party except

when:

• An agreement from the vehicle’s owner (or the lessee for a leased vehicle)

is obtained

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by Toyota in a lawsuit

However, if necessary, Toyota may:

• Use the data for research on vehicle safety performance

• Disclose the data to a third party for research purposes without disclosing

information about the specific vehicle or vehicle owner

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain

explosive chemicals. If the vehicle is scrapped with the airbags and seat belt

pretensioners left as they are, this may cause an accident such as fire. Be

sure to have the systems of the SRS airbag and seat belt pretensioner

removed and disposed of by a qualified service shop or by your Toyota

dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These

components may include airbag, seat belt pretensioners, and wireless

remote control batteries.

WARNING

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influ-

ence of alcohol or drugs that have impaired your ability to operate your vehi-

cle. Alcohol and certain drugs delay reaction time, impair judgment and

reduce coordination, which could lead to an accident that could result in

death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other

drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that dis-

tracts the driver, such as adjusting controls, talking on a cellular phone or

reading can result in a collision with resulting death or serious injury to you,

your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to

have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral.

There is also a danger that children may injure themselves by playing with

the windows or other features of the vehicle. In addition, heat build-up or

extremely cold temperatures inside the vehicle can be fatal to children.

Symbols used throughout this manual

Cautions & Notices

WARNING

This is a warning against something which, if ignored, may cause death or

serious injury to people. You are informed about what you must or must not do

in order to reduce the risk of death or serious injury to yourself and others.

NOTICE

This is a warning against something which, if ignored, may cause damage to

the vehicle or its equipment. You are informed about what you must or must

not do in order to avoid or reduce the risk of damage to your Toyota and its

equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do

not do this”, or “Do not let this happen.”

Arrows indicating operations

Indicates the action (pushing, turning,

etc.) used to operate switches and

other devices.

Indicates the outcome of an operation

(e.g. a lid opens).

Before driving

1-1.

Key information

1-4.

Opening and closing

Keys

the windows

Power windows

1-2.

Opening, closing and

locking the doors and

1-5.

Refueling

trunk

Opening the fuel

Smart key system

tank cap

Wireless remote control

1-6.

Theft deterrent system

Doors

Trunk

Engine immobilizer

system

1-3.

Adjustable components

Alarm

(seats, mirrors,

Theft prevention labels

steering wheel)

(U.S.A.)

Front seats

1-7.

Safety information

Rear seats

Correct driving posture

Head restraints

SRS airbag

Seat belts

(Supplemental Restraint

Steering wheel

System airbag)

Anti-glare inside rear

Front passenger occupant

view mirror

classification system

128

Outside rear view

Child restraint systems

137

mirrors

Installing child restraints...

141

1-1. Key information

Keys

The following keys are provided with the vehicle.

Vehicles without a smart key system

Master keys

Operating the wireless remote

control function (P. 38)

Valet key

Key number plate

Vehicles with a smart key system

Electronic keys

• Operating the smart key

system (P. 25)

• Operating the wireless

remote control function

(P. 38)

Mechanical keys

Key number plate

1-1. Key information

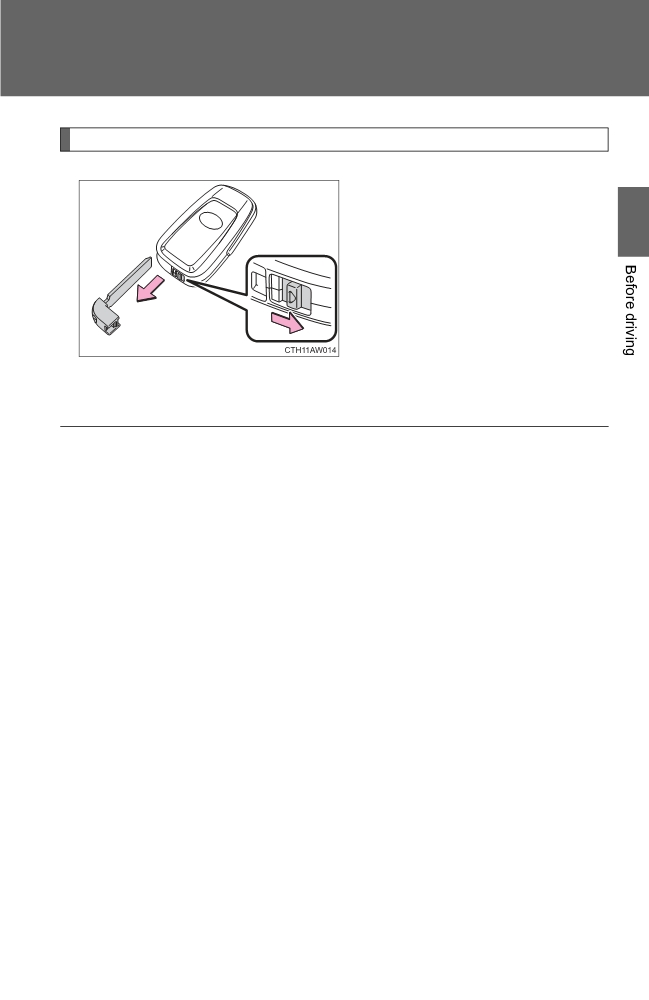

Using the mechanical key (vehicles with a smart key system)

To take out the mechanical key,

slide the release lever and take

the key out.

After using the mechanical key,

store it in the electronic key. Carry

the mechanical key together with

the electronic key. If the electronic

key battery is depleted or entry

function does not operate prop-

erly, you will need the mechanical

key. (P. 440)

■ When required to leave the vehicle’s key with a parking attendant

Turn the trunk opener main switch off as circumstances demand. (P. 47)

On vehicles without a smart key system, provide the attendant with the valet

key.

On vehicles with a smart key system, remove the mechanical key for your

own use and provide the attendant with the electronic key only.

■ Key number plate

Keep the plate in a safe place, not in the vehicle. In the event that a key

(without a smart key system) or mechanical key (with a smart key system) is

lost, a new key can be made at your Toyota dealer using the key number

plate. (P. 439)

■When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft,

make sure you do not press any buttons on the key while inside the aircraft

cabin. If you are carrying the key in your bag etc., ensure that the buttons

are not likely to be pressed accidentally. Pressing a button may cause the

key to emit radio waves that could interfere with the operation of the aircraft.

1-1. Key information

NOTICE

■ To prevent key damage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for a long period of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the key.

● Vehicles with a smart key system: Do not place the keys near objects that

produce magnetic fields, such as TVs, audio systems, induction cookers,

or medical electrical equipment, such as low-frequency therapy equip-

ment.

■ Carrying the electronic key on your person (vehicles with a smart key

system)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-

ances that are turned on. Radio waves emitted from electric appliances

within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing

the key to not function properly.

■ In case of a smart key system malfunction or other key-related prob-

lems (vehicles with a smart key system)

Take your vehicle with all the electronic keys provided with your vehicle to

your Toyota dealer.

■ When a vehicle key is lost

If the key remains lost, the risk of vehicle theft increases significantly. Visit

your Toyota dealer immediately with all remaining keys that were provided

with your vehicle.

1-2. Opening, closing and locking the doors and trunk

Smart key system (vehicles with a smart key system)

The following operations can be performed simply by carrying the

electronic key on your person, for example in your pocket.

(The driver should always carry the electronic key.)

Electronic key

Unlocks and locks the doors (P. 26)

Unlocks the trunk (P. 27)

Starts the engine (P. 166)

1-2. Opening, closing and locking the doors and trunk

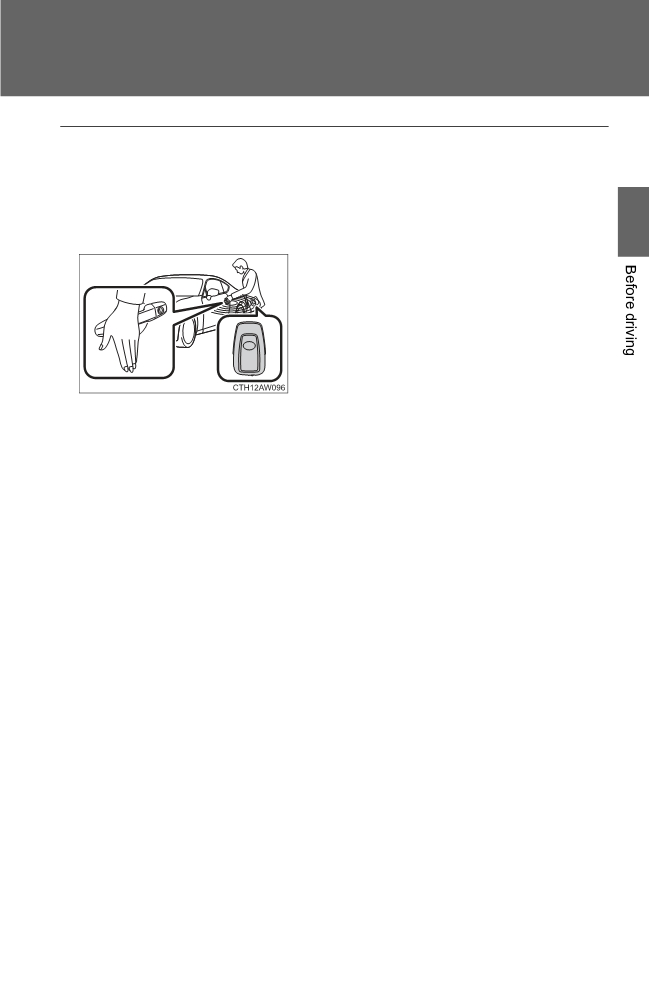

Unlocking and locking the doors

Grip the driver’s door handle to

unlock the door. Grip the passen-

ger’s door handle to unlock all

the doors.

Make sure to touch the sensor on

the back of the handle.

The door cannot be unlocked for

3 seconds after the door is

locked.

Touch the lock sensor

(the

indentation on the side of the

door handle) to lock the doors.

Check that the door is securely

locked.

1-2. Opening, closing and locking the doors and trunk

Unlocking the trunk

Press the button to unlock the

trunk.

Antenna location and effective range

■ Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna outside the trunk

Antenna inside the trunk

1-2. Opening, closing and locking the doors and trunk

■ Effective

range

(areas

within

which the electronic key is

detected)

When locking or unlocking

the doors

The system can be operated

when the electronic key is

within about 1.3 - 2.6 ft. (0.4 -

0.8 m) of either of the outside

door handles.

(Only the

doors detecting the key can

be operated.)

When unlocking the trunk

The system can be operated

when the electronic key is

within about 1.3 - 2.6 ft. (0.4 -

0.8 m) of the trunk release

button.

When starting the engine

or changing

“ENGINE

START STOP” switch

modes

The system can be operated

when the electronic key is

inside the vehicle.

1-2. Opening, closing and locking the doors and trunk

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors

have been locked/unlocked. (Locked: once; Unlocked: twice)

■ When the door cannot be locked by the lock sensor

Use your palm to touch the lock sensor.

■Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a

buzzer sounds continuously. Fully close the door to stop the buzzer, and lock

the vehicle once more.

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages

shown on the multi-information display are used to prevent theft of the vehi-

cle and accidents resulting from erroneous operation. Take appropriate mea-

sures in response to any warning message on the multi-information display.

(P. 409, 413)

The following table describes circumstances and correction procedures

when only alarms are sounded.

1-2. Opening, closing and locking the doors and trunk

Alarm

Situation

Correction procedure

Exterior alarm

An attempt was made to

Close all of the doors

sounds once for

lock the vehicle while a

and lock the doors

5 seconds

door was open.

again.

The “ENGINE START

STOP” switch was turned

to ACCESSORY mode

Turn the “ENGINE

Interior alarm

while the driver’s door was

START STOP” switch

sounds continu-

open (or the driver’s door

off and close the

ously

was opened while the

driver’s door.

“ENGINE START STOP”

switch was in ACCES-

SORY mode).

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is

unlocked, the security feature automatically locks the vehicle again. (How-

ever, depending on the location of the electronic key, the key may be

detected as being in the vehicle. In this case, the vehicle may be unlocked.)

■ Battery-saving function

The battery-saving function will be activated in order to prevent the elec-

tronic key battery and the vehicle battery from being discharged while the

vehicle is not in operation for a long time.

● In the following situations, the smart key system may take some time to

unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m)

of the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

● If the smart key system has not been used for 14 days or longer, the

doors cannot be unlocked at any door except the driver’s door.

In this case, take hold of the driver’s door handle, or use the wireless

remote control or the mechanical key, to unlock the doors.

1-2. Opening, closing and locking the doors and trunk

■ Conditions affecting operation

The smart key system uses weak radio waves. In the following situations,

the communication between the electronic key and the vehicle may be

affected, preventing the smart key system, wireless remote control and

engine immobilizer system from operating properly.

(Way of coping P. 440)

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electri-

cal noise

● When the electronic key is in contact with, or is covered by the following

metallic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When other wireless keys (that emit radio waves) are being used nearby

● When carrying the electronic key together with the following devices that

emit radio waves

• A portable radio, cellular phone, cordless phone or other wireless com-

munication device

• Another vehicle's electronic key or a wireless key that emits radio

waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

● If window tint with a metallic content or metallic objects are attached to

the rear window

● When the electronic key is placed near a battery charger or electronic

devices

1-2. Opening, closing and locking the doors and trunk

■Notes for the entry function

● Even when the electronic key is within the effective range (detection

areas), the system may not operate properly in the following cases:

• The electronic key is too close to the window or outside door handle,

near the ground, or in a high place when the doors are locked or

unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear shelf or floor, in the

door pockets or glove box, auxiliary box when the engine is started or

“ENGINE START STOP” switch modes are changed.

● Do not leave the electronic key on top of the instrument panel or near the

door pockets when exiting the vehicle. Depending on the radio wave

reception conditions, it may be detected by the antenna outside the cabin

and the door will become lockable from the outside, possibly trapping the

electronic key inside the vehicle.

● As long as the electronic key is within the effective range, the doors may

be locked or unlocked by anyone.

● Even if the electronic key is not inside the vehicle, it may be possible to

start the engine if the electronic key is near the window.

● The doors may unlock if a large amount of water splashes on the door

handle, such as in the rain or in a car wash when the electronic key is

within the effective range. (The door will automatically be locked after

approximately 60 seconds if the doors are not opened and closed.)

● Gripping the door handle when wearing a glove may not unlock the door.

● If the wireless remote control is used to lock the doors when the elec-

tronic key is near the vehicle, there is a possibility that the door may not

be unlocked by the entry function. (Use the wireless remote control to

unlock the doors.)

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the

original position and check that the doors unlock before pulling the door

handle again.

1-2. Opening, closing and locking the doors and trunk

■ Notes for locking the doors

● Touching the door lock sensor while wearing gloves may delay or prevent

lock operation. Remove the gloves and touch the lock sensor again.

● When the lock operation is performed using the lock sensor, recognition

signals will be shown up to two consecutive times. After this, no recogni-

tion signals will be given.

● If the door handle becomes wet when washing the vehicle while the elec-

tronic key is within the effective range, the door may lock and unlock

repeatedly. In this case, place the electronic key in a location 6 ft. (2 m) or

more away from the vehicle (take care to ensure that the key is not sto-

len), and continue to wash the vehicle.

● If the electronic key is inside the vehicle and a door handle becomes wet

during a car wash, a buzzer will sound outside the vehicle. To turn off the

alarm, lock all the doors.

● The lock sensor may not work properly if it comes into contact with ice,

snow, mud, etc. Clean the lock sensor and attempt to operate it again.

■Notes for the unlocking function

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the

original position and check that the doors unlock before pulling the door

handle again.

● Gripping the door handle when wearing a glove may not unlock the door.

Remove the gloves and touch the sensor on the back of the handle

again.

● If the door handle becomes wet when washing the vehicle while the elec-

tronic key is within the effective range, the door may lock and unlock

repeatedly. In this case, place the electronic key in a location 6 ft. (2 m) or

more away from the vehicle (take care to ensure that the key is not sto-

len), and continue to wash the vehicle.

● If there is another electronic key in the detection area, it may take slightly

longer to unlock the doors after the door handle is gripped.

Content .. 1 2 3 ..
