680
8-2. Steps to take in an emergency
Locking and unlocking the charging port lid
■ Locking the charging port lid
1
Close the charging port lid. (P. 114)
2
Lock the doors using the mechanical key. (P. 678)
The charging port lid can be locked if the step
1
and
2
is performed in
reverse.
■ Unlocking the charging port lid
1
Unlock the doors using the mechanical key. (P. 678)
2
Open the charging port lid. (P. 114)
Unlocking the charging connector
1
Unlock the doors using the mechanical key. (P. 678)
2
Push the charging connector lock switch. (P. 156)
The charging connector will be unlocked.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
681
■ Stopping the hybrid system
Set the parking brake, shift the shift position to P and press the power switch
as you normally do when stopping the hybrid system.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 616)
■ Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (P. 81)
■ Changing power switch modes
Release the brake pedal and press the power switch in step
3
above. The
hybrid system does not start and modes will be changed each time the switch
is pressed. (P. 329)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 708)
●Check if battery-saving mode is set. If it is set, cancel the function.
(P. 281)
WARNING
■ When using the mechanical key and operating the power windows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the win-
dow.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power window.
8
PRIUS PHV_OM_OM47A89E_(EE)
682
8-2. Steps to take in an emergency

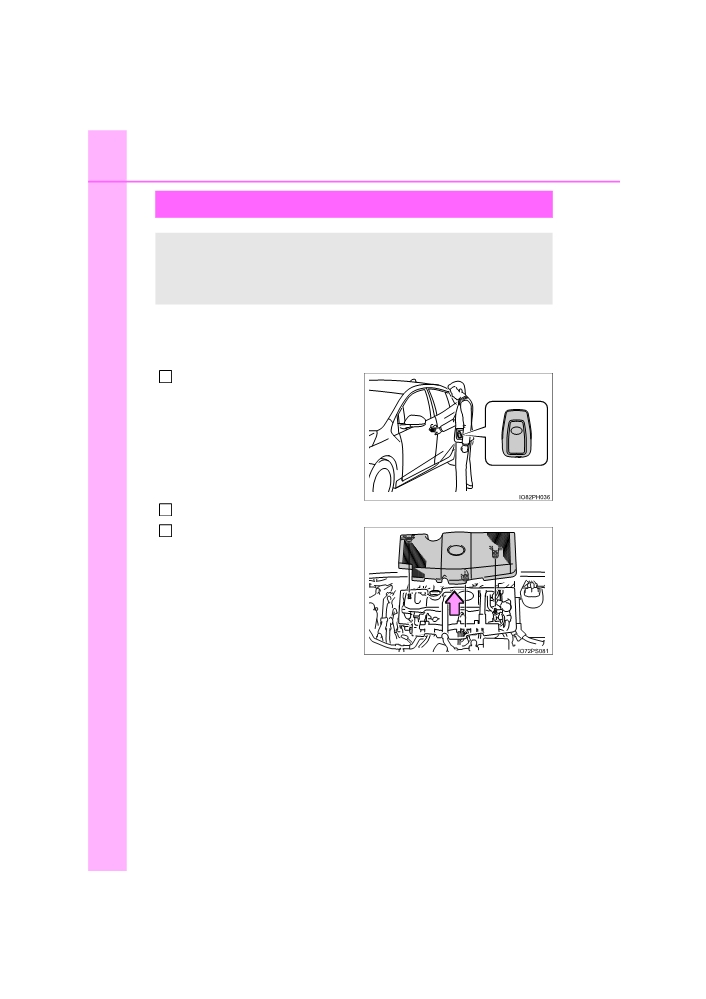

If the 12-volt battery is discharged
The following procedures may be used to start the hybrid sys-
tem if the vehicle’s 12-volt battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
1
Vehicles with an alarm
(P. 81):
Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the
alarm may activate
and doors locked. (P. 83)
2
Open the hood. (P. 563)
3
Remove the engine cover.
Pull up the both ends of the cover
vertically.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
683
4

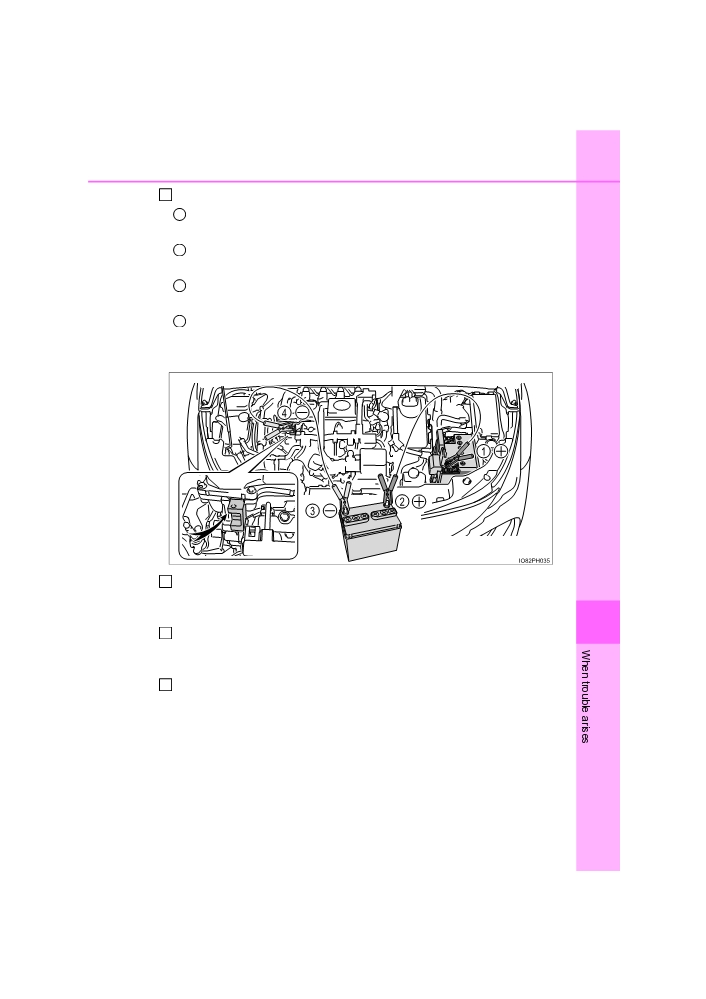

Connect the jumper cables according to the following procedure:
1
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
2
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
3
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
4
solid, stationary, unpainted metallic point away from the 12-volt
battery and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
5
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
8
Maintain the engine speed of the second vehicle and start the
6
hybrid system of your vehicle by turning the power switch to ON
mode.
Make sure the “READY” indicator comes on. If the indicator light
7
does not come on, contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
PRIUS PHV_OM_OM47A89E_(EE)
684
8-2. Steps to take in an emergency
8
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
To install the engine cover, conduct the removal procedure in
9
reverse. After installing, check that the fixed pins are inserted
securely.
Once the hybrid system starts, have the vehicle inspected at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional as soon as possible.
■ When opening the cover of the positive (+) battery terminal
P. 575
■ Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
● Turn off the headlights and the audio system while the hybrid system is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When the 12-volt battery is removed or discharged
●Information stored in the ECU is cleared. When the 12-volt battery is
depleted, have the vehicle inspected at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Some systems may require initialization. (P. 717)
■ When removing the 12-volt battery terminals
When the 12-volt battery terminals are removed, the information stored in the
ECU is cleared. Before removing the 12-volt battery terminals, contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the hybrid system may be unable to start. (The
12-volt battery recharges automatically while the hybrid system is operating.)
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
685
■ When recharging or replacing the 12-volt battery
●In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt battery is discharged. Use the wire-
less remote control or the mechanical key to lock or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
●It may be impossible to unlock the charging port lid or locking and unlocking
the charging connector immediately after the 12-volt battery is reconnected.
In this case, carry the electronic key on your person and operate the
charging port lid or charging connector lock switch again.
●The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt bat-
tery discharged, be especially careful when reconnecting the 12-volt battery.
● If the 12-volt battery discharges while the shift position is in P, it may not be
possible to shift the shift position to other positions. In this case, the vehicle
cannot be towed without lifting both front wheels because the front wheels
will be locked. (P. 634)
■ When exchanging the 12-volt battery
● Use a 12-volt battery that conforms to European regulations.
● Use a 12-volt battery that the case size is same as the previous one (LN1),
20 hour rate capacity (20HR) is equivalent (45Ah) or greater, and perfor-
mance rating (CCA) is equivalent (295A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the 12-volt battery may discharge and the
hybrid system may not be able to start.
● For details, consult any authorized Toyota dealer or repairer, or another duly
8
qualified and equipped professional.
PRIUS PHV_OM_OM47A89E_(EE)
686
8-2. Steps to take in an emergency
WARNING
■ When removing the 12-volt battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
■ Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.
■ 12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:
● When working with the 12-volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
●Do not lean over the 12-volt battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the 12-volt battery support, termi-
nals, and other battery-related parts.
●Do not allow children near the 12-volt battery.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
687
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans, etc.
8
PRIUS PHV_OM_OM47A89E_(EE)
688
8-2. Steps to take in an emergency

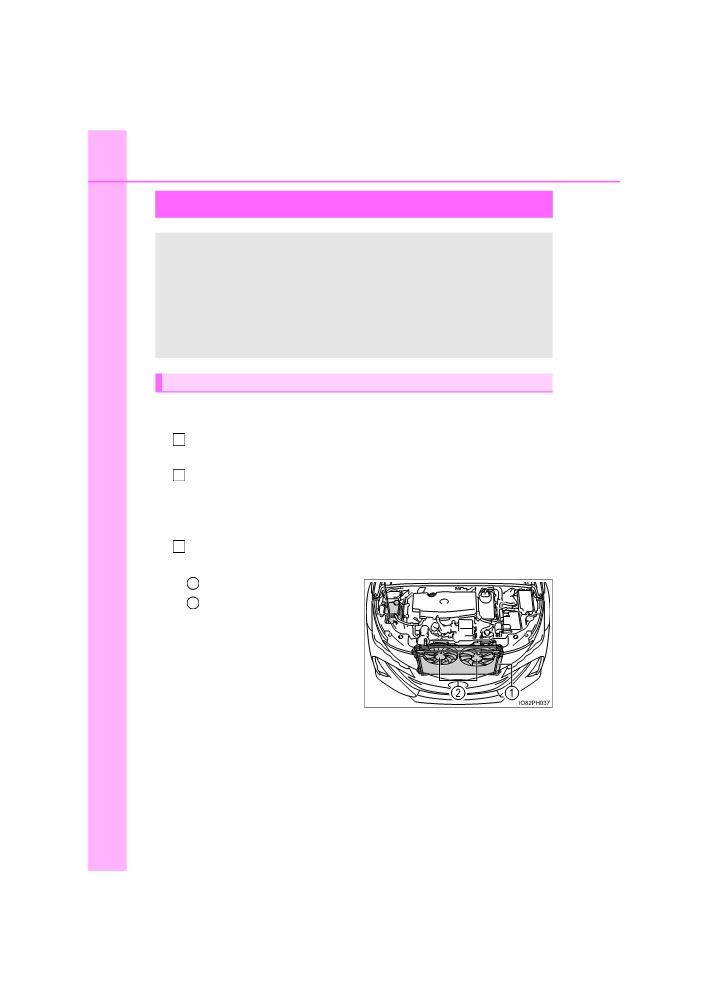

If your vehicle overheats
The following may indicate that your vehicle is overheating.
● The high coolant temperature warning light (P. 644) comes on
or flashes, or a loss of hybrid system power is experienced. (For
example, the vehicle speed does not increase.)
● “Hybrid System Overheated” is shown on the multi-information
display.
● Steam comes out from under the hood.
Correction procedures
■ If the high coolant temperature warning light comes on or
flashes
Stop the vehicle in a safe place and turn off the air conditioning
1
system, and then stop the hybrid system.
2
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
3
hoses and radiator core (radiator) for any leaks.
1
Radiator
2
Cooling fans
If a large amount of coolant
leaks, immediately contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
689
4

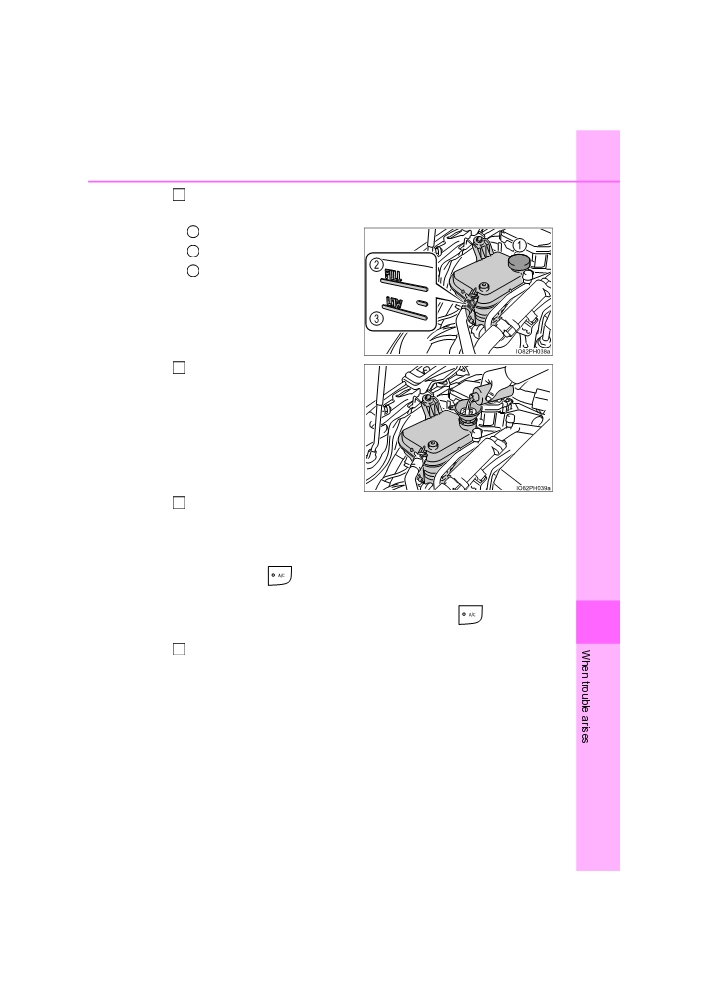

The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
1
Reservoir
2
“FULL” line
3
“LOW” line
Add coolant if necessary.
5
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
6
check that the radiator cooling fans operate and to check for
coolant leaks from the radiator or hoses.
The fans operate when the temperature setting is adjusted to “LO” and
“A/C” switch (
) is turned on immediately after a cold start. Con-
firm that the fans are operating by checking the fan sound and air flow. If
it is difficult to check these, turn the “A/C” switch (
) on and off
8
repeatedly. (The fans may not operate in freezing temperatures.)
7
If the fans are not operating:
Stop the hybrid system immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
PRIUS PHV_OM_OM47A89E_(EE)
690
8-2. Steps to take in an emergency

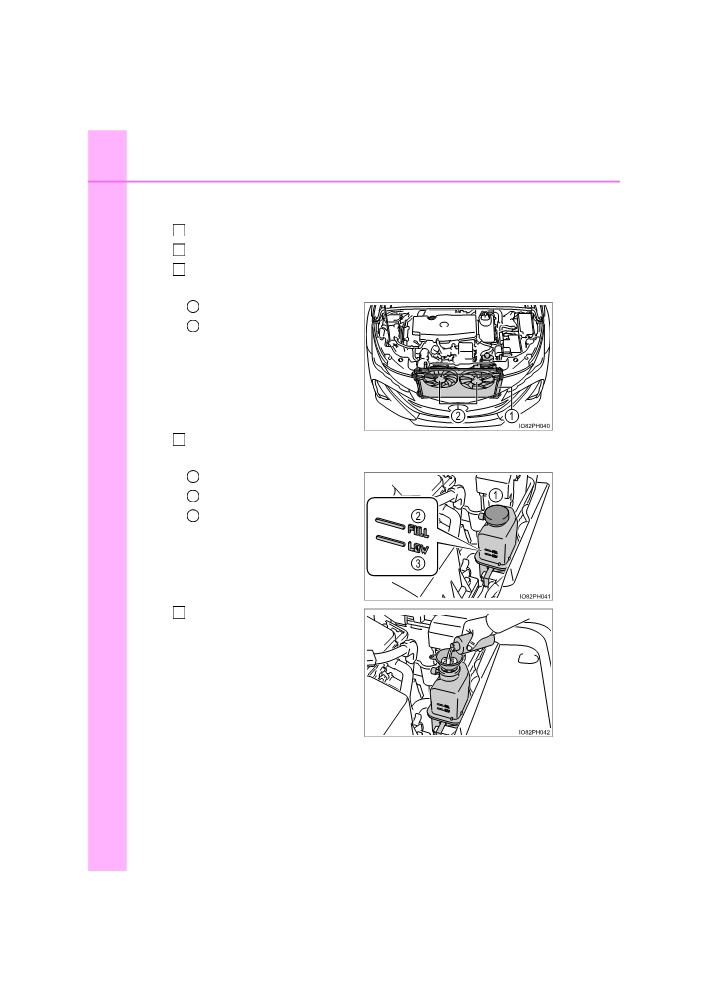

■ If “Hybrid System Overheated” is shown on the multi-informa-
tion display
1
Stop the vehicle in a safe place.
2
Stop the hybrid system and carefully lift the hood.
3
After the hybrid system has cooled down, inspect the hoses and
radiator core (radiator) for any leaks.
1
Radiator
2
Cooling fans
If a large amount of coolant
leaks, immediately contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
4
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
1
Reservoir
2
“FULL” line
3
“LOW” line
Add coolant if necessary.
5
Water can be used in an emer-
gency if coolant is unavailable.
If water was added in an emer-
gency, have the vehicle
inspected at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional as soon
as possible.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
691
After stopping the hybrid system and waiting for 5 minutes or
6
more, start the hybrid system again and check if “Hybrid System
Overheated” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle may
be driven normally.
However, if the message appears again frequently, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the “Accessory”,
“Ignition ON” or mileage display (P. 208) on the main display and the
“READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fans may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
8
●Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
PRIUS PHV_OM_OM47A89E_(EE)
692
8-2. Steps to take in an emergency
NOTICE
■ When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
●Do not use any coolant additive.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
693

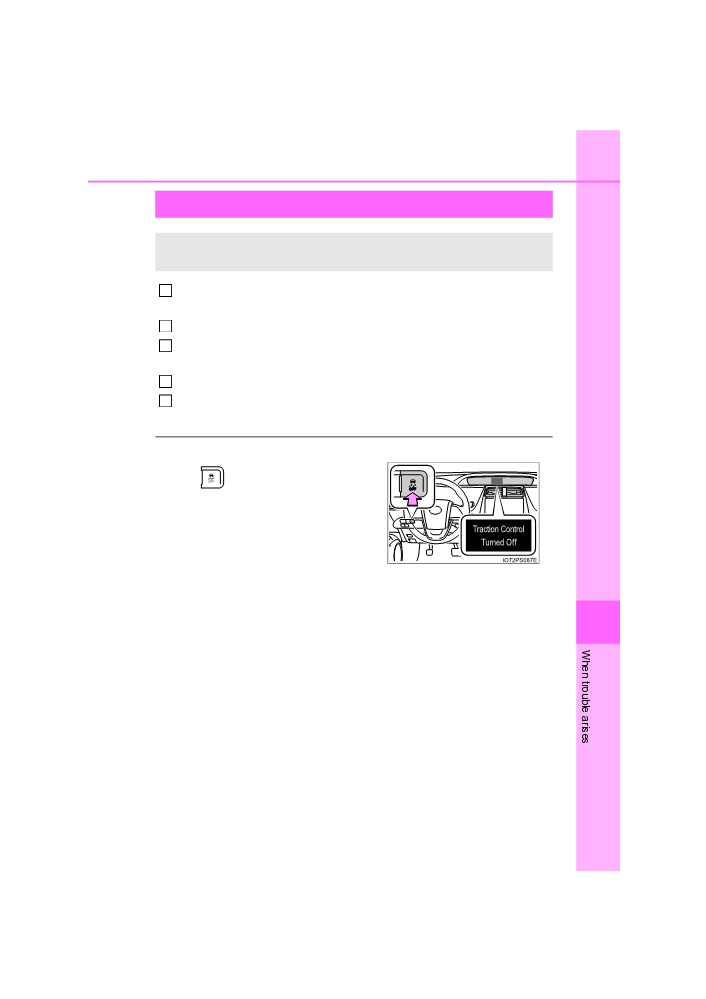

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
2
Remove the mud, snow or sand from around the front wheels.
3
Place wood, stones or some other material under the front wheels
to help provide traction.
4
Restart the hybrid system.
5
Shift the shift position to D or R and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Press
to turn off TRC. (P. 493)
8
PRIUS PHV_OM_OM47A89E_(EE)
694
8-2. Steps to take in an emergency
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
PRIUS PHV_OM_OM47A89E_(EE)
695
Vehicle specifications
9
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)
696
Fuel information
706
9-2. Customization
Customizable features
708
9-3. Initialization
Items to initialize
717
PRIUS PHV_OM_OM47A89E_(EE)
696
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
4645 mm (182.9 in.)
Overall width
1760 mm (69.3 in.)
1470 mm (57.9 in.)*2
Overall height*1
1490 mm (58.7 in.)*2
Wheelbase
2700 mm (106.3 in.)
Front
1530 mm (60.2 in.)
Tread*1
Rear
1540 mm (60.6 in.)
Gross vehicle mass
1855 kg (4090 lb.)
Front
1060 kg (2337 lb.)
Maximum permissi-
ble axle capacity
Rear
1020 kg (2249 lb.)
*1: Unladen vehicle
*2: Overall height may differ depending on the target region.
PRIUS PHV_OM_OM47A89E_(EE)
