8-2. Steps to take in an emergency
Warning light

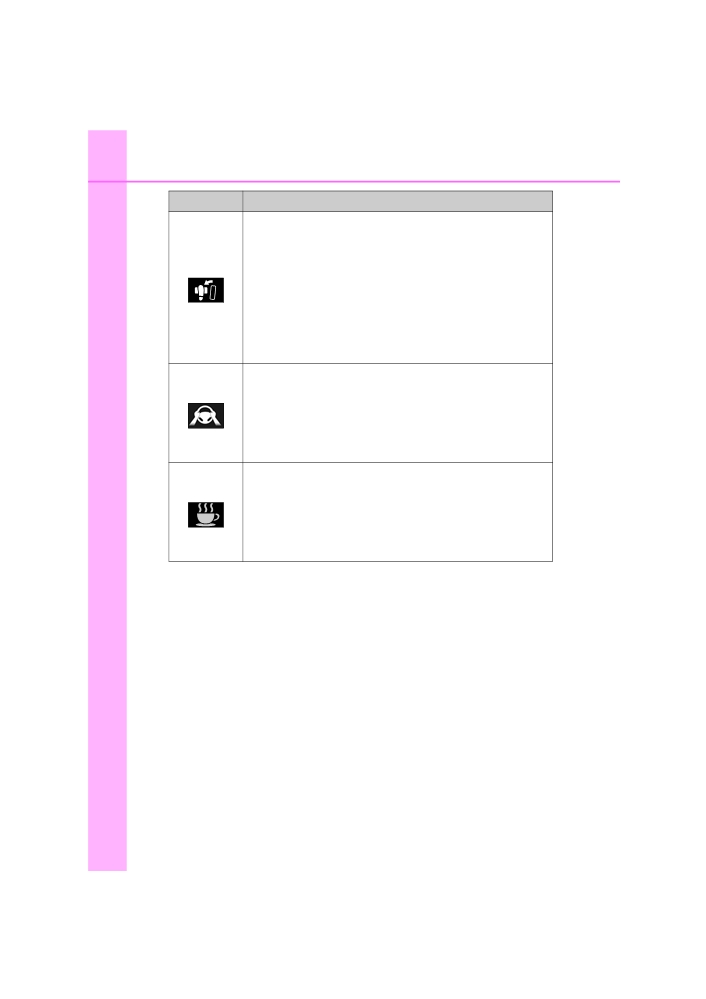

Warning light/Details/Actions
Brake Override System/Drive-Start Control/
Intelligent Clearance Sonar (symbol display)*5
Indicates that:
• The Brake Override System is operating;
• The Brake Override System is malfunctioning;
• The Drive-Start Control is operating;
• The Drive-Start Control is malfunctioning; or
• The Intelligent Clearance Sonar (if equipped) is operat-
ing (P. 449)
Follow the instruction that are displayed on the multi-
information display.
LDA (Lane Departure Alert with steering control) system
(symbol display)*5
Indicates that the LDA (Lane Departure Alert with steering
control) system has determined that the driver does not
have their hands on the steering wheel while the steering
control function is on
Firmly hold the steering wheel.
LDA (Lane Departure Alert with steering control) system
(symbol display)*5
Indicates that the vehicle has been about to depart from its
lane many times, or the steering wheel is suddenly oper-
ated to avoid departing from the lane.
Immediately take a break if you feel tired while driv-
ing.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
647
*1: Brake system warning buzzer:
When there is a possible problem that could affect braking performance,
the warning light will come on and a warning buzzer will sound.
*2: Low engine oil pressure warning buzzer:
A buzzer also sounds continuously for approximately 30 seconds at maxi-
mum in addition to the low engine oil pressure warning light when the
“READY” indicator is illuminated.
*3: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed
(with the vehicle having reached a speed of
5 km/h
[3 mph]).
*4: Seat belt warning buzzer:
The seat belt warning buzzer sounds to alert the driver, front passenger
and rear passengers that his or her seat belt is not fastened. The buzzer
sounds intermittently for 30 seconds after the vehicle reaches a speed of
20 km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will
sound in a different tone for 90 more seconds.
*5: This symbol is displayed on the multi-information display.
■ Front passenger detection sensor, seat belt reminder and warning
buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
8
and the warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
PRIUS PHV_OM_OM47A89E_(EE)
648
8-2. Steps to take in an emergency
■ When the tire pressure warning light comes on

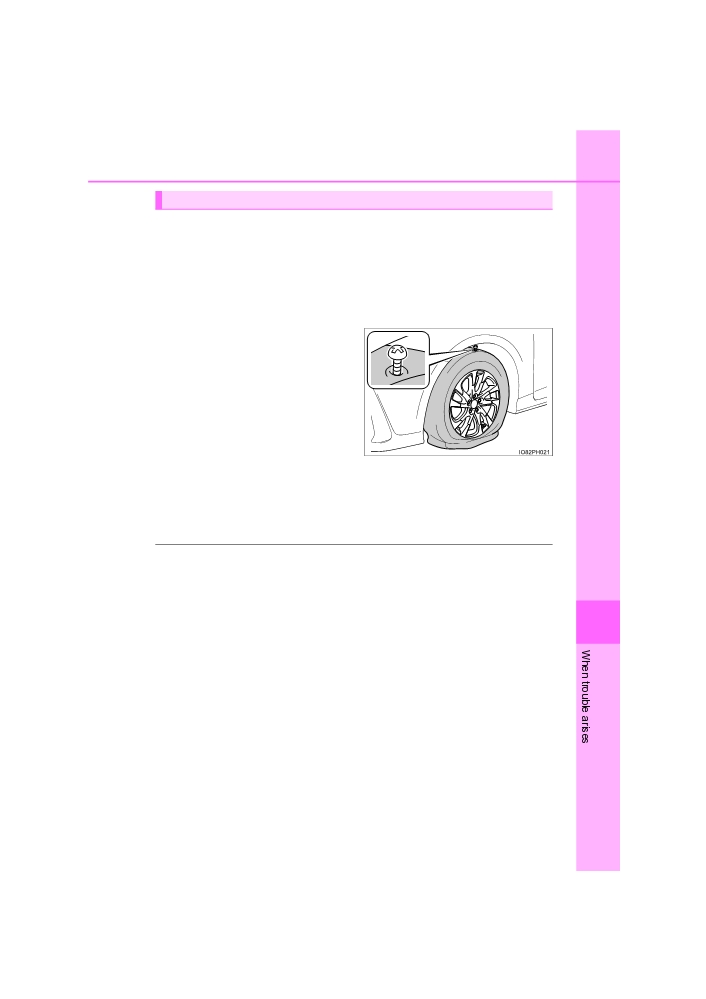

Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 658
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
(P. 582)
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ Conditions that the tire pressure warning system may not function prop-
erly
P. 584
■ If the tire pressure warning light frequently comes on after blinking for
1 minute
If the tire pressure warning light frequently comes on after blinking for
1 minute when the power switch is turned to ON mode, have it checked by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
649
WARNING
■ When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is
restricted. When the light comes on red, the assist to the power steering is
lost and handling operations of the steering wheel become extremely
heavy. When steering wheel operations are heavier than usual, grip the
steering wheel firmly and operate it using more force than usual.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, repair the flat tire by using emergency tire puncture repair kit.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
8
PRIUS PHV_OM_OM47A89E_(EE)
650
8-2. Steps to take in an emergency
If a warning message is displayed
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
When a message about charging is displayed, refer to P. 184.

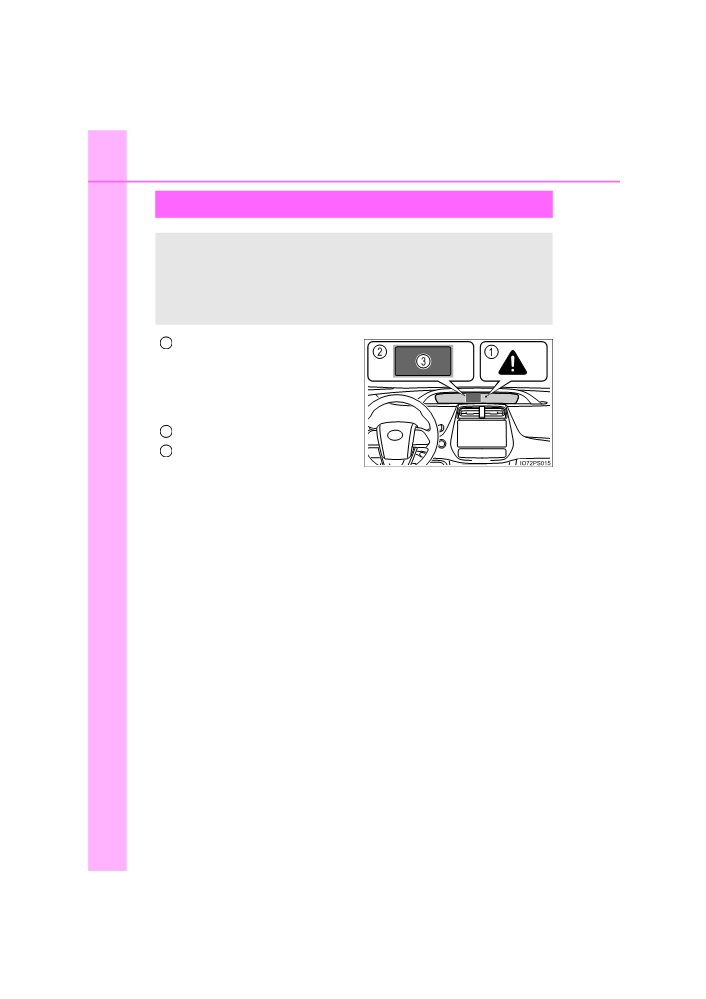

Master warning light
1
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.*
2
Multi-information display
3
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning messages are shown again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*: The master warning light may not come on or flash when a warning mes-
sage is displayed.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
651
Messages and warnings
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional immediately.
System
Warning
warning
Warning
buzzer*
light
Indicates an important situation, such
as when a system related to driving is
Comes on
Sounds
malfunctioning or that danger may
result if the correction procedure is not
performed
Indicates an important situation, such
Comes on
as when the systems shown on the
Sounds
or flashes
multi-information display may be mal-
functioning
Indicates a situation, such as when
Flashes
Sounds
damage to the vehicle or danger may
result
Indicates a condition, such as mal-
Does not
function of electrical components, their
Comes on
sound
condition, or indicates the need for
maintenance
Indicates a situation, such as when an
Does not
operation has been performed incor-
Flashes
8
sound
rectly, or indicates how to perform an
operation correctly
The operation of the warning lights and warning buzzers may differ
from those stated. In this case, perform the correction procedure
according to the displayed message.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
PRIUS PHV_OM_OM47A89E_(EE)
652
8-2. Steps to take in an emergency
■ Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
shown on the multi-information display.
● “Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. (P. 642)
● “Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) will come on. (P. 641)
●Indicates that a door is not fully closed while the vehicle is stopped.:
The Open door warning light comes on. (P. 644)
■ If “Visit Your Dealer” is shown
The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
■ If a message about an operation is shown
● If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Crash Safety system) or
the dynamic radar cruise control with full-speed range is operating. If a
warning message is shown, be sure to decelerate the vehicle or follow an
instruction shown on the multi-information display.
● A warning message is shown when Drive-Start Control, Brake Override Sys-
tem or Intelligent Clearance Sonar (if equipped) operates (P. 314, 314,
449). Follow the instructions on the multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the power switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the power switch again.
●If a message about a shift operation is shown
To prevent the shift position from being selected incorrectly or the vehicle
from moving unexpectedly, the shift position may be changed automatically
(P. 335) or shift operation may be required. In this case, change the shift
position following the instructions on the multi-information display.
● If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
653
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional. Continuing to drive the vehicle may be danger-
ous.
● If “Engine Oil Pressure Low” is shown, this may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
● If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
•
“Plug-in charging system malfunction.”
•
“Hybrid System Malfunction”
•
“Check Engine”
•
“Hybrid Battery System Malfunction”
•
“Accelerator System Malfunction”
•
“Smart Entry & Start System Malfunction See Owner’s Manual”
■ If “Shift System Not Active Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
Indicates a temporary operation failure or malfunction in the shift control sys-
tem. Immediately have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
When the message is shown, the hybrid system may not be started or the
shift position may not be changed normally. (Coping method: P. 656)
■ If “Shift System Malfunction Apply Parking Brake Securely While Park-
ing See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the message is shown, the hybrid system may not be started or the
8
shift position may not be changed normally. (Coping method: P. 656)
■ If “
Switch Malfunction Apply Parking Brake Securely While Parking
See Owner’s Manual” is shown
The P position switch may not operate. Immediately have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
When parking the vehicle, stop the vehicle on level ground and apply the
parking brake firmly.
PRIUS PHV_OM_OM47A89E_(EE)
654
8-2. Steps to take in an emergency
■ If “Shift System Malfunction Shifting Unavailable See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
The shift position may not be shifted from P to other than P.
■ If “Shift System Malfunction Stop in a Safe Place See Owner’s Manual”
is shown
Indicates a malfunction in the shift control system. Immediately have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
The shift position may not be changed. Stop the vehicle in a safe place.
■ If “Shift System Malfunction See Owner’s Manual” is shown
Indicates a malfunction in the shift control system. Immediately have the sys-
tem inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
The system may not operate properly.
■ If “Low 12-Volt Battery Apply Parking Brake Securely While Parking See
Owner’s Manual” is shown
Indicates that the 12-volt battery charge is insufficient. Charge or replace the
12-volt battery.
● When the message is shown, the hybrid system may not start or the shift
position may not be changed normally. (Coping method: P. 656)
● After charging the 12-volt battery, the message may not go off until the shift
position is changed from P.
■ If “Shifting Unavailable Low 12-Volt Battery See Owner’s Manual” is
shown
Indicates that the shift position cannot be changed because the voltage of the
12-volt battery drops. Charge or replace the 12-volt battery.
(Coping method in the case the 12-volt battery is discharged: P. 682)
■ If “Hybrid System Overheated. Reduced Output Power.” is shown
The message may be shown when driving under severe operating conditions.
(For example, when driving up a long steep hill or driving up a steep hill in
reverse.)
Coping method: P. 688
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
655
■ If “Maintenance required for Traction battery cooling parts See owner’s
manual” is shown
There is a possibility that the filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
● When the air intake vents or filters are dirty, clean them by the procedures
on P. 552.
● When the air intake vents or filters are not dirty and the warning message is
shown, have the vehicle inspected at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
■ If “Hybrid Battery Low. Shift Out of
to Recharge.” is shown
Message is displayed when the remaining charge for the hybrid battery (trac-
tion battery) is low.
As the hybrid battery (traction battery) can not be charged when the shift
position is in N, when stopped for long periods of time shift the shift position to
P.
■ If “Hybrid Battery Low Hybrid System Stopped Shift to
and Restart”
is shown
Message is displayed when the remaining charge for the hybrid battery (trac-
tion battery) is low, because vehicle has been shifted to N for a long period of
time.
When operating the vehicle, shift to P and restart the hybrid system.
■ If “Shift to
Position When Parked” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to off with the shift position in any position other than P.
Shift the shift position to P.
■ If “Shift is in
Release Accelerator Before Shifting” is shown
Message is displayed when the accelerator pedal has been depressed and
the shift position is in N.
Release the accelerator pedal and shift the shift position to D or R.
8
■ If “Depress Brake When Vehicle is Stopped. Hybrid System may Over-
heat.” is shown
The message may be shown when the accelerator pedal is depressed to hold
the vehicle while the vehicle is stopped on an uphill, etc.
The hybrid system may overheat. Release the accelerator pedal and depress
the brake pedal.
PRIUS PHV_OM_OM47A89E_(EE)
656
8-2. Steps to take in an emergency
■ If “Shifted to
Stop Vehicle to Shift to
” is shown
If the P position switch is pressed while driving, the shift position is changed
to N and the message is shown. (P. 335)
■ If “Auto Power OFF to Conserve Battery” is shown
The power switch has been turned off by the automatic power off function.
When starting the hybrid system next time, operate the hybrid system for
approximately 5 minutes to recharge the 12-volt battery.
■ If “Forward Camera System Unavailable” or “Forward Camera System
Unavailable Clean Windshield” is displayed.
The following systems may be suspended until the problem shown in the
message is resolved.
●PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control with full-speed range
●AHS (Adaptive High-beam System)
■ If the shift position cannot be changed or the power switch is turned to
ACCESSORY mode even if trying to turn the power switch off when a
warning message is shown
If the 12-volt battery is discharged or the shift control system is malfunction-
ing, the followings may occur.
● The shift position may not be changed to P.
When parking, stop the vehicle on level ground and apply the parking brake
firmly.
● The hybrid system may not start.
● The power switch may be turned to ACCESSORY mode even if trying to
turn the power switch off.
In this case, the power switch may be turned off after applying the parking
brake.
●The automatic P position selection function (P. 336) may not operate.
Before turning the power switch off, be sure to press the P position switch
and check that the shift position is in P by the shift position indicator or P
position switch indicator.
■ Warning buzzer
P. 648
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
657
NOTICE
■ If “Have Traction Battery Inspected” is shown
The hybrid battery
(traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immediately.
●Continuing to drive the vehicle without having the hybrid battery (traction
battery) inspected will cause the hybrid system not to start.
● If the hybrid system does not start, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immediately.
8
PRIUS PHV_OM_OM47A89E_(EE)
658
8-2. Steps to take in an emergency
If you have a flat tire
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) After temporar-
ily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
659
Before repairing the tire
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
● Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and make emer-
gency repair with the repair
kit impossible.
• To avoid sealant leakage, move the vehicle until the area of the
puncture, if known, is positioned at the top of the tire.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
8
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than one sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
PRIUS PHV_OM_OM47A89E_(EE)
660
8-2. Steps to take in an emergency

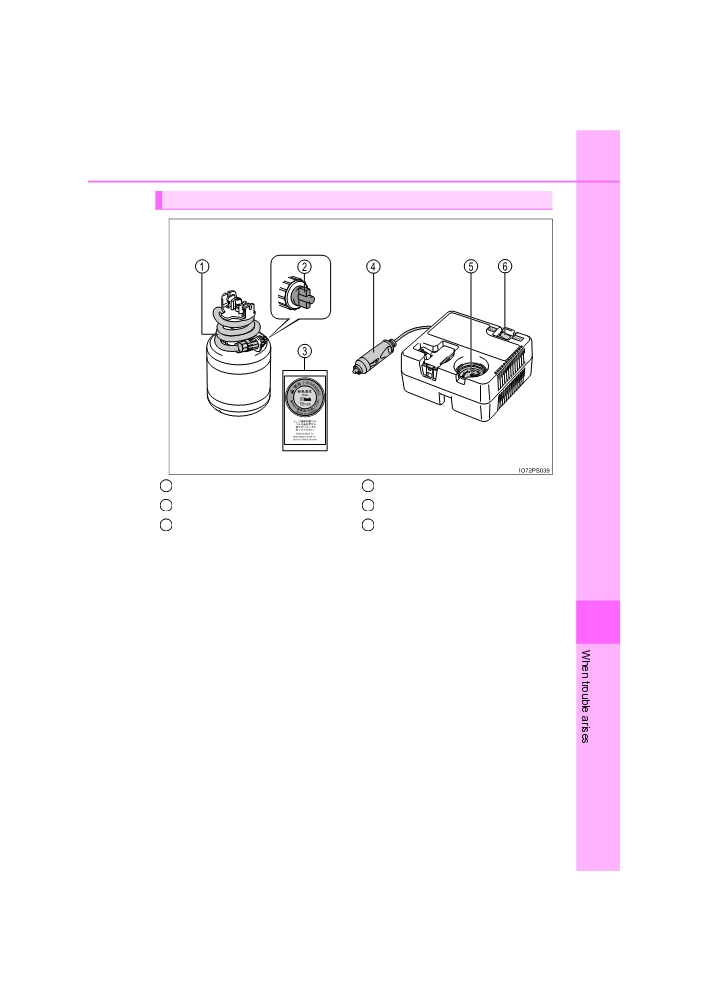

Location of the emergency tire puncture repair kit
Emergency tire puncture repair kit
PRIUS PHV_OM_OM47A89E_(EE)
8-2. Steps to take in an emergency
661

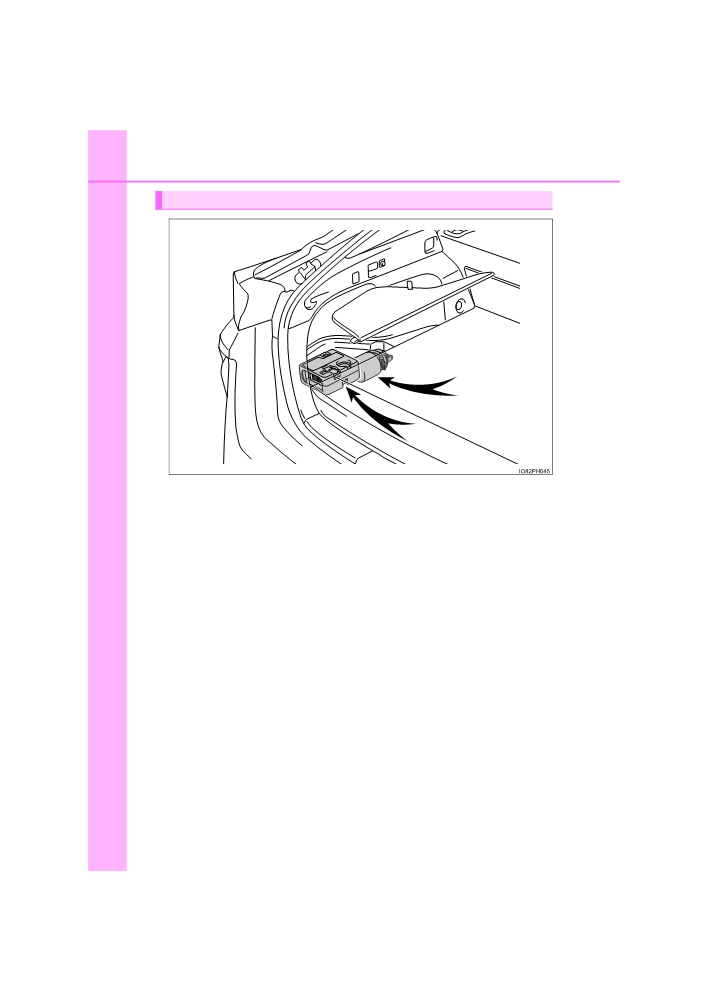

Emergency tire puncture repair kit components
1
Hose
4
Power plug
2
Air release cap
5
Air pressure gauge
3
Sticker
6
Compressor switch
8
PRIUS PHV_OM_OM47A89E_(EE)
662
8-2. Steps to take in an emergency

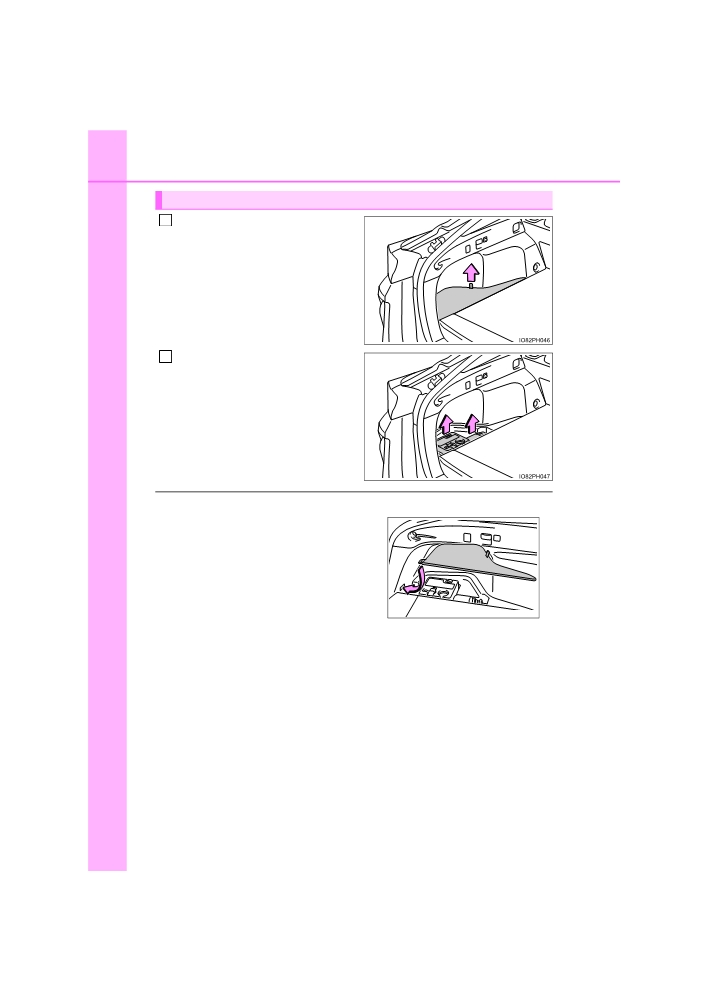

Taking out the emergency tire puncture repair kit
1
Pull the strap up and remove
the cover.
2
Take out the emergency tire
puncture repair kit.
■ When installing the cover
Insert the claw in to the hole, and return
the cover.
IO82PH048
PRIUS PHV_OM_OM47A89E_(EE)
