6-3. Using the storage features
527
Cup holders
Front
Rear

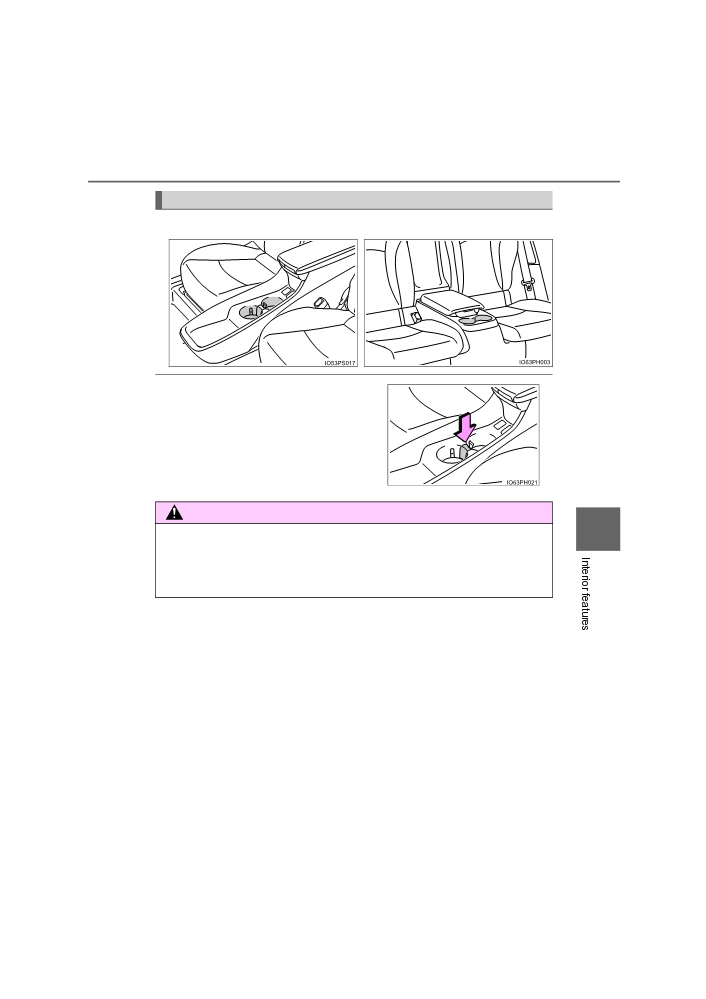

Front cup holders:
When placing a mug, push the partition
down.
When placing cans, bottles, etc., push the
partition once more to return it to its origi-
nal position.
WARNING
6
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.
PRIUS PHV_OM_OM47A89E_(EE)
528
6-3. Using the storage features

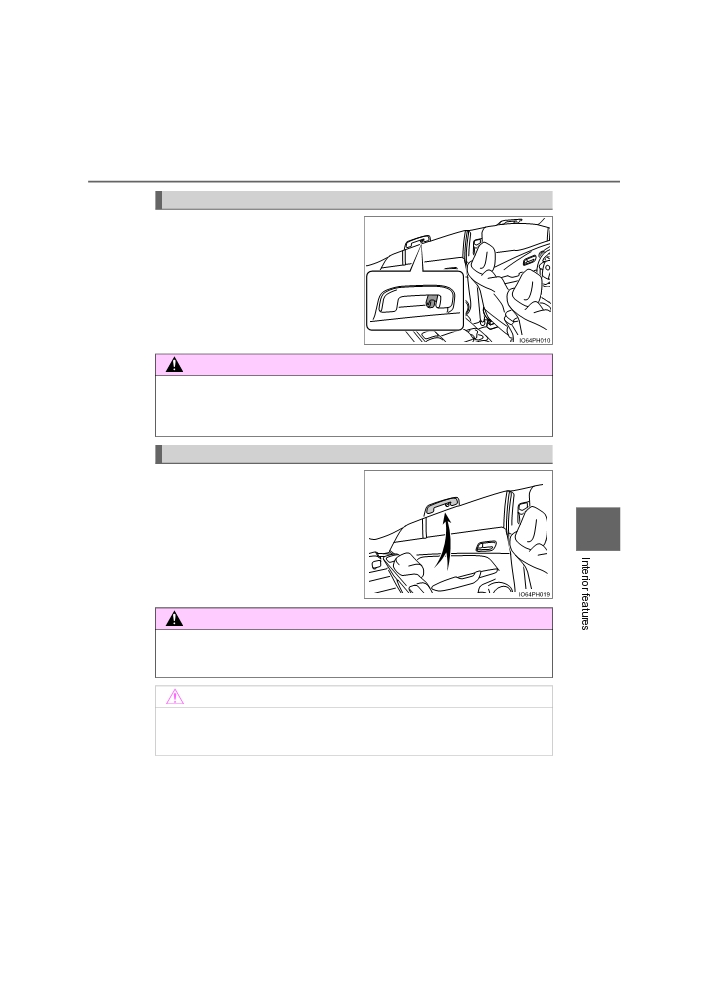

Bottle holders/door pockets
Front doors
Rear doors
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass
and paper cups containing liquid in the bottle holders.
The contents may spill and glasses may break.
PRIUS PHV_OM_OM47A89E_(EE)
6-3. Using the storage features
529

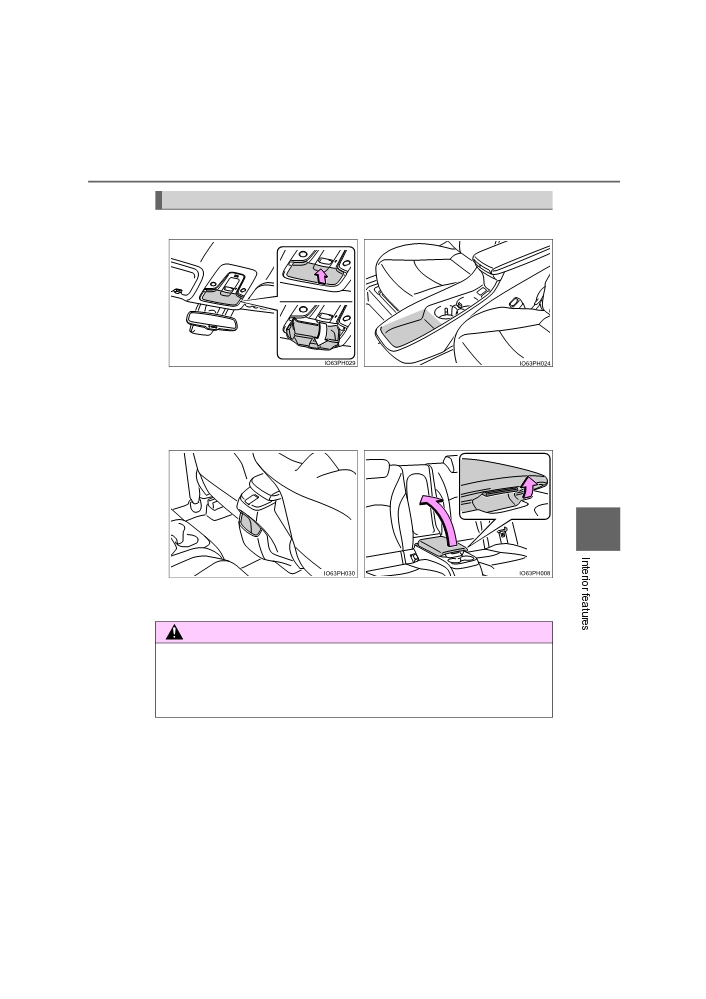

Auxiliary boxes
Type A
Type B (if equipped)
Press in the lid.
Vehicles with the wireless char-
The overhead console is useful for
ger: P. 537
temporarily storing small items.
Type C (if equipped)
Type D
6
Lift the lid while pulling up the
knob.
WARNING
Type A:
Do not store items heavier than 200 g (0.44 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
PRIUS PHV_OM_OM47A89E_(EE)
530
6-3. Using the storage features

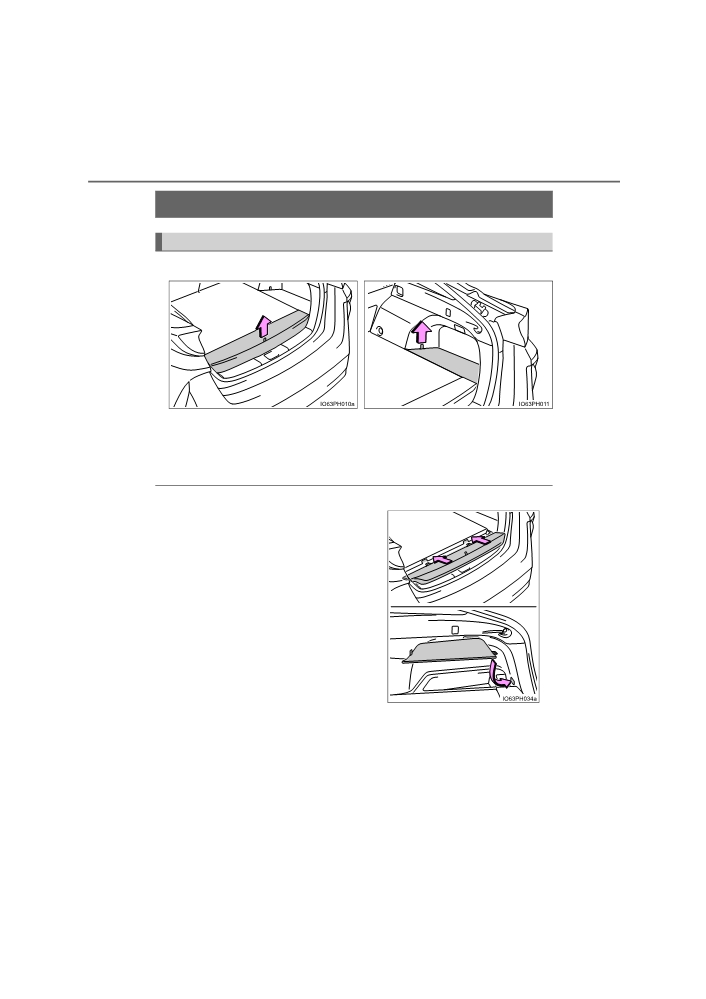

Luggage compartment features
Auxiliary boxes
Center
Right side
Pull the strap upwards to lift up
Pull the strap upwards to lift
up
the deck board.
the deck board.
The luggage cover, charging cable,
tool bag, etc. can be stowed.
■ When installing the deck board
Insert the claw in to the hole, and return
the deck board.
PRIUS PHV_OM_OM47A89E_(EE)
6-3. Using the storage features
531
WARNING
If the deck board is removed, return it to its original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant
being struck by the deck board or the items stored in the auxiliary box.
NOTICE
To prevent damage to the deck board, do not apply too much load on the
deck board.

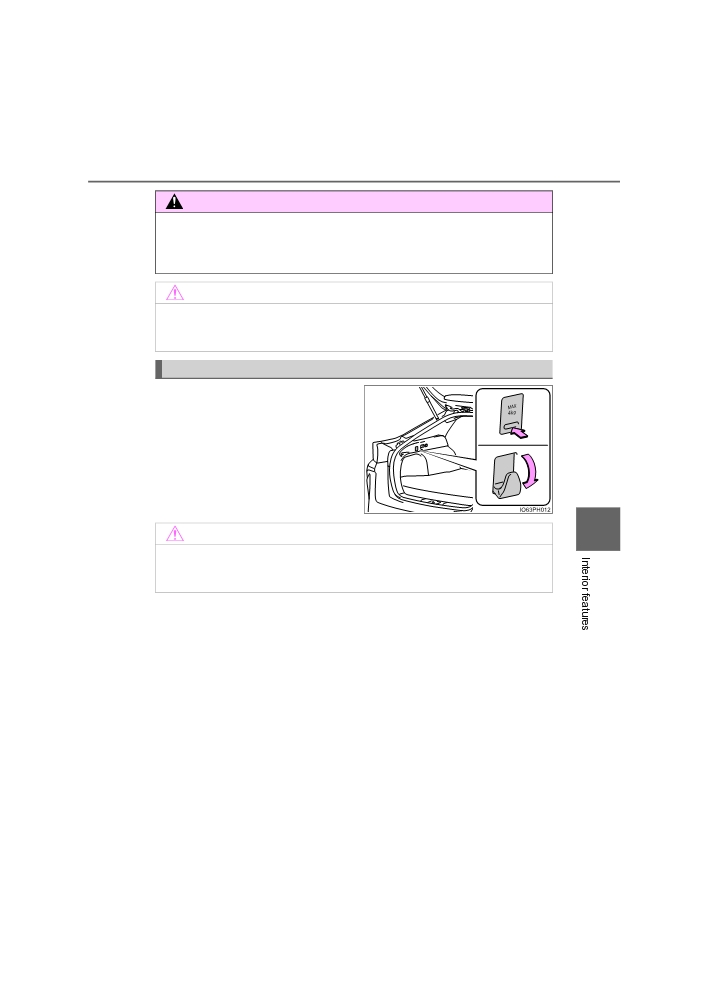

Grocery bag hooks
When using the hooks, press the
bottom side to lift it up.
There also is a hook on the other
side.
6
NOTICE
In order to prevent damage to the grocery bag hooks, do not place large
objects or objects that weight more than 4 kg (8.8 lb.) onto the hooks.
PRIUS PHV_OM_OM47A89E_(EE)
532
6-3. Using the storage features

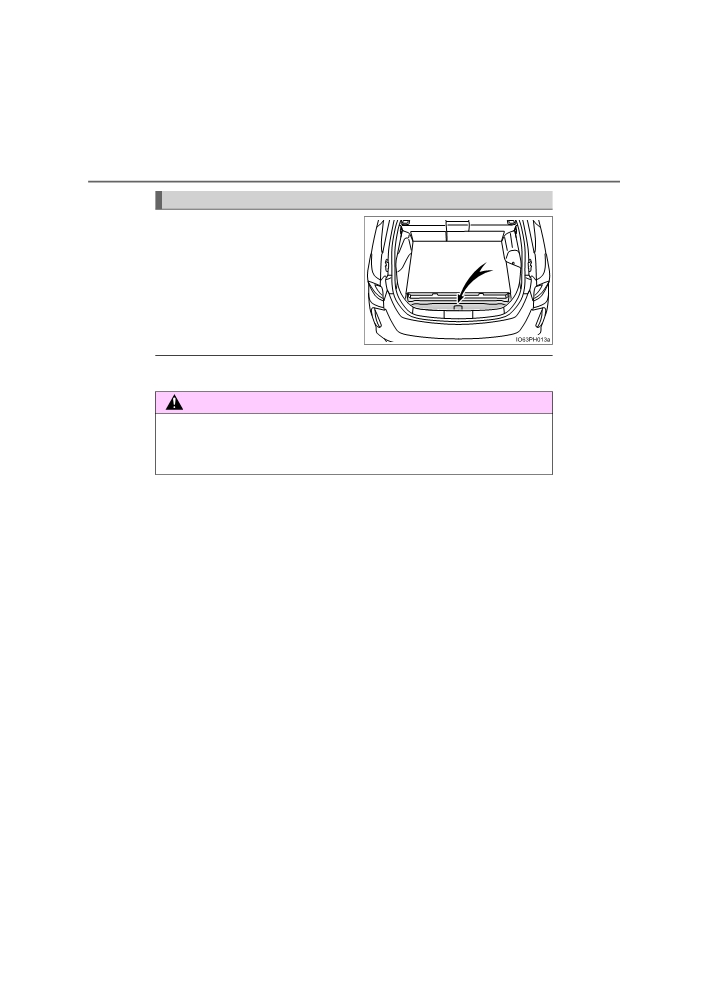

Warning reflector storage space
The warning reflector can be
stowed.
(The warning reflector itself is not
included as an original equipment)
Depending on the size and shape of the warning reflector case, etc., you may
not be able to store it.
WARNING
When storing the warning reflector, etc., make sure that it is properly stored.
If the warning reflector is not properly stored, it may fly out during emer-
gency braking and lead to an accident.
PRIUS PHV_OM_OM47A89E_(EE)
6-3. Using the storage features
533

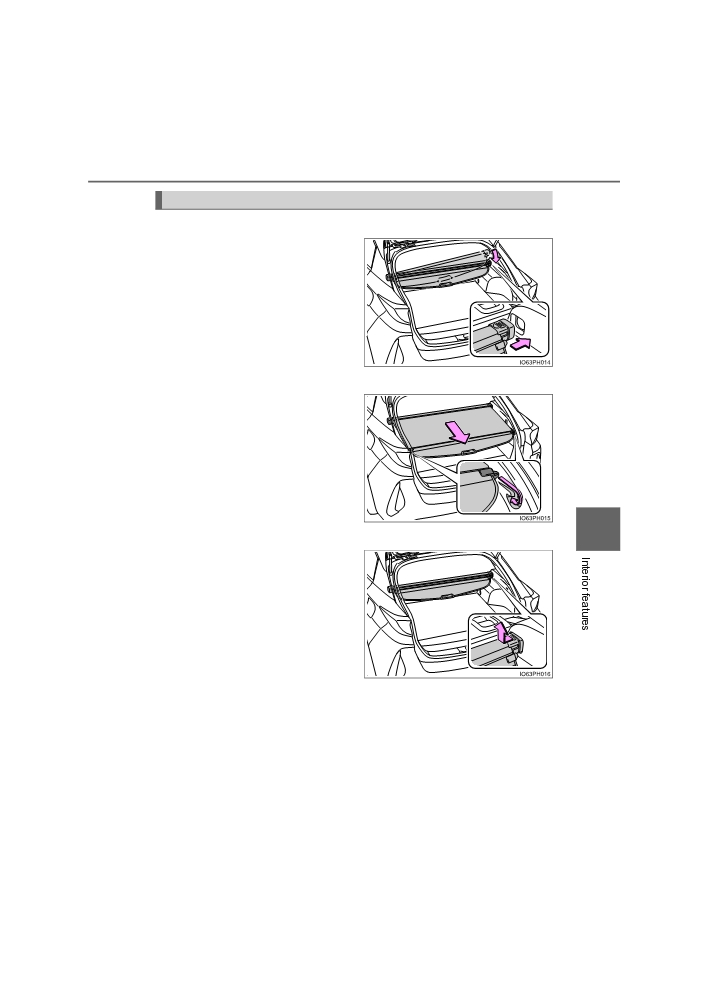

Luggage cover
■ Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■ Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
6
■ Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
PRIUS PHV_OM_OM47A89E_(EE)
534
6-3. Using the storage features

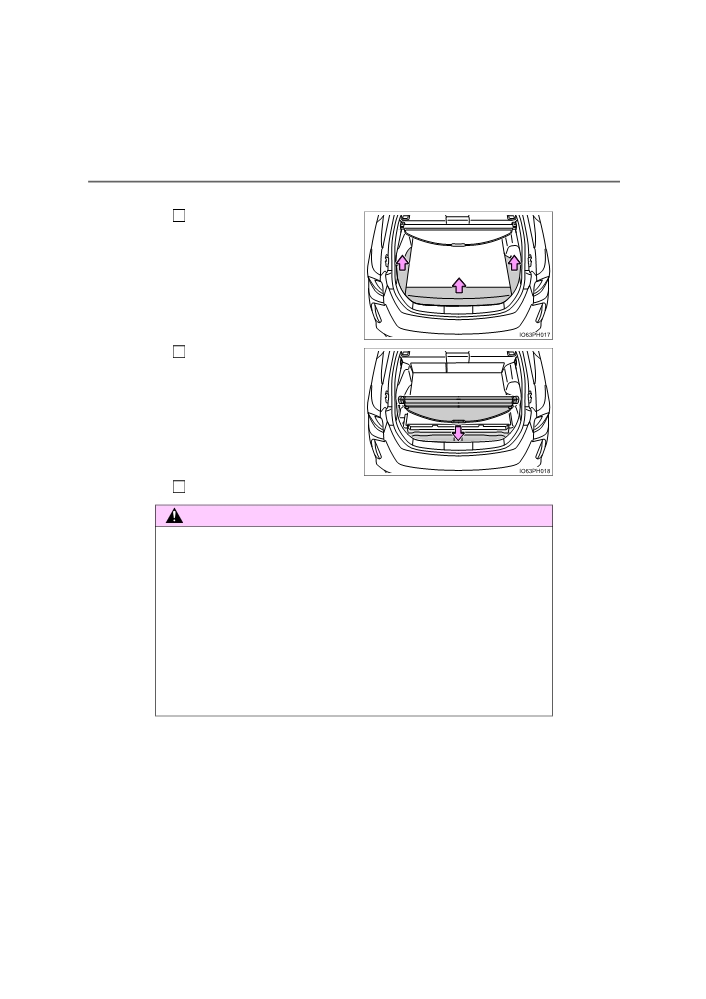

■ Stowing the luggage cover
1
Remove the deck boards.
2
Store cover in the center aux-
iliary box.
3
Return the deck boards to its original position and close it.
WARNING
●Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.
●Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
●Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.
●Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
PRIUS PHV_OM_OM47A89E_(EE)
6-4. Using the other interior features
535
Other interior features

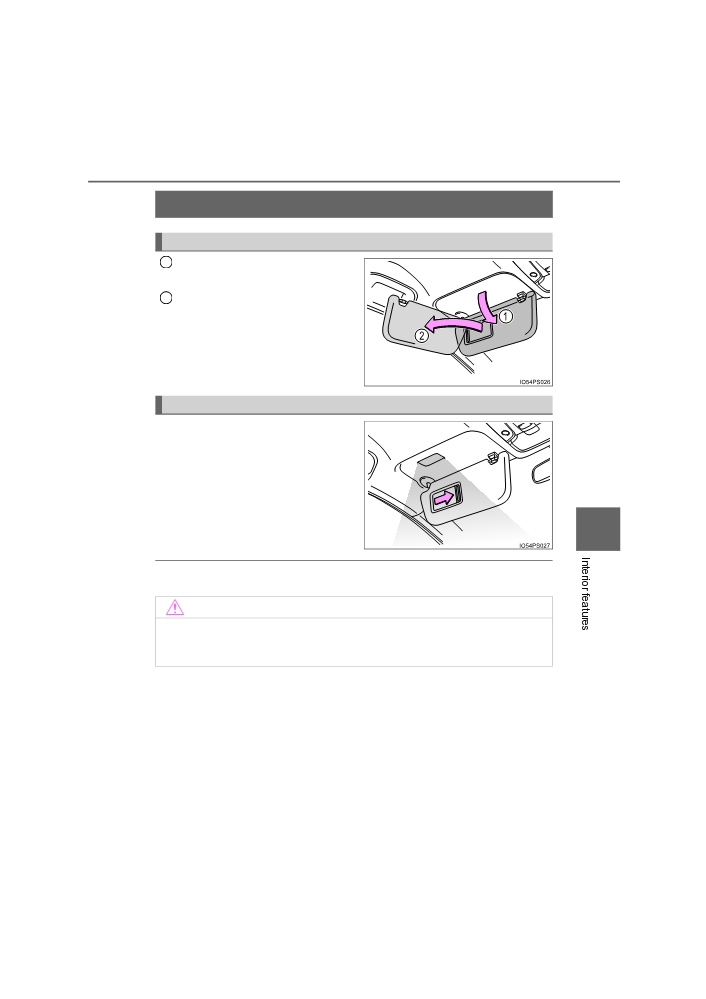

Sun visors
To set the visor in the forward
1
position, flip it down.
To set the visor in the side posi-
2
tion, flip down, unhook, and
swing it to the side.
Vanity mirrors
Slide the cover to open.
The light turns on when the cover
is opened.
6
If the vanity lights remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.
PRIUS PHV_OM_OM47A89E_(EE)
536
6-4. Using the other interior features

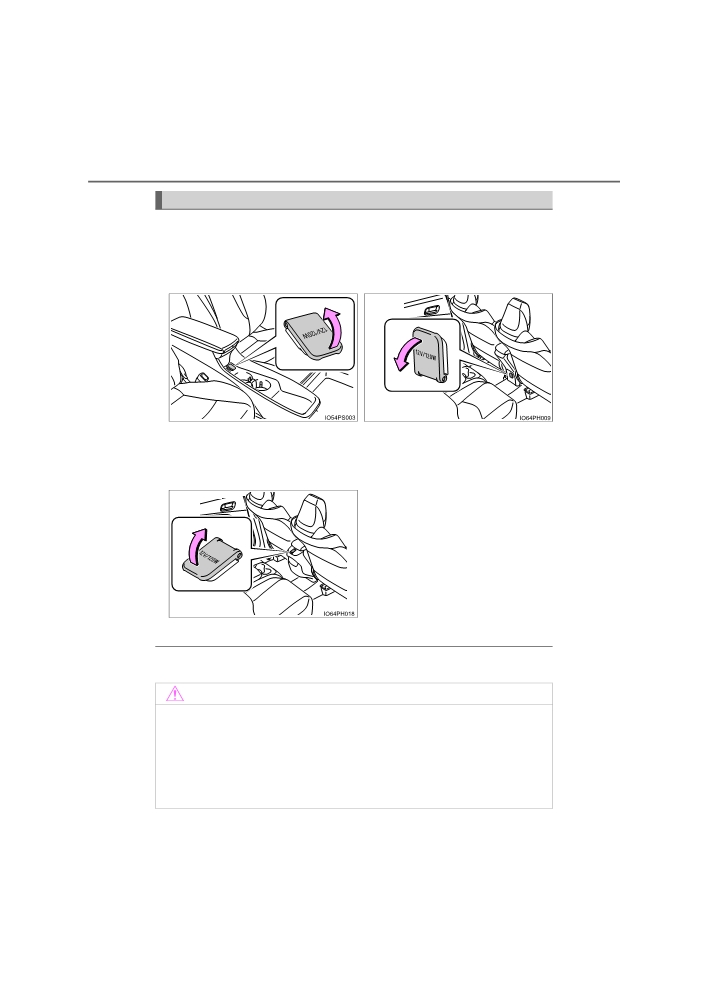

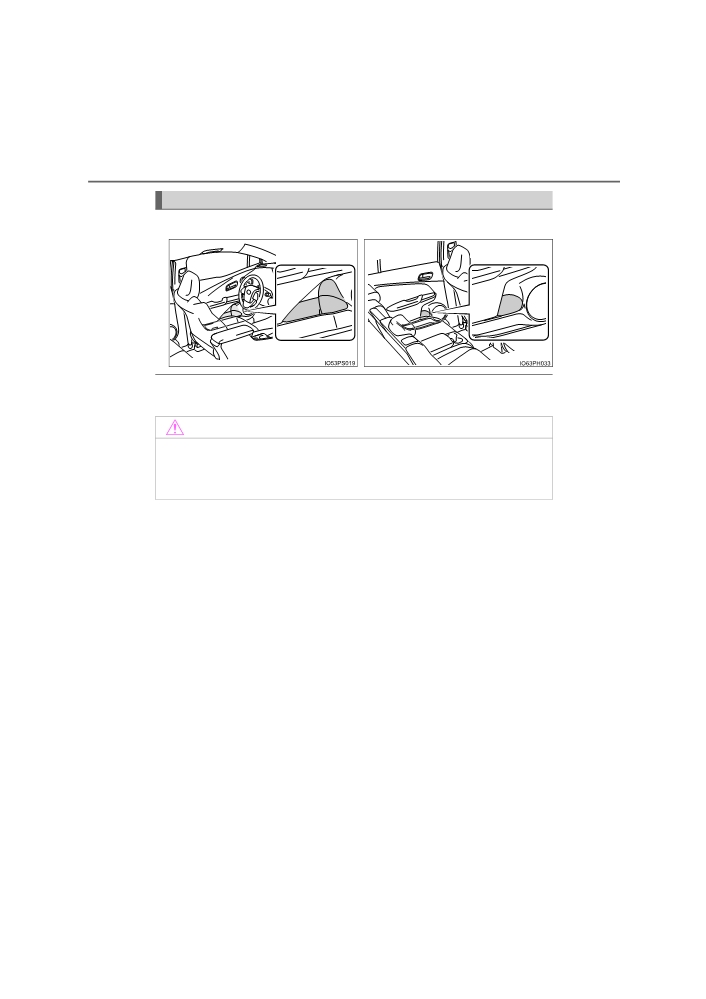

Power outlets
Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
Front
Rear (vehicles without solar
charging system)
Open the lid.
Open the lid.
Rear
(vehicles with solar
charging system)
Open the lid.
The power outlets can be used when the power switch is in ACCESSORY or
ON mode.
NOTICE
● To avoid damaging the power outlets, close the lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
PRIUS PHV_OM_OM47A89E_(EE)
6-4. Using the other interior features
537
Wireless charger (if equipped)
A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Power
Consortium, such as smart phones and mobile batteries, etc., on the
charge area.
This function cannot be used with portable devices that are larger
than the charging area. Also, depending on the portable device, it may
not operate as normal. Please read the operation manual for portable
devices to be used.
■ The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.

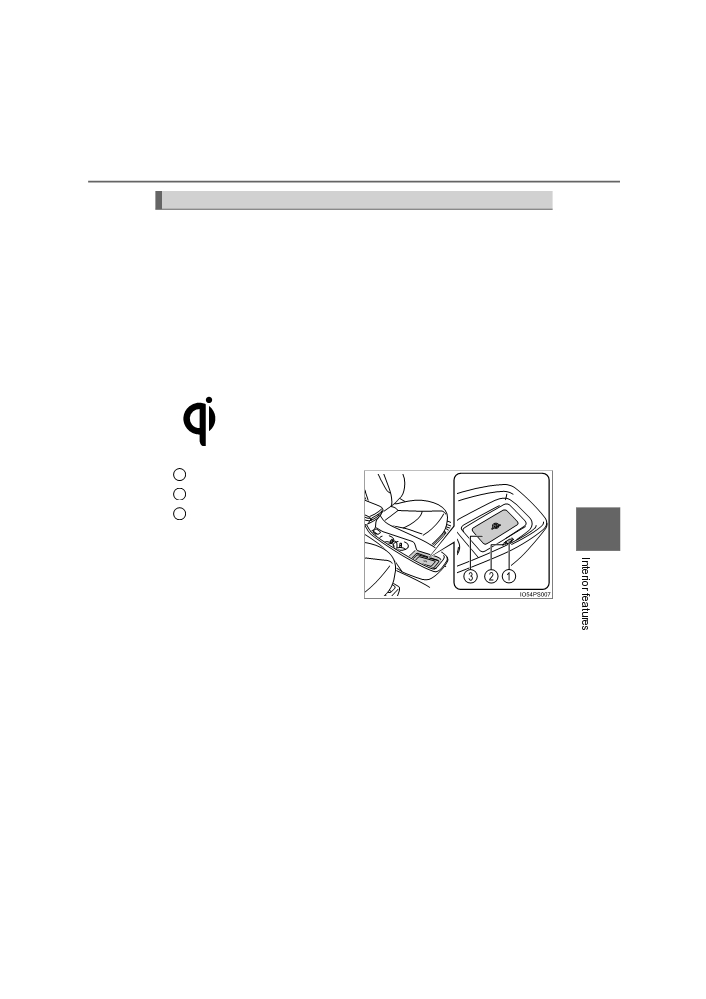

■ Name for all parts
1
Power supply switch
2
Operation indicator light
3
Charge area
6
PRIUS PHV_OM_OM47A89E_(EE)
538
6-4. Using the other interior features

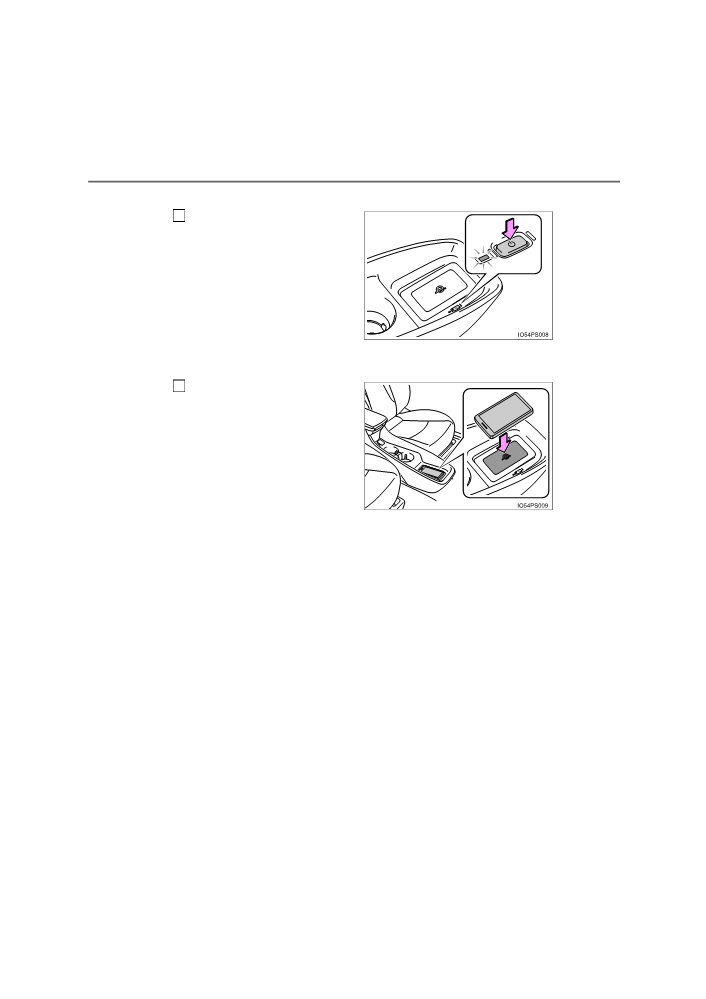

■ Using the wireless charger
Press the power supply
1
switch of the wireless char-
ger.
Switches on and off with each
press of the power supply
switch.
When turned on, the operation
indicator light (green) comes on.
Even with the hybrid system off,
the on/off state of the power
supply switch is memorized.
Place the charging side of
2
the portable device down.
When charging, the operation
indicator light
(orange) comes
on.
If charging is not occurring, try
placing the portable device as
close to the center of the
charging area as possible.
When charging is complete, the operation indicator light (green) comes
on.
● Recharging function
• When charging is complete and after a fixed time in the charge
suspension state, charging restarts.
• When the portable device is moved, charging is stopped for a
moment and then it restarts.
PRIUS PHV_OM_OM47A89E_(EE)
6-4. Using the other interior features
539
■ Lighting conditions of operation indicator light
Operation indicator light
Conditions
When the Wireless charger power supply is
Turning off
off
On Standby (charging possible state)
Green (comes on)
When charging is complete*
When placing the portable device on the
charging area (detecting the portable device)
Orange (comes on)
Charging
*: Depending on the portable device, there are cases where the operation
indicator light will continue being lit up orange even after the charging is
complete.
● When the operation indicator light flashes
When an error occurs, the operation indicator light flashes an
orange color. Handle the error based on the following table.
Operation indicator
Suspected causes
Handling method
light
Contact any autho-
6
Flashing repeatedly
rized Toyota dealer or
Vehicle to charger com-
once every second
repairer, or another
munication failure.
(Orange)
duly
qualified
and
equipped professional.
Remove the foreign
A foreign substance is
substance
from
between the portable
between
portable
device and charge area.
device and the charge
Repeatedly flashes
area.
3 times continuously
(Orange)
The portable device is
Place the portable
out of sync due to the
device near the center
device being shifted from
of the charge area.
its position.
Repeatedly flashes
Temperature
rising
Stop charging at once
4 times continuously
within the wireless char-
and start charging
(Orange)
ger.
again after for a while.
PRIUS PHV_OM_OM47A89E_(EE)
540
6-4. Using the other interior features
■ The wireless charger can be operated when
The power switch is in ACCESSORY or ON mode.
■ Usable portable devices
Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devices and compatibility are guaranteed.
Starting with mobile phones and smart phones, it is aimed for low power elec-
trically supplied portable devices of no more than 5W.
■ When covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle
Qi are attached to the portable device. Depending on the type of cover and
accessory, it may not be possible to charge. When charging is not performed
even with the portable device placed on the charge area, remove the cover
and accessories.
■ While charging, noise enters the AM radio
Turn off the wireless charger and confirm that the noise has decreased. If the
noise decreases, continuously pushing the power supply switch of the wire-
less charger for 2 seconds, the frequency of the charger can be changed and
the noise can be reduced.
Also, on that occasion, the operation indicator light will flash orange 2 times.
■ Important points of the wireless charger
● If the electronic key cannot be detected within the vehicle interior, charging
cannot be done. When the door is opened and closed, charging may be
temporarily suspended.
● When charging, the wireless charging device and portable device will get
warmer, however this is not a malfunction.
When a portable device gets warm while charging, charging may stop due
to the protection function on the portable device side. In this case, when the
temperature of the portable device drops significantly, charge again.
■ Operation sounds
When the power supply is turned on, while searching for the portable device a
sound will be produced, however this is not a malfunction.
PRIUS PHV_OM_OM47A89E_(EE)
6-4. Using the other interior features
541
WARNING
■ Caution while driving
When charging a portable device, for safety reasons, the driver should not
operate the main part of the portable device while driving.
■ Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physician about the
usage of the wireless charger. The operations of the wireless charger may
have an affect on medical devices.
■ To prevent damage or burns
Observe the following precautions.
Failure to do so may result in a possibility of equipment failure and damage,
catch fire, burns due to overheat.
●Do not insert any metallic objects between the charging area and the por-
table device while charging
●Do not attach stickers, metallic objects, etc., to the charger area or porta-
ble device
●Do not cover with cloth, etc., and charge
●Do not charge portable devices other than designated
●Do not attempt to dismantle for disassembly or modifications
●Do not hit or apply a strong force
6
PRIUS PHV_OM_OM47A89E_(EE)
542
6-4. Using the other interior features
WARNING
■ Conditions in which the function may not operate correctly
In the following conditions, it may not operate correctly
●The portable device is fully charged
●There is foreign matter between the charge area and portable device
●The temperature of the portable device gets higher from charging
●The charging surface of the portable device is facing up
●The placement of the portable device is out of alignment with the charge
area
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
In addition, excluding the above-mentioned, when the charger does not per-
form normally or the operation indicator light is flashing continuously, it is
considered that the wireless charger is malfunctioning. Contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ To prevent failure or damage to data
●Do not bring magnetic cards, such as credit cards, or magnetic recording
media, etc., close to the charger while charging, otherwise, data may dis-
appear under the influence of magnetism. Also, do not bring precision
instruments such as wrist watches, etc., close to the charger, as such
objects may break.
●Do not leave portable devices in the cabin. The temperature inside the
cabin may become high, when under the sun, and cause damage to the
device.
■ To prevent 12-volt battery discharge
When the hybrid system is stopped, do not use the wireless charger for a
long time.
PRIUS PHV_OM_OM47A89E_(EE)
6-4. Using the other interior features
543
Coat hooks
The coat hooks are provided with
the rear assist grips.
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
Assist grips
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
6
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a
heavy load on the assist grip.
PRIUS PHV_OM_OM47A89E_(EE)
