6-1. Using the air conditioning system and defogger
Air outlets

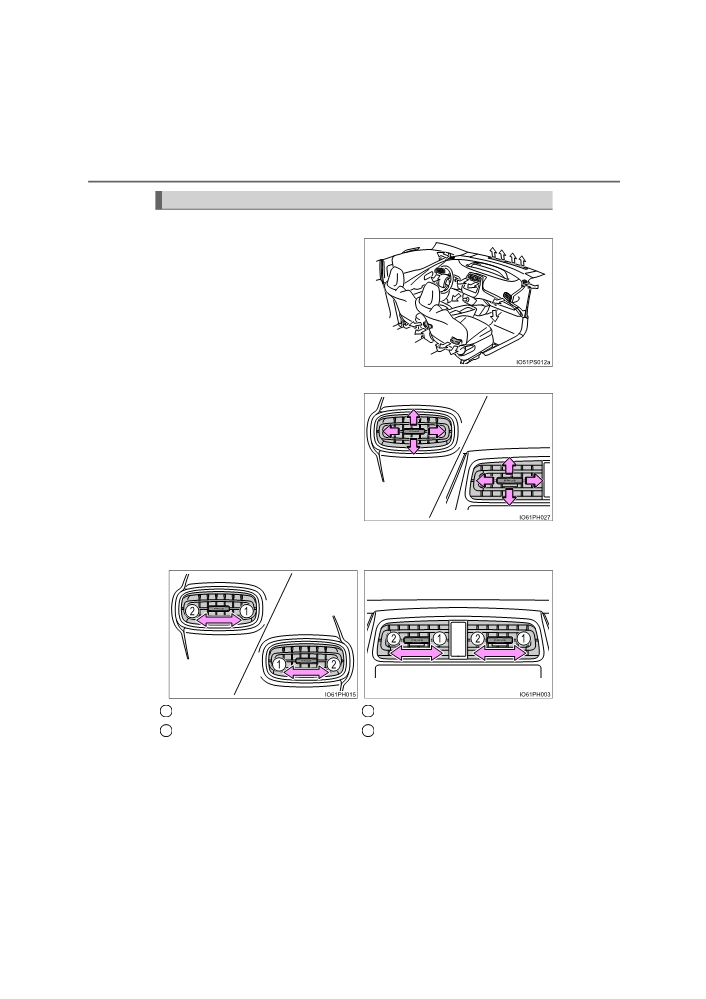

■ Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
■ Adjusting the position of the air outlets
Direct air flow to the left or right,
up or down.
■ Opening and closing the air outlets
Left side outlet/right side outlet
Center outlets
1
Open the vent
1
Open the vent
2
Close the vent
2
Close the vent
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
511
■ Heating
● In HV mode, the gasoline engine may operate in order to exhaust heat from
the engine coolant via the heater.
●In EV mode, heating is done by a heat pump system.
• When the outside temperature is low or it is snowing, compared to con-
ventional vehicles, heating may be less effective and warm air may not
come out.

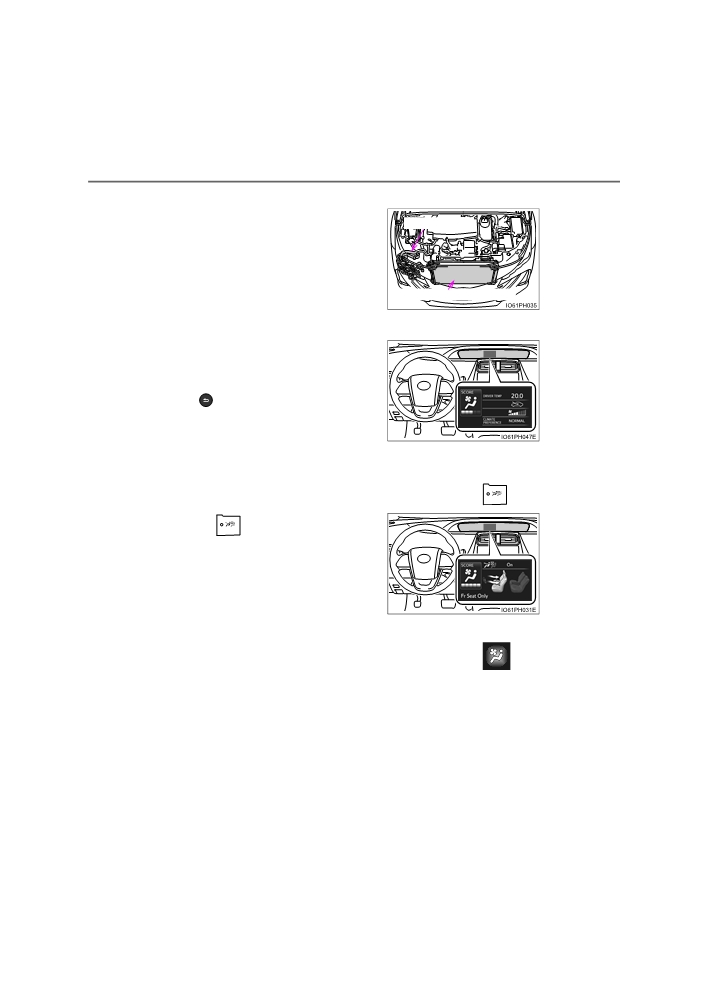

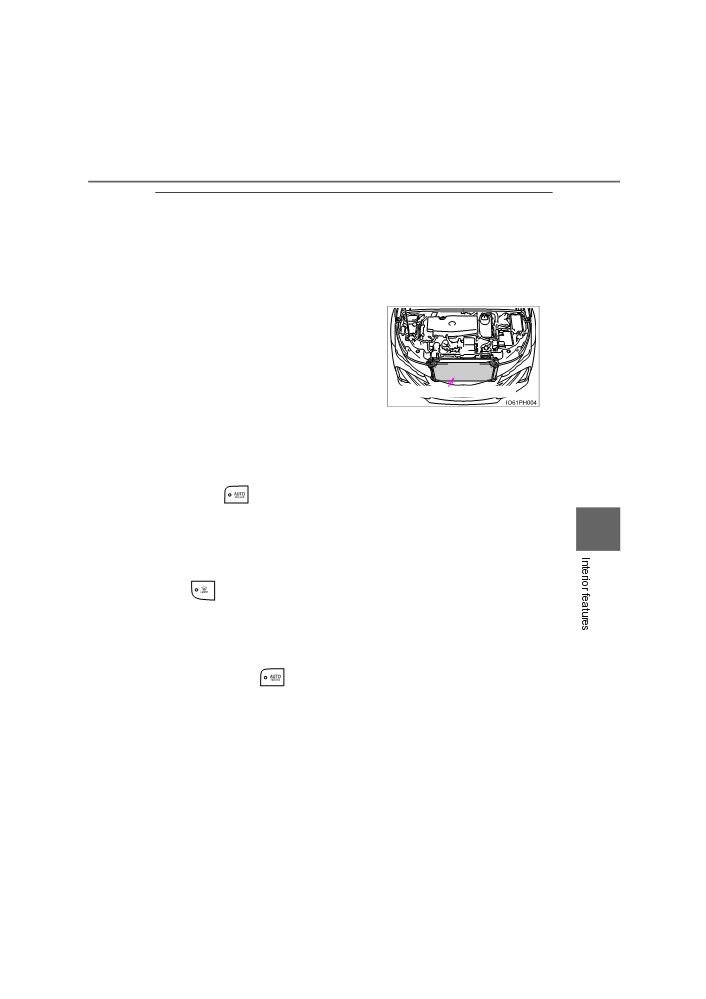

• When the outside heat exchanger is
frosted over, fan speed declines and it
may become harder to heat the inte-
rior. However, it is not a malfunction.
In this situation, the air temperature
from the outlets may not change even
though the set temperature is raised.
Outside heat exchanger
• If frost has formed on the outside heat exchanger, the heating perfor-
mance will decline. The frost can be removed from the outside heat
exchanger by operating the Remote Air Conditioning System before driv-
ing (P. 516). When frosted over, the heating operation of the Remote
Air Conditioning System starts after defrosting.
• When
is turned on, the heating is controlled optimally. Therefore,
the set heating performance may not be achieved even if the fan speed
setting is increased.
6
● In the following situations the gasoline engine may operate in order to
exhaust heat from the engine coolant via the heater even in EV mode.
• The outside temperature is approximately -10°C or low
•
is operating
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after
is pressed.
PRIUS PHV_OM_OM47A89E_(EE)
512
6-1. Using the air conditioning system and defogger
■ Water droplets during air conditioning operation
The outside heat exchanger, accumulator
Accumulator
and air conditioning piping may incur con-
densation or frost may form. During or
after the air conditioning operation, water
droplets may fall from the vehicle. How-
ever, it is not a malfunction.
Outside heat exchanger
■ Setting confirmation screen
When changing the settings of the air
conditioning system, the setting confirma-
tion screen is shown as a pop-up on the
multi-information display.
Press
of the meter control switches to
go back to the previous screen.
■S-FLOW mode operation
●In automatic mode, S-FLOW mode will be turned off if a rear door has been
opened and closed. To activate S-FLOW mode again, press
● When
is pressed, the S-FLOW
mode status is displayed on the multi-
information display.
■ Changing settings using the multi-information display
The air conditioning system settings can be changed on the
screen
of the multi-information display. (P. 237)
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
513
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Turning
on will dehumidify the air from the outlets and defog the
windshield effectively.
●If you turn
off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Windshield fog detection function
When automatic mode is set, the humidity sensor (P. 515) detects fog on
the windshield and controls the air conditioning system to prevent fog.
■ Outside/recirculated air mode
● When driving on dusty roads such as tunnels or in heavy traffic, set
to the recirculated air mode. This is effective in preventing outside air from
entering the vehicle interior. During cooling operation, setting the recircu-
lated air mode will also cool the vehicle interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ Fresh air intake system while parking
When parking, the system automatically switches to outside air mode to
encourage better air circulation throughout the vehicle, helping to reduce
odors that occur when starting the vehicle.
6
■ Operation of the air conditioning system when the blower customization
is set to “ECO”
● In the “ECO” mode, the air conditioning system is controlled as follows to
prioritize fuel efficiency:
• Engine speed and compressor operation controlled to restrict heating/
cooling capacity
• Fan speed restricted when automatic mode is selected
● To improve air conditioning performance, perform the following operations:
• Adjust the fan speed
• Adjust the temperature setting
• Set the blower customization to “FAST” or “NORMAL” mode.
● When the driving mode is set to Eco driving mode, the fan speed setting
mode will be changed to “ECO” mode automatically. Even in this case, the
fan speed control mode can be changed by pressing
. (P. 412)
■ When the outside temperature falls to nearly 0C (32F)
The dehumidification function may not operate even when
is pressed.
PRIUS PHV_OM_OM47A89E_(EE)
514
6-1. Using the air conditioning system and defogger
■ Ventilation and air conditioning odors
● To let the fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● In order to suppress odors that occur when the air conditioning system
starts, fresh air is automatically taken in when parked.
● To reduce potential odors from occurring, the start timing of the blower may
be delayed for a short period of time immediately after the air conditioning
system is started in automatic mode.
■ Air conditioning filter
P. 609
■ Customization
Settings (e.g. A/C auto switching operation) can be changed.
(Customizable features: P. 708)
WARNING
■ To prevent the windshield from fogging up
●Do not use
during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.

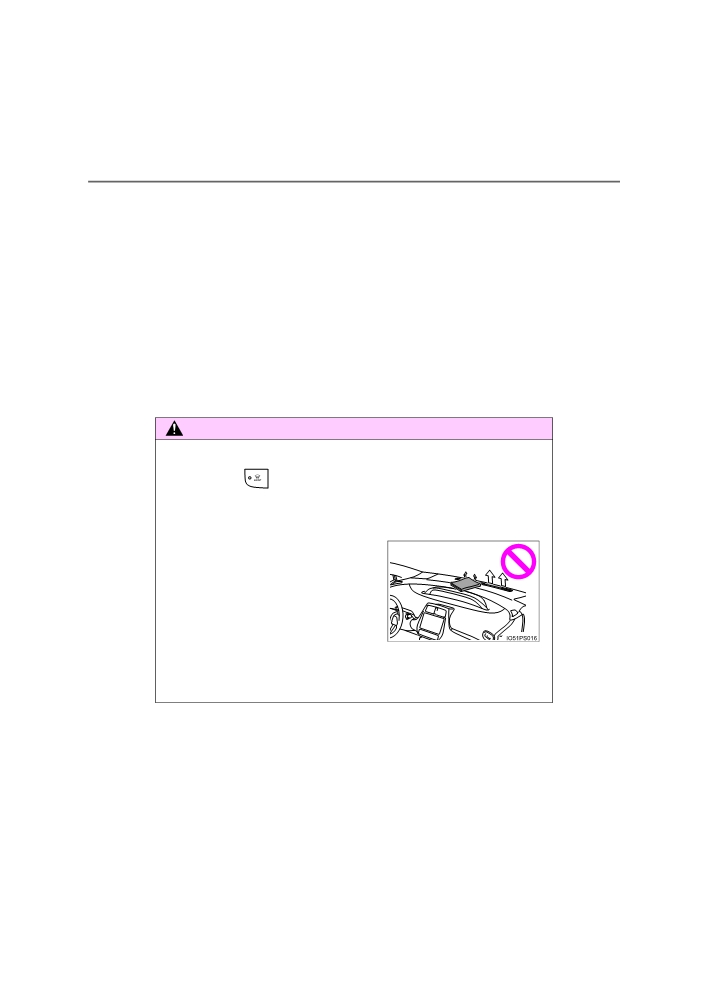

●Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
■ To prevent burns

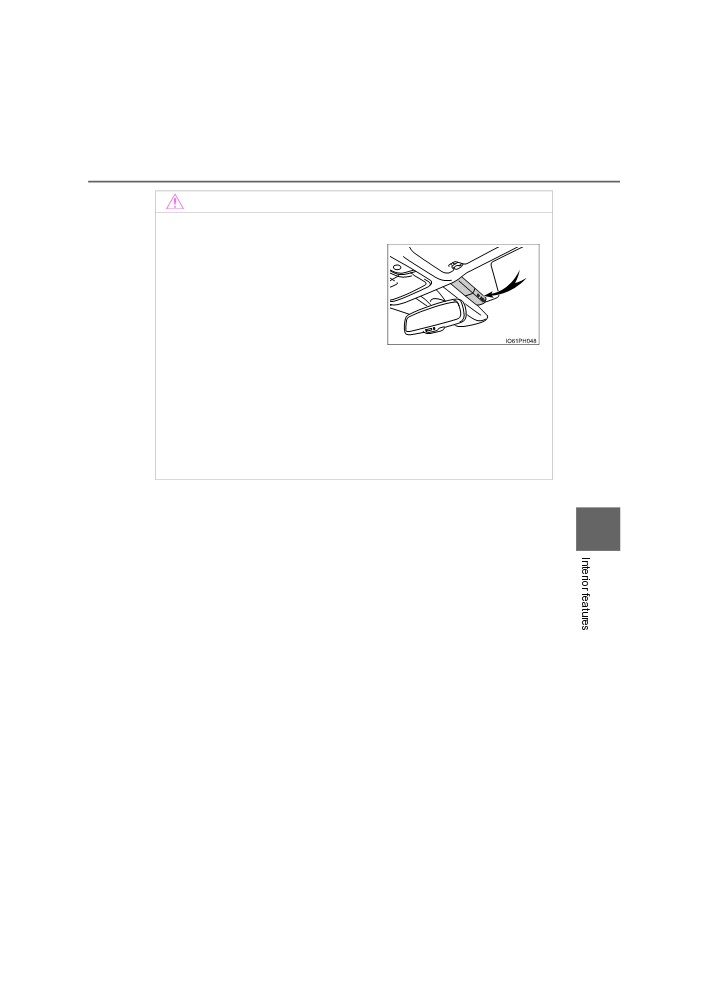

Do not touch the rear view mirror surfaces when the outside rear view mirror
defoggers are on.
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
515
NOTICE
■ Humidity sensor
In order to detect fog on the windshield, a
sensor which monitors the temperature
of the windshield, the surround humidity,
etc. is installed. (P. 513)
Follow these points to avoid damaging
the sensor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sensor or subject it to strong impacts
●Do not stick anything on the sensor
■ To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.
■ Air outlets
The air outlets become hot when used for heating. Therefore, use caution
and adjust the air outlets accordingly.
6
PRIUS PHV_OM_OM47A89E_(EE)
516
6-1. Using the air conditioning system and defogger
Remote Air Conditioning System
The Remote Air Conditioning System uses electrical energy
stored in the hybrid battery (traction battery) and allows the air
conditioning to be operated by remote control.
If the Remote Air Conditioning System is used while the charging
cable is connected to the vehicle, the reduction of charge in the hybrid
battery (traction battery) will be suppressed to allow you to use elec-
tricity from an external power source.
Charging will be conducted automatically after the Remote Air Condition-
ing System is stopped.
Before leaving the vehicle
Check the temperature setting of the air conditioning system.
(P. 504)
The Remote Air Conditioning System will operate in accordance with the
temperature settings of the air conditioning system.
Activating the Remote Air Conditioning System

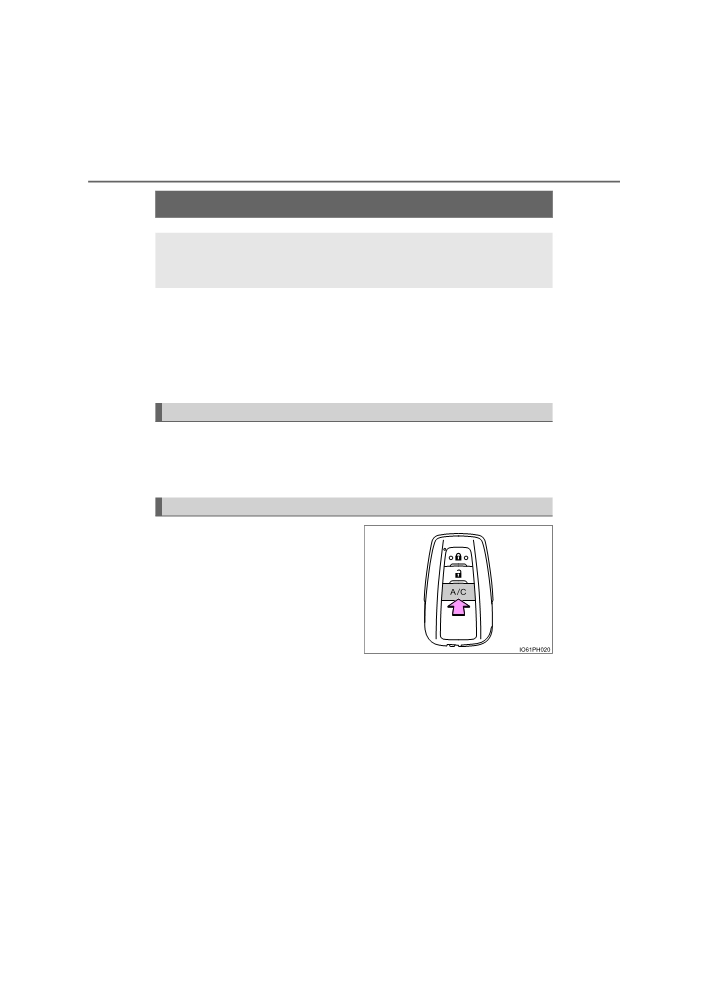

Press and hold “A/C” on the wire-
less remote control to operate the
Remote Air Conditioning System.
The system will shut off if a door is
opened.
The system can be stopped by
pressing “A/C” twice.
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
517
■ Operating conditions
The system will only operate if all of the following conditions are met:
● The shift position is in P.
● The power switch is off.*
●All doors are closed.
●The hood is closed.
*: The Remote Air Conditioning System cannot be used for approximately 3
minutes and a half after the power switch is turned off.
■ Remote Air Conditioning System automatic shut-off
The system will automatically shut off under the following conditions:
● About 10 minutes have passed since operation began
● Any one of the operating conditions is not met
The system may also shut off if the charge level of the hybrid battery (traction
battery) drops to low.
■ Conditions affecting operation
The system may not start in the following situations:
● The charge level of the hybrid battery (traction battery) is low
●The outside temperature is extremely low
● When the hybrid system is cool (for example, after being left for a long time
in low temperatures)
■ Windshield defogger
6
When defogging the windshield using the Remote Air Conditioning System,
defogging may be insufficient due to the power being restricted more than
during normal air conditioning operation. Also, the outside of the windshield
may fog up due to the outside temperature, humidity or air conditioning set
temperature.
■ Using the heater via the Remote Air Conditioning System
When the outside heat exchanger becomes frosted over, heating perfor-
mance may decline due to automatically switching to the frost removal opera-
tion.
■ Security feature
Any unlocked doors will be automatically locked when the system is operat-
ing. The emergency flashers flash to indicate that the doors have been locked
or the system has been turned off.
(The doors locked: Once; The system turned off: Twice)
■ Conditions affecting operation
P. 282
PRIUS PHV_OM_OM47A89E_(EE)
518
6-1. Using the air conditioning system and defogger
■ When using the Remote Air Conditioning System
A charging message will be displayed on the multi-information display. Differ-
ent messages will be displayed depending on when the Remote Air Condi-
tioning System was started (after charging or during charging).
■ While the Remote Air Conditioning System is operating
● Depending on the operating condition of the Remote Air Conditioning Sys-
tem, the electric fan may spin and an operating noise may be heard.
However, this does not indicate a malfunction.
●The Remote Air Conditioning System may stop operating temporarily if
other features that use electricity (for example, the seat heater, lights, wind-
shield wipers) are in operation or if the charge level of the 12-volt battery
becomes low.
●The headlights, windshield wiper, combination meter, etc. will not operate
while the Remote Air Conditioning System is operating.
■ Electronic key battery depletion
P. 266
■ When the electronic key battery is fully depleted
P. 616
■ Customization
Setting (e.g. Operation using “A/C” on the wireless remote control) can be
changed. (Customizable features P. 708)
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
519
WARNING
■ Precautions for the Remote Air Conditioning System
●Do not use the system if people are in the vehicle.
Even when the system is in use, the internal temperature may still reach a
high or low level due to features such as the automatic shut-off. Children
and pets left inside the vehicle may suffer heatstroke dehydration or hypo-
thermia, or could result in death or serious injury.
●Depending on the surrounding environment, signals from the wireless
switch may transmit further than expected. Pay appropriate attention to
the vehicle’s surroundings and use the switch only when necessary.
●Do not operate “A/C” if the hood is open. The air conditioning may operate
unintentionally and objects may be drawn into the electrical cooling fan.
NOTICE
■ To prevent the hybrid battery (traction battery) from being discharged
through incorrect operation
Use “A/C” only when necessary.
6
PRIUS PHV_OM_OM47A89E_(EE)
520
6-1. Using the air conditioning system and defogger
Seat heaters
Seat heaters heat the front seats.
WARNING
●Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent 12-volt battery discharge, do not use the functions when the
hybrid system is off.
PRIUS PHV_OM_OM47A89E_(EE)
6-1. Using the air conditioning system and defogger
521

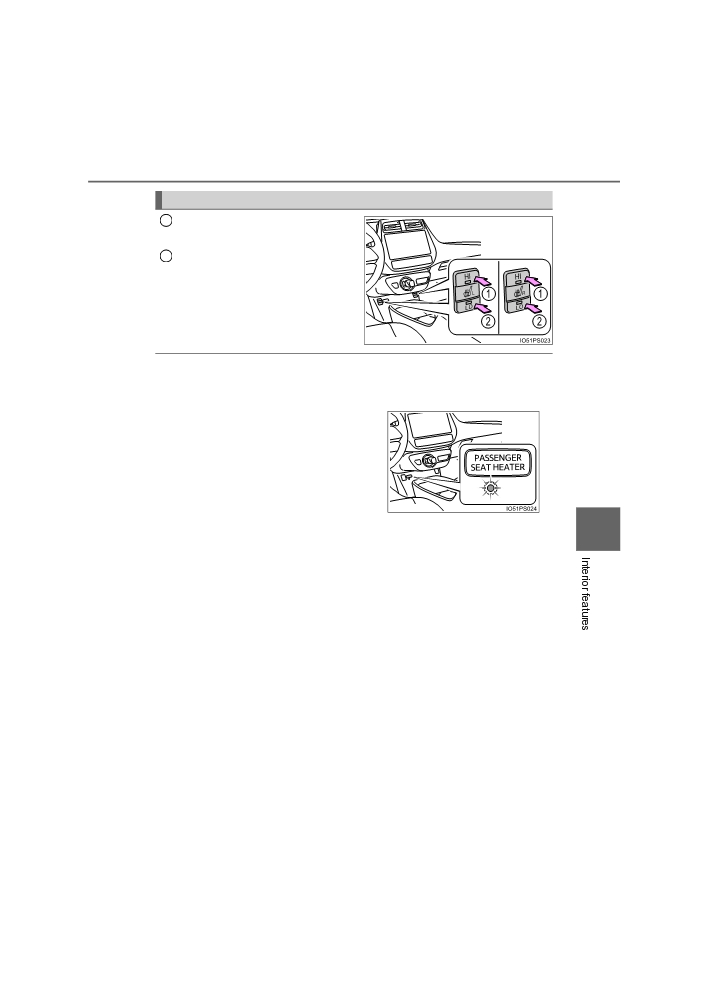

Operating instructions
1
Heats the seat at high tempera-
ture (HI)
2
Heats the seat at low tempera-
ture (LO)
The indicator light comes on when
one side of the switch is pressed.
To stop operation, gently press the
other side of the switch.
● The seat heaters can be used when the power switch is in ON mode.
● When not in use, turn off the switch. The indicator light turns off.
● Passenger side operation indicator:
Illuminates while the passenger side
seat heater is operating, allowing the
operating condition of the passenger
side seat heater to be checked from the
driver side as well.
6
PRIUS PHV_OM_OM47A89E_(EE)
522
6-2. Using the interior lights

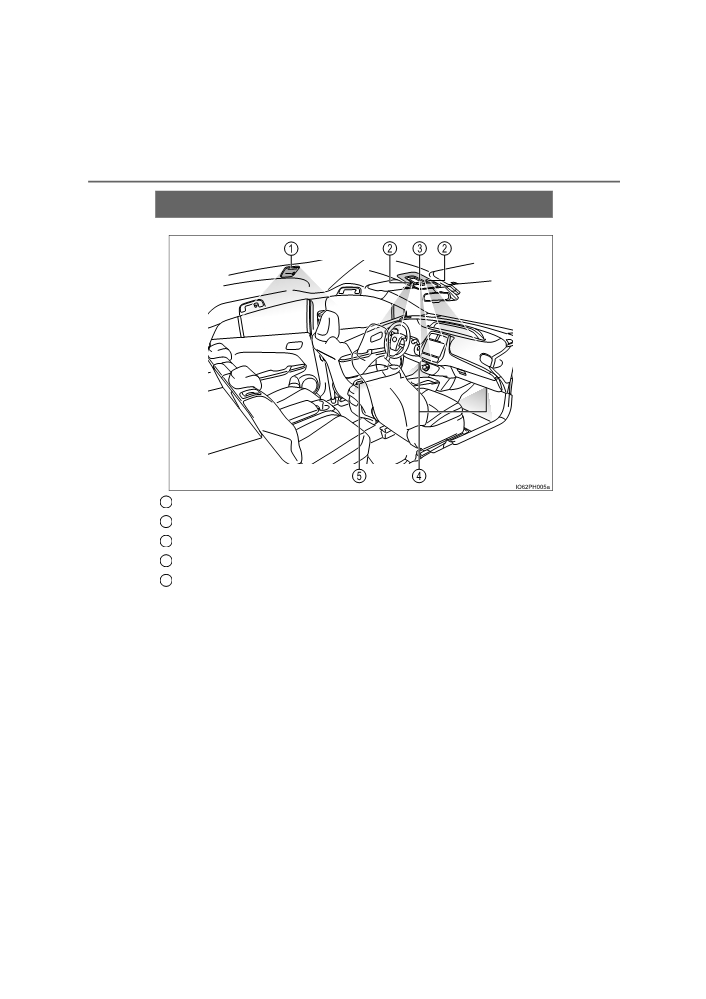

Interior lights list
1
Rear interior light (P. 524)
2
Front personal/interior lights (P. 523)
3
Shift lever lighting
4
Footwell lights
5
Front door courtesy lights
PRIUS PHV_OM_OM47A89E_(EE)
6-2. Using the interior lights
523

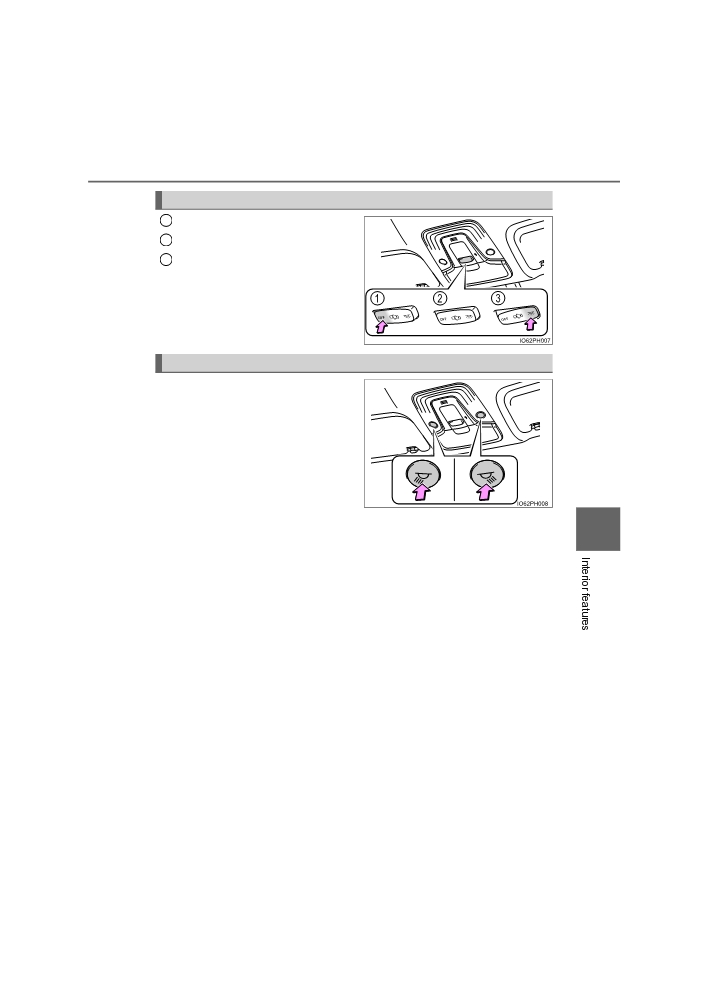

Front interior light
1
Turns the lights off
2
Turns the door position on
3
Turns the lights on
Front personal lights
Turns the lights on/off
6
PRIUS PHV_OM_OM47A89E_(EE)
524
6-2. Using the interior lights

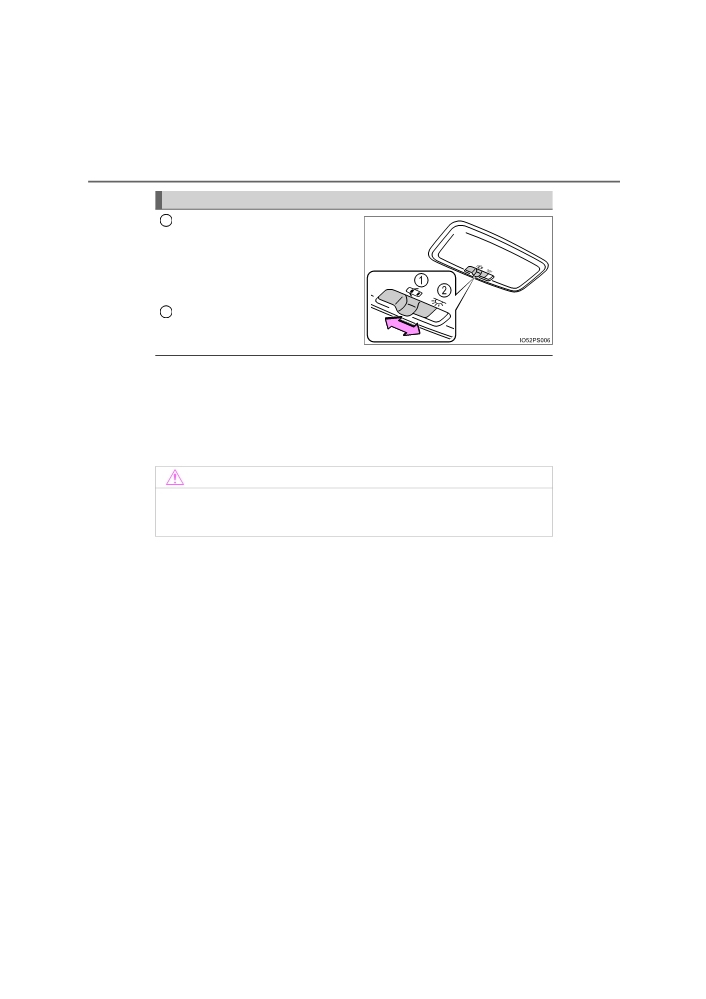

Rear interior light
Turns the switch to the door
1
position (door linked)
Operation is linked with the front
interior light main switch. When the
switch is off, the light does not illu-
minate.
2
Turns the light on
●Illuminated entry system: The lights automatically turn on/off according to
power switch mode, the presence of the electronic key, whether the doors
are locked/unlocked, and whether the doors are opened/closed.
● If the interior lights remain on when the power switch is turned off, the light
will go off automatically after 20 minutes.
● Settings (e.g. the time elapsed before the lights turn off) can be changed.
(Customizable features: P. 708)
NOTICE
To prevent 12-volt battery discharge, do not leave the lights on longer than
necessary when the hybrid system is off.
PRIUS PHV_OM_OM47A89E_(EE)
6-3. Using the storage features
525

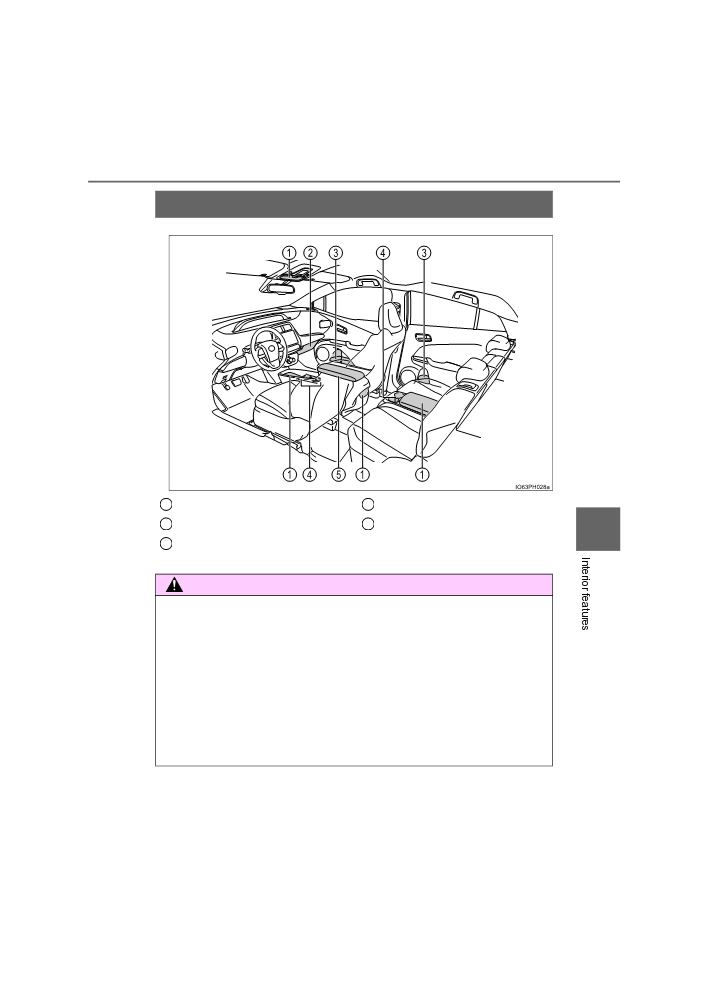

List of storage features
1
Auxiliary boxes (P. 529)
4
Cup holders (P. 527)
2
Glove box (P. 526)
5
Console box (P. 526)
6
3
Bottle holders/door pockets
(P. 528)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
PRIUS PHV_OM_OM47A89E_(EE)
526
6-3. Using the storage features

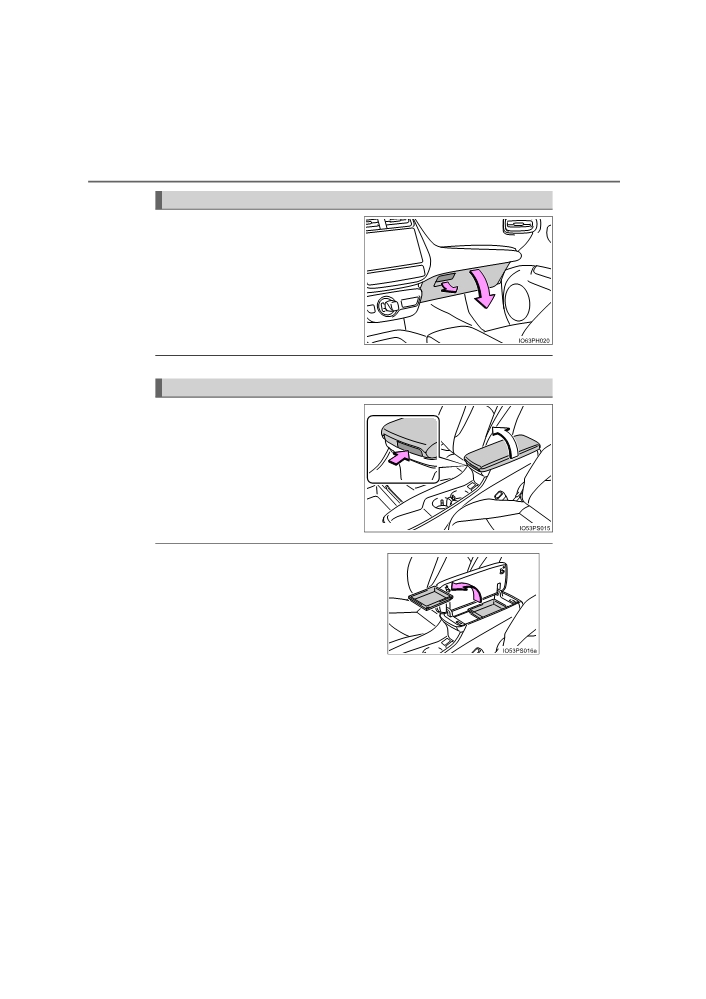

Glove box
Pull up the lever.
The glove box light turns on when the tail lights are on.
Console box
Press the knob and open the lid.
Vehicles without solar charging system:
The tray slides forward/backward and can
be removed.
PRIUS PHV_OM_OM47A89E_(EE)
