Toyota Prius Plug-in Hybrid (2017 year). Manual - part 16

3. Instrument cluster

255

WARNING

■ Before using the head-up display

●Check that the position and brightness of the head-up display image does

not interfere with safe driving. Incorrect adjustment of the image’s position

or brightness may obstruct the driver’s view and lead to an accident,

resulting in death or serious injury.

●Do not continuously look at the head-up display while driving as you may

fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

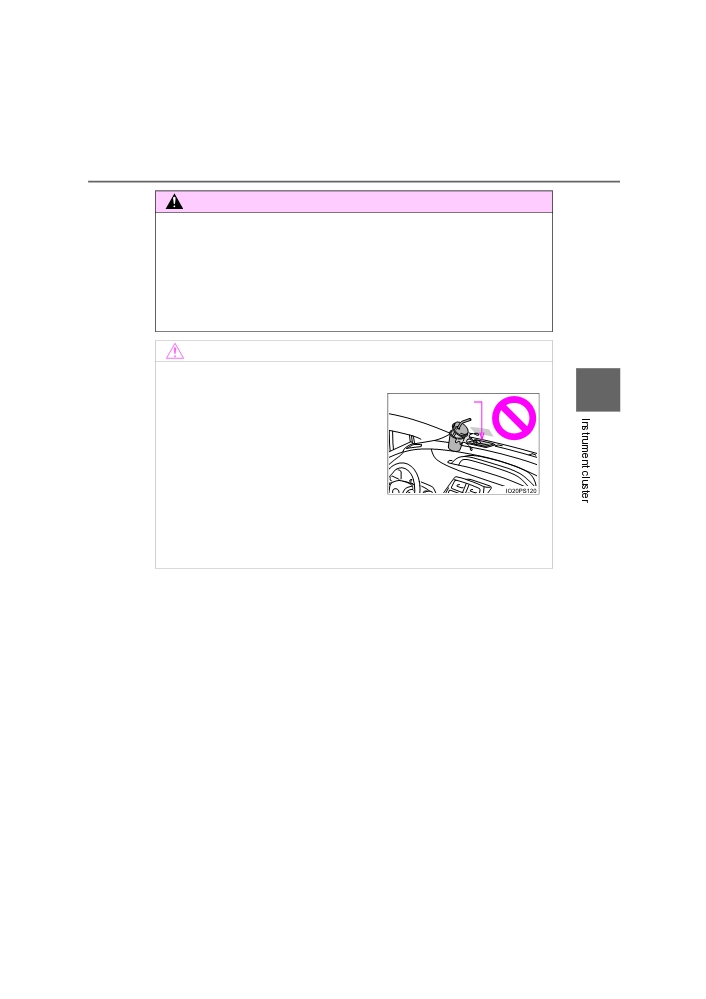

NOTICE

■ To prevent damage to components

3

●Do not place any drinks near the head-

Display projector

up display projector. If the projector gets

wet, electrical malfunctions may result.

●Do not place anything on or put stickers

onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

PRIUS PHV_OM_OM47A89E_(EE)

256

3. Instrument cluster

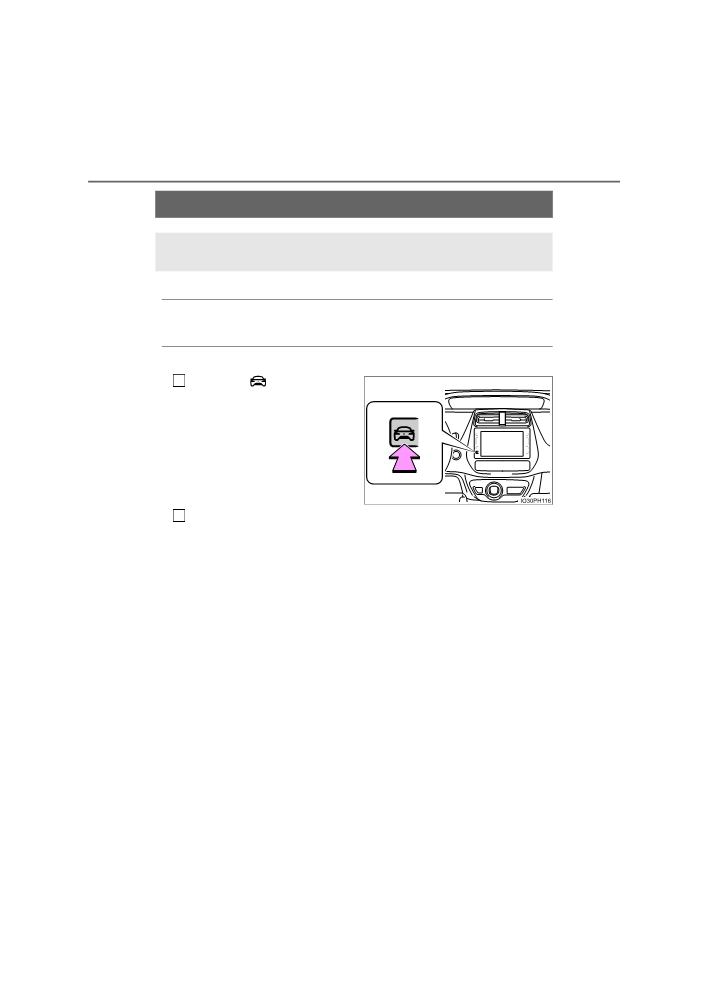

Energy monitor/consumption screen

You can view the status of your vehicle on the multi-information

display and the audio system screen.

◆ Multi-information display

P. 215

◆ Audio system screen

Display the energy monitor, trip information or past record screen.

1

Press the

button.

Select “Energy monitor”, “Trip information” or “Past record”.

2

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

257

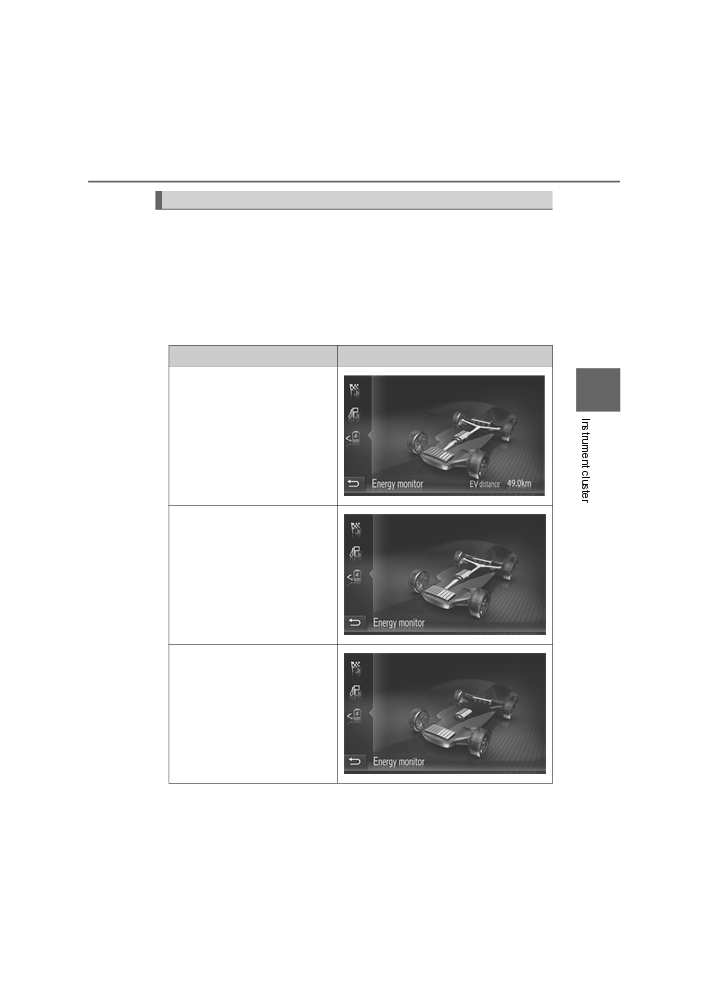

How to read the energy monitor

■ Function summary

The energy monitor can be used to check the vehicle drive status,

hybrid system operation status and energy regeneration status.

■ Flow of energy and display details

When energy is flowing, an arrow appears and a bright point of light

moves to show the direction of the flow of energy. When energy is

not flowing, the bright point of light are not displayed.

Audio system screen

3

When the vehicle is powered by

the electric motor

(traction

motor)

When the vehicle is powered by

both the gasoline engine and

the electric motor

(traction

motor)

When the vehicle is powered by

the gasoline engine

PRIUS PHV_OM_OM47A89E_(EE)

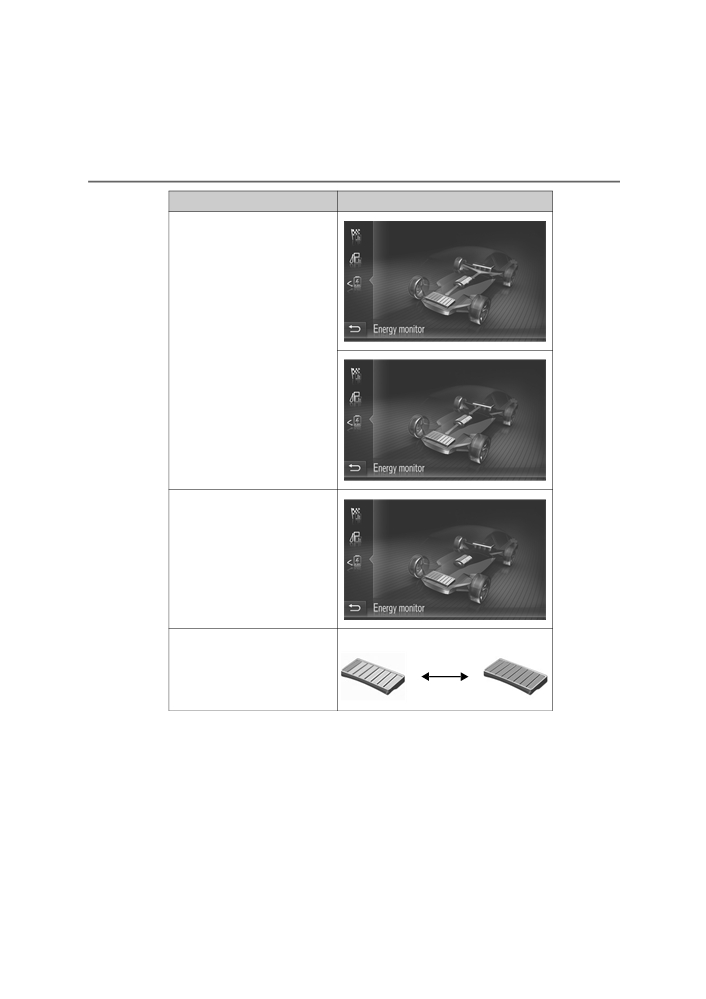

258

3. Instrument cluster

Audio system screen

When the vehicle is charging

the hybrid battery (traction bat-

tery)

When there is no energy flow

Low

Full

Hybrid battery (traction battery)

status

These images are examples only, and may vary slightly from actual

conditions.

PRIUS PHV_OM_OM47A89E_(EE)

3. Instrument cluster

259

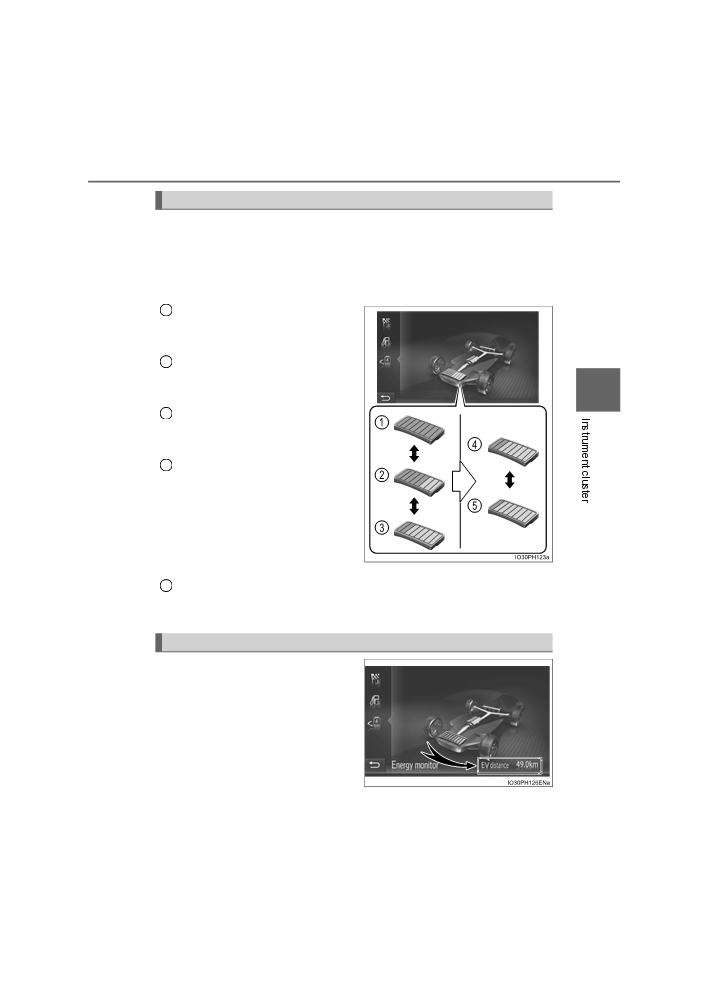

Display of the remaining hybrid battery (traction battery)

The current remaining charge in the hybrid battery (traction battery) is

displayed on the energy monitor screen.

The system automatically switches to the HV mode when the neces-

sary amount of battery charge for EV driving in EV mode is insuffi-

cient.

The hybrid battery (traction bat-

1

tery) for EV mode is fully

charged

There is a remaining charge in

2

the hybrid battery (traction bat-

3

tery).

3

The hybrid battery (traction bat-

tery) for EV mode is not remain-

ing

The hybrid battery (traction bat-

4

tery) for HV mode is fully

charged

When the hybrid battery (traction

battery) charge for EV mode is

depleted, the hybrid battery (trac-

tion battery) charge for HV mode is

displayed.

The hybrid battery (traction battery) is not remaining

5

The image is an example only, and may vary slightly from actual condi-

tions.

EV driving range

The approximate distance that

can be driven using only the elec-

tric motor (traction motor).

• Only EV mode is displayed.

• When the air conditioning is on,

the displayed value may differ

from the hybrid indicator.

(P. 226)

• The image is an example only,

and may vary slightly from actual

conditions.

PRIUS PHV_OM_OM47A89E_(EE)

260

3. Instrument cluster

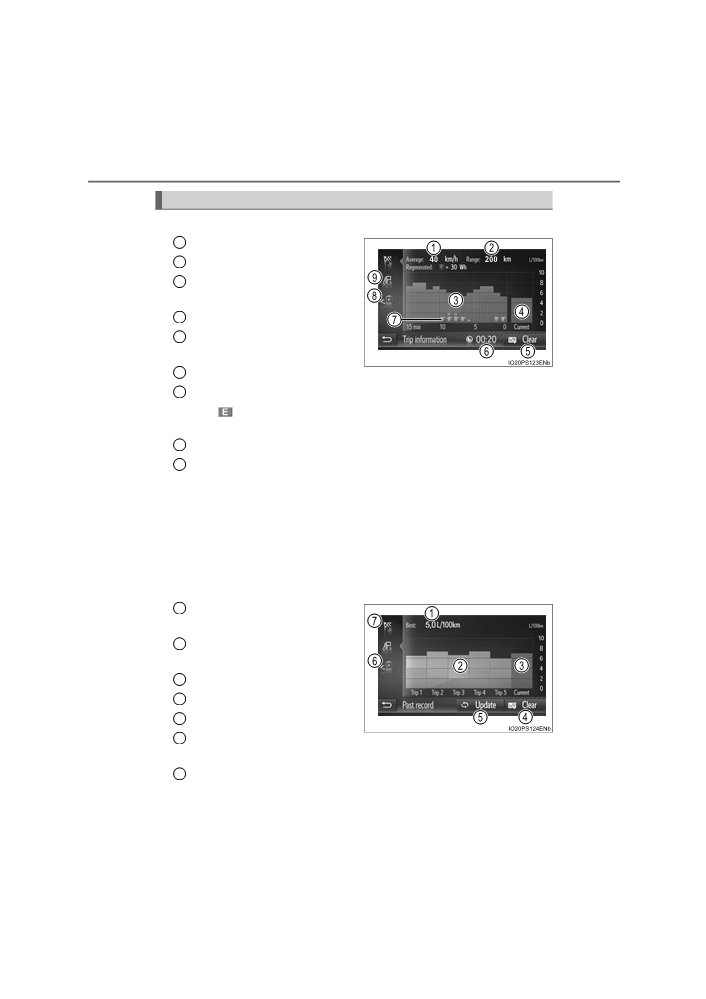

Fuel consumption

■ Trip information

1

Average vehicle speed

2

Cruising range

3

Previous fuel consumption

per minute

4

Current fuel consumption

5

Reset the trip information

data

6

Elapsed time

7

Regenerated energy in the past 15 minutes

One symbol indicates 30 Wh.

Up to 5 symbols are shown.

8

“Energy monitor” screen appears

9

“Past record” screen appears

Average fuel consumption for the past 15 minutes is divided by

color into past averages and averages attained since the power

switch was last turned to ON mode. Use the displayed average

fuel consumption as a reference.

The image is an example only, and may vary slightly from actual

conditions.

■ Past record

1

Best recorded fuel consump-

tion

2

Previous fuel consumption

record

3

Current fuel consumption

4

Reset the past record data

5

Update the past record data

6

“Energy monitor” screen

appears

“Trip information” screen appears

7

The image is an example only, and may vary slightly from actual

conditions.

PRIUS PHV_OM_OM47A89E_(EE)

264

4-1. Key information

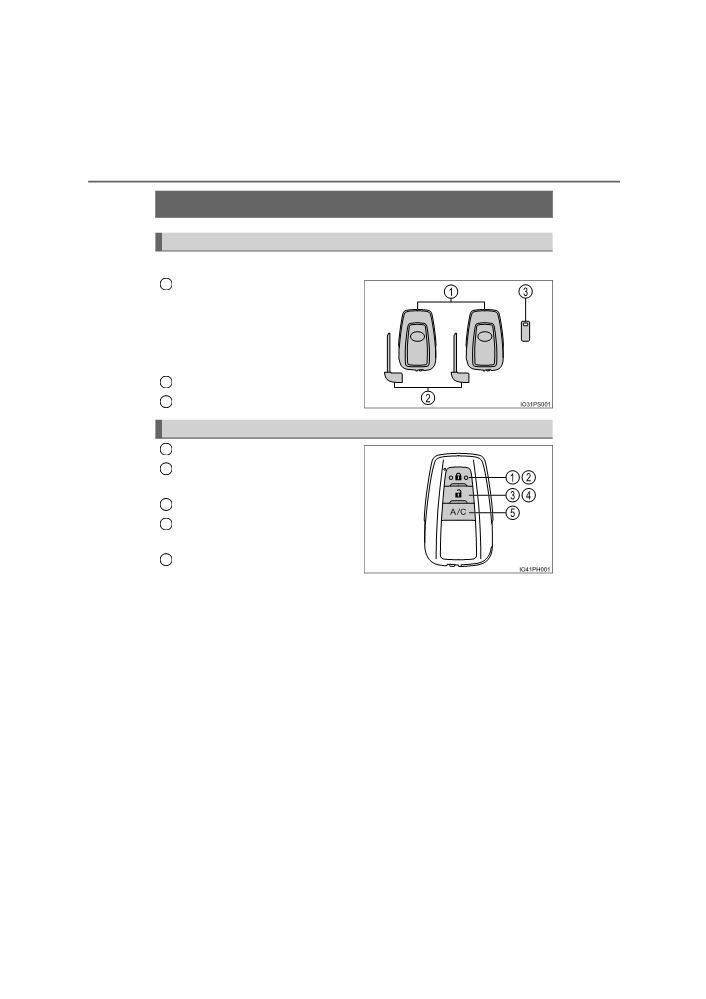

Keys

The keys

The following keys are provided with the vehicle.

1

Electronic keys

• Operating the smart entry &

start system (P. 279)

• Operating the wireless remote

control function

• Operating the Remote Air Con-

ditioning System (P. 516)

2

Mechanical keys

3

Key number plate

Wireless remote control

1

Locks all the doors (P. 269)

2

Closes the side windows*

(P. 269)

3

Unlocks all the doors (P. 269)

4

Opens the side windows*

(P. 269)

Operates Remote Air Condi-

5

tioning System (P. 516)

*: These settings must be customized at any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

PRIUS PHV_OM_OM47A89E_(EE)

4-1. Key information

265

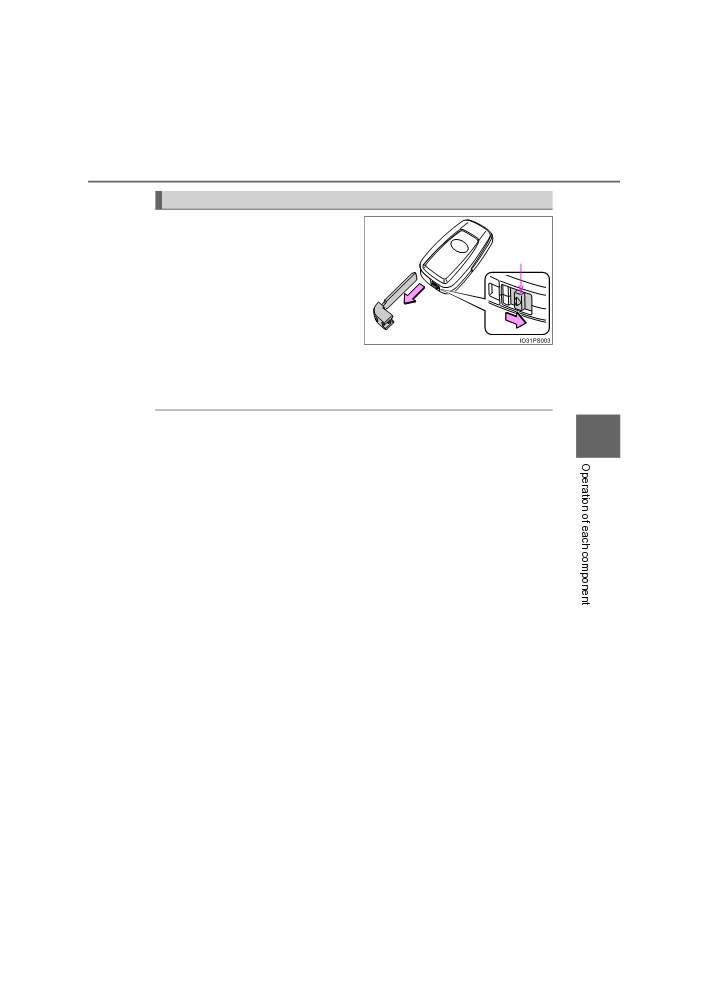

Using the mechanical key

To take out the mechanical key,

slide the release lever and take

Release

the key out.

lever

The mechanical key can only be

inserted in one direction, as the

key only has grooves on one side.

If the key cannot be inserted in a

lock cylinder, turn it over and re-

attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the

mechanical key together with the electronic key. If the electronic key bat-

tery is depleted or the entry function does not operate properly, you will

need the mechanical key. (P. 678)

■ If you lose your mechanical keys

4

New genuine mechanical keys can be made by any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional using another

mechanical key and the key number stamped on your key number plate.

Keep the plate in a safe place such as your wallet, not in the vehicle.

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press

any buttons on the electronic key while inside the aircraft cabin. If you are

carrying an electronic key in your bag etc., ensure that the buttons are not

likely to be pressed accidentally. Pressing a button may cause the electronic

key to emit radio waves that could interfere with the operation of the aircraft.

PRIUS PHV_OM_OM47A89E_(EE)

4-1. Key information

267

■ If a message regarding the state of the electronic key or power switch

mode, etc. is shown

To prevent trapping the electronic key inside the vehicle, leaving the vehicle

without turning off the power switch or other passengers from unintentionally

taking the key out of the vehicle, etc., a message that prompts the user to

confirm the state of the electronic key or power switch mode may be shown

on the multi-information display. In those cases, follow the instructions on the

display immediately.

■ If “Key Battery Low Replace Key Battery” is displayed on the multi-infor-

mation display

The electronic key has a low battery. Replace the electronic key battery.

(P. 616)

■ Replacing the battery

P. 616

■ Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask

any authorized Toyota dealer or repairer, or another duly qualified and

4

equipped professional.

■ If “A New Key has been Registered Contact Your Dealer for Details” is

displayed on the multi-information display

This message will be displayed each time the driver’s door is opened when

the doors are unlocked from the outside for approximately 10 days after a

new electronic key has been registered.

If this message is displayed but you have not had a new electronic key regis-

tered, ask any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional to check if an unknown electronic key (other than

those in your possession) has been registered.

■ If a wrong key is used

The key cylinder rotates freely to isolate inside mechanism.

PRIUS PHV_OM_OM47A89E_(EE)

268

4-1. Key information

NOTICE

■ To prevent key damage

●Do not drop the keys, subject them to strong shocks or bend them.

●Do not expose the keys to high temperatures for long periods of time.

●Do not get the keys wet or wash them in an ultrasonic washer etc.

●Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

●Do not disassemble the keys.

●Do not attach a sticker or anything else to the surface of the electronic key.

●Do not place the keys near objects that produce magnetic fields, such as

TVs, audio systems and induction cookers.

●Do not place the keys near medical electrical equipment such as low-fre-

quency therapy equipment or microwave therapy equipment, and do not

receive medical attention with the keys on your person.

■ Carrying the electronic key on your person

Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-

ances that are turned on. Radio waves emitted from electric appliances

within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-

ing the key to not function properly.

■ In case of a smart entry & start system malfunction or other key-related

problems

Take your vehicle with all the electronic keys provided with your vehicle to

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

■ When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-

cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-

fied and equipped professional immediately with all remaining electronic

keys that were provided with your vehicle.

PRIUS PHV_OM_OM47A89E_(EE)

4-2. Opening, closing and locking the doors

269

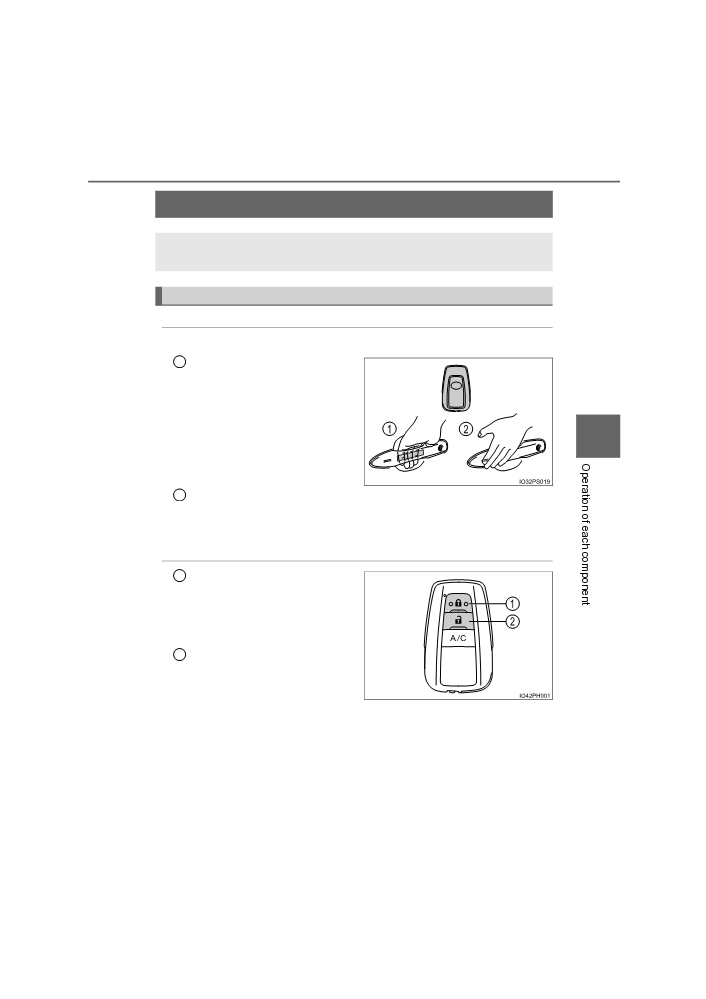

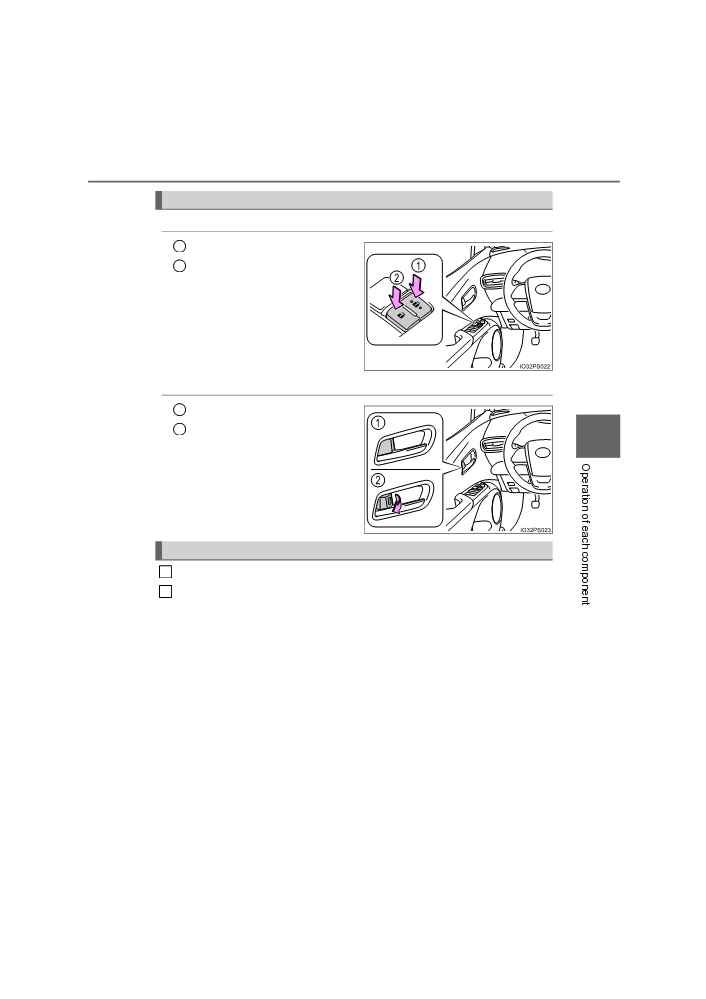

Side doors

The vehicle can be locked and unlocked using the entry func-

tion, wireless remote control or door lock switches.

Unlocking and locking the doors from the outside

◆ Smart entry & start system

Carry the electronic key to enable this function.

Grip the front door handle to

1

unlock all the doors.

Make sure to touch the sensor

on the back of the handle.

The doors cannot be unlocked

4

for 3 seconds after the doors are

locked.

2

Touch the lock sensor (the indentation on the surface of the front

door handle) to lock the doors.

Check that the door is securely locked.

◆ Wireless remote control

Locks all the doors

1

Check that the door is securely

locked.

Press and hold to close the side

windows.*

Unlocks all the doors

2

Press and hold to open the side

windows.*

*: These settings must be customized at any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

PRIUS PHV_OM_OM47A89E_(EE)

270

4-2. Opening, closing and locking the doors

■ Operation signals

The emergency flashers flash to indicate that the doors have been locked/

unlocked. (Locked: Once; Unlocked: Twice)

■ Security feature

If a door is not opened within approximately 30 seconds after the vehicle is

unlocked, the security feature automatically locks the vehicle again.

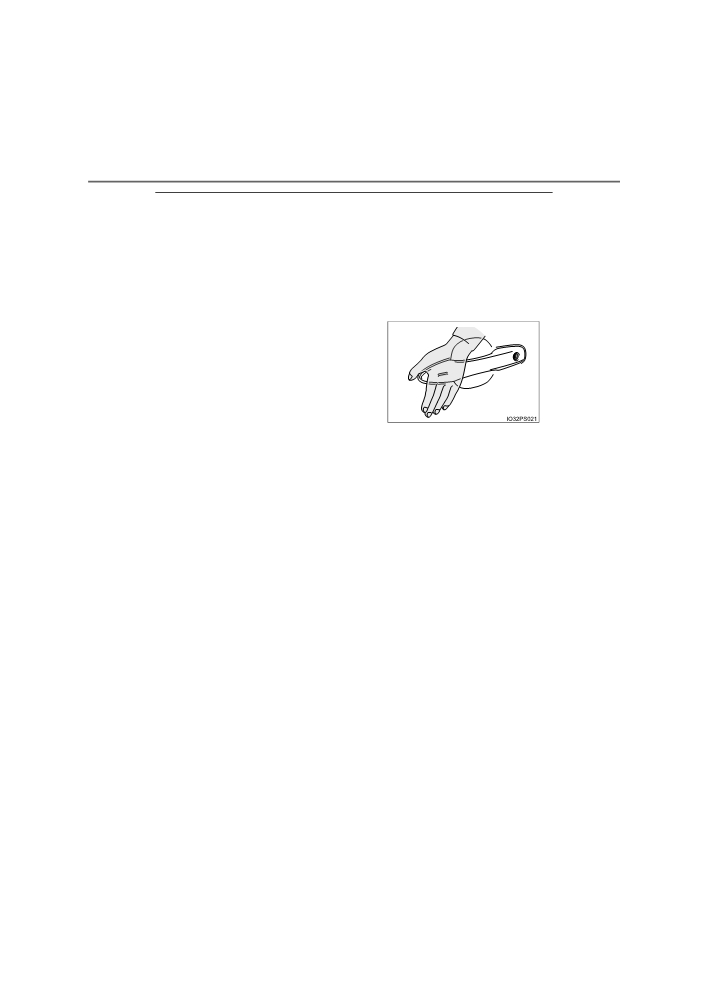

■ When the door cannot be locked by the lock sensor on the surface of the

door handle

When the door cannot be locked even if

the lock sensor on the surface of the door

handle is touched by a finger, touch the

lock sensor with the palm.

When gloves are being worn, remove the

gloves.

■ Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a

buzzer sounds continuously for 5 seconds. Fully close the door to stop the

buzzer, and lock the vehicle once more.

■ Setting the alarm (if equipped)

Locking the doors will set the alarm system. (P. 81)

■ If the smart entry & start system or the wireless remote control does not

operate properly

● Use the mechanical key to lock and unlock the doors. (P. 678)

● Replace the key battery with a new one if it is depleted. (P. 616)

PRIUS PHV_OM_OM47A89E_(EE)

4-2. Opening, closing and locking the doors

271

Locking and unlocking the doors from the inside

◆ Door lock switches

1

Locks all the doors

2

Unlocks all the doors

◆ Inside lock buttons

1

Locks the door

2

Unlocks the door

4

The driver’s door and front pas-

senger’s door

(for left-hand

drive vehicles only) can be

opened by pulling the inside

handle even if the lock buttons

are in the lock position.

Locking the front doors from the outside without a key

1

Move the inside lock button to the lock position.

2

Close the door while pulling the door handle.

The door cannot be locked if the power switch is in ACCESSORY or

ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

PRIUS PHV_OM_OM47A89E_(EE)

Content   ..  14  15  16  17   ..
