Toyota GT86 (2016 year). Manual - part 18
2-4. Using other driving systems
■ Operating conditions of hill-start assist control
When the following conditions are met, the hill-start assist control will oper-
ate:
● Vehicles with an automatic transmission: The shift lever is in D or M
(when starting off forward on while facing uphill) or in R (when starting off
backward while facing downhill).
● Vehicles with a manual transmission: The shift lever is in a position other
than R (when starting off forward while facing uphill) or in R (when start-
ing off backward while facing downhill).
2
●The vehicle is stopped.
●The accelerator pedal is not depressed.
●The parking brake is not engaged.
■ Hill-start assist control will not operate when
Hill-start assist control will not operate when any of the following conditions
are met:
● Vehicles with an automatic transmission: The shift lever is in a position
other than D or M (when facing uphill) or in a position other than R (when
facing downhill).
● Vehicles with a manual transmission: The shift lever is in R (when facing
uphill) or in a position other than R (when facing downhill).
● Vehicles with an automatic transmission: The accelerator pedal is
depressed.
●The parking brake is applied.
● Vehicles with a manual transmission: The clutch is engaged.
●Approximately 2 seconds have elapsed since the brake pedal was
released.
●The hill-start assist control ON indicator is not illuminated.
● Vehicles without a smart entry & start system: The engine switch is
turned to the “ACC” or “LOCK” position.
● Vehicles with a smart entry & start system: The “ENGINE START STOP”
switch is turned to ACCESSORY mode or turned off
255
86_EE (OM18071E)
2-4. Using other driving systems
■ Notes for hill-start assist control
● A slight jolt may be felt when starting off backward with the shift lever in R
and then moving forward.
● If the braking power of hill-start assist control is insufficient, depress the
brake pedal.
● While the vehicle is stopped, make sure to depress the brake pedal.
■ The system may be malfunctioning when
In the following situations, the system may be malfunctioning. Have the vehi-
cle inspected by your Toyota dealer.
●The slip indicator is illuminated.
●The hill-start assist control ON indicator turns off and a buzzer sounds.
WARNING
■ Hill-start assist control precautions
●Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.
●Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
●Do not stop the engine while hill-start assist control is operating, as hill-
start assist control will stop operating, possibly leading to an accident.
256
86_EE (OM18071E)
2-5. Driving information
Cargo and luggage
Take notice of the following information about storage precautions,
cargo capacity and load:
● Stow cargo and luggage in the trunk whenever possible.
● Be sure all items are secured in place.
● To maintain vehicle balance while driving, position luggage
evenly within the luggage compartment.
● For better fuel economy, do not carry unnecessary weight.
2
WARNING
■ Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk:
●Receptacles containing gasoline
●Aerosol cans
257
86_EE (OM18071E)
2-5. Driving information
WARNING
■ Storage precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Stow cargo and luggage in the trunk whenever possible.
● To prevent cargo and luggage from sliding forward during braking, do
not stack anything in the enlarged trunk. Keep cargo and luggage low,
as close to the floor as possible.
●When you fold down the rear seats, long items should not be placed
directly behind the front seats.
●Never allow anyone to ride in the enlarged trunk. It is not designed for
passengers. They should ride in their seats with their seat belts prop-
erly fastened. Otherwise, they are much more likely to suffer death or
serious bodily injury, in the event of sudden braking, sudden swerving
or an accident.
●Do not place cargo or luggage in or on the following locations as the
item may get under the clutch, brake or accelerator pedal and prevent
the pedals from being depressed properly, block the driver’s vision, or
hit the driver or passengers, causing an accident:
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the package tray
• On the instrument panel
• On the dashboard
●Secure all items in the occupant compartment, as they may shift and
injure someone during sudden braking, sudden swerving or an acci-
dent.
■ Load and distribution
●Do not overload your vehicle.
●Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.
258
86_EE (OM18071E)
2-5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
■ Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
2
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the rear tires.
Make sure to install 4 tires that are of the specified size, and that all
4 tires are the same size, same maker, same brand and tread pat-
tern. Also, make sure to use tire chains that match the size of the
tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
● Check for and remove any excess ice or snow that may have
accumulated on the exterior lights, vehicle's roof, chassis,
around the tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes
before getting in the vehicle.
259
86_EE (OM18071E)
2-5. Driving information
● If a door is opened and closed when its side window is frozen,
the window safety device will operate and the side window
open/close function linked to door operation may not operate
correctly. If this occurs, perform the following after the ice has
melted.
STEP
1
Open the side window until it is approximately halfway open
with the door closed.
Fully close the window by pulling the switch up to the one-
STEP
2
touch closing position and continue holding the switch for 1
second or more after the window fully closes.
The window position is reset and the safety device operations will
be released.
■ When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■ When parking the vehicle (in the winter time or in the cold
latitudes)
Park the vehicle and move the shift lever to P (automatic trans-
mission) or 1 or R (manual transmission) without setting the
parking brake. The parking brake may freeze up, preventing it
from being released. If necessary, block the wheels to prevent
inadvertent sliding or creeping.
260
86_EE (OM18071E)
2-5. Driving information
Selecting tire chains
We recommend that you consult any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for infor-
mation about the chains that you can use.
Regulations on the use of tire chains
Regulations regarding the use of tire chains vary according to loca-
2
tion and type of road. Always check local regulations before installing
chains.
■ Tire chains
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
● Install tire chains on the rear tires. Do not install tire chains on front tires.
● Install tire chains on rear tires as tightly as possible. Retighten chains
after driving approximately 100 m (328 ft.).
●Install tire chains following the instructions provided with the tire chains.
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size, and that are the same size, same maker,
same brand and tread pattern.
● Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
●Use snow tires on all, not just some wheels.
261
86_EE (OM18071E)
2-5. Driving information
WARNING
■ Driving with tire chains
● Vehicles with an emergency tire puncture repair kit: When any of the tires
are punctured, you can seal the tire temporarily. However, do not use the
tire chain on a sealed tire. If any of the rear tires are punctured although it
is required to use tire chains, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
• Do not drive in excess of the speed limit specified for the tire chains
being used, or 30 km/h (19 mph), whichever is lower.
• Avoid driving on bumpy road surfaces or over potholes.
• Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
• Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
Always use the utmost care when driving with tire chains - overconfidence
because you are driving with tire chains could easily lead to a serious acci-
dent.
NOTICE
■ Using the tire chains
Use only chains that are of the correct size for your tires so as not to damage
the vehicle body or suspension.
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
262
86_EE (OM18071E)
2-5. Driving information
Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.
2
263
86_EE (OM18071E)
2-5. Driving information
264
86_EE (OM18071E)
Interior features
3
3-1. Using the air conditioning
3-4. Using the storage
system and defogger
features
Manual air conditioning
List of storage features
288
system
266
• Glove box
289
Automatic air conditioning
• Bottle holders
290
system
274
• Cup holders/console
tray
291
Rear window and
outside rear view mirror
defoggers
282
3-5. Other interior features
Sun visors
293
3-2. Using the audio system
Vanity mirrors
294
Using the AUX/USB
Clock
295
port
284
Ashtray
296
Steering wheel audio
Power outlets
297
switches
285
Seat heaters
299
Floor mat
301
3-3. Using the interior lights
Trunk features
304
Interior lights list
286
• Interior light
287
265
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger
Manual air conditioning system∗
Air outlet selection dial
Temperature control dial
Outside air or recirculated air mode
Air conditioning on/off button
Fan speed control dial
(if equipped)
Adjusting the settings
STEP
1
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
STEP
2
Vehicles without the
button: Turn the temperature con-
trol dial clockwise to increase the temperature.
∗: If equipped
266
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger
STEP
2
Vehicles with the
button: To adjust the temperature
setting, turn the temperature control dial clockwise (warm) or
counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
STEP
3
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
3
267
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger
Defogging the windshield
STEP
1
Set the air outlet selection dial to
position.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
STEP
2
Perform the following operations accordingly:
● To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● Vehicles with the
button: If the dehumidification func-
tion is not operating, press
to operate the dehumidifi-
cation function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
268
86_EE (OM18071E)
3-1. Using the air conditioning system and defogger

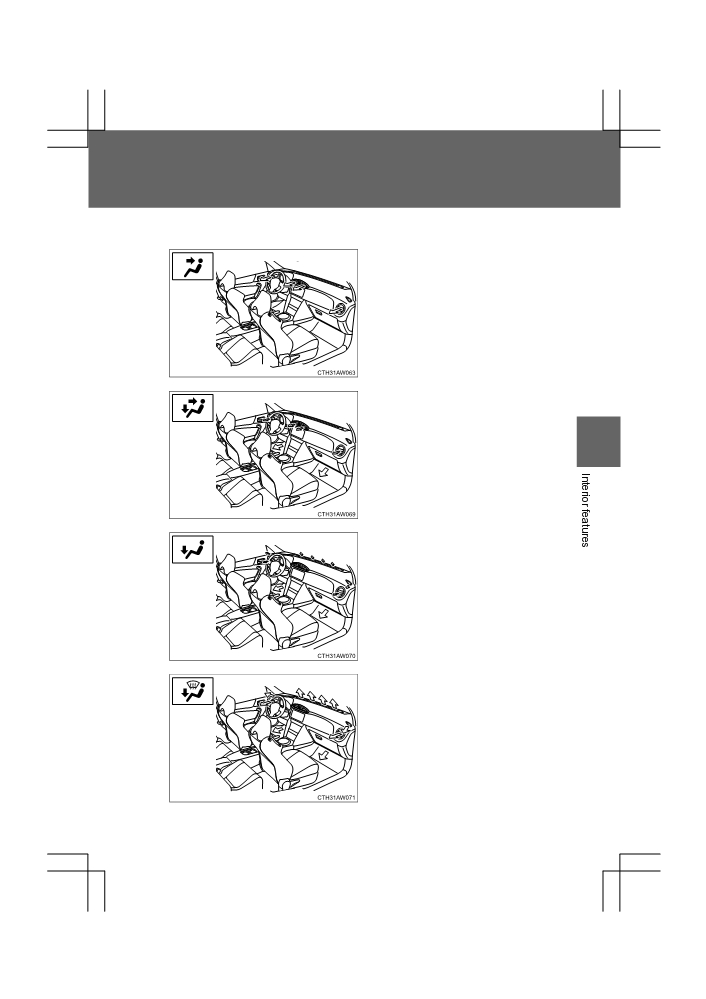

■ Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
3
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
269
86_EE (OM18071E)
