2-2. Instrument cluster

Settings display (

)

Use the meter control switches on the steering wheel to change set-

tings.

STEP

1

Press

or

to select

STEP

2

Operate the switches to select a desired item.

STEP

3

Press

/

or

/

to change the setting and then

press

to confirm the change.

2

Item

Settings

Details

On

Select to enable/disable the welcome

screen when the “ENGINE START

Welcome screen

STOP” switch is turned to IGNITION

Off

ON mode.

Select to enable/disable the REV indi-

cator and set the engine speed at

which the REV indicator will be illumi-

--00 rpm

nated.

RPM

(OFF) ~

To disable, select “--” for the engine

7400 rpm

speed (--00 rpm)

Selectable engine speed range: 2000

REV.

to 7400 rpm

On

Select to enable/disable the sounding

of a buzzer when the REV indicator is

Buzzer

illuminated. This setting can be

Off

changed only when the REV indicator

is enabled.

225

86_EE (OM18071E)

2-2. Instrument cluster

Item

Settings

Details

English

French

Spanish

German*

Select to change the language dis-

Language

played.

Italian*

Russian

Chinese*

Turkish*

km, km/h,

km/l

km, km/h,

Select to change the units of measure

Units

l/100km

displayed.

miles,

MPH,

MPG*

Yes

Select to reset the meter display set-

Initialization

tings to the default setting.

No

*: If equipped

226

86_EE (OM18071E)

2-2. Instrument cluster

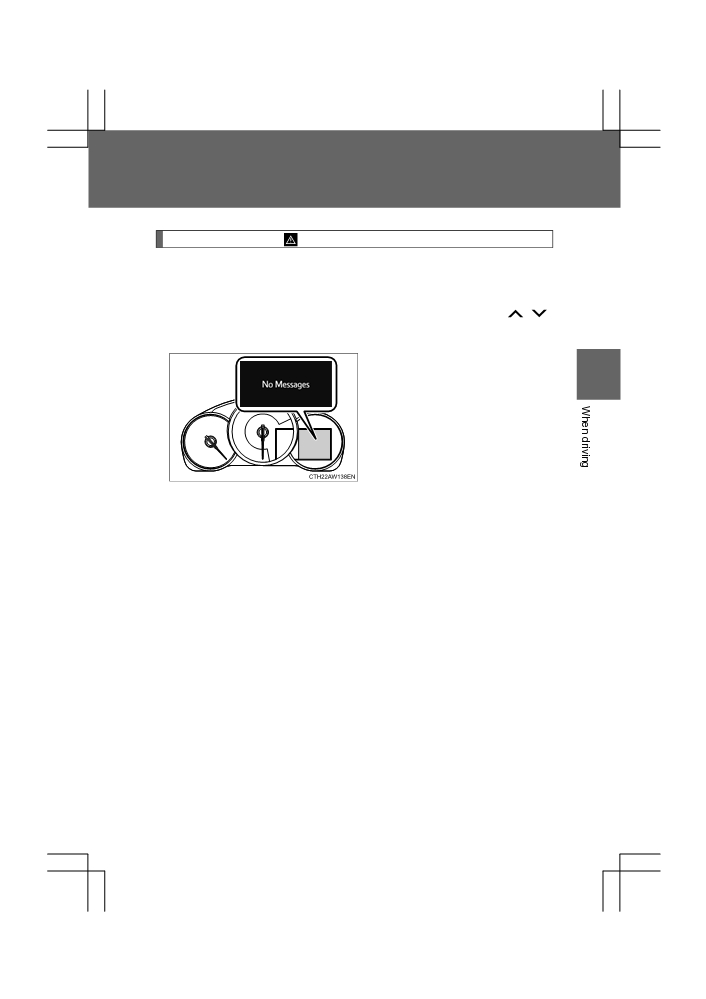

Warning message (

)

Select to display warning messages related to situations such as a

vehicle malfunction.

● If there is more than one message to be displayed, press

/

to change the display.

● If there are no warning mes-

2

sages to be displayed, a mes-

sage indicating so will be

displayed.

227

86_EE (OM18071E)

2-2. Instrument cluster

■ G-force display

●Depending on the vehicle usage conditions, the brake fluid pressure dis-

play may not reach its maximum reading even though the brake pedal is

fully depressed.

● If a battery terminal is disconnected and reconnected, the steering

amount display may be disabled temporarily. After driving the vehicle for

a while, the display will be enabled.

■ Suspension of the settings display

2

●The settings cannot be changed while driving. When changing settings,

park the vehicle in a safe place.

●If a warning message is displayed, operation of the settings display will

be suspended.

■ Using the stopwatch

If the engine is stopped while the stopwatch is operating, the stopwatch will

stop and the time up to that point will be recorded.

■ Outside temperature display

● In the following situations, the correct outside temperature may not be

displayed.

• When the vehicle is very hot, such as when under the sun.

• When the vehicle is idling or being driven at low speeds such as in a

traffic jam or when the engine is stopped and then restarted immedi-

ately afterward.

• When the actual outside temperature is outside of the indicator range.

● If “− −” is displayed for approximately 1 minute or more or if the outside

temperature is not displayed, the system may be malfunctioning.Have

the vehicle inspected by any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

229

86_EE (OM18071E)

2-2. Instrument cluster

■ Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is

characteristic of liquid crystal displays, and there is no problem continuing to

use the display.

WARNING

■ Caution for use while driving

● When operating the multi-information display while driving, pay extra

attention to the safety of the area around the vehicle.

●Do not look continuously at the multi-information display while driving as

you may fail to see pedestrians, objects on the road, etc. ahead of the

vehicle.

■ The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal

information display. At extremely low temperatures, the information display

monitor may respond slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear

number appearing on the display. This lag could cause the driver to down-

shift again, causing rapid and excessive engine braking and possibly an

accident resulting in death or injury.

■ Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that

the vehicle is parked in a place with adequate ventilation. In a closed area

such as a garage, exhaust gases including harmful carbon monoxide (CO)

may collect and enter the vehicle. This may lead to death or a serious health

hazard.

NOTICE

■ While setting up the display

To prevent battery discharge, ensure that the engine is running while setting

up the display features.

230

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

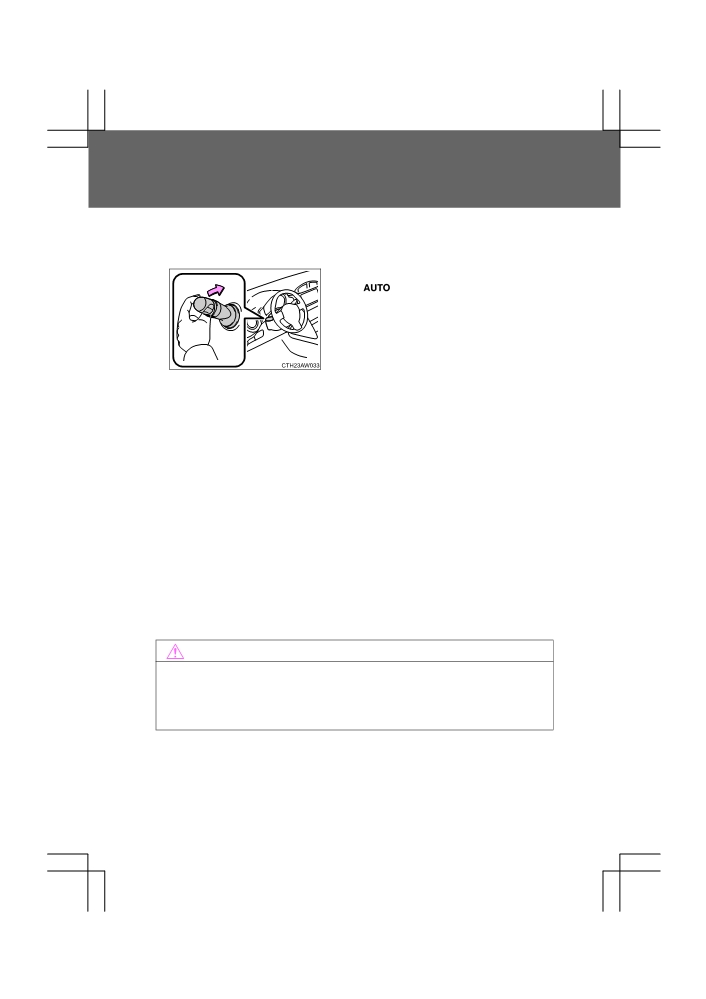

Headlight switch

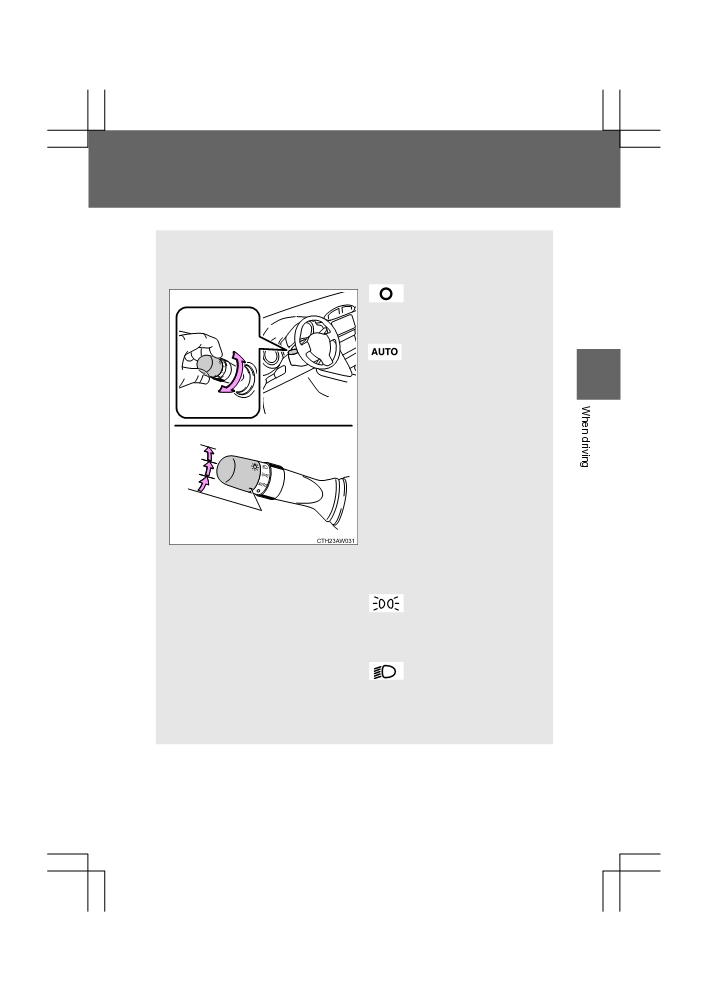

The headlights can be operated manually or automatically.

Turning the end of the lever turns on the lights as follows:

Off

The daytime running lights

turn on. (→P. 233)

The headlights, front

(if equipped)

position/daytime run-

2

ning lights

(→P.

233)

and so on turn on and

off automatically. (Vehi-

cles without a smart

entry & start system:

When the engine

switch is in the

“ON”

position

Vehicles with a smart

entry & start system:

When the

“ENGINE

START STOP” switch is

in IGNITION ON mode)

The front position, tail,

license plate and instru-

ment panel lights turn

on.

The headlights and all

the lights listed above

(except daytime run-

ning lights) turn on.

231

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

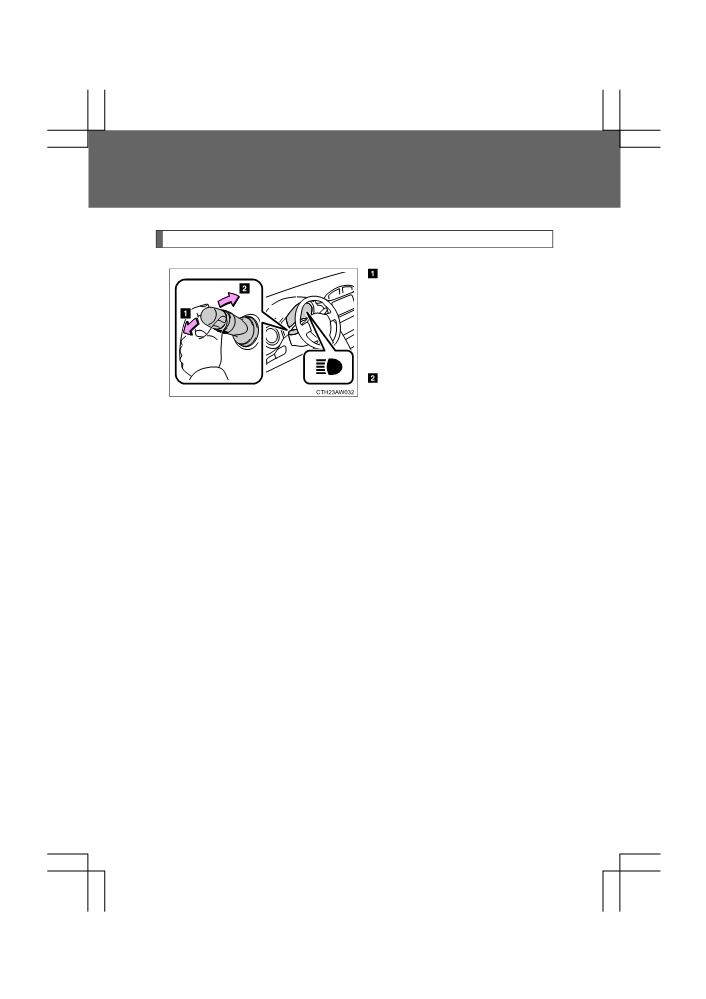

Turning on the high beam headlights

With the headlights on, push

the lever forward to turn on the

high beams.

Pull the lever back to the center

position to turn the high beams

off.

Pull the lever toward you and

release it to flash the high

beams once.

You can flash the high beams

with the headlights on or off.

232

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

■ Daytime running light system

● Vehicles with an automatic transmission: To make your vehicle more visi-

ble to other drivers during daytime driving, the daytime running lights turn

on automatically whenever the engine is started and the parking brake is

released with the headlight switch off or in the “AUTO” position. (Illumi-

nate brighter than the front position lights.) Daytime running lights are not

designed for use at night.

● Vehicles with a manual transmission: To make your vehicle more visible

to other drivers during daytime driving, the daytime running lights turn on

2

automatically whenever the engine is started and the parking brake is

released with the headlight switch off or in the “AUTO” position. (Illumi-

nate brighter than the front position lights.) Daytime running lights are not

designed for use at night.

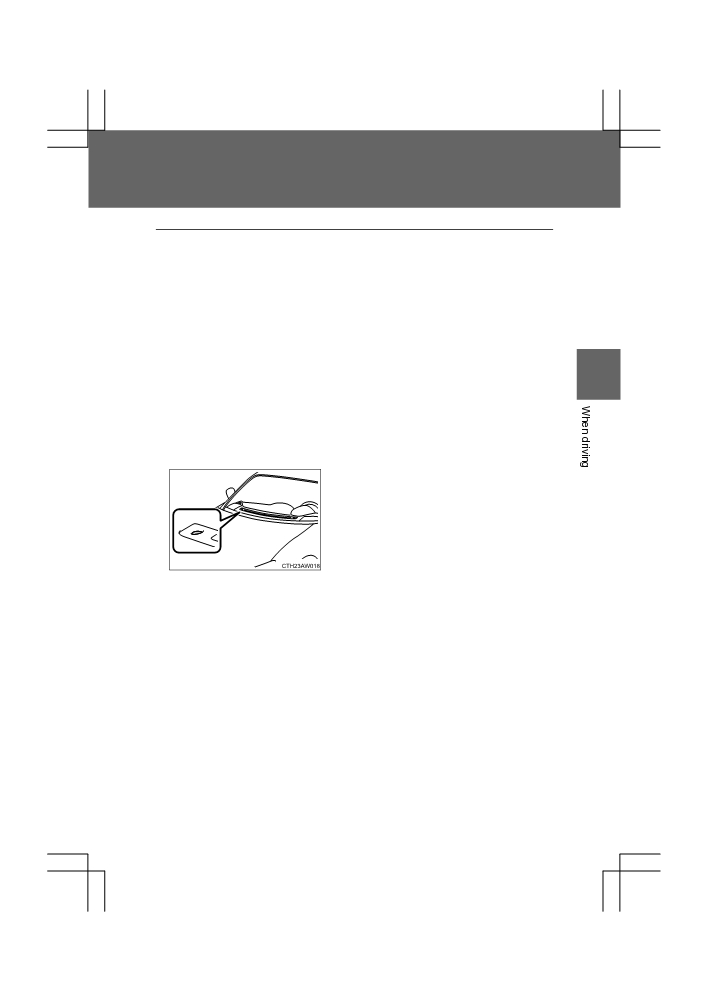

■ Headlight control sensor (if equipped)

Headlight control sensor is located on the

passenger's side.

The sensor may not function properly if

an object is placed on the sensor, or any-

thing that blocks the sensor is affixed to

the windshield.

Doing so interferes with the sensor

detecting the level of ambient light and

may cause the automatic headlight sys-

tem to malfunction.

233

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

■ Automatic light off system (if equipped)

Vehicles without a smart entry & start system

When the light switch is in

or

: The headlights turn off auto-

matically if the key is removed from the engine switch.

To turn the lights on again, turn the engine switch to the “ON” position, or

turn the light switch off once and then back to

or

Vehicles with a smart entry & start system

When the light switch is in

or

: The headlights turn off auto-

matically if the “ENGINE START STOP” switch is turned off.

To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-

TION ON mode, or turn the light switch off once and then back to

or

■ Light reminder buzzer

Vehicles without a smart entry & start system

A buzzer sounds when the engine switch is turned to “LOCK” position and

the driver's door is opened with the key removed from the engine switch

while the lights are turned on.

Vehicles with a smart entry & start system

A buzzer sounds when the “ENGINE START STOP” switch is turned off and

the driver's door is opened while the lights are turned on.

■ Automatic headlight leveling system

The level of the headlights is automatically adjusted according to the number

of passengers and the loading condition of the vehicle to ensure that the

headlights do not interfere with other road users.

234

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

■ Battery-saving function (if equipped)

In the following conditions, the headlights and the other remaining lights will

go off automatically after 20 minutes in order to prevent the vehicle battery

from being discharged:

●The headlights and/or tail lights are on.

●The key is removed from the engine switch (vehicles without a smart

entry & start system) or the “ENGINE START STOP” switch is turned off

(vehicles with a smart entry & start system).

●The light switch is in

or

2

This function will be canceled in any of the following situations:

● When the engine switch is turned to the “ON” position (vehicles without a

smart entry & start system) or the “ENGINE START STOP” switch is

turned to IGNITION ON mode (vehicles with a smart entry & start sys-

tem)

●When the light switch is operated

● When the door is opened or closed

235

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

■ Turning on the low beam headlights when the vehicle is parked in dark

areas

Turn off the engine with the light switch

in

or off, and pull the light switch

toward you and release it. The low

beam headlights will turn on for about

30 seconds to light up the area around

the vehicle.

The lights are turned off in the following

situations.

● Vehicles without a smart entry &

start system: The engine switch is

turned to the “ON” position.

● Vehicles with a smart entry & start

system: The

“ENGINE START

STOP” switch is turned to IGNITION

ON mode.

● The light switch is turned on.

● The light switch is pulled toward you

and then released.

■ Customization that can be configured at any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional

Settings (e.g. light sensor sensitivity) can be changed.

(Customizable features →P. 487)

NOTICE

■ To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not run-

ning.

236

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

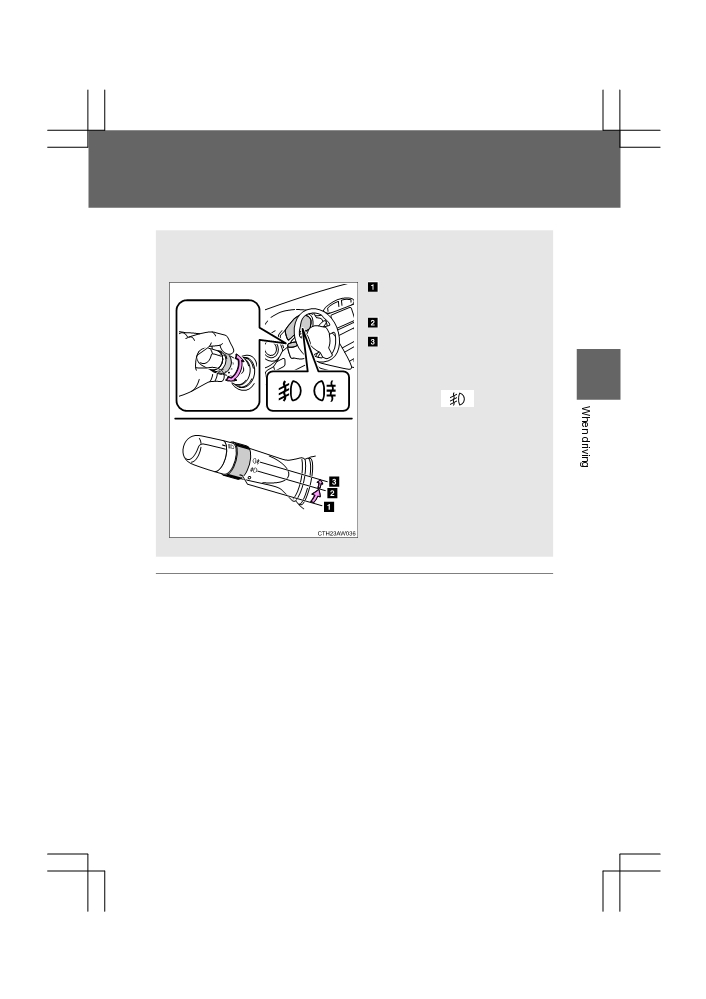

Fog light switch

The fog lights secure excellent visibility in difficult driving condi-

tions, such as in rain and fog.

Turns the front and rear fog

lights off

Turns the front fog lights on

Turns both front and rear

fog lights on

2

Releasing the switch ring

returns it to

Operating the switch ring again

turns only the rear fog lights

off.

■ Fog lights can be used when

Front fog lights: The headlights or front position lights are turned on.

Rear fog lights: The front fog lights are turned on.

237

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

Windshield wipers and washer

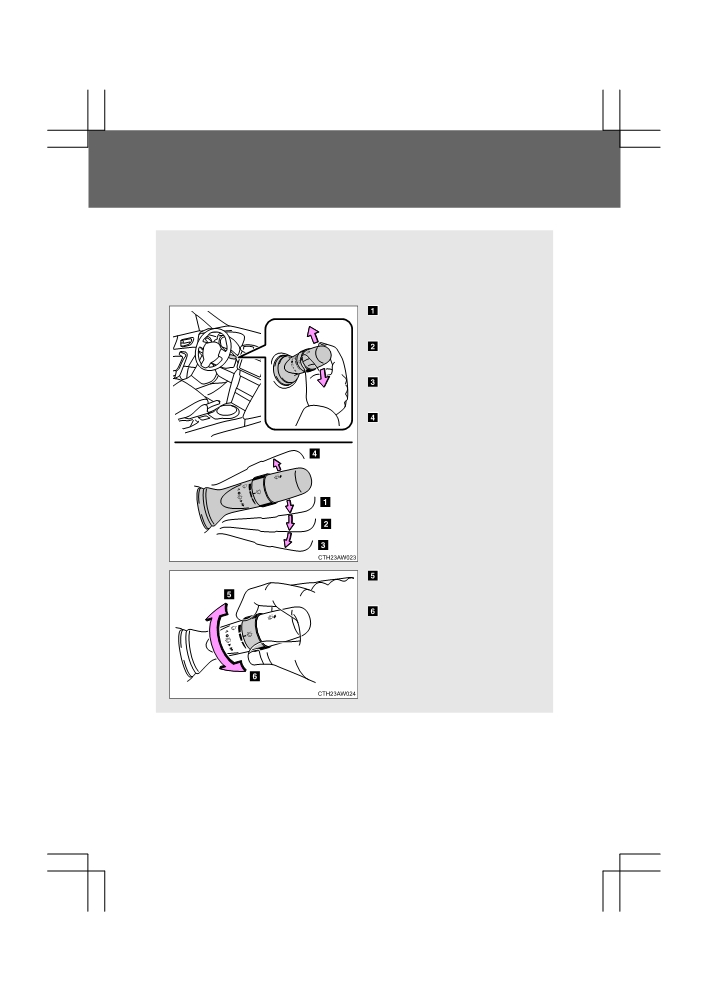

When intermittent windshield wiper operation is selected, the wiper

interval can be adjusted.

The wiper operation is selected by moving the lever as follows.

Intermittent

windshield

wiper operation

Low speed windshield wiper

operation

High speed windshield

wiper operation

Temporary operation

Decreases the intermittent

windshield wiper frequency

Increases the intermittent

windshield wiper frequency

238

86_EE (OM18071E)

2-3. Operating the lights and windshield wipers

Washer/wiper dual opera-

tion

The wipers will automatically

operate a couple of times after

the washer squirts.

When the headlights are on

and the lever is pulled and

held, the headlight cleaners

2

will operate once.

■ The windshield wipers and washer can be operated when

Vehicles without a smart entry & start system

The engine switch is in the “ON” position.

Vehicles with a smart entry & start system

The “ENGINE START STOP” switch is in IGNITION ON mode.

■ If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the

windshield washer fluid tank.

WARNING

■ Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes

warm. The fluid may freeze on the windshield and cause low visibility. This

may lead to an accident, resulting in death or serious injury.

239

86_EE (OM18071E)

Content   ..  14  15  16  17   ..
