SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 455

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

54

5B

KEY CYLINDER

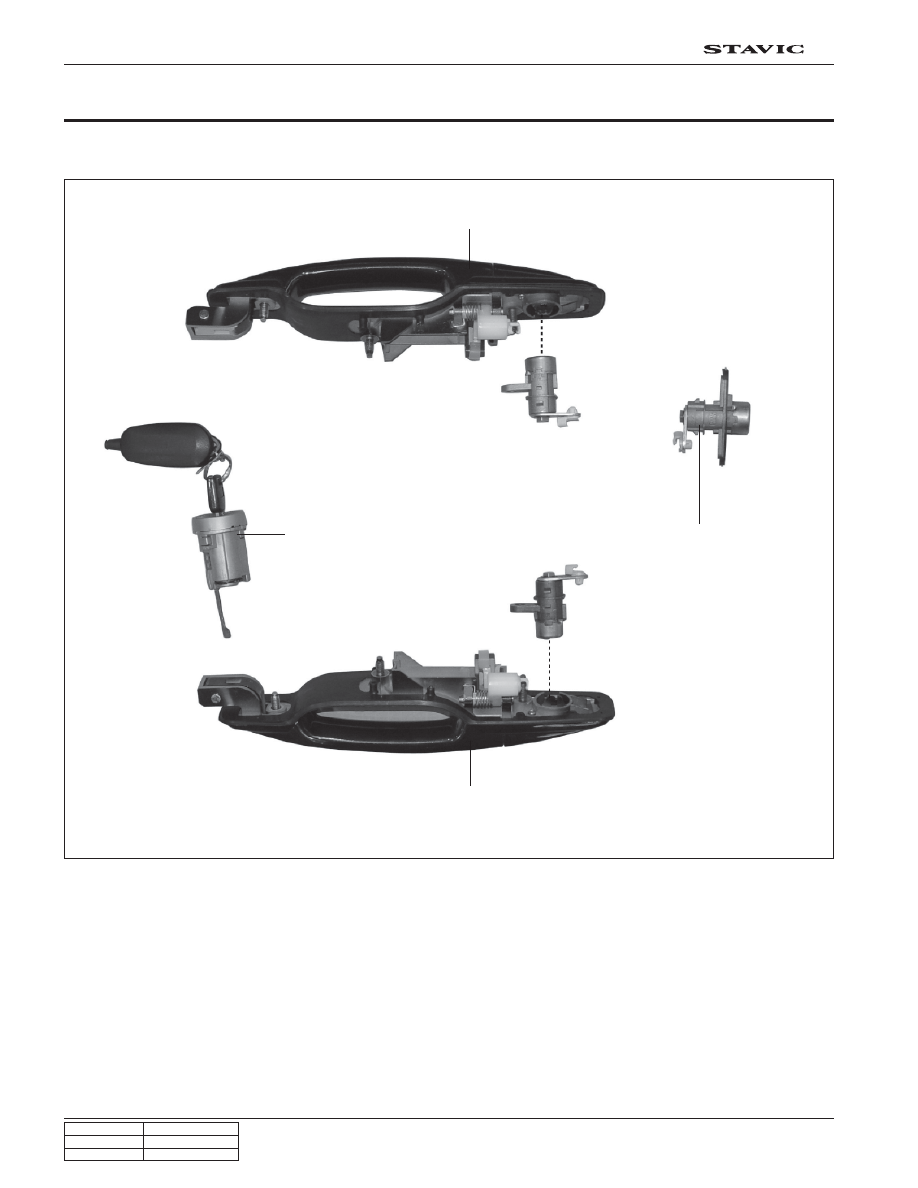

1. COMPONENTS

Door handle - Front

Starting key cylinder & key

Key cylinder - Tailgate

Door handle - Front

Key cylinder

Key cylinder

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

55

5B

2. REMOVAL AND INSTALLATION

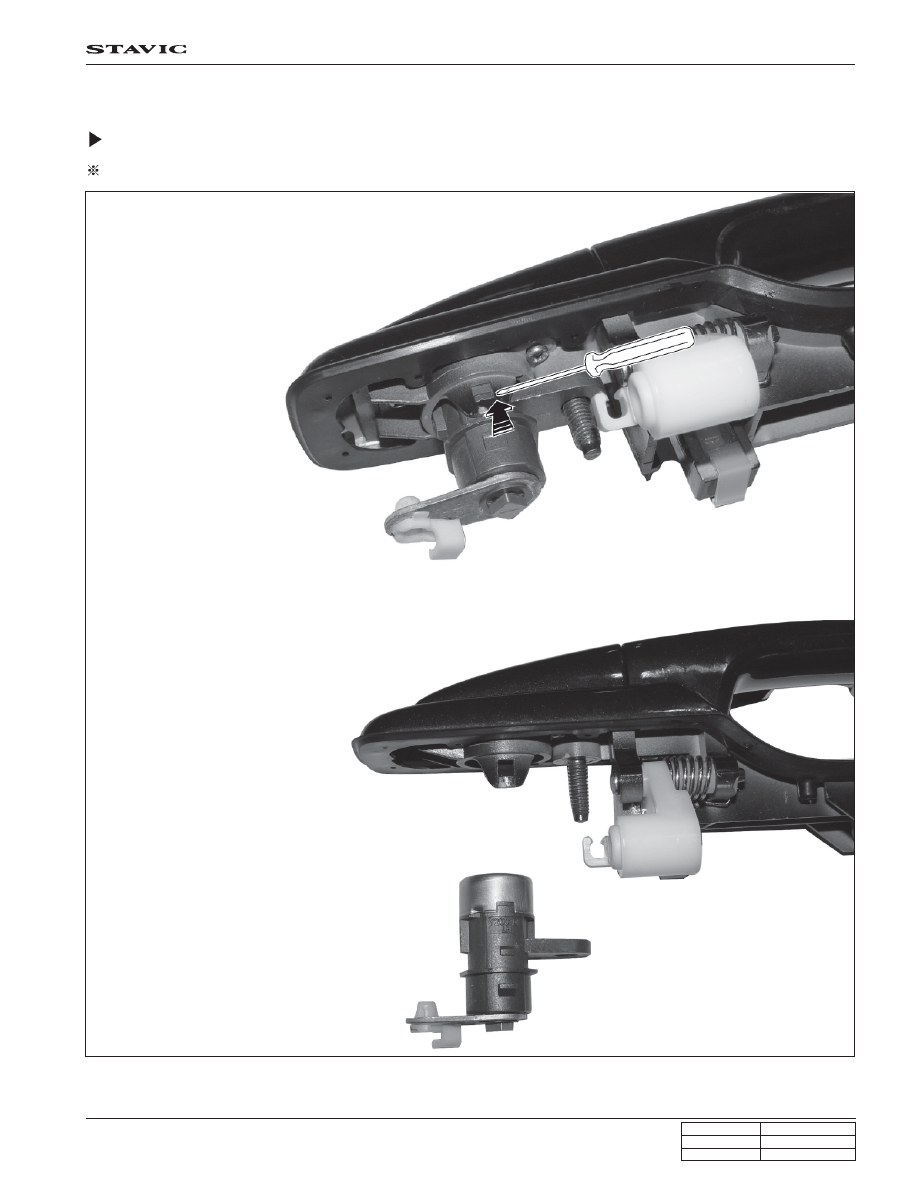

Door Key - Front

Preceding Work: Removal of door trim / door handle - outside

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

56

5B

Connector

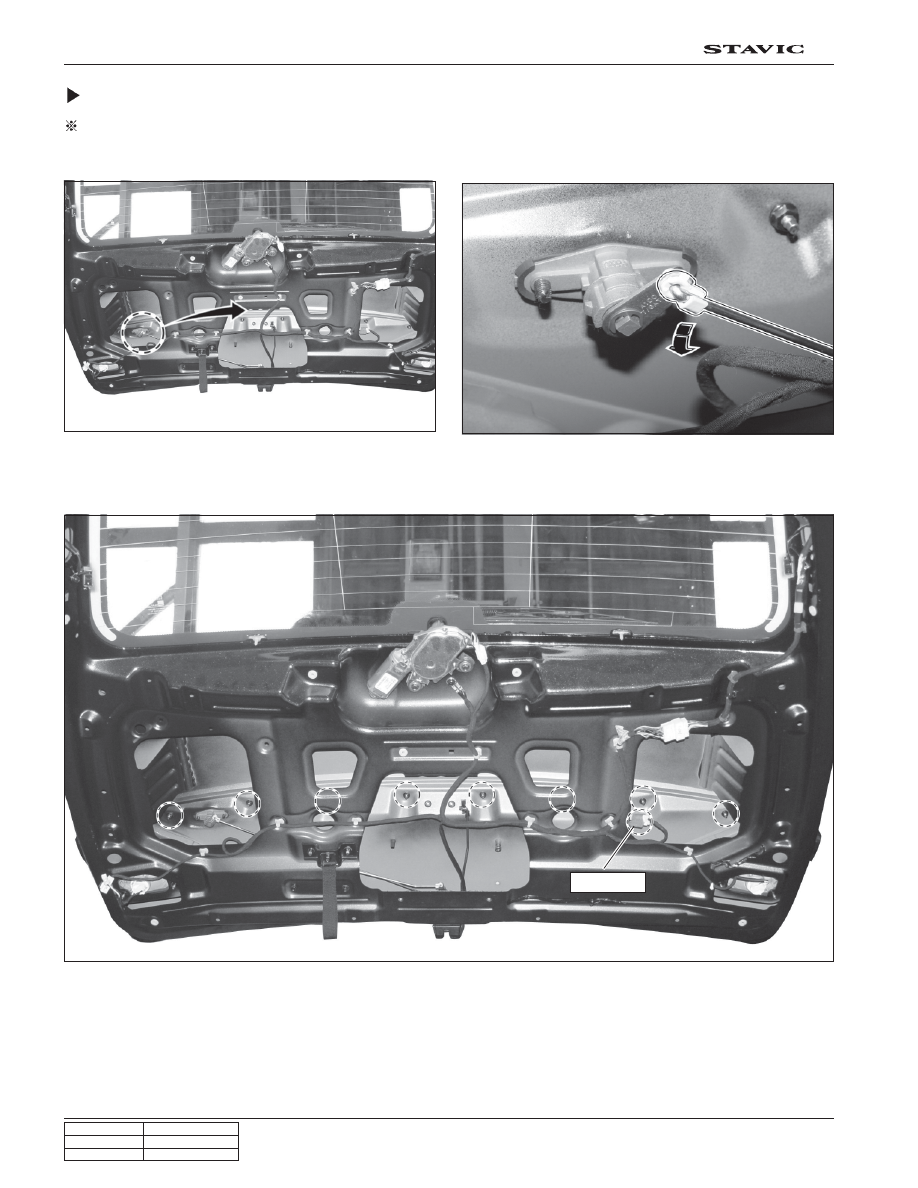

Tailgate Key

Preceding Work: Removal of failgate trim, seal

1. Disconnect connecting rod from key cylinder.

2. Unscrew center garnish mounting nuts.

3. Disconnect lamp-license plate connector.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

57

5B

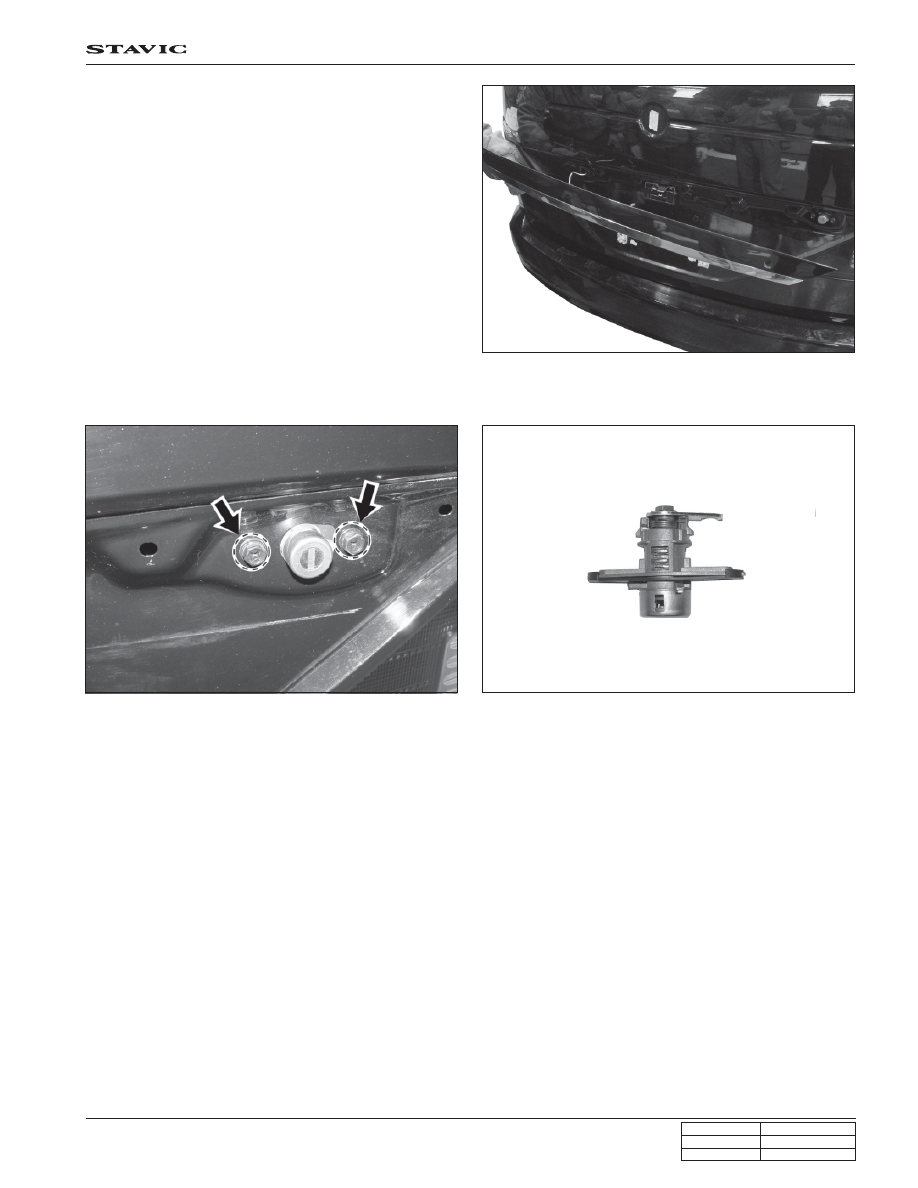

4. Remove two mounting bolts and key cylinder assembly.

3. Remove the center garnish.
