SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 454

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

50

5B

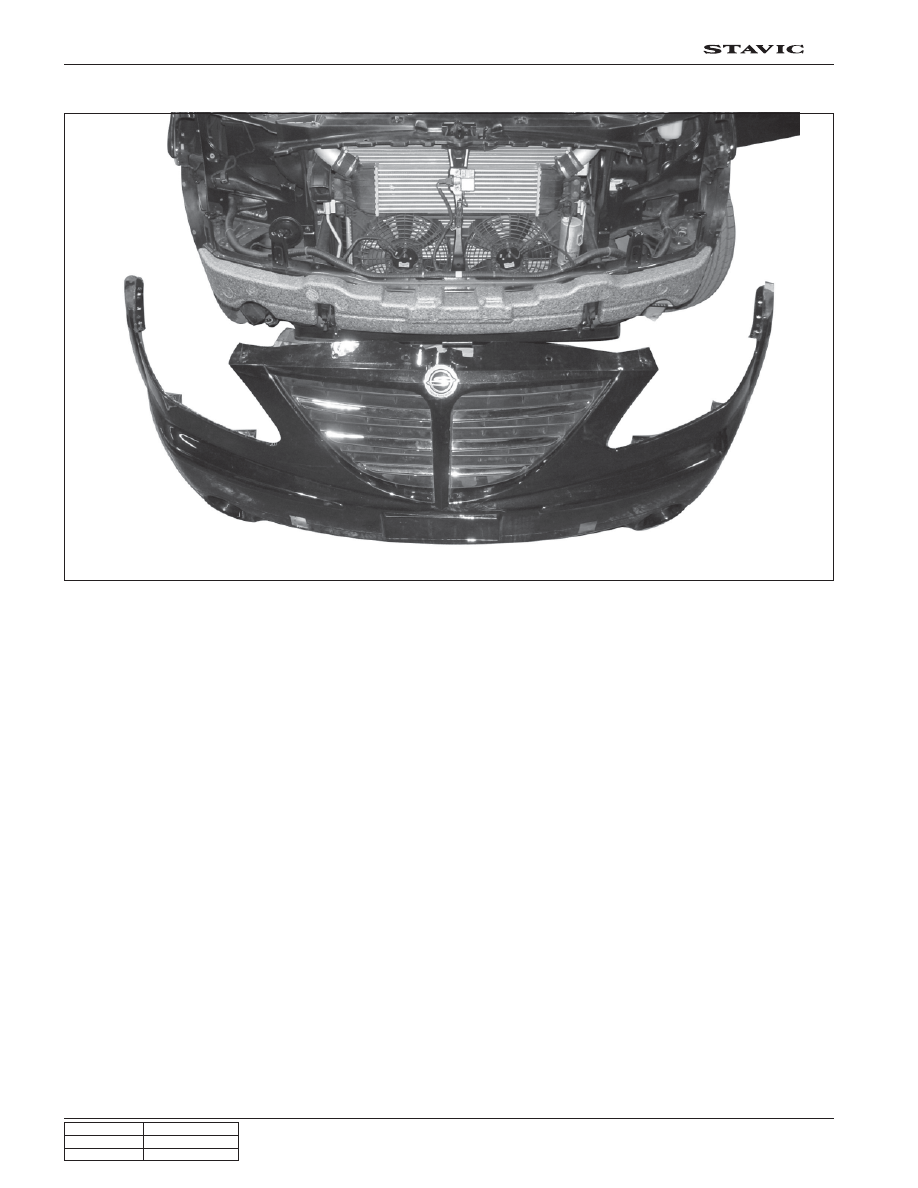

3. Uninstall bumper facia end shock absorber -  Energy

4. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

51

5B

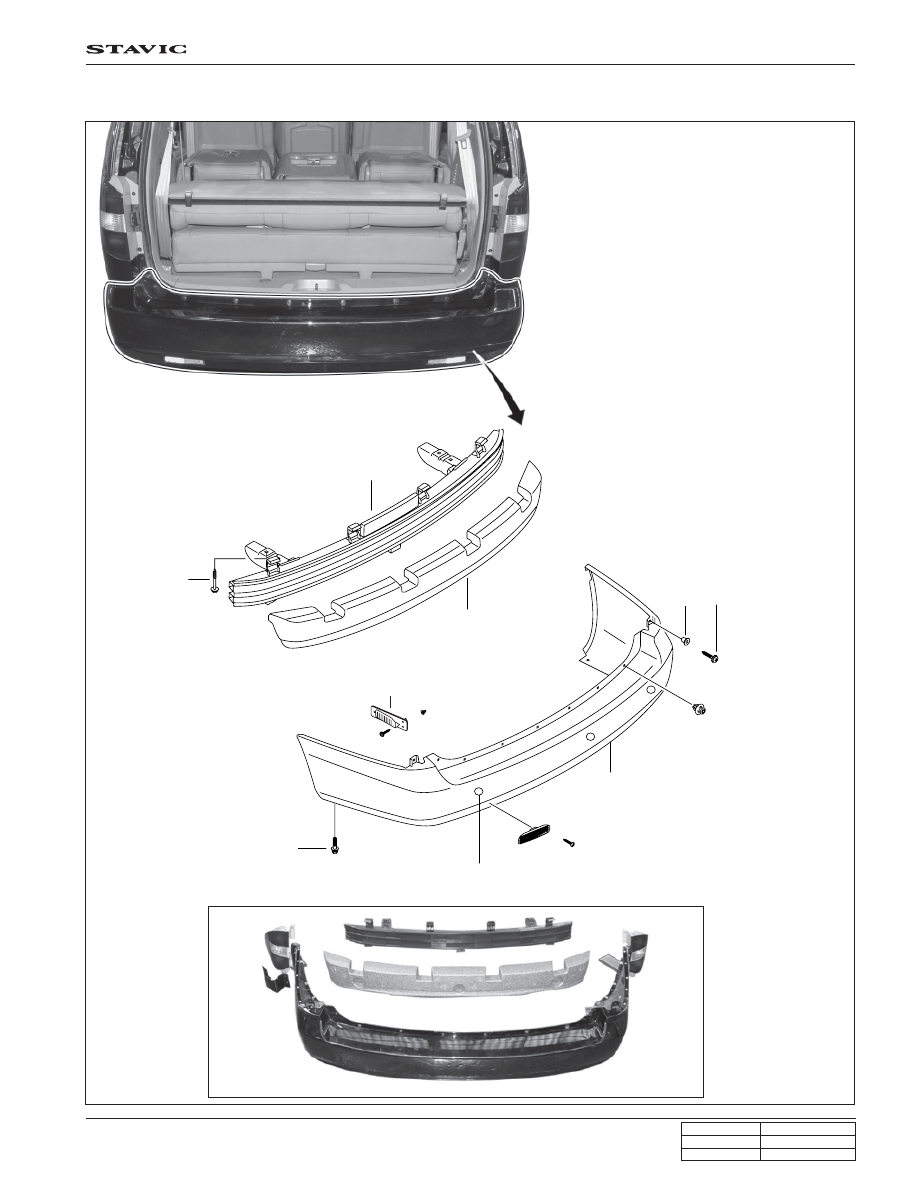

5. LAYOUT -  REAR BUMPER

Mounting screw

Bracket - Rear bumper

Shock absorber - Energy

Bolt

PAS (Parking Aid Sensor)

Bumper facia assembly

Grommet screw

Mounting

Guide cover - Rear bumper

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

52

5B

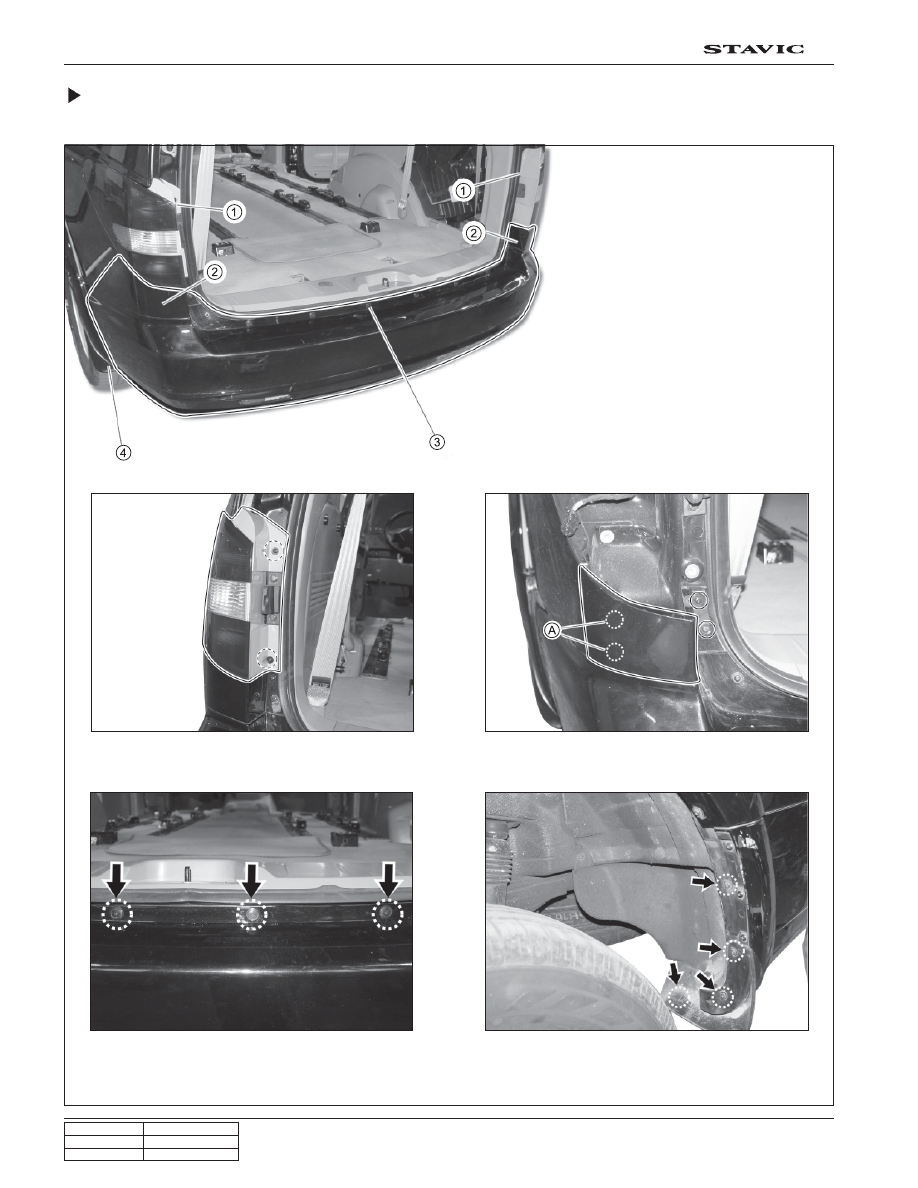

Rear Bumper Assembly

1. Uninstall 4 items below.

(1) Uninstall rear combi lamp

(2) Uninstall extension panel from inside to out side

carefully

(3) Remove mounting grommet screws

(4) Remove mud guard / wheel arch mounting screws

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

53

5B

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

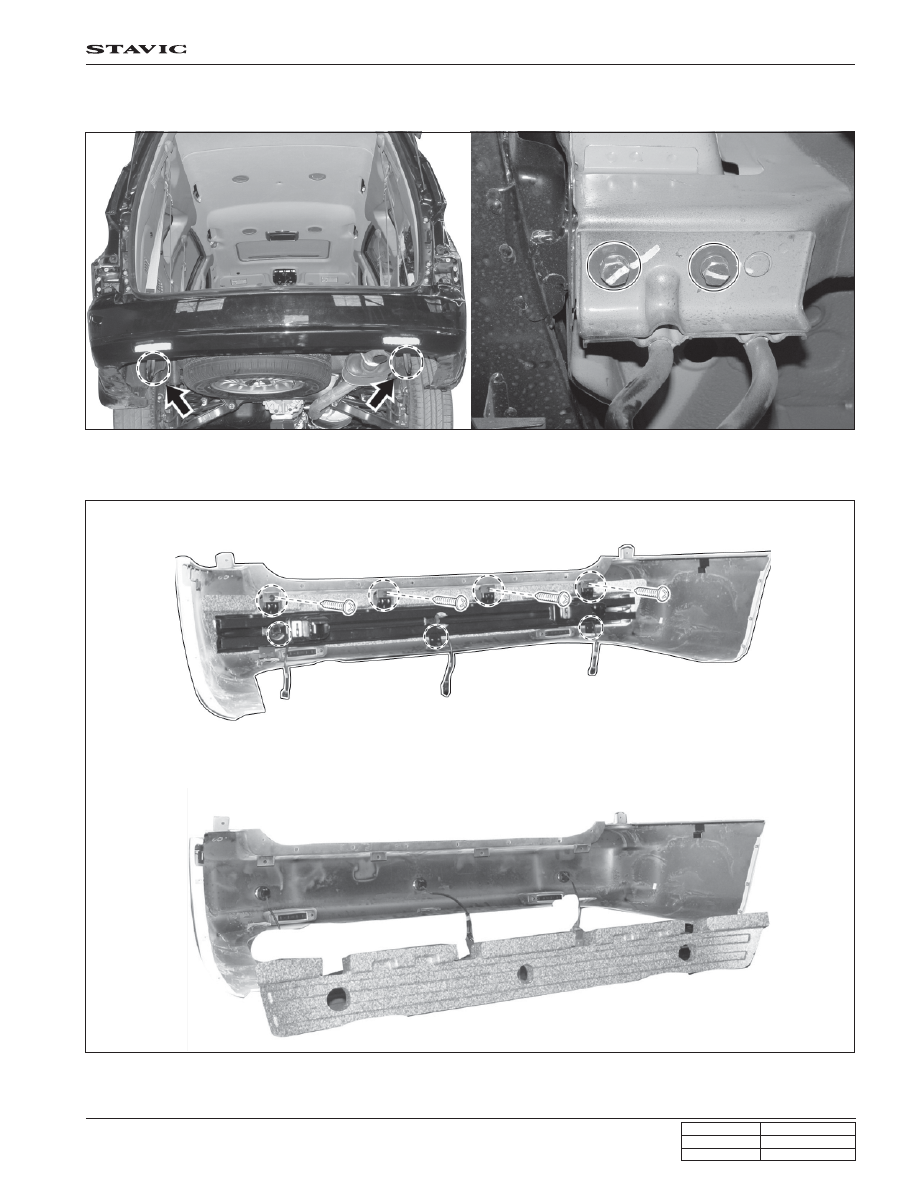

2. Disconnect parking aid sensor (3ea) inside of bumper assembly and unscrew mounting bolts to disassemble the

bumper assembly.

3. Disassemble bumper facia and shock absorber - Energy from bumper assembly.

4. Install in the reverse order of removal.
