AIR CONDITIONING SYSTEM

STAVIC - 2004.09

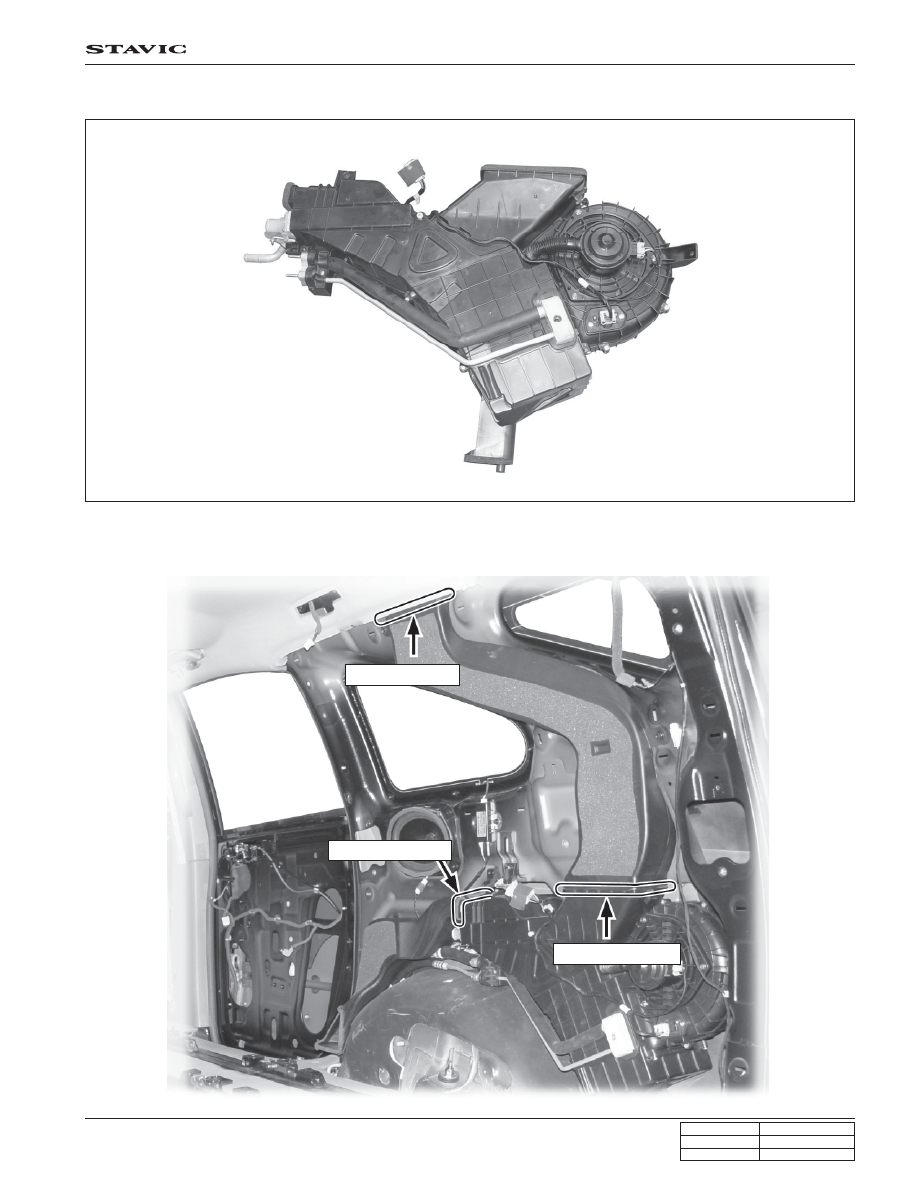

3. Remove the rear air conditioner module assembly.

4. Install in the reverse order of removal. Make sure that no air leaks on the connections of heater and cooler duct.

Bottom of A/C duct

Top of A/C duct

Top of heater duct

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

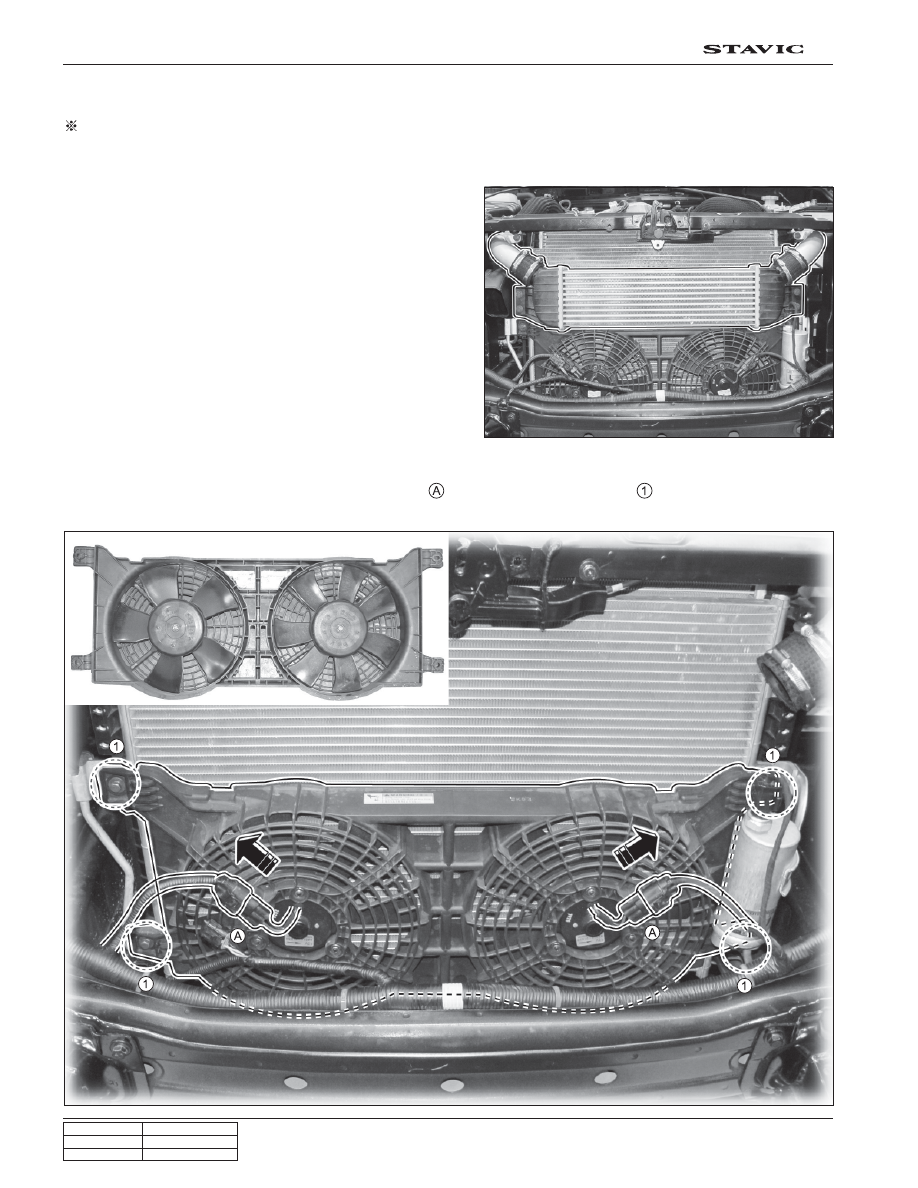

4) Receiver Drier and Condenser

Preceding works: 1. Collection of air conditioner refrigerant (dispose the wasted refrigerant to designated place)

2. Removal of front bumper assembly

1. Remove the turbo charger cooler assembly.

- Tightening torque for hose: 6 ~ 7 Nm

2. Disconnect the cooling fan (condenser) connector

, unscrew the mounting bolts

and remove the condenser

cooling fan.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

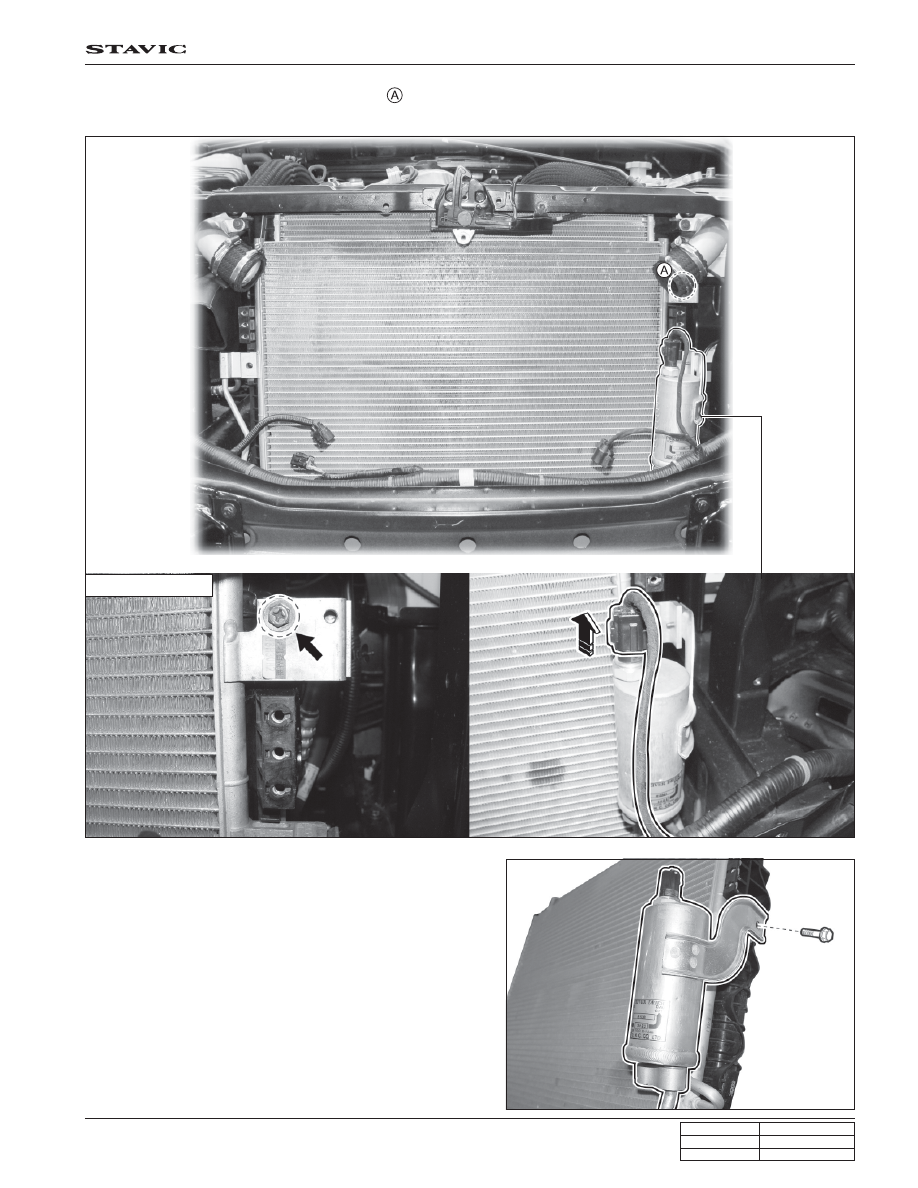

3. Disconnect the receiver drier connector

and remove the condenser mounting bolts. Remove the condenser

assembly.

4. Unscrew the receiver drier mounting bolt from the removed

condenser.

Detailed of “A”

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

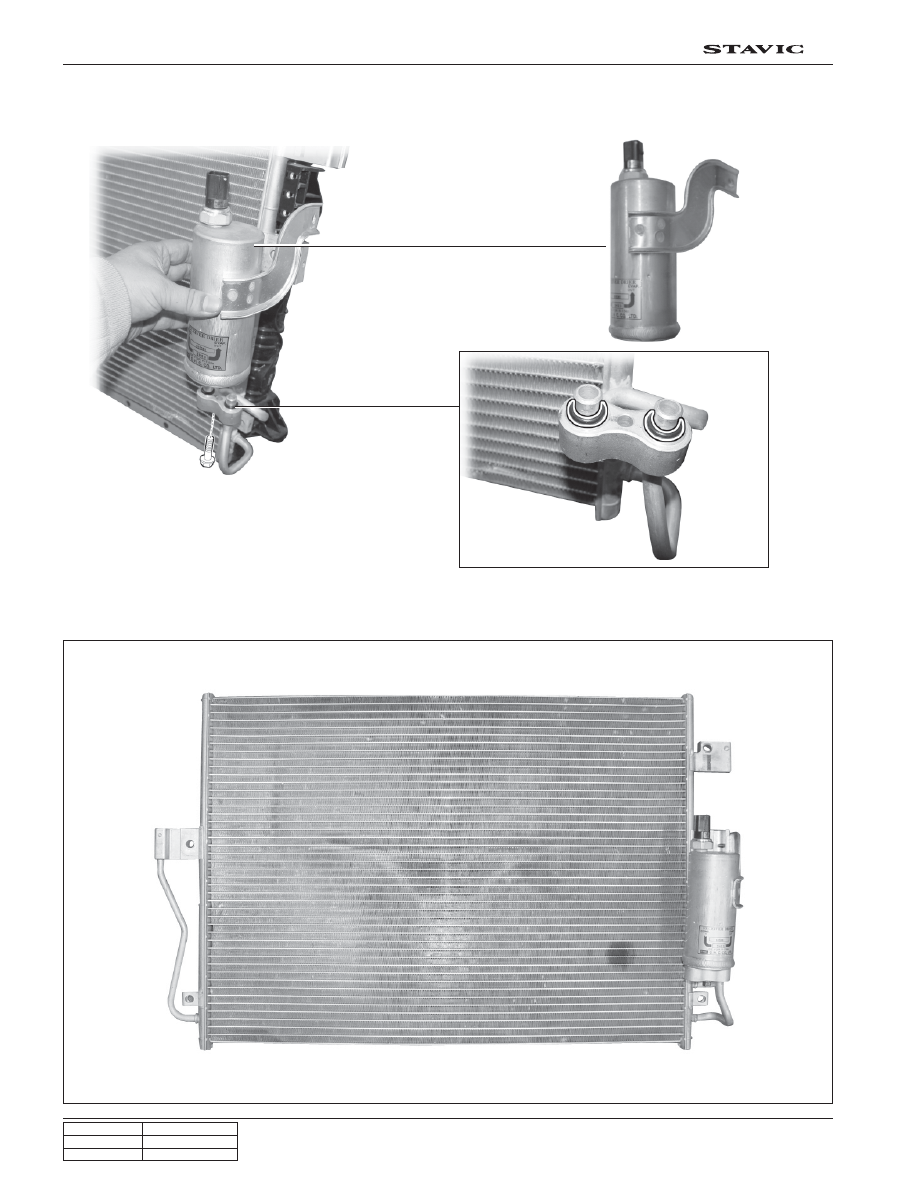

5. Unscrew the lower mounting bolt and remove the receiver drier. The O-rings on the pipes should be replaced with

new ones. (Tightening torque: 20 ~ 30 Nm)

6. Install in the reverse order of removal.
