AIR CONDITIONING SYSTEM

STAVIC - 2004.09

43

3A

Tightening torque: 10 ~ 15 Nm

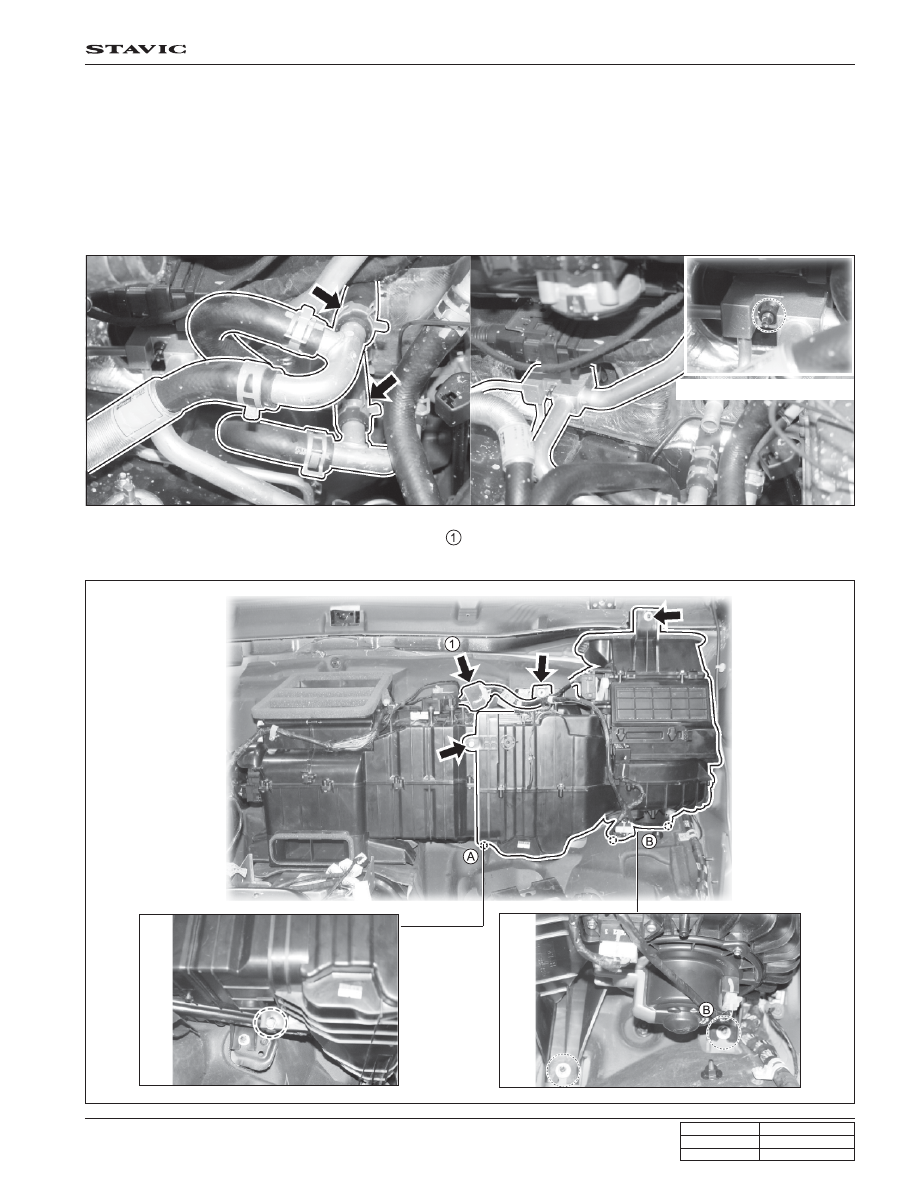

3) Air Conditioner Module Assembly

Front air conditioner module

* Preceding works: 1. Disconnection of negative battery cable and removal of instrument panel

2. Collection of air conditioner refrigerant (dispose the wasted refrigerant to designated place)

1. Disconnect the heater hose and remove the high and low pressure pipes from the air conditioner. (in case of FFH

equipped vehicle, remove the FFH assembly.)

2. Disconnect the air conditioner module connector

, unscrew the mounting screws and remove the blower unit

assembly.

A

B

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

44

3A

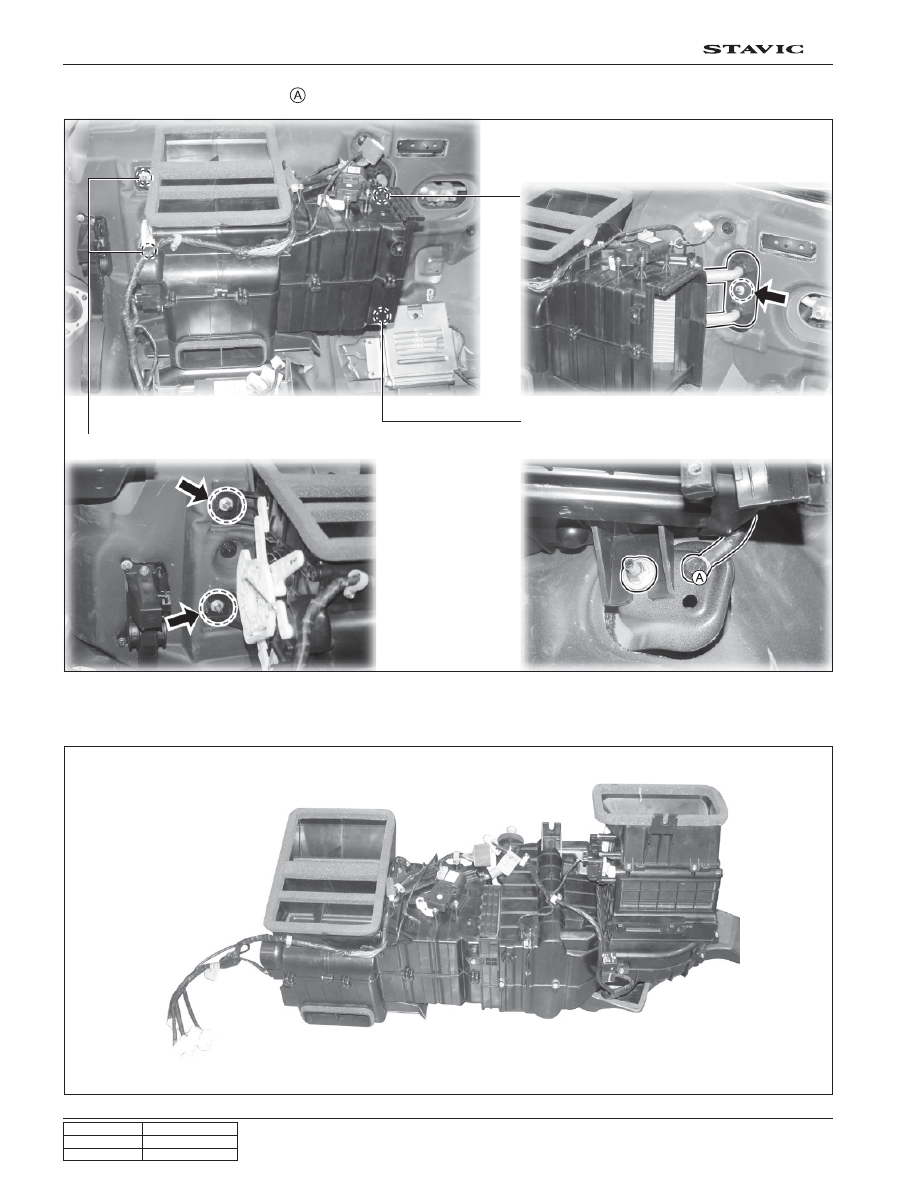

3. Disconnect the ground cable

, unscrew the mounting screws and remove the heater unit assembly.

4. Install in the reverse order of removal.

Heater pipe mounting nut

Ground cable (A) and mounting nut
(bottom)

Heater module mounting nuts (side)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

45

3A

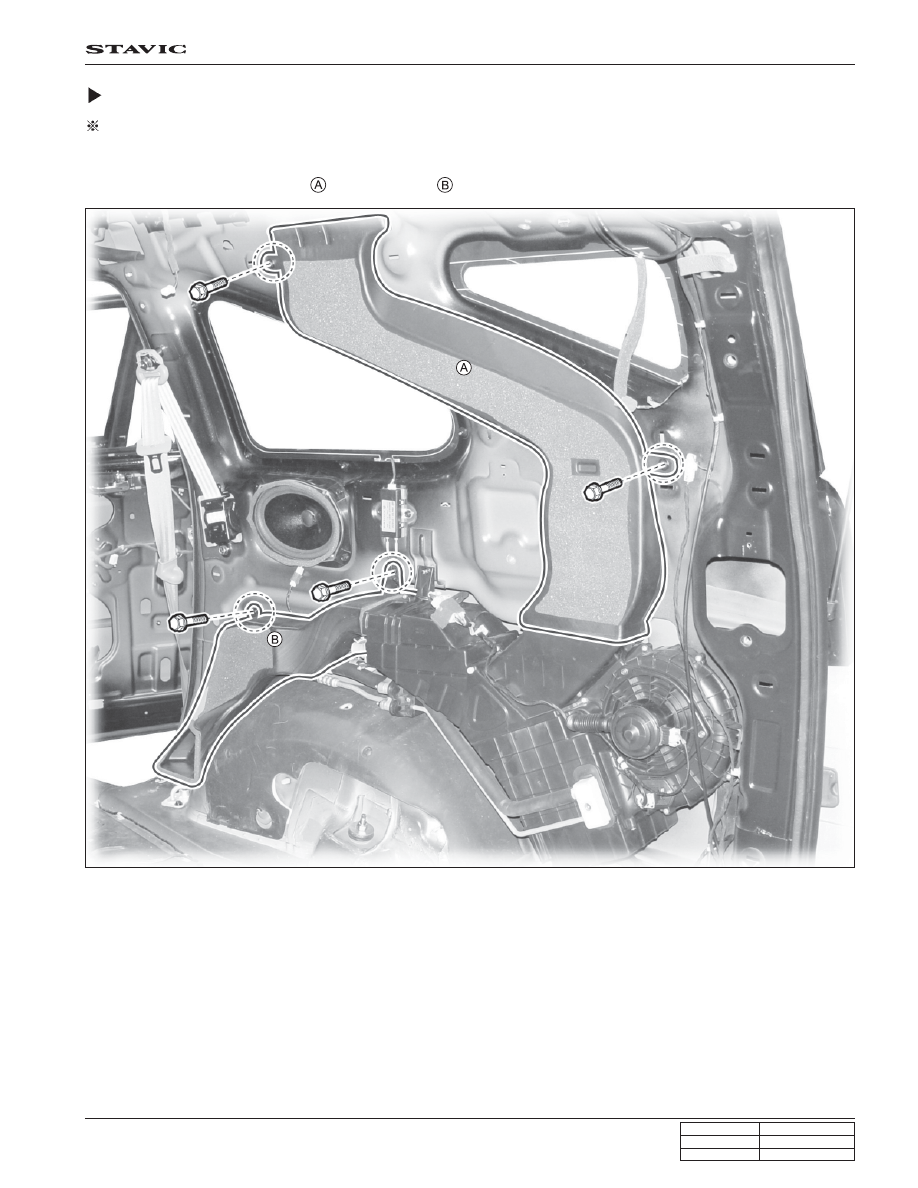

Rear Air Conditioner Module

Preceding works: 1. Disconnection of negative battery cable and removal of rear quarter panel

2. Collection of air conditioner refrigerant (dispose the wasted refrigerant to designated place)

1. Remove the rear cooler duct

 and heater duct

.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

46

3A

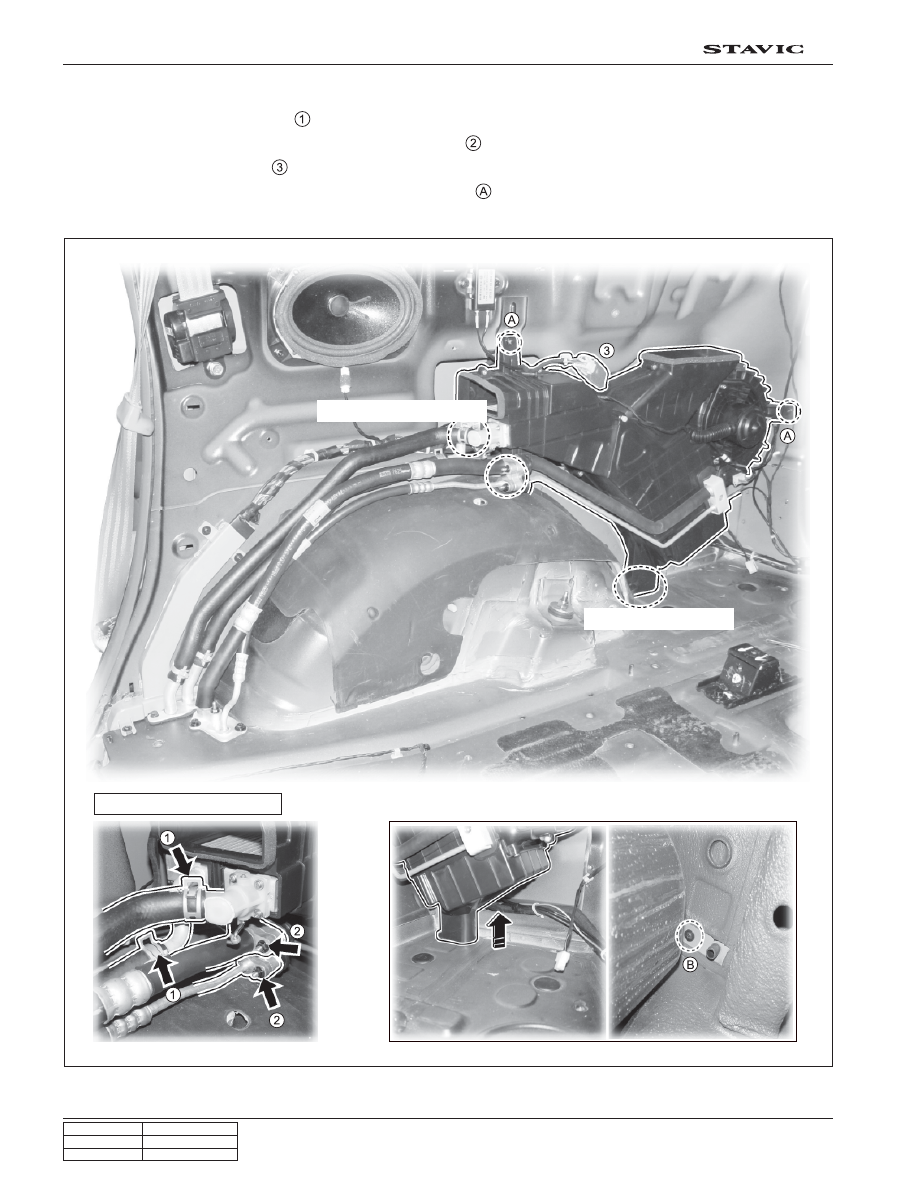

2. Remove the rear air conditioner module assembly with the sequence as below:

1) Remove the heater hose/pipe

.

2) Remove the air conditioner high and low pressure pipes

.

3) Disconnect the connector

.

4) Remove the rear air conditioner module mounting screws

.

5) Unscrew the lower mounting screw and remove the rear air conditioner module assembly.

Tightening torque: 10 ~ 15 Nm

Heater/air conditioner pipe

Lower mounting screw
