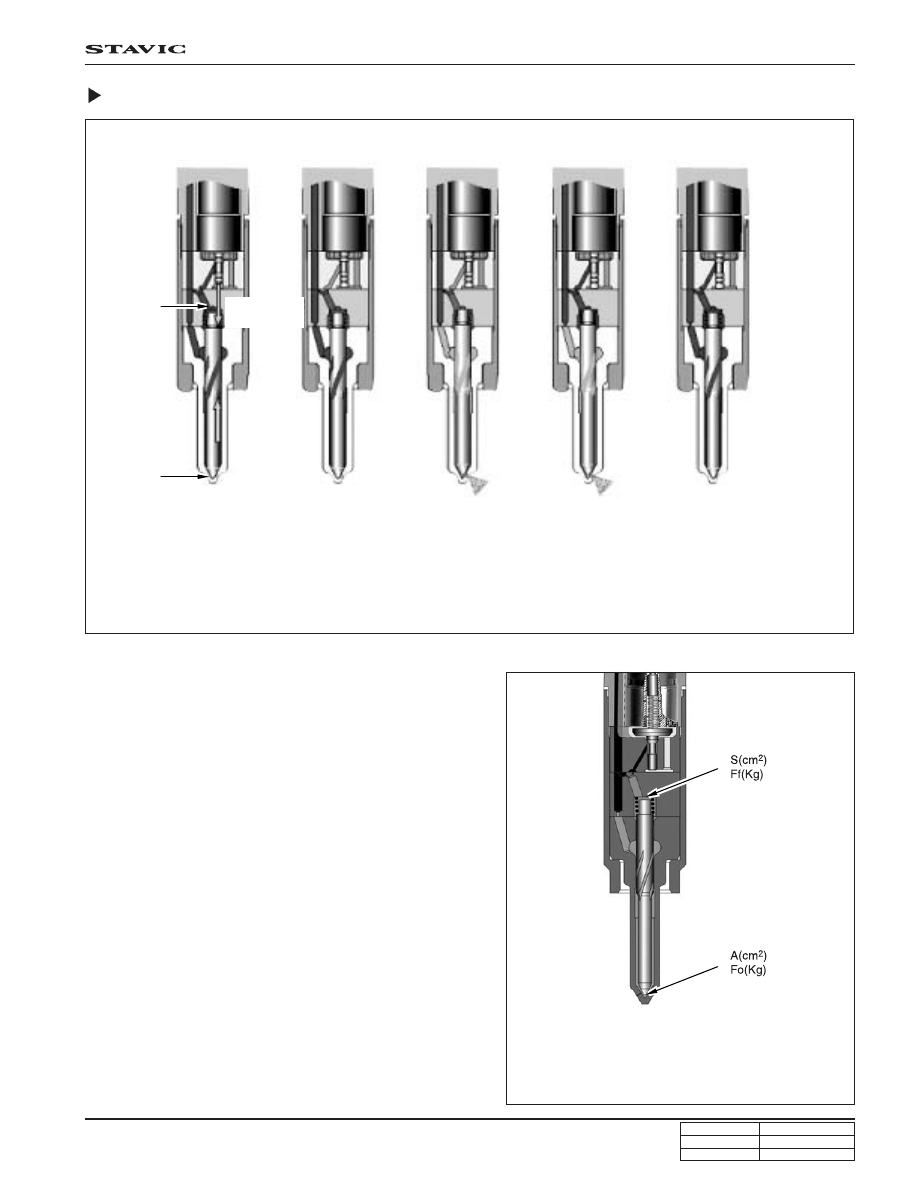

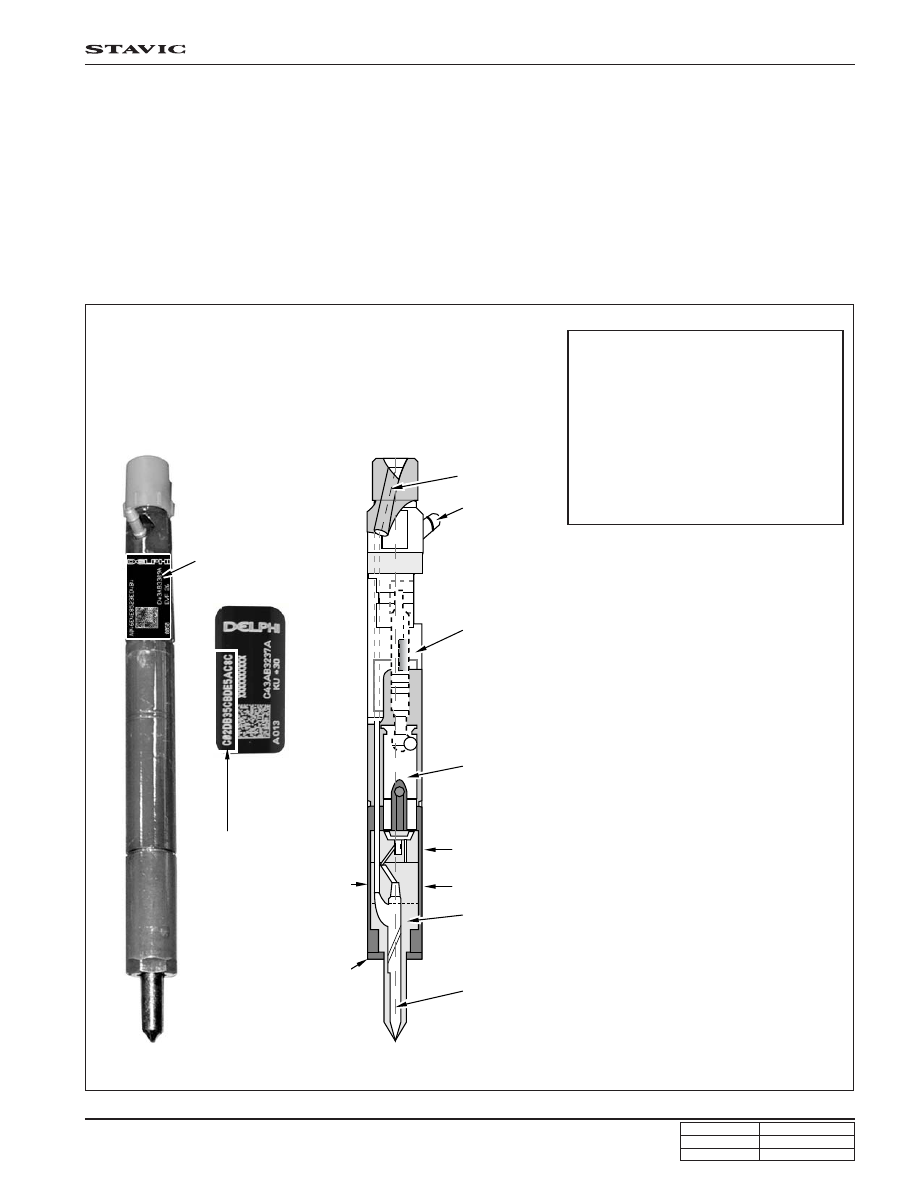

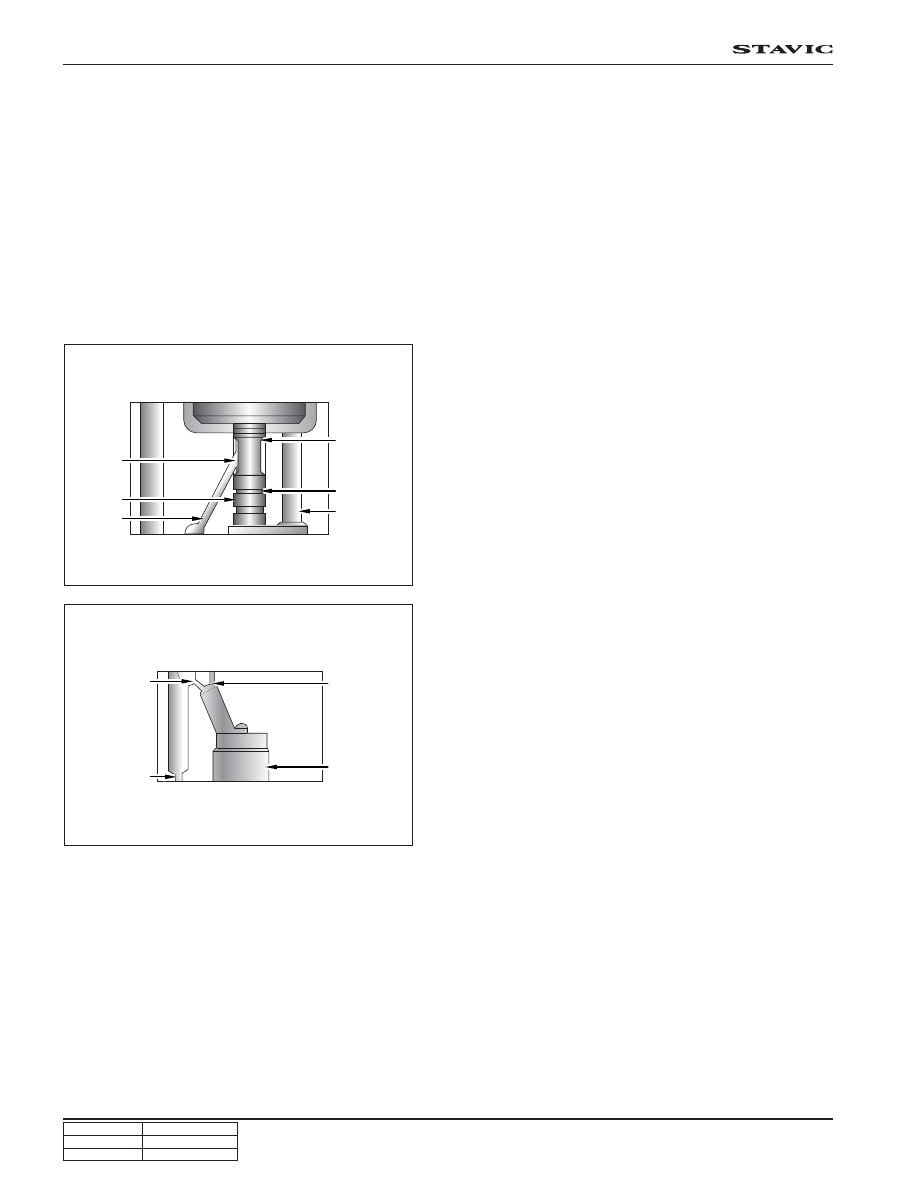

DI07-35 CHANGED BY EFFECTIVE DATE AFFECTED VIN FUEL SYSTEM DI ENG SM - 2004.9 INJECTOR The C2I labels including injector characteristics are attached in each injector. These C2I values should be input to ECU Special cautions: 1. Plug the openings of hoses and pipes with the sealing caps. 2. Replace the copper washer with new one plus injector holder bolt & washer. 3. Tighten the injector holder bolts with the specified tightening torque. 4. Be careful not to drop the injector. Specifications Length: · Injector body 181.35 mm · Injector nozzle 22.155 mm Nozzle basic: 5 Holes, 146°C Cone Angle, 840 mm 3 /min Control: PWM type (solenoid injector) Tightening: Clamping by fork Fuel return: Nipple C2I label C2I value Cap nut Washer Nozzle needle Nozzle body Adaptor plate Control valve Bobbin Nozzle holder body Leak off nipple Edge filter |
