SsangYong Stavic / SsangYong Rodius (2005 year). Service manual - part 134

DI07-27

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

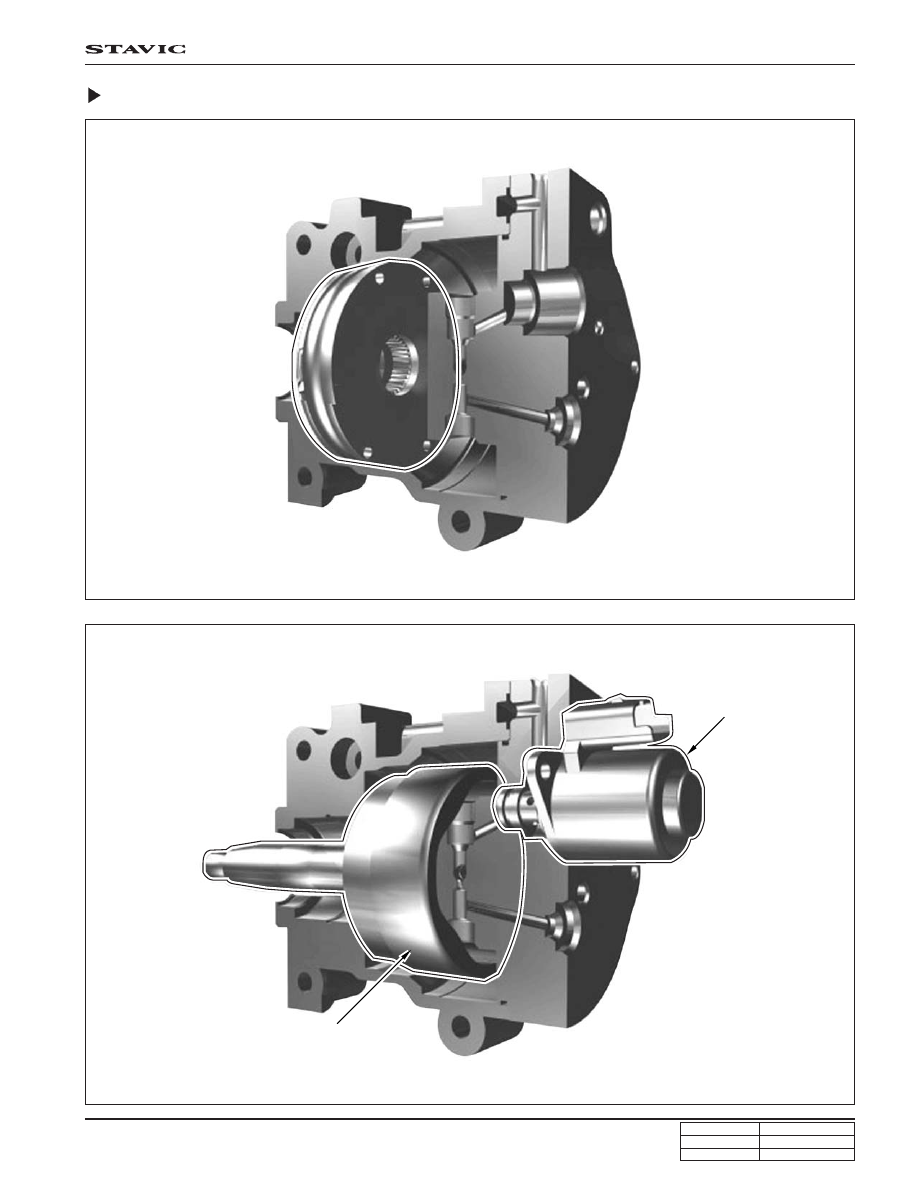

<Transfer Pump>

<IMV Valve and High Pressure Pump (Drive Shaft)>

Sectional View of HP Pump

IMV valve

Drive shaft

DI07-28

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

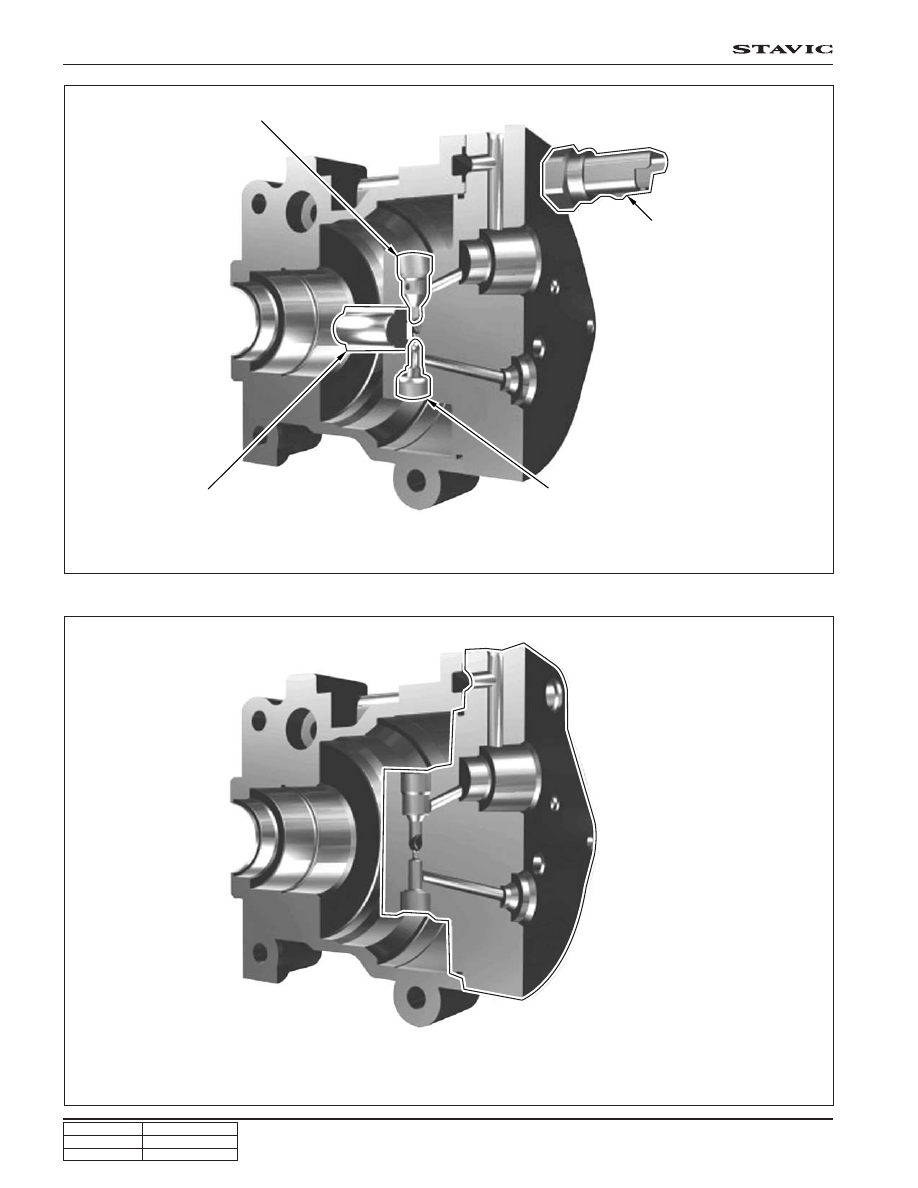

<Inlet Valve, Delivery Valve, Shoe and Roller, Temperature Sensor>

<Hydraulic Head>

Inlet valve

Temperature sensor

Delivery valve

Shoe and roller

DI07-29

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

High Pressure Accumulator (Common Rail)

Description

The high pressure accumulator reserves the high pressure fuel. Simultaneously, the pressure changes due to the
delivery from HP pump and the fuel injection is diminished by rail volume. This high pressure accumulator is commonly
used in all cylinders. Even when a large amount of fuel leaks, the common rail maintains its internal pressure. This
ensures that the injection pressure can be maintained from when the injector opens.

Function

• Relieve the pressure pulsation

• Provide pressure information to ECU (fuel pressure sensor)

Specifications

• Material: Forged Steel

• Dimension: - Volume: 22 ± 1cc

- Length: Max. 397.7 mm

- Outer diameter: 25.3 mm

• Fuel pressure sensor Integrated type

- Sensor input voltage: 5 ± 0.1V

- Sensor output signal voltage:

- 4.055 ± 0.125 V @ 1600 ± 15 bar

- 0.5 ± 0.04 V @ 0 bar

• Operating pressure range

- Normal condition: 0 ~ 1600 bar

- Max. Overpressure: 2100 bar

• Ambient temperature: - available within -40°C ~ 125°C

- Spontaneous max. temperature after engine stops: 140°C (acceptable against total 15 hours)

• Fluid temperature: -40 ~ 100°C under normal operating conditions

• Removal and installation: 10 times without any damage

DI07-30

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

FUEL SYSTEM

DI ENG SM - 2004.9

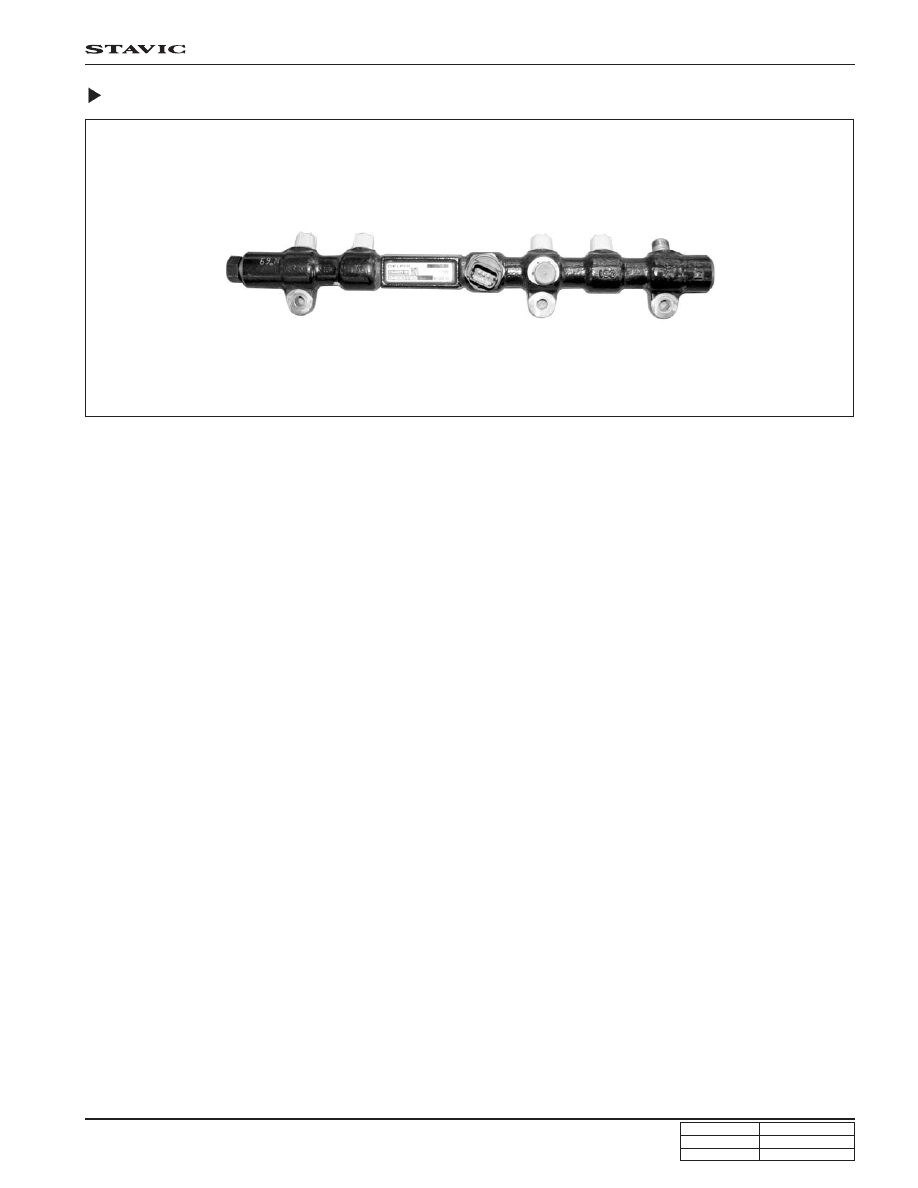

<High pressure accumulator>

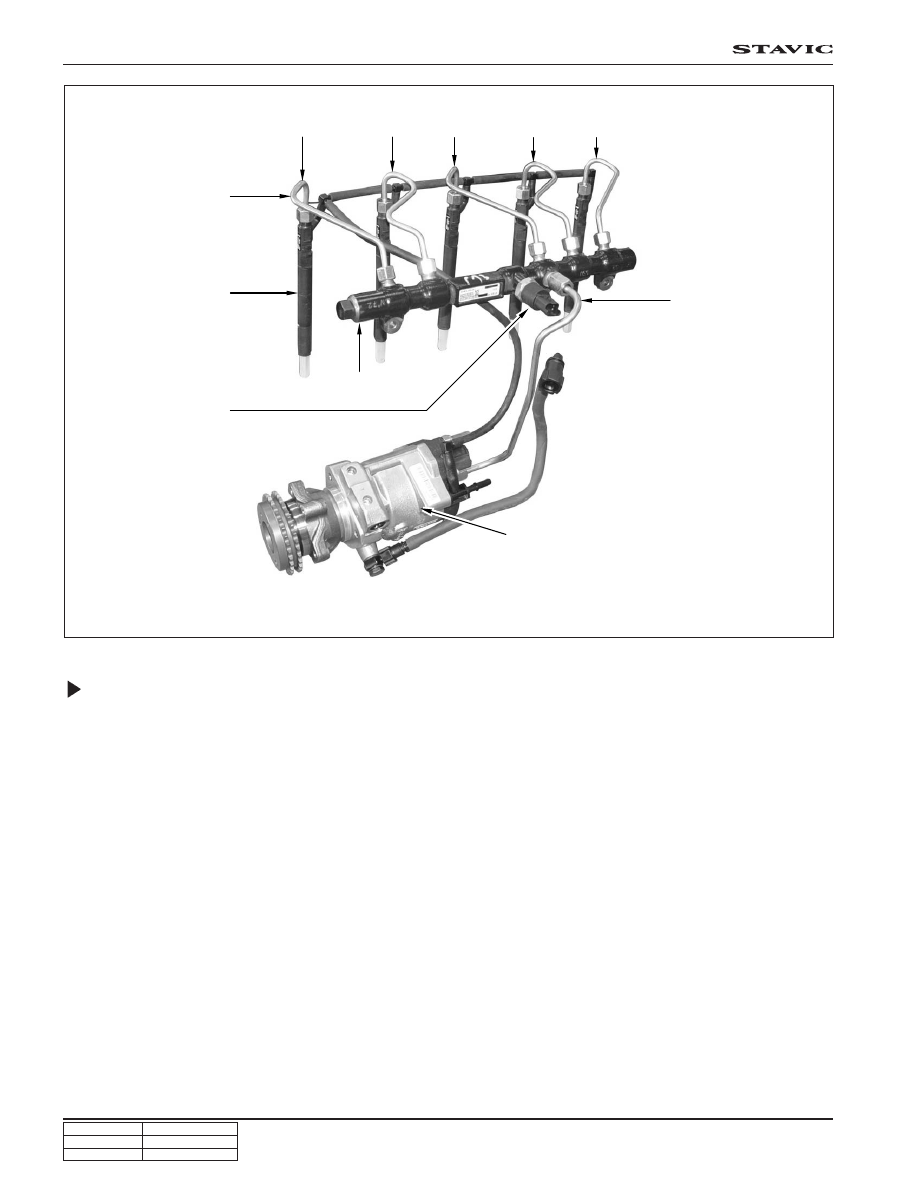

High Fuel Pressure Pipe

• Function: Resistant to pressure changes, tightness against surroundings, supplying fuel through pump, rail and

injector with high pressure

• Material: Steel (Zn Plated)

• Common: Cylinder 1 & 3, 2 & 4, 5

• Internal pressure

- Internal operating pressure: 0 ~ 1600 bar during its lifetime

- Spontaneous max. pressure when restoring: 2100 bar (max. total period: 20 hours)

- Bursting pressure: over 2500 bar

• To keep cleanness and tightness, the high pressure pipe assembly should be used only once.

HP pipe

Injector

Fuel pressure sensor

HP pump

Fuel rail

Notice

• Make sure to replace the removed high fuel pressure pipes.

• Tighten the fasteners with the specified tightening torque.

No. 1

No. 2

No. 3

No. 4

No. 5

High fuel pressure pipe
