SsangYong Rodius (2013 year). Service manual - part 196

04-7

7340-00

Drain hose

Control switch

Sun shade & glass

Control unit

Sun roof motor

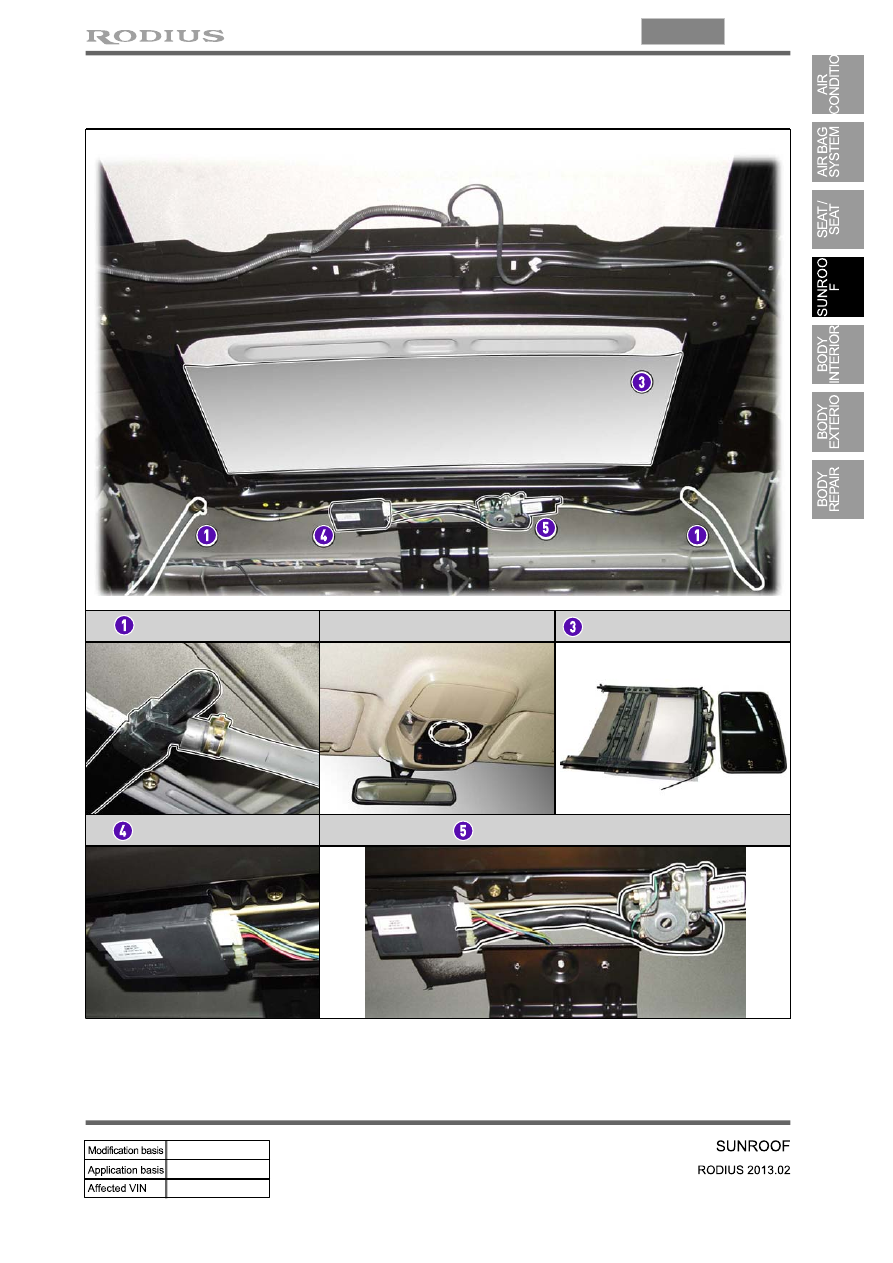

4. COMPONENTS AND LOCATIONS

04-8

5. SUNROOF OPERATION

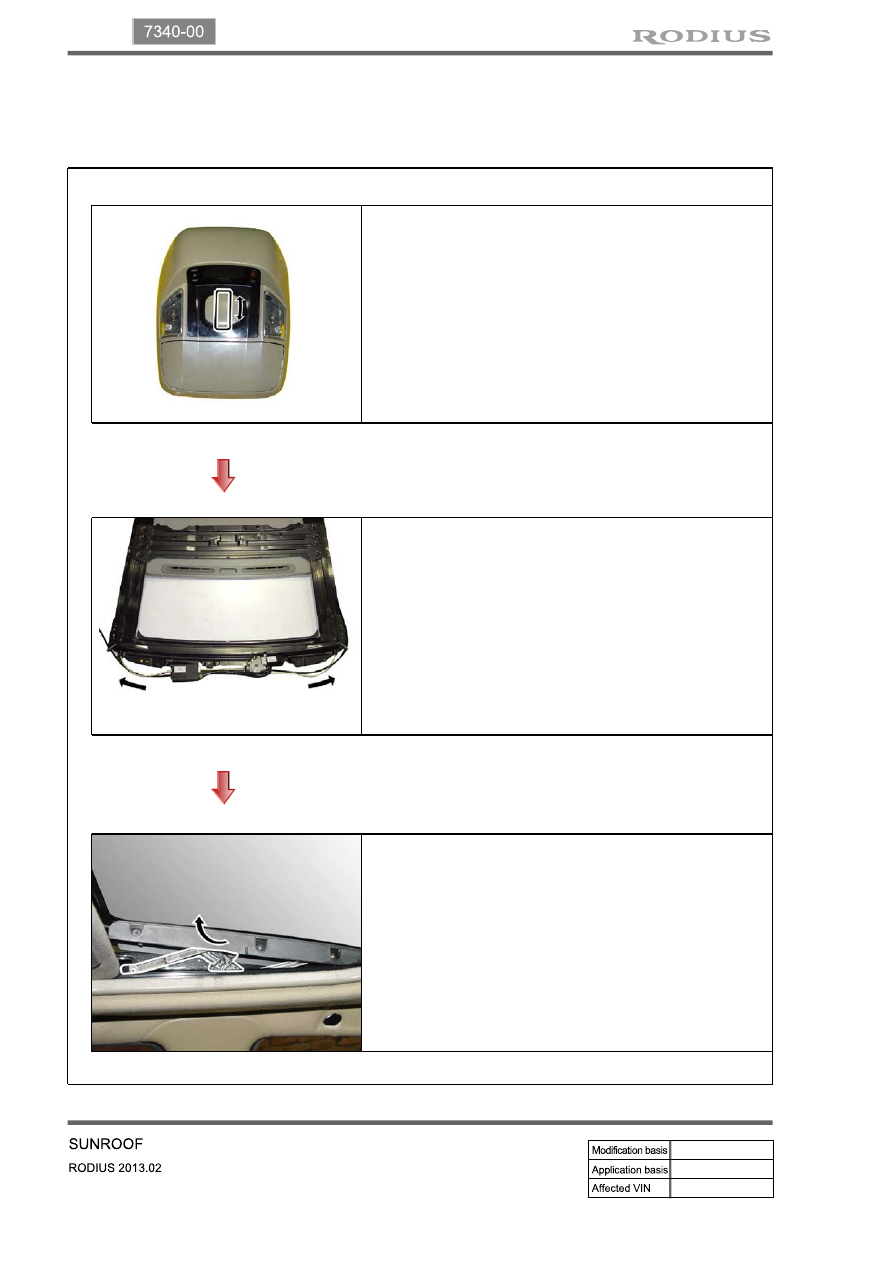

1) Tilting

Push the front side of the button when the glass is

closed then, motor actuate the operating

cable to lift up the glass.

Push the rear side of the button to put down the

glass.

Motor actuates the operating cable

Mechanical equipment lifts up & down the glass

04-9

7340-00

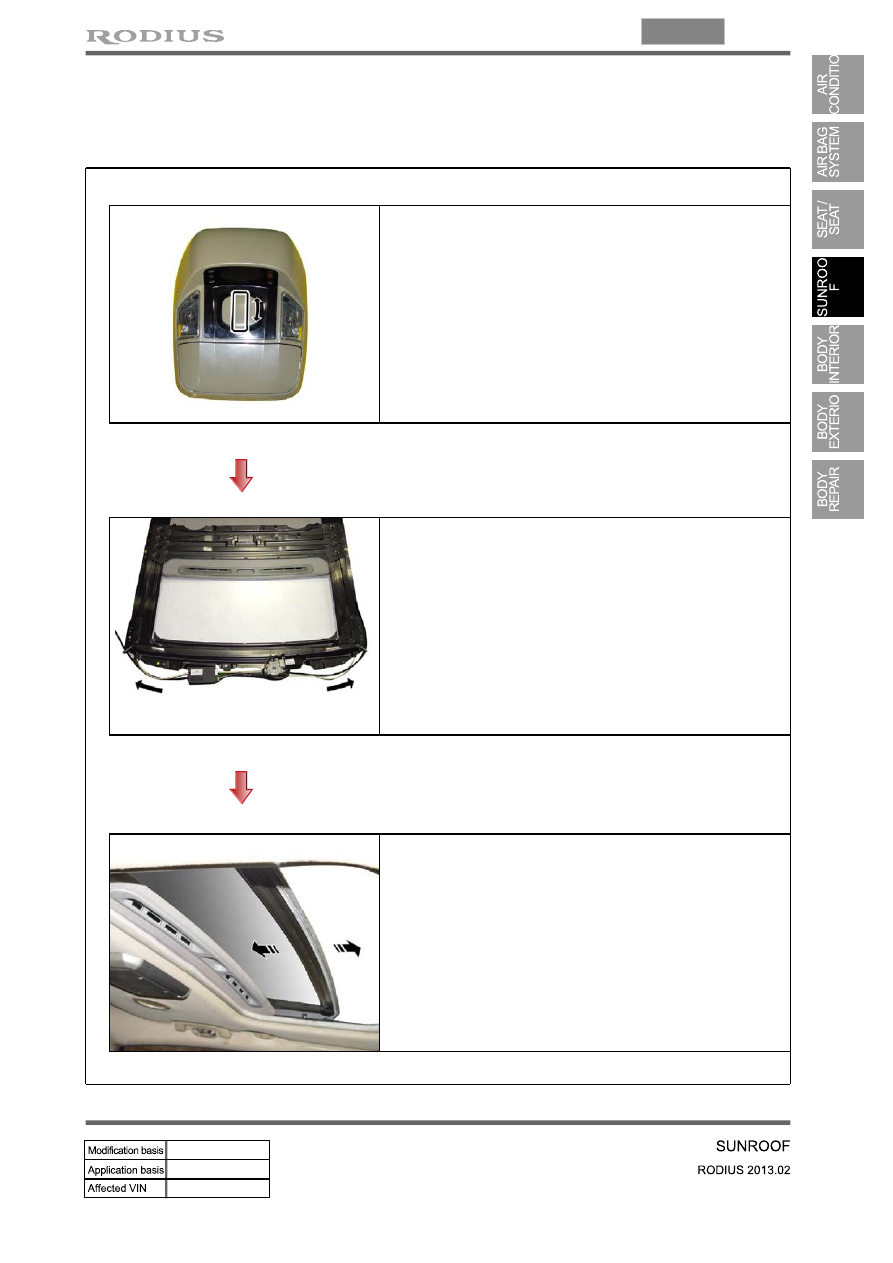

2) Sliding

push the rear side of the button to slide the door

back.

Motor actuates the operating cable

Mechanical equipment slides the glass back and

forth

04-10

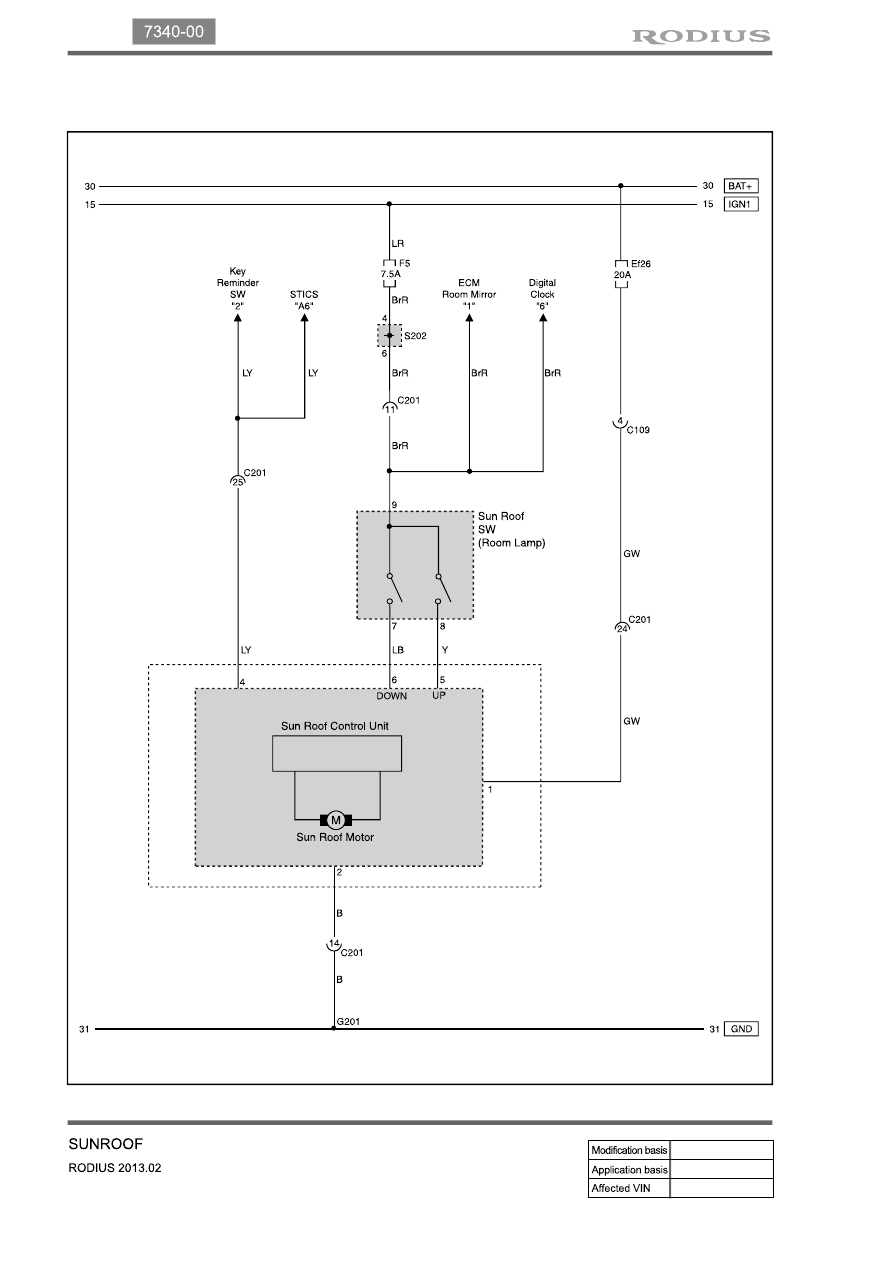

6. CIRCUIT DIAGRAM
