SsangYong Rodius (2013 year). Service manual - part 195

04-3

7340-00

1. SPECIFICATIONS

Item

Specification

Details

Operating voltage

9 ~ 16 V

Stand by current

Max. 125 mA

IGN ON

Max. 3 mA

Sleep mode

Load current

6 A

Normal operation

25 A

Max. load current

Operating temperature

-30 ~ 85℃

Storage temperature

-40 ~ 90℃

Operating time

Open, close: max. 9 sec

Open, close: max. 15 sec

-20℃

Tilt: max. 1.5 sec

Tilt: max. 4 sec

-20℃

Glass open level

1st step sliding open: 326 ± 5 mm

2nd step sliding open: 376 ± 5 mm

Tilt up & open: 43.5 ± 3 mm

Glass thickness

4 ± 0.2 mm

Displacement

2L / min

04-4

2. CAUTIONS WHEN WORKING

Wear clean work clothes and gloves.

Any unauthorized modification or operational test is not allowed since the sunroof motor and control

unit are preset at the factory.

Pay attention not to drop the sunroof assembly when removing it and do not keep it right up.

-

 -

-

Even though the sunroof can be operated when the engine is not running, operating the sunroof

repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine

is running.

When the sunroof operation is completed, release the switch. Keeping pressing the switch can result

in malfunction.

Especially in winter, never operate the sunroof if operation areas are iced. Wait until melted.

To prevent a theft, make sure that the sunroof is completely closed when leaving the vehicle. In

addition, rain or snow can get into the vehicle through the open sunroof.

When the sunroof is fully open, wind buffeting symptom can be worse. In this case, try to adjust the

sunroof position manually or open the sunroof until the wind buffeting is disappeared

Parts of the body can be trapped in the sunroof and can be struck by passing objects. Do not stick

hands, head or anything else out of the openings.

Remove any dirt and foreign material stuck on the edge of the sunroof glass periodically.

-

 -

 -

-

-

-

-

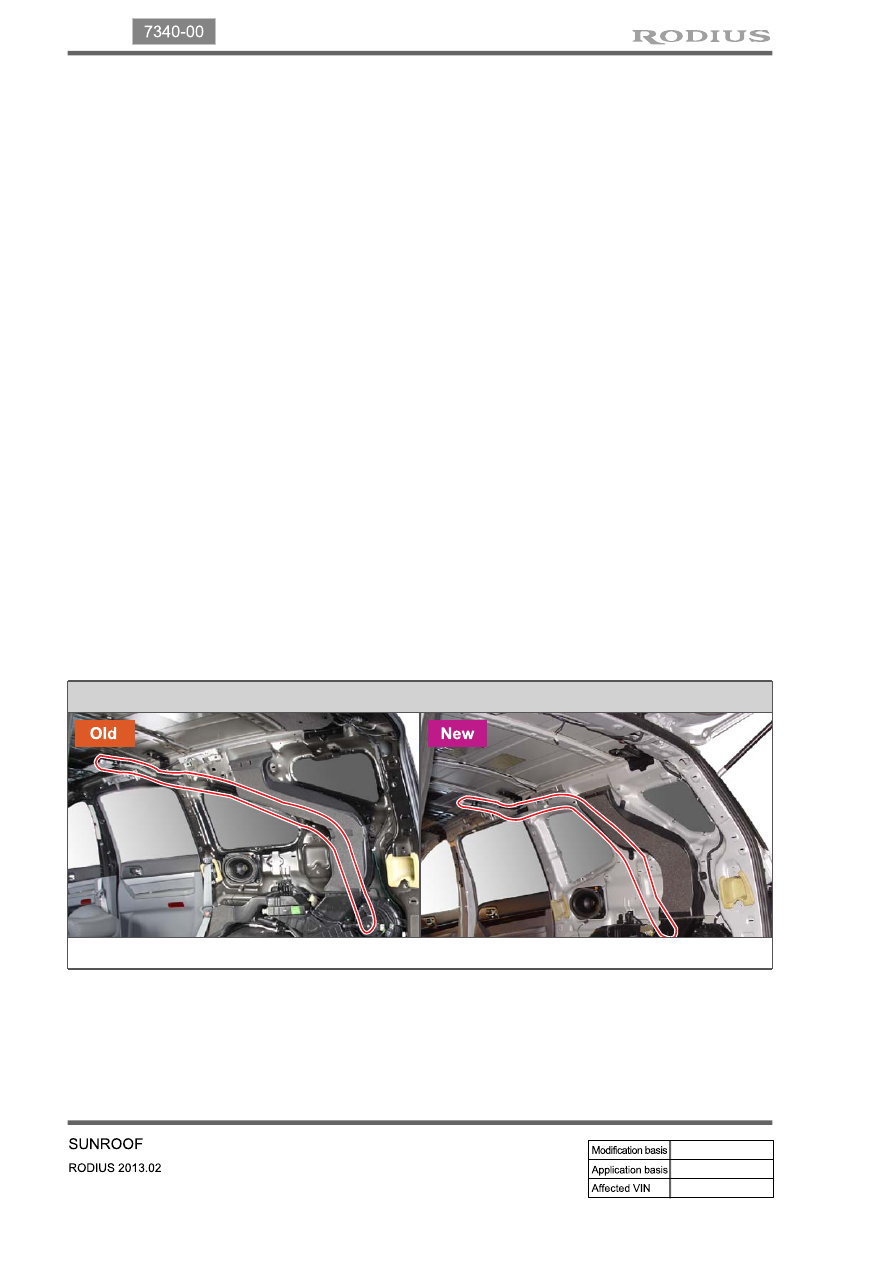

4. MAJOR CHANGES

Sunroof drain rear hose

Sunroof drain rear hose route changed due to rear quarter panel change

3. CAUTIONS FOR OPERATION

04-5

7340-00

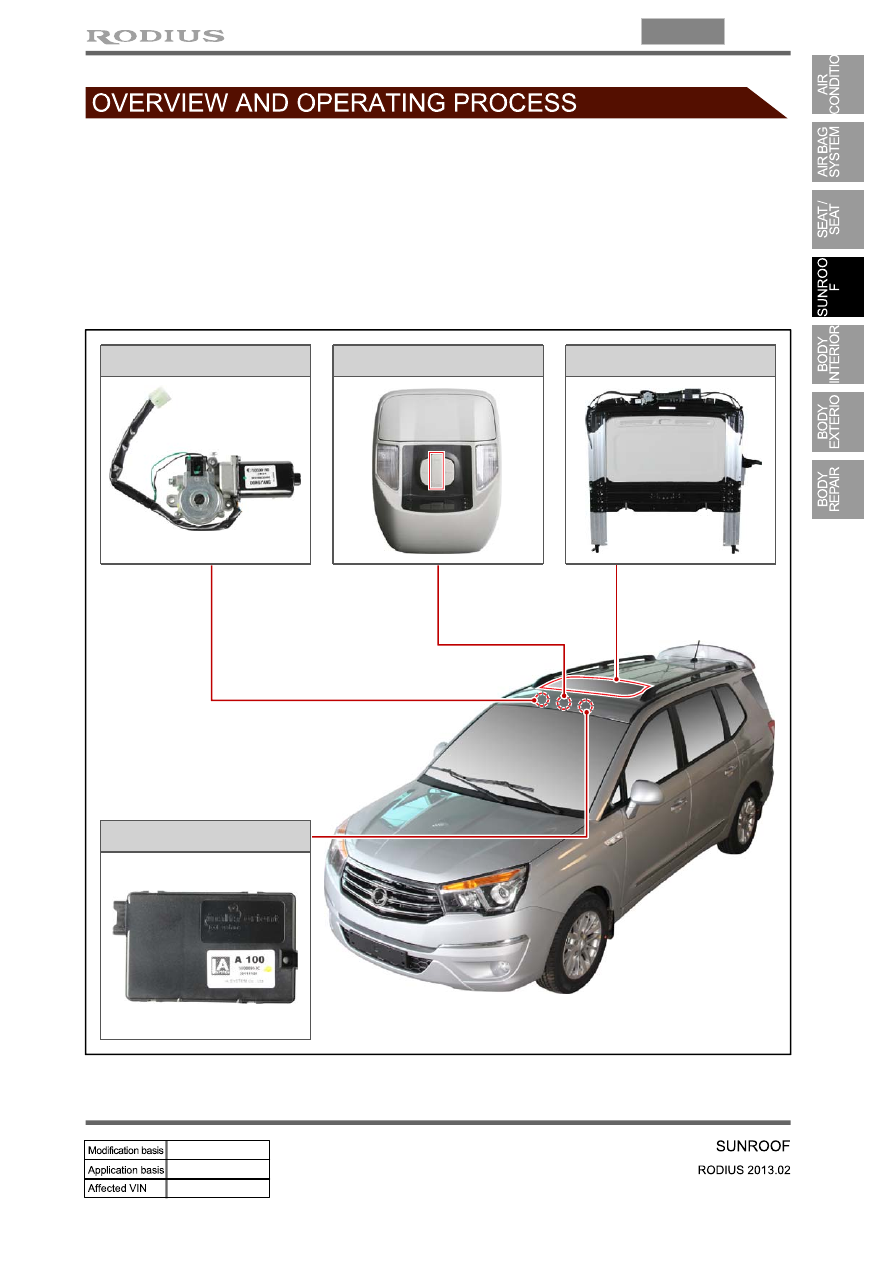

1. OVERVIEW

The sunroof is fitted to the roof panel. It consists of the sunroof switch, sunroof control unit, sunroof

motor, sunroof glass and drain hose.

The sunroof motor is operated by the sunroof control unit according to the operating signal from the

sunroof switch, which results in opening and closing of the sunroof glass.

2. LAYOUT

Sunroof motor

Sunroof control unit

Sunroof switch

Sunroof assembly

04-6

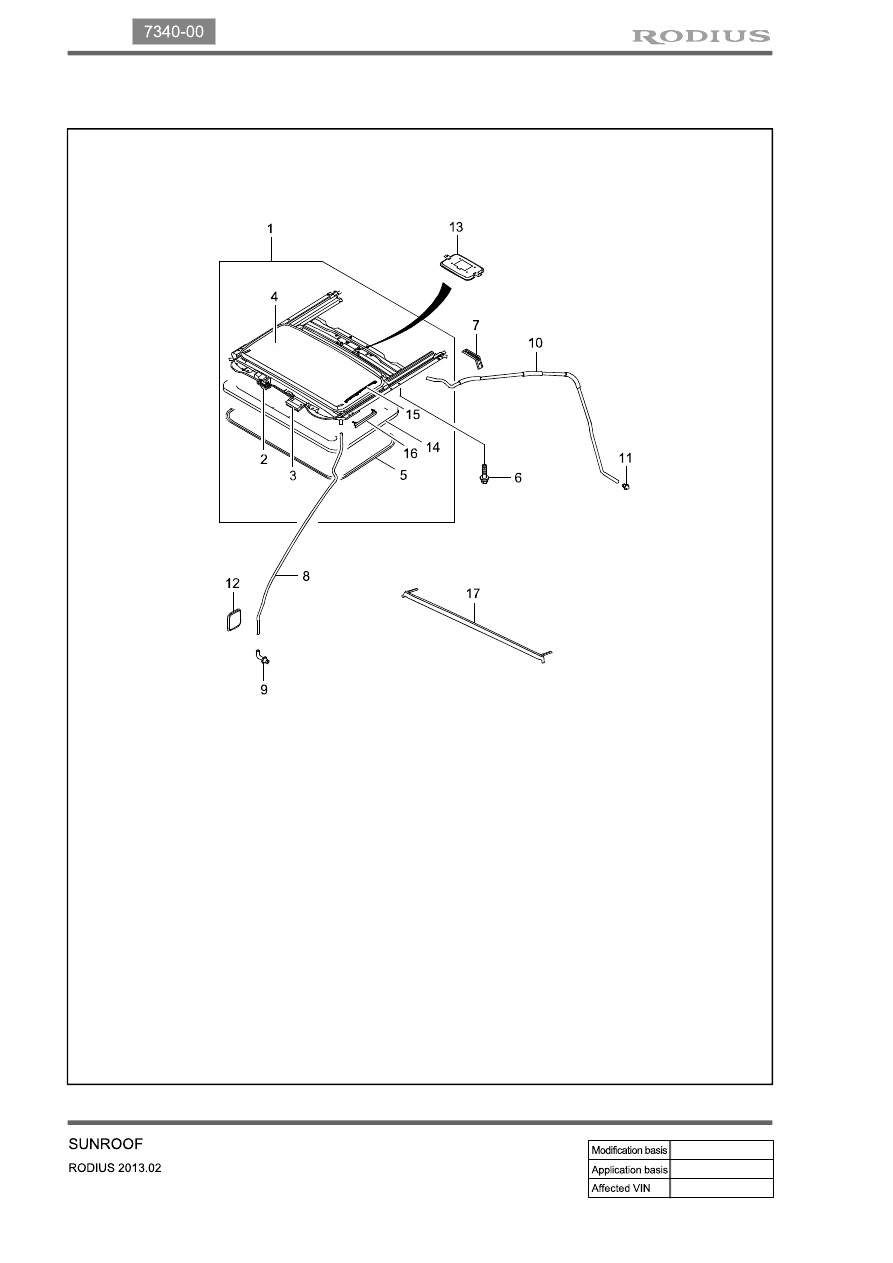

3. COMPONENTS OF SUNROOF

Sunroof assy

Motor assy-sunroof

Unit-control sunroof

Glass assy-sunroof

Welt-sunroof

Screw

BRKT-sunroof SUPT

Hose-sunroof drain FRT

Grommet-sunroof drain hose FRT

1.

2.

3.

4.

5.

6.

7.

8.

9.

Hose-sunroof drain RR

Grommet-sunroof drain hose RR

Cover-sunroof tooling hole

PNL ASSY-sunroof sunshade

Cover-side INR

Cover-side OTR

Wind deflector ASSY-sunroof

10.

11.

12.

14.

15.

16.

17.
