7) Room Lamp Control

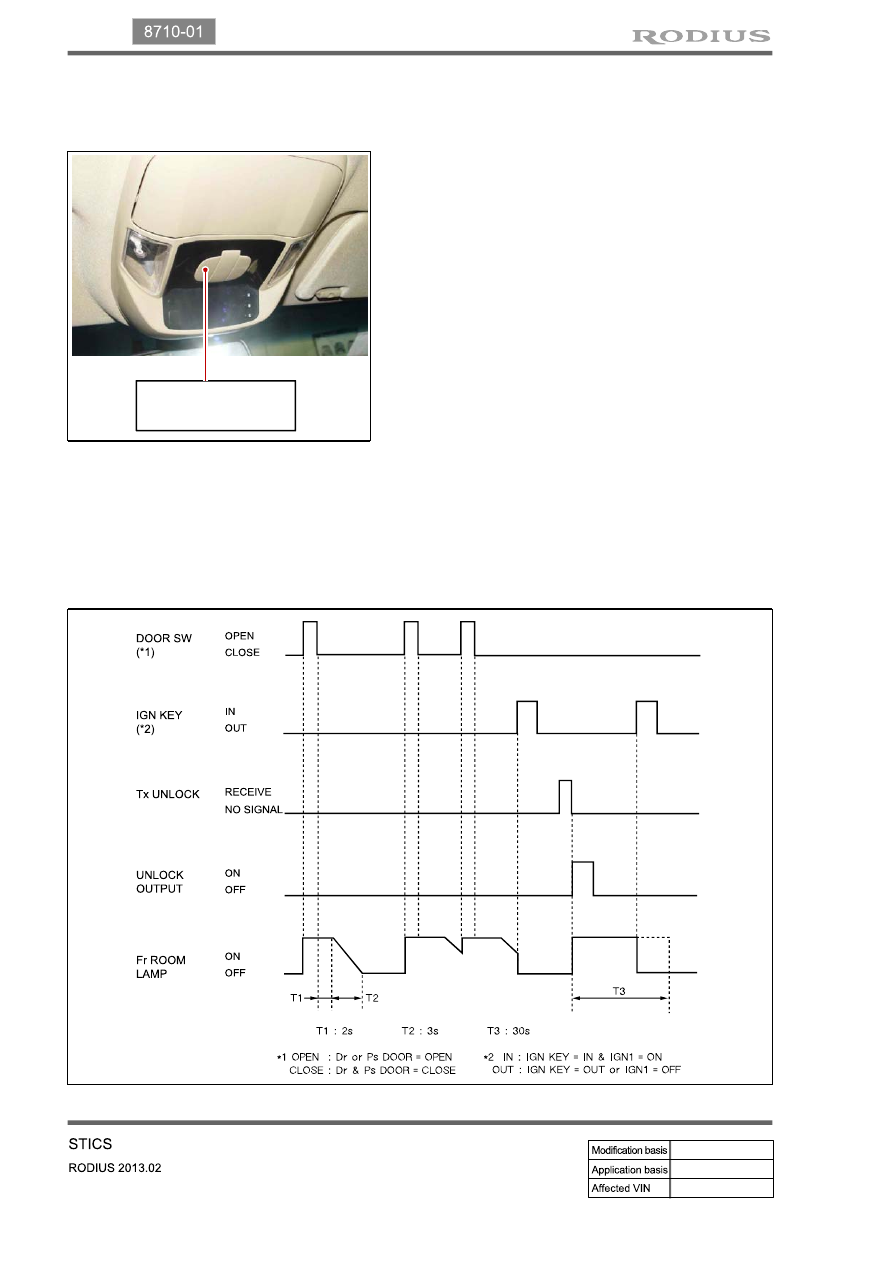

▶ Front Room Lamp

The front room lamp comes on when opening the
driver’s door or passenger’s door while the front
room lamp switch is at door coupled position and the

key reminder switch is turned off.

The room lamp stays on for 2 seconds (T1) and then

decays through 3 seconds (T2) when closing the
driver’s door or passenger’s door.
The room lamp output should stop immediately after

turning on the ignition key during decaying operation.

The front room lamp comes on for 30 seconds (T3)

when receiving the unlock signal from the remote

control key while the door is closed.

1.

2.

3.

4.

The front room lamp output period is extended by 30 seconds (T3) when receiving the unlock signal

from the remote control key again during output.

When a door is opened during its extended period, the lamp stays on. If closed, operates as in step

2.
The room lamp output stops immediately after receiving the lock signal from driver’s door and
passenger’s door lock switch while the driver’s door and passenger’s door are closed.

5.

6.

7.

Door coupled front

room lamp switch

02-25

8710-01

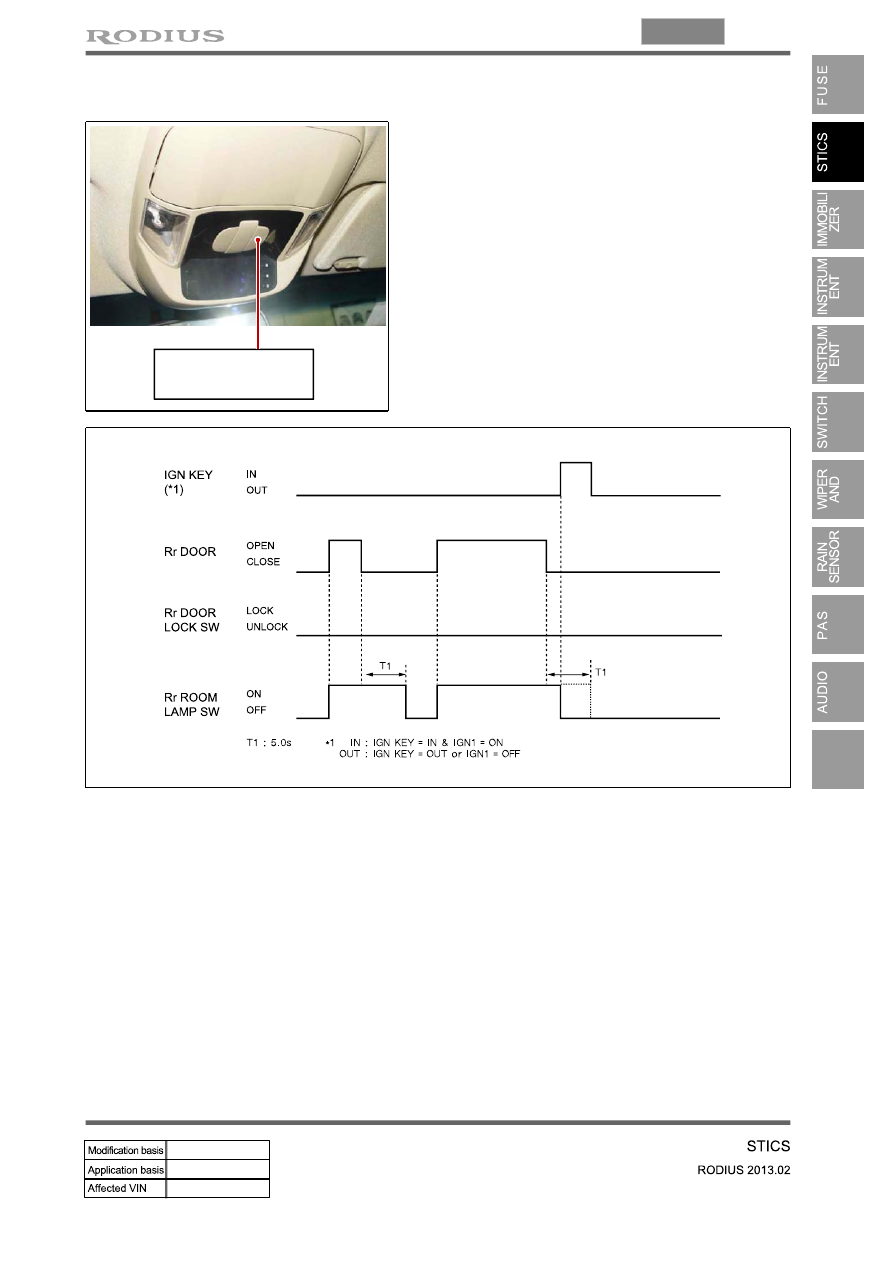

The rear room lamp comes on when opening the

rear door while the door coupled rear room lamp

switch is pressed (except for luggage room lamp).

The rear room lamp extends its lighting period by 5

seconds when closing the rear door.

The room lamp output stops immediately after
turning the ignition key to “ON” position during

the extended period.

The room lamp output stops immediately after

receiving the lock signal from the rear door lock

switch or the remote control key while the rear door

is closed.

1.

2.

3.

4.

Door coupled front

room lamp switch

▶Rear Room Lamp

02-26

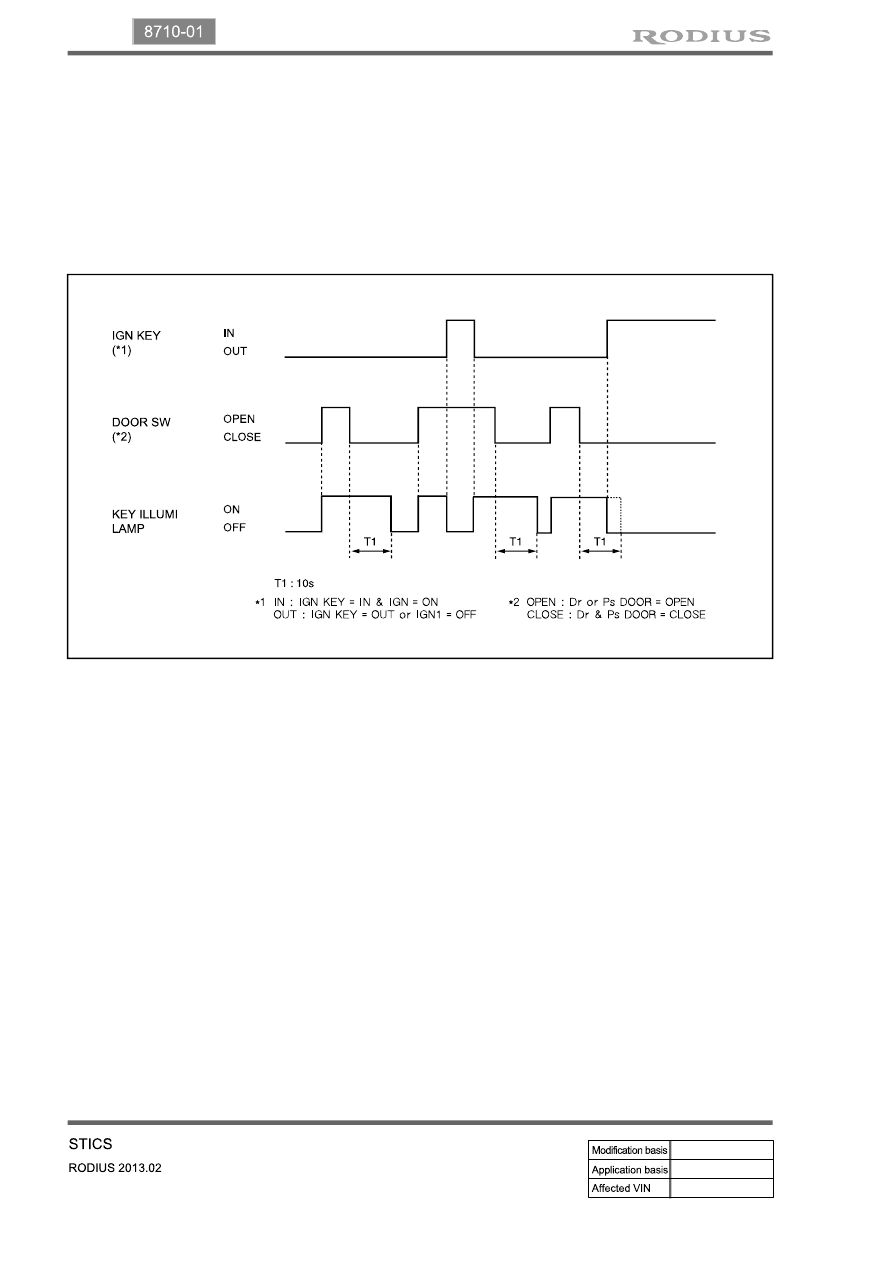

8) Ignition Key Hole Illumination

The ignition key hole illumination comes on when opening the driver’s door or passenger’s

door while the ignition key is removed.

The ignition key hole illumination stays on for 10 seconds when closing the door after step 1.
The output stops when the ignition key is turned to “ON” position.

The output stops when receiving the lock signal from the remote control key (under armed mode).

1.

2.

3.

4.

02-27

8710-01

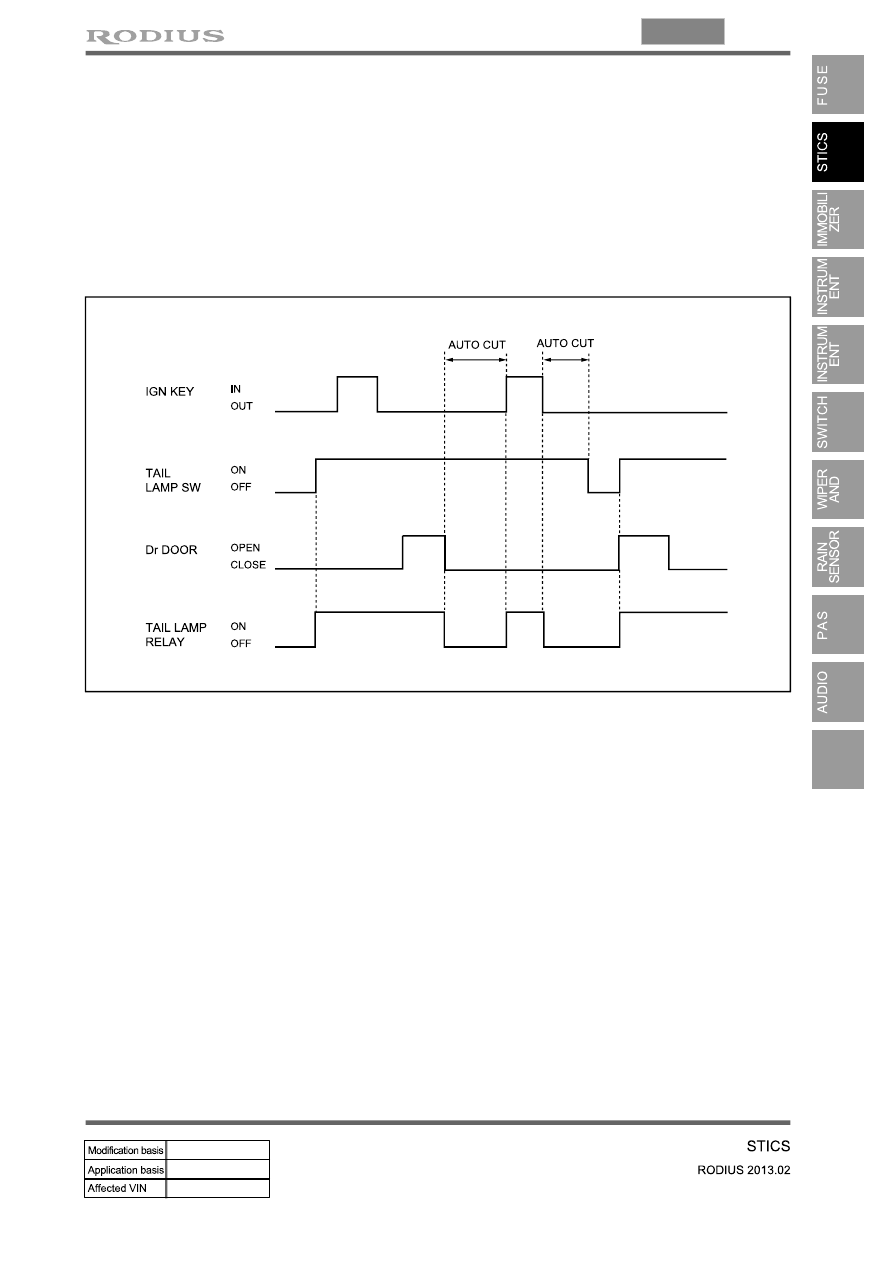

9) Battery Saver (Tail Lamp Auto Cut)

The tail lamp is turn on or off according to the operations of the multifunction tail lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver’s door after

removing the ignition key without turning off the tail lamp.

Tail lamp relay is turned on when inserting the ignition key into ignition switch again after step 2

operation.
The tail lamp relay is turned off (auto cut) when opening and closing the driver’s door while the

ignition key is removed and the tail lamp is turned on.

1.

2.

3.

4.
