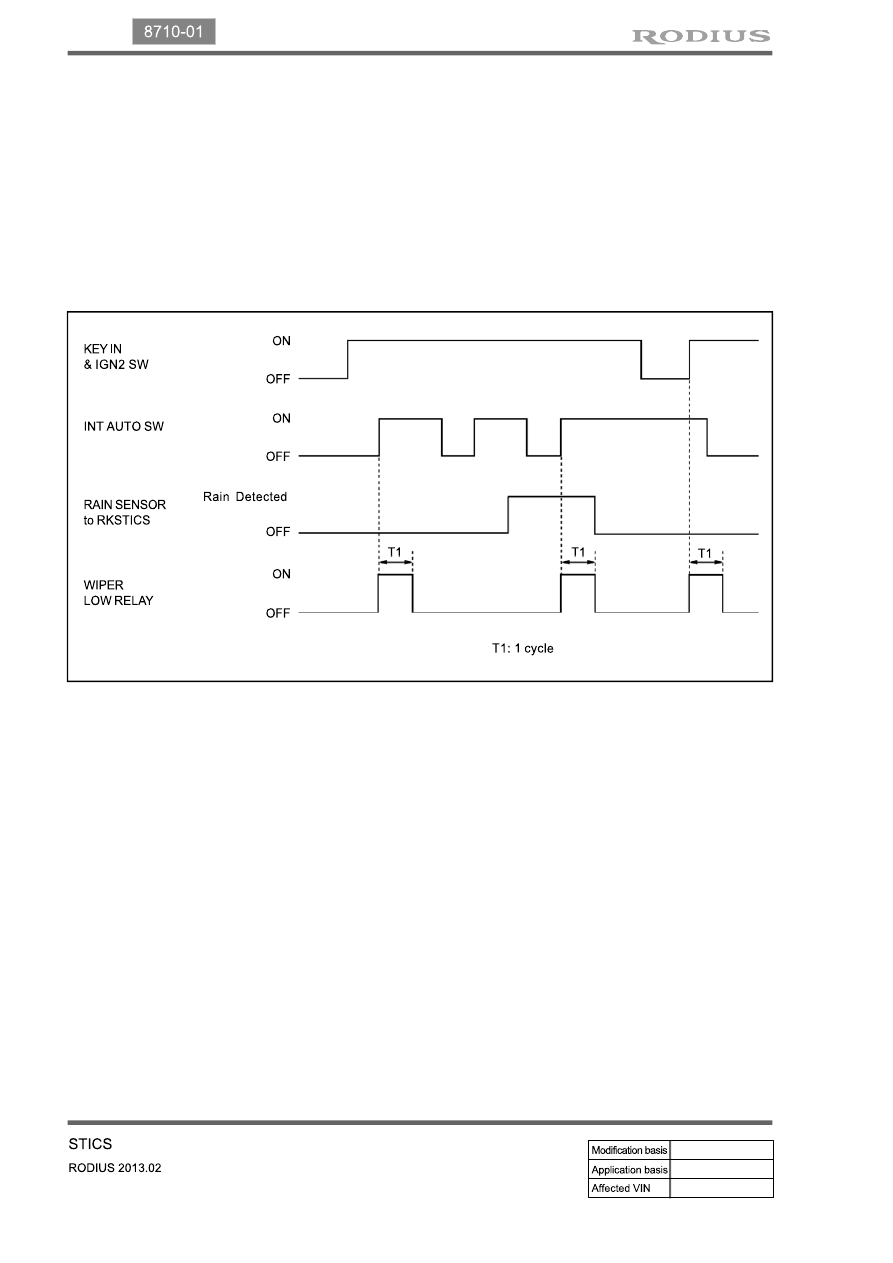

▶INT Switch Auto Position Reminder (Power-Up Reminder Wiper)

When turning off and on the auto INT switch, the system drives the wiper motor through LOW

relay regardless of communication with rain sensor.

When turning the INT-AUTO switch from the "OFF" to "ON" position with the ignition switch in

the "ON" mode, the LOW relay operates to drive the wiper motor for 1 cycle, regardless of the

rain sensor communication.

After that, when turning the INT-AUTO switch from the "OFF" to "ON" position, the LOW relay

operates to drive the wiper motor for 1 cycle only if data from the rain sensor indicates rain

drops.

1.

2.

02-17

8710-01

2) Ignition Key Reminder

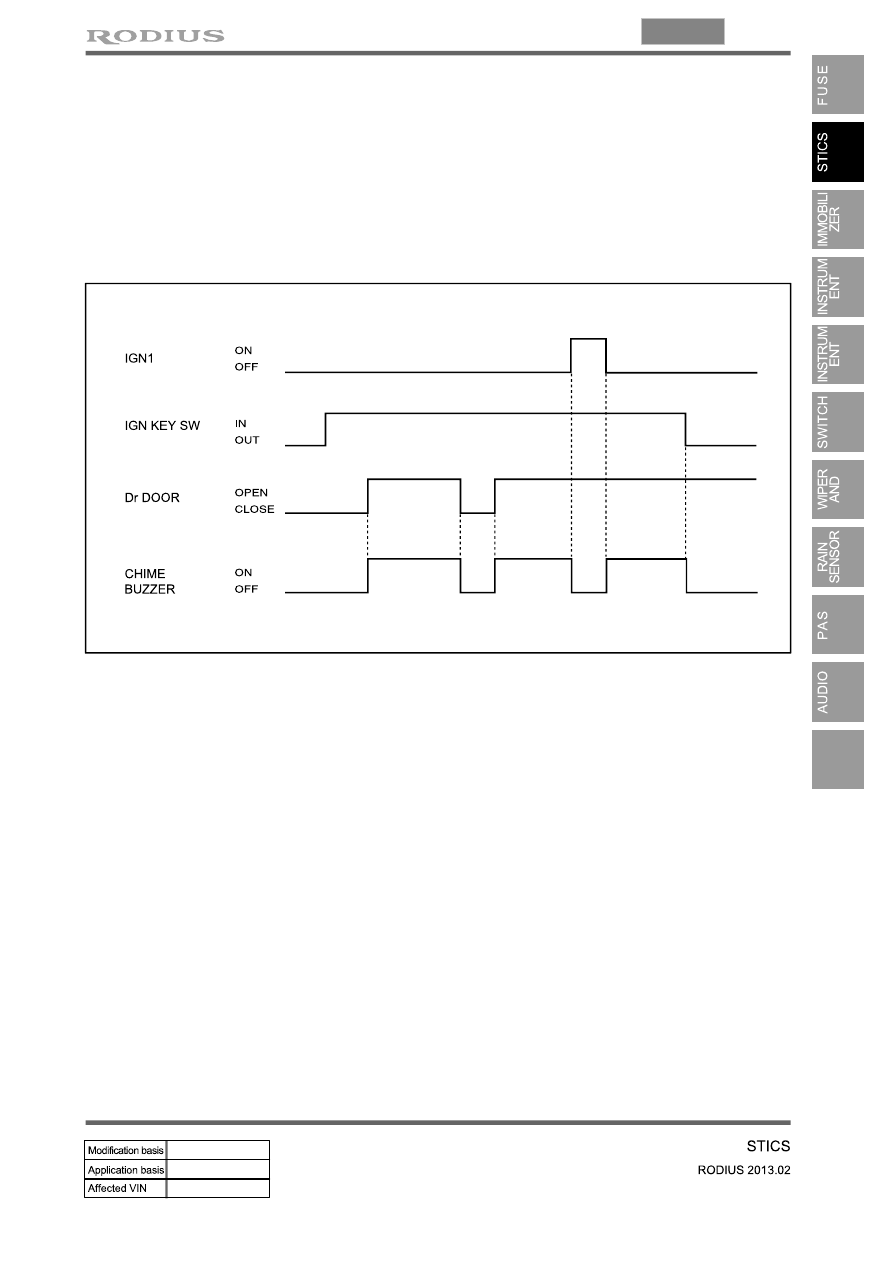

▶Key Reminder Warning

The chime buzzer output in the ICM box continues when opening the driver’s door while the

ignition key is inserted into ignition switch.
When removing the ignition key or closing the driver’s door during chime buzzer output, the

output turns off.
This function is not available when the ignition switch is “ON”.

1.

2.

3.

02-18

This function does not work if the vehicle speed is over 3 km/h.
The system outputs “UNLOCK” for 5 seconds (T2) from 0.5 seconds after the driver’s door
is opened and the door lock switch is changed to “LOCK” (while the ignition key is in ignition

switch).
The system outputs “UNLOCK” for 5 seconds (T2) when the door lock switch is changed to
“LOCK” from “UNLOCK” and the driver’s door is closed within 0.5 seconds (T1) (while the

ignition key is in ignition switch).

1.

2.

3.

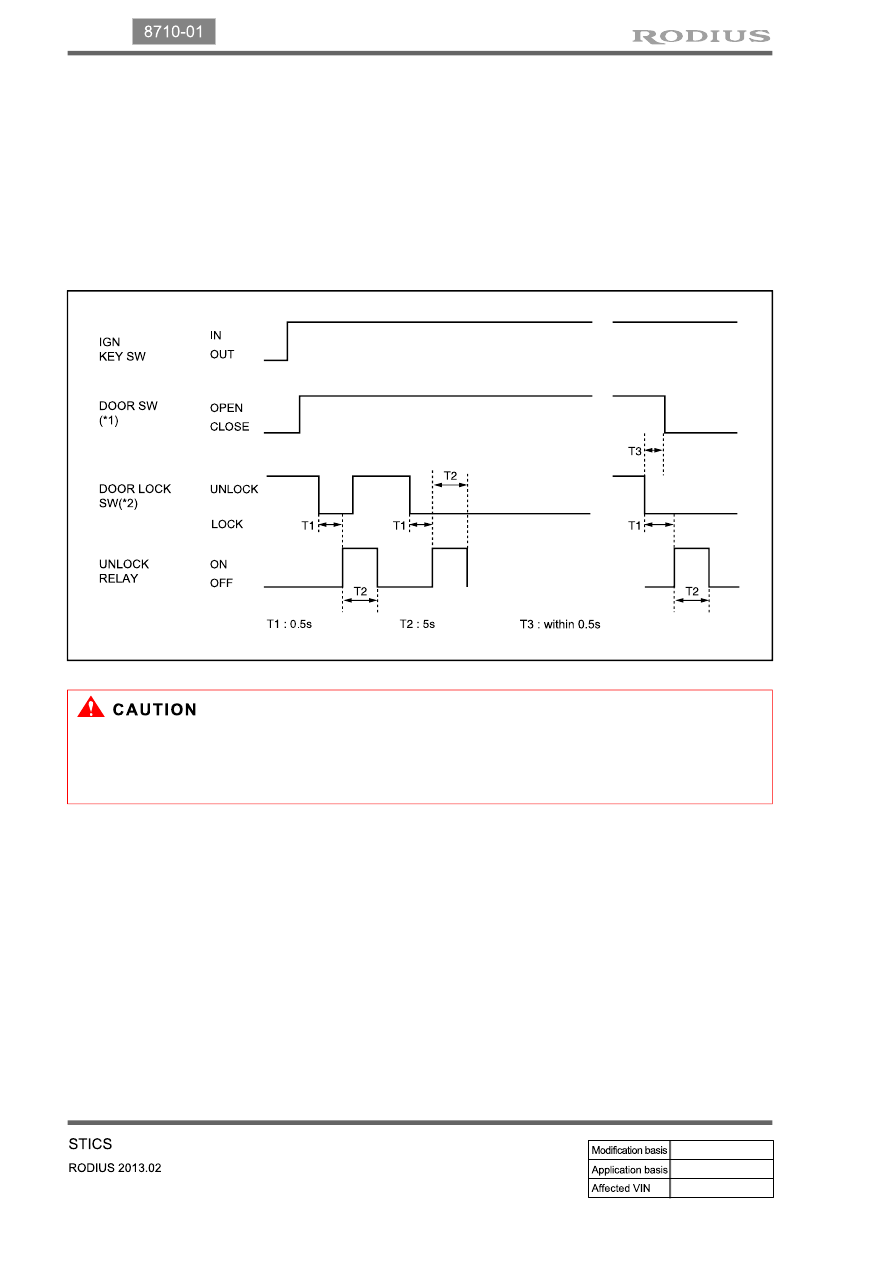

▶Key Reminder

Operating conditions for (*1) and (*2)

-

(*1): Driver’s door is opened and driver’s door lock switch is turned to LOCK
(*2): Passenger’s door is opened and passenger’s door lock switch is turned to LOCK

02-19

8710-01

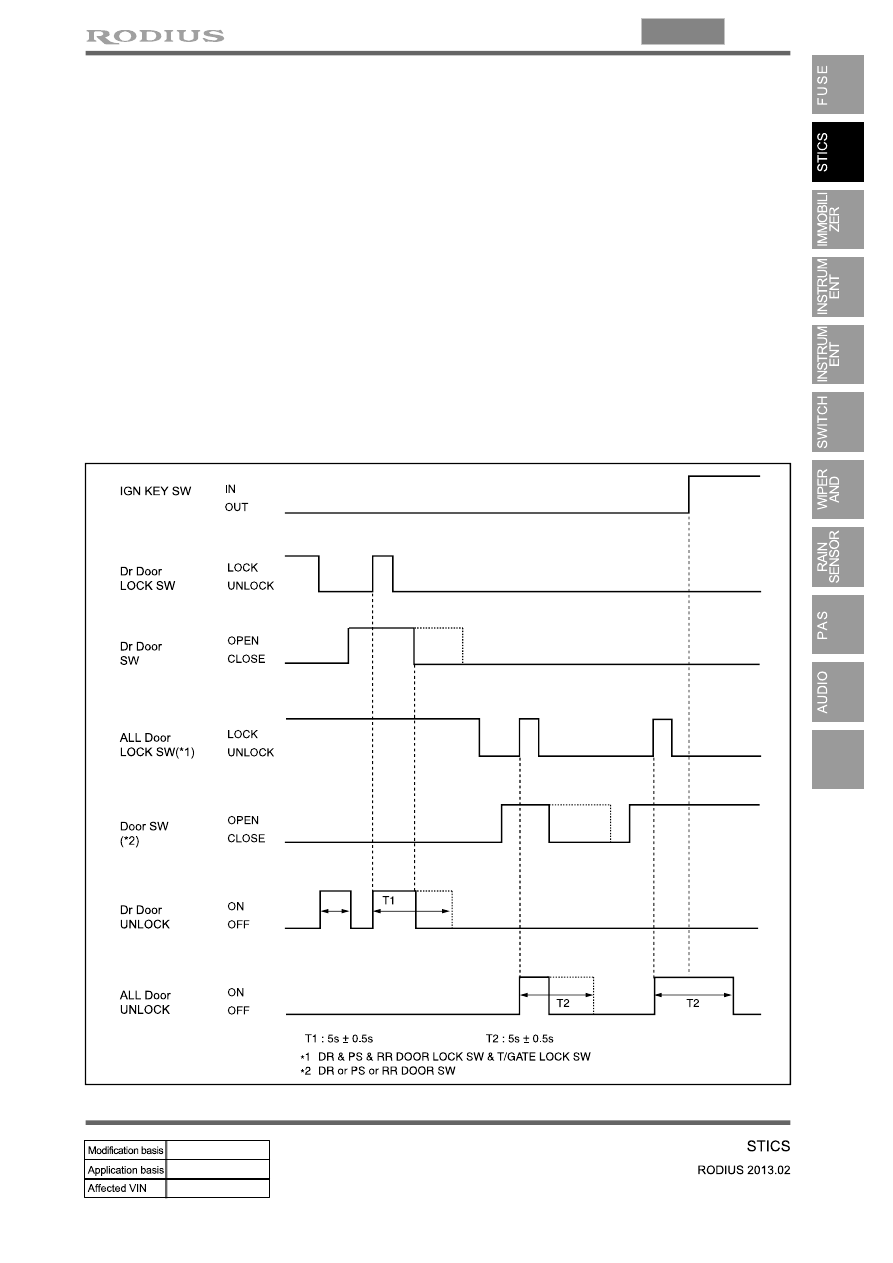

▶All Door Lock Prevention Function when a Door is Opened

When a door is opened, all doors should be unlocked for 5 seconds if inputs LOCK signal.

1.

The LOCK signal means the central door locking (REKES, central door lock switch, knob switch)

except LOCK input by rear door knob.
After unlocking and opening only the driver’s door with remote control key under armed
mode (driver’s door is unlocked but passenger’s and rear doors are locked), only the
driver’s door generates unlock signal when trying to lock the driver’s door with the driver’s

door opened.

Above operations is regardless of key positions and have priority over the ignition key reminder

function.

-

-

 -

When the door is closed during unlock output for 5 seconds under item 1 condition, the unlock

output stops.

2.

All doors except tailgate and hood output “UNLOCK” for 5 seconds (T1) when the “LOCK”

signal is inputted (while the ignition key is removed and a of door is opened).

When the door is closed during unlock output for 5 seconds, the unlock output stops.

-

-
