05-3

8310-00

1. SPECIFICATIONS

Amount

Specification

EU

General

Exterior lamp

Headlamp

Low beam / High
beam

2

H4(60W) /

H4(55W)

←

Turn signal lamp

2

PY21W

←

Position lamp

2

W5W

←

Front fog light

2

H27W

←

DRL

2

P21W

←

Side repeater

2

LED

←

Rear combination
lamp

Stop (tail) lamp

2

P21W(5W)

←

Turn signal lamp

2

PY21W

←

Back-up lamp

1/2

P21W/1

P21W/2

Rear fog light

1

P21W

-

License plate lamp

2

W5W

←

Interior lamp

Front room lamp

2

8W

←

Glove box lamp

1

5W

←

Center room lamp

2

10W

←

Door courtesy lamp

2

5W

←

Description

The surface of lamps can get foggy when raining or washing the vehicle. This is normal and is a result

of the temperature difference between inner and outer surface of lamp cover. However, if water gets

into the lamp, have the system checked at Ssangyong Authorized Service Center.

06-3

8610-08

1. SPECIFICATIONS

Multifunction switch

▶

Item

Rated load

Voltage drop

Light

0.1 A (Relay load)

Max. 0.25 V

Dimmer & passing

High beam: 0.3 A / Low beam: 0.3 A

 / Passing: 0.3 A (Relay load)

Max. 0.25 V

Turn signal lamp switch

6.6±0.5 A (Lamp load)

Max. 0.25 V

Hazard warning flasher switch

0.1 A

-

Fog lamp

0.1 A (Relay load)

-

Wiper

LOW: 5 A (motor load)

HI: 7 A (motor load)

AUTO: 0.22 ± 0.05A (relay load)

LOCK: Max. 28 A (motor load)

Max. 0.25 V

Auto washer

0.1 A (Signal load)

-

Washer

4 A (motor load)

20 A (Lock/Min)

Max. 0.8 V

Variable Int Volume

Max. 25 mA

-

MIST SW

5 A (motor load)

Max. 0.25 V

 Hazard warning flasher bezel switch

▶

Item

Rated load

Hazard warning flasher switch

12 V-10 A

Rear heated glass switch

12 V-0.1 A

Windshield heated glass switch

12 V-0.1 A

TRIP switch

12 V-0.1 A

06-4

Outside rearview mirror control bezel switch

▶

Item

Rated load

Outside rearview mirror switch

12 V-2 A

ESP OFF switch

12 V-0.1 A

Mirror folding switch

12 V-0.1 A

Steering wheel heating switch

12 V-0.1 A

Rear Fog Lamp Switch

12 V-0.1 A

CTR fascia switch bezel

▶

Item

Rated load

4WD control switch

12 V-0.1 A (signal load)

Driver's heated seat switch

12 V-5 A (relay load)

Passenger's heated seat switch

12 V-5 A (relay load)

Head Lamp Leveling Switch

12 V-1 A (inductive load)

Rear heated seat switch

▶

Item

Rated load

Rear heated seat switch

12 V-0.1 A

06-5

8610-08

8510-60

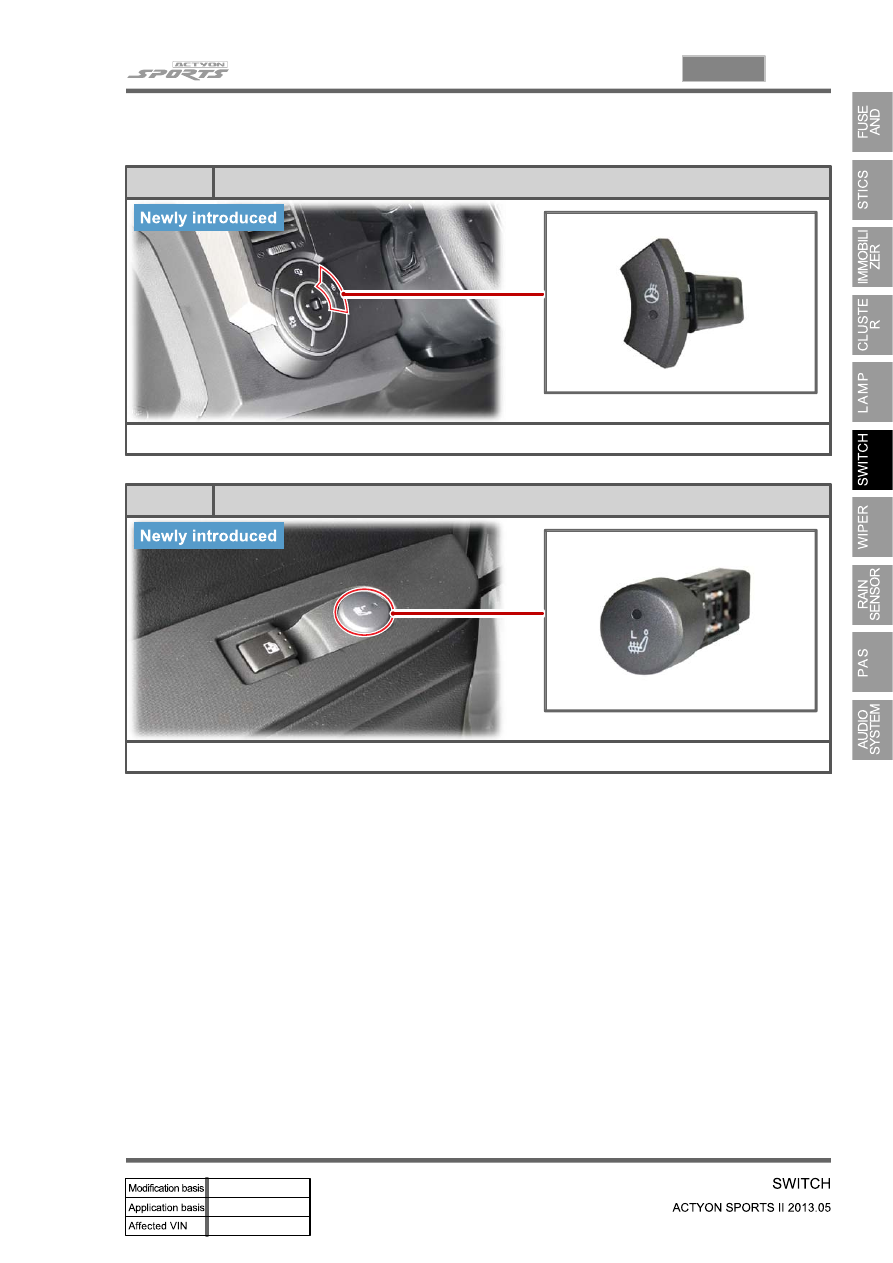

Heated steering wheel switch

- Heated steering wheel switch added to outside mirror switch bezel

8510-10

Rear seat warmer switch

- Adopt rear seat warmer switches to rear door LH/RH

2. MAJOR CHANGES
