04-18

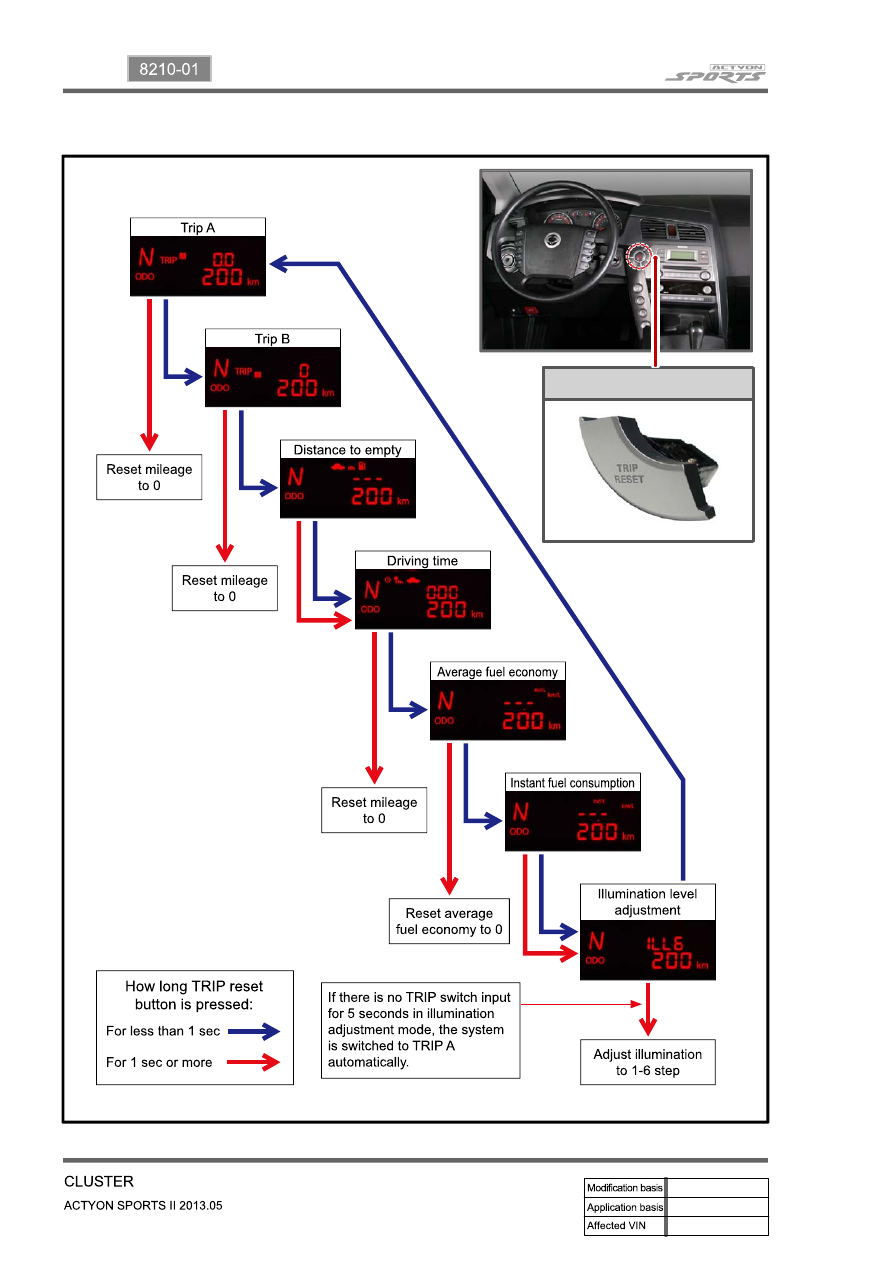

Shifting Mode

▶

TRIP/reset switch

04-19

8210-01

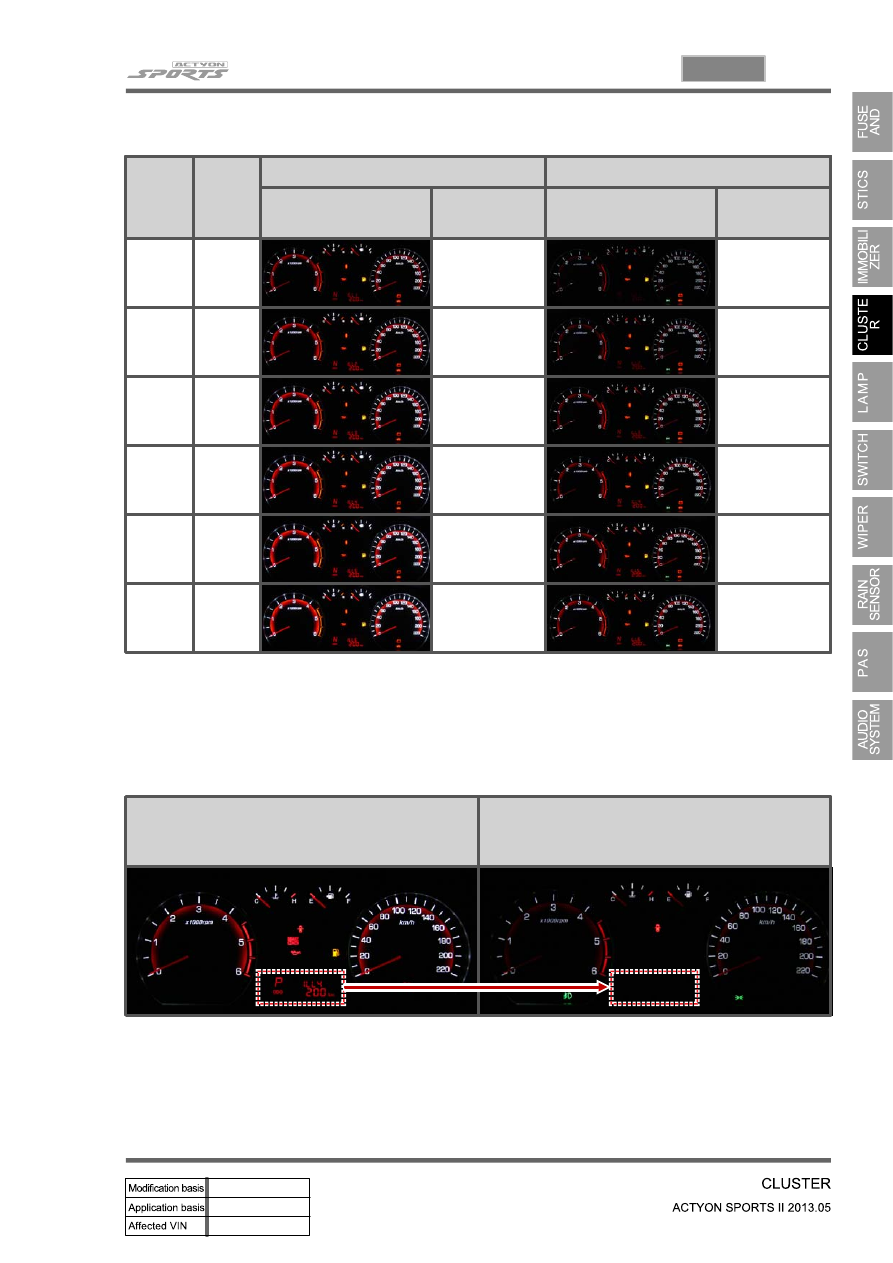

Brightness of LCD display when turning ON/OFF tail lamp

▶

Sequen

ce

Level

Tail lamp OFF

Tail lamp ON

Display brightness

Brightness

ratio

Display brightness

Brightness

ratio

1

ILL1

25%

5%

2

ILL2

40%

9%

(LCD: 12%)

3

ILL3

55%

13%

(LCD: 19%)

4

ILL4

70%

17%

(LCD: 26%)

5

ILL5

85%

21%

(LCD: 33%)

6

ILL6

100%

25%

(LCD: 40%)

Illumination conditions of LCD display when turning ON/OFF tail lamp

▶

The illumination for the LCD display comes on when turning on the tail lamp and is adjustable only when

the ignition is ON. When turning on the tail lamp switch with the ignition OFF, the tail lamp comes on but

the LCD display is not illuminated. Refer to the illustration below.

IGN ON

(Comes on regardless of whether the tail lamp

switch is turned ON or OFF)

Tail lamp comes on with IGN OFF

(Tail lamp comes on but the illumination for

LCD display is not turned on)

04-20

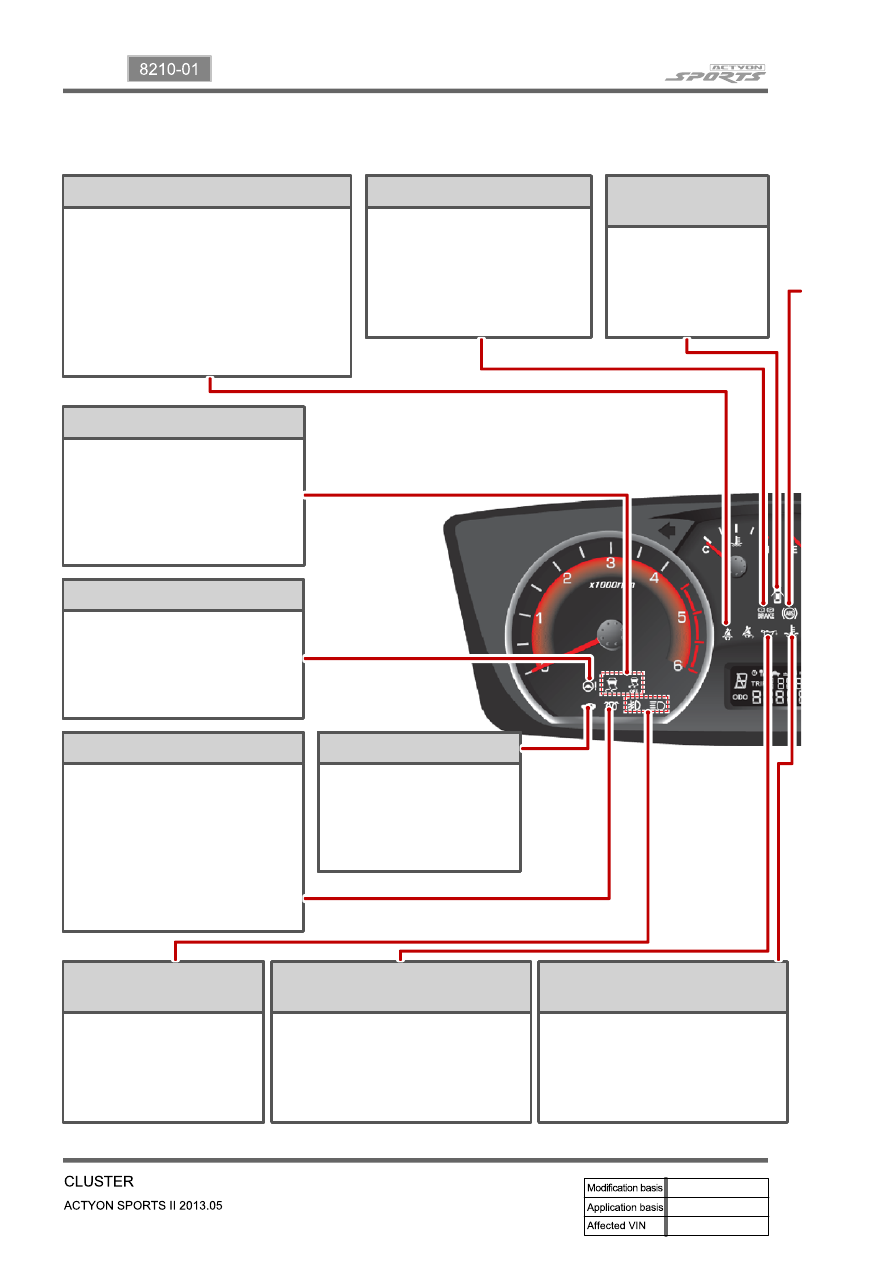

3. WARNING LIGHTS AND INDICATORS

ESP OFF Indicator

This lamp comes on when
pressing the "ESP OFF" switch or
the ESP system is defective.
When the ESP system is
activated, this lamp blinks and a
chime sounds.

Immobilizer Indicator

This indicator comes on
when the ignition key is
communicating with the
engine control unit for
approx. 0.5 seconds.

Glow Indicator

When the ignition key is turned
ON, this indicator lamp comes on
and the combustion chamber is
warmed up. In the vehicle
equipped with direct injection type
engine, this indicator may come
on very shortly or may not come
on.

Fog Lamp / Headlamp

High Beam Indicator

This lamp comes on when
the fog lamp or high beam
headlamp operates to
indicate the operating
status.

Engine Oil Pressure Warning

Light

This lamp comes on if there is any
fault in the engine oil system and
goes off when a certain amount of
time has elapsed after turning ON
the ignition switch.

Door ajar warning

light

This light comes on
when a door or
tailgate is either
opened or not closed
completely.

Brake warning light

This warning light comes on
and warning buzzer sounds
when the parking brake is
applied and/or the brake fluid
level is lower than specified
level.

Seat belt warning lamp

The seat belt warning light comes on and
the seat belt warning chime sounds for 6
seconds when the ignition switch is
turned to "ON" position unless the
driver's seat belt is securely fastened.
This reminding operation stops when the
driver fastens the seat belt.

Engine Coolant Overheat

Warning Light

When the coolant temperature is
abnormally hot (over 120℃), this
warning light blinks and a warning
buzzer sounds at 1 Hz. (check
cooling system)

SSPS warning light

This warning light comes on when
the SSPS system is defective.
When this warning light comes
on, the steerability becomes
heavier.

04-21

8210-01

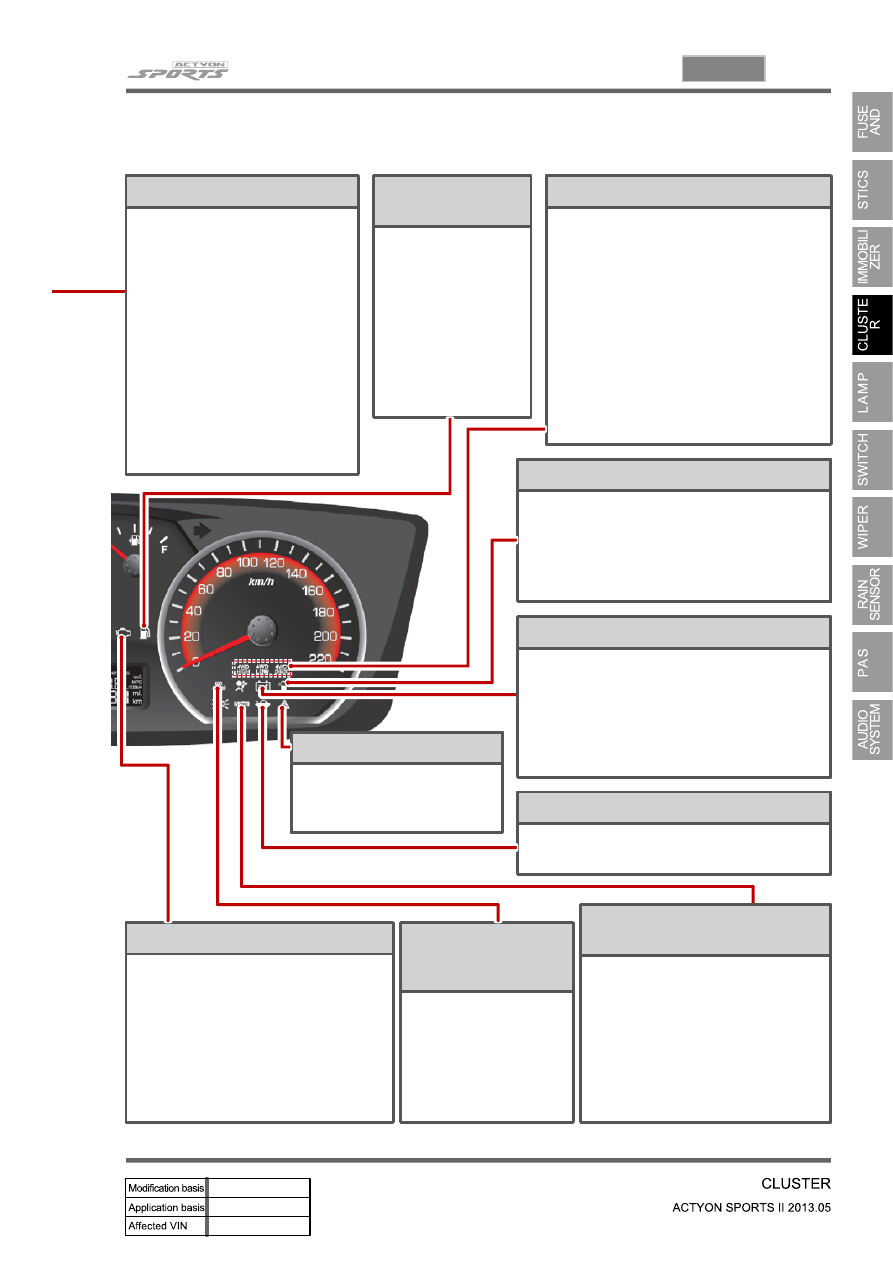

ABS Warning Light

This warning light comes on
when the ignition switch is turned
to "ON" position and should go
out if the system is normal.
The vehicle with ABS performs
self-diagnosis. During this
diagnosis, brake pedal vibration
and noise may be apparent
when the driving motors
discharges the hydraulic
pressure from the internal
hydraulic device.

4WD Indicator

Low Fuel Level

Warnig Light

This warning light
comes on when the
fuel will soon be
exhausted. The time
it takes turn on,
however, varies
according to the
gradient of the
vehicle.

4WD HIGH Indicator

The lamp blinks momentarily during

the change of driving mode.

4WD LOW Indicator

The lamp blinks momentarily during

the change of driving mode.

4WD CHECK Warning Light

This indicates that there is something

wrong in the transfer case system.

(check the system)

-

-

-

Auto Cruise Control

Indicator

Operating the cruise
control switch turns on
the indicator lamp to
indicate the cruise
control system is
activated.

Water Separator Warning Light

This lamp comes on to warn the driver of
water in the fuel tank which causes the loss
of engine power. When a certain amount of
water is accumulated, the lamp comes on
and a chime sounds.

Engine CHECK Warning Light

This warning light comes on when the
ignition switch is turned to "ON"
position and should go out if the
system related to engine control is
normal.
This comes on when different sensors
and devices related to engine control
are defective.

Winter Mode

Indicator

Pressing the "W" side of the
automatic transmission mode
selector switch switches the driving
mode to winter mode and turns on
the indicator lamp.
Use this mode to drive off smoothly
on icy and slippery roads.

Charge Warning Light

This warning light comes on when the
ignition switch is turned on and go off when
the engine is started.
If this light doesn't go off after engine starting,
it means there is a malfunction in the system.

Engine Hood Open Warning Light

When the engine hood is open, this light
comes on to inform the driver.

Hazard Indicator

This indicator blinks when the
hazard warning flashers are
switched on.
