Dacia SuperNova (engine E7J). Service manual - part 116

81

REAR AND INTERIOR LIGHTING

81 - 7

A. FOR VEHICLES MANUFACTURED TILL 01.06.2001

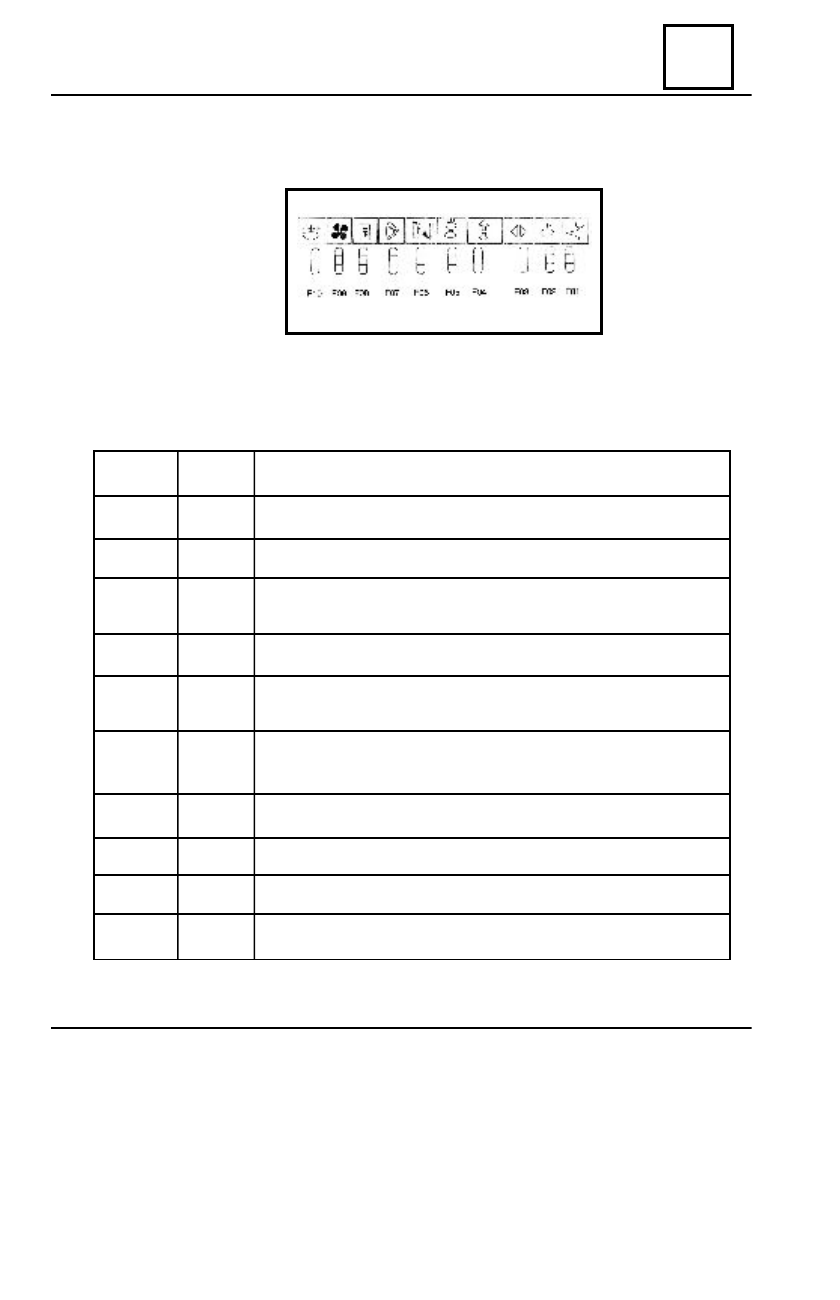

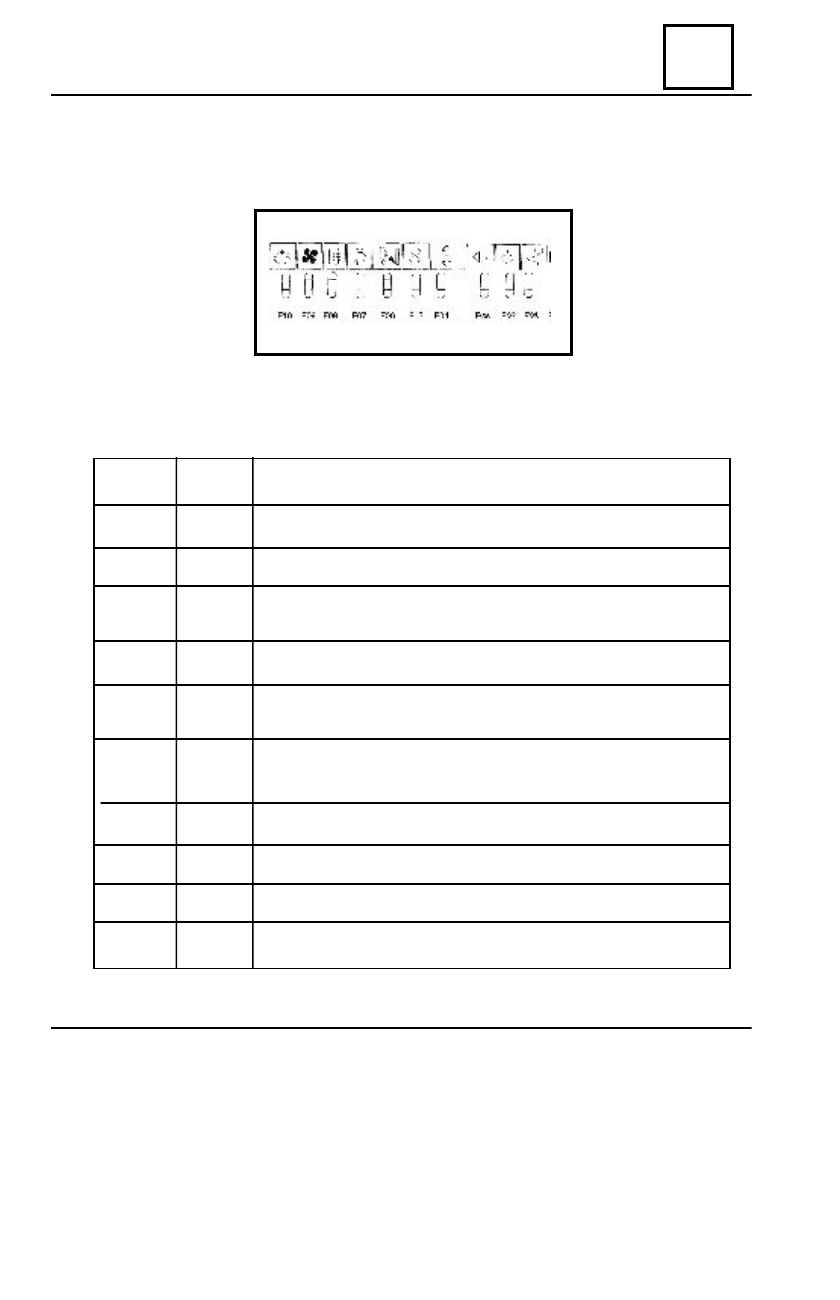

The fuses are protecting the following electric circuits:

FUSE

NUMBER

FUSE
TYPE

PROTECTED CIRCUIT

Clock, radio, STOP contact, climate blower relay control

Reverse driving contact

UCE decoder, speed transducer, instrument panel supply, diagnostic
socket, AC starting button, UCE anti intrusion

Turning and hazard lights

Front/rear parking lights, lighting: switches, instrument panel, climate
control, documents compartment, cigarette lighter, ashtray, radio

Cigarette lighter, instrument panel (anti-starting indicator), front right
ceiling lamp, UCE anti intrusion, anti intrusion indic

ator, diagnostic socket

Windscreen wiper-washing switch, windscreen wiper timer

Rear window defrosting

Climate blower

Left fog lamp

F01

F02

F03

F04

F05

F06

F07

F08

F09

F10

15A

  5A

15A

7,5A

  5A

15A

15A

20A

15A

  5A

COCKPIT FUSE BOX

REAR AND INTERIOR LIGHTING

81

81 - 8

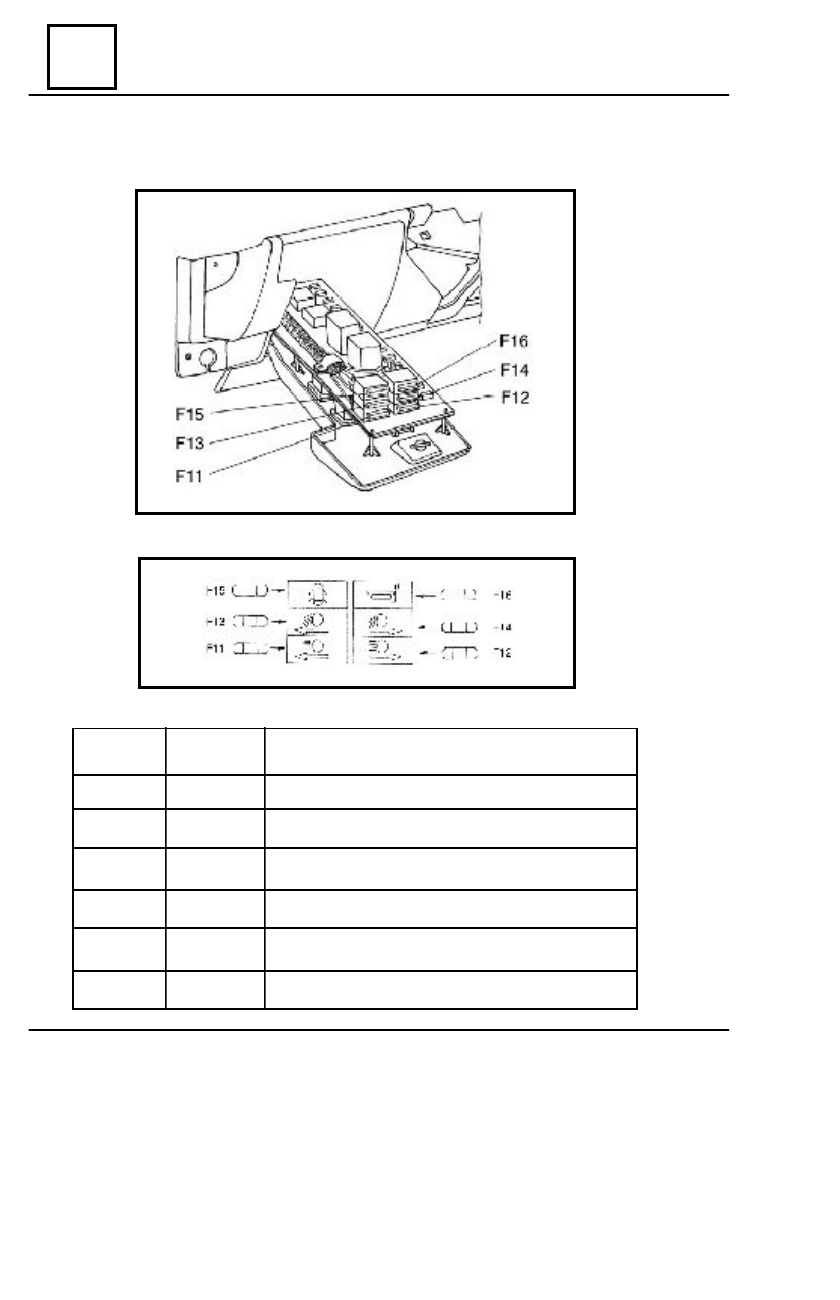

On the fuse box, 6 fuses modules  are attached, protecting the following consumers:

FUSE

NUMBER

FUSE
TYPE

PROTECTED CIRCUIT

Left high beam

Right high beam, high beam indicator

Left low beam

Right low beam, low beam indicator

UCE decoder, FLASH relay, anti starting bushing

Radio, windscreen wiper motor.

    10A

    10A

    10A

    10A

    15A

    10A

F11

F12

F13

F14

F15

F16

COCKPIT FUSE BOX

81

REAR AND INTERIOR LIGHTING

B. FOR VEHICLES MANUFACTURED AFTER 01.06.2001

AND VEHICLES RESPECTING EURO 2000 POLLUTION NORM

The fuses are protecting the following electric circuits:

FUSE

NUMBER

FUSE
TYPE

PROTECTED CIRCUIT

Clock, radio, STOP contact, climate blower relay control

Reverse driving contact

UCE decoder, speed transducer, instrument panel supply, diagnostic
socket, AC starting button, UCE anti intrusion.

Turning and hazard lights

Front/rear parking lights, lighting: switches, instrument panel, climate
control, documents compartment, cigarette lighter, ashtray, radio.

Cigarette lighter, clock, instrument panel (anti-starting indicator), front right
ceiling lamp, UCE anti intrusion, anti intrusion indicator, diagnostic socket.

UCE decoder, FLASH relay, anti starting bushing

Rear window defrosting

Climate blower

Left fog lamp

F01

F02

F03

F04

F05

F06

F07

F08

F09

F10

15A

  5A

15A

7,5A

  5A

15A

15A

20A

15A

  5A

81 - 9

COCKPIT FUSE BOX

REAR AND INTERIOR LIGHTING

81

81 - 10

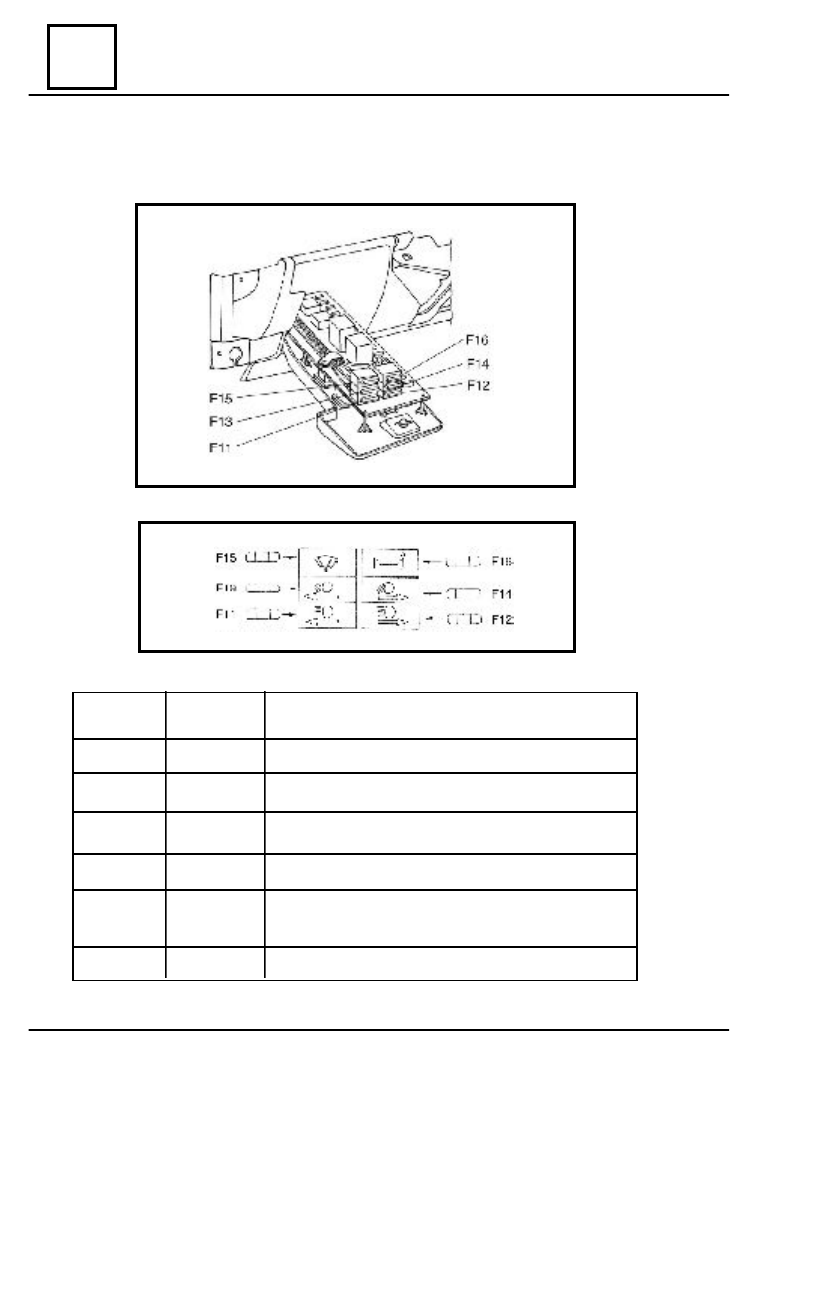

Pe cutia de siguran
e sunt fixate 6 module siguran
e fuzibile ce protejeazã urmãtorii consumatori:

FUSE

NUMBER

FUSE
TYPE

PROTECTED CIRCUIT

Left high beam

Right high beam, high beam indicator

Left low beam

Right low beam, low beam indicator

Windscreen wiper-washing switch, windscreen wiper
timer

Radio, windscreen wiper motor.

    10A

    10A

    10A

    10A

    15A

    10A

F11

F12

F13

F14

F15

F16

COCKPIT FUSE BOX
