Peugeot Boxer (2016 year). Manual - part 19

TECHNOLOGY

BOARD

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

Vehicle configuration

From the "Safety / Help" sub menu, you can:
-

select "Parkview Camera", then

"Reversing camera" to activate or

deactivate its use (On, Off),

select "Parkview Camera", then

"Camera delay" to activate or deactivate

the maintaining of the display for

10 seconds or up to 11 mph (18 km/h)

(On, Off),

- select "Traffic Sign" to activate or

deactivate its use (On, Off),

- select "Passenger airbag" to activate or

deactivate its use (On, Off).

From the "Lighting" sub-menu, you can:
-

select "Daytime running lamps" to

activate or deactivate their use (On, Off),

- select "Auto headlamp dipping" to

activate or deactivate its use (On, Off),

- select "Headlamp sensor" to adjust its

sensitivity (1, 2, 3).

From the "Doors & locking" sub-menu, you

can:
-

select "Autoclose" to activate or

deactivate its use (On, Off).

From the "Display" sub-menu, you can:
- select "Languages" and choose one of

the languages listed above,

- select "Units of measurement" to

choose the units for fuel consumption

(l/100 km, mpg), distance (miles, km)

and temperature (°C, °F),

- select "Display Trip B" to switch trip B

On or Off in the trip computer.

From the "Time and Date" sub-menu, you

can:
- select "Adjust time and format" to set the

hour, minutes and seconds and choose

the format (24 h, 12 h with am or pm),

- select "Adjust Date" to set the day,

month and year.

To set the time manually, "Synch Time"

must be Off.

Driving safely

boxer-post-it_en_Chap05_Securite_ed01-2015

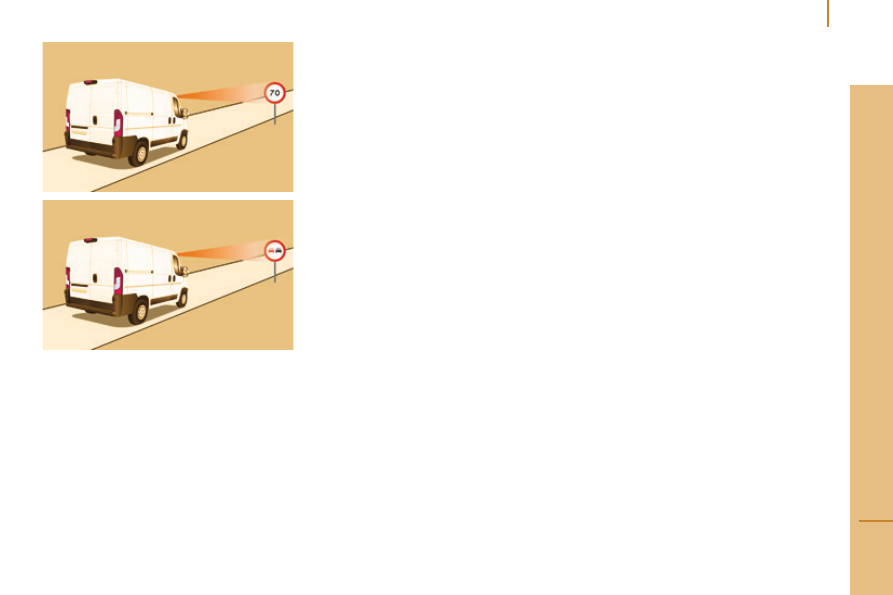

TRAFFIC SIGN RECOGNITION

This system is a driving aid that make

use of a camera located at the top of the

windscreen.
The camera detects the following types of

traffic signs and displays the corresponding

information in the instrument panel:
-

speed limits,

no overtaking.

The units for the speed limits (mph or

km/h) depend on the country you are

driving in.
It should be taken into account so that you

observe the speed limit.
For the system to operate correctly when

you change country, the units for speed in

the instrument panel must be those for the

country you are driving in.

The automatic reading of traffic signs is

a driving assistance system and does

not always display speed limits correctly.
The speed limit signs present on the road

always take priority over the display by the

system.
The system cannot in any circumstances

replace the need for vigilance on the part of

the driver.
The driver must observe the driving

regulations and must adapt the speed of the

vehicle to suit the weather and traffic.
It is possible for the system to not display

the speed limit if it does not detect a speed

limit sign within a preset period.
The system is designed to detect signs that

conform to the Vienna Convention on traffic

signs.

To maintain correct operation of the

system:

- Regularly clean the area in front of the

camera.

- Do not carry out any repairs to the area

of the windscreen close to the camera

lens.

When replacing headlamp bulbs, you

are strongly recommended to fit genuine

replacement parts.
The use of other bulbs could reduce the

performance of the system.

Driving safely

SAFETY

boxer-post-it_en_Chap05_Securite_ed01-2015

Display in the touch screen then in

the instrument panel

The display of traffic signs is done in the

following two phases:
- All new recognised traffic signs are

displayed in the touch screen in the form

of a popup for 40 seconds.

- These traffic signs are then displayed in

the instrument panel.

The system can display two traffic signs

(speed limit and no overtaking) in parallel in

the two dedicated zones of the instrument

panel.
If an additional traffic sign is detected, such

as one for a reduced speed limit when the

road is wet, this is displayed in an empty

window below the corresponding sign.

Additional traffic signs are filtered as follows:
- Signs related to snow or ice are

displayed only if the ambient

temperature is below 3°C.

- Signs related to snow, rain or fog are

displayed only if the wipers are on and

the ambient temperature is below 3°C.

- Signs related to heavy goods vehicles

are only displayed if they apply to

vehicles weighing less than 4 tonnes.

- Signs related to farm vehicles are not

displayed.

Principles

Using the camera located at the top of the

windscreen, this system detects and reads

speed limit and no overtaking traffic signs

and signs that indicate the end of these

restrictions.

Driving safely

boxer-post-it_en_Chap05_Securite_ed01-2015

Activation / Deactivation

The function is set with the

MODE button;

in the "Traffic Sign" menu, select "ON" or

"OFF".

Operating limits

The legislation on speed limits is specific to

each country.
The system does not take account of

reduced speed limits in the following cases:
-

poor weather (rain, snow),

atmospheric pollution,

trailer, caravan,

- driving with snow chains fitted,
- driving with a non-genuine suspension

kit,

- puncture repair using the temporary

repair kit,

young drivers,

...

The system may suffer interference

or not work at all in the following

situations:
-

poor visibility (dazzling sun, inadequate

street lighting, falling snow, heavy rain,

dense fog, vehicle too far from the traffic

sign),

- low temperatures and particularly severe

climatic conditions,

- windscreen area ahead of the camera

dirty, misty, frosty, covered with snow,

damaged or masked by a sticker,

fault with the camera,

obsolete or incorrect mapping,

- hidden road signs (other vehicles,

vegetation, snow),

- traffic signs that do not conform to the

standard, are damaged or distorted,

- variation of load, placing the camera at a

large angle (the system may not work for

a moment while the camera recalibrates

itself).

Refer to the "Technology on board -

Vehicle configuration" section.

AN. 15BOX.T040
