 This information completes or cancels and replaces the information in the handbook.

 First refer to the handbook for your vehicle.

3. EASE OF USE

and COMFORT

5. SAFETY

Adaptive lighting

4

Traffi c sign recognition  12

4. TECHNOLOGY

on BOARD

Vehicle confi guration

6

2. READY TO GO

Instrument panels

1

Battery standby system

3

1

2

READY

 T

O GO

boxer-post-it_en_Chap02_Pret-a-Partir_ed01-2015

   Instruments  and  controls

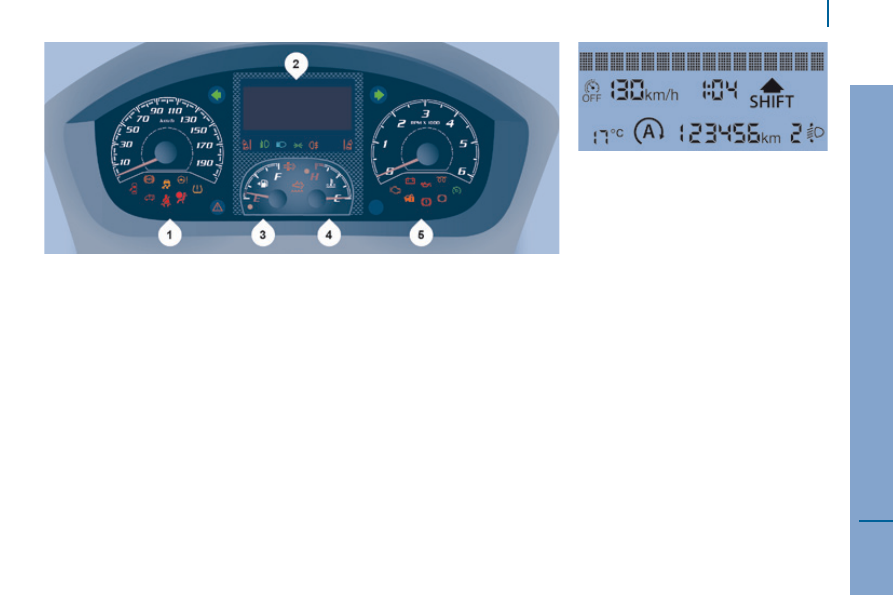

1.   Speedometer (mph or km/h).
2.   Display  screen.
3.   Fuel  gauge.
4.   Coolant  temperature.
5.   Rev counter (rpm or tr/min x 1000).

INSTRUMENT PANELS

Level 1 display screen

  In the lower part:
   -

Time,

  -

Ambient  temperature,

  -

Miles  /  kilometres  travelled,

  -

Trip  computer  (range,  fuel

consumption...),

  -

Headlamp  beam  height,

  -

Programmable  overspeed  warning,

  -   Cruise control or speed limiter,
  -

Gear  shift  indicator,

  -

Stop  &  Start.

  In the upper part:
   -

Date,

  -

Service  indicator,

  -

Alert  messages,

  -

System  status  messages,

  -

Vehicle  configuration.

Instrument panel / Level 1 display screen

2

boxer-post-it_en_Chap02_Pret-a-Partir_ed01-2015

   Instruments  and  controls

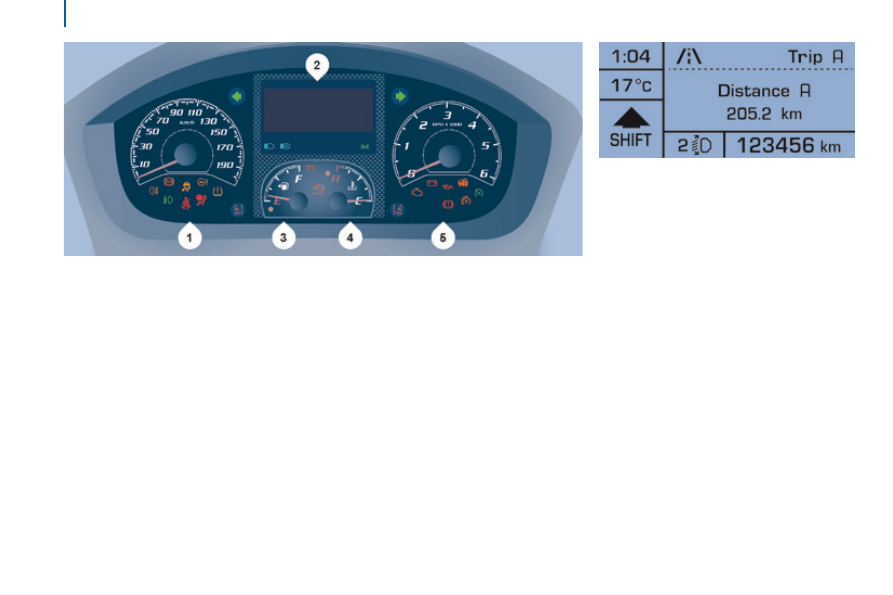

Level 2 display screen

  In the left-hand part:
   -

Time,

  -

Ambient  temperature,

  -

Alert  or  state  indicators,

  -

Cruise  control  or  speed  limiter.

  In the right-hand part:
   -

Date,

  -

Service  indicator,

  -

Trip  computer  (range,  fuel

consumption...),

  -

Alert  messages,

  -   Messages on the state of systems,
  -

Vehicle  configuration,

  -

Headlamp  beam  height,

  -

Miles  /  kilometres  travelled.

Instrument panel / Level 2 display screen

3

2

READY

 T

O GO

boxer-post-it_en_Chap02_Pret-a-Partir_ed01-2015

   Starting  and  switching  off

boxer-post-it_en_Chap02_Pret-a-Partir_ed01-2015

BATTERY STANDBY SYSTEM

  If the vehicle is not to be used for a

prolonged period, such as for winter storage,

for example, it is strongly recommended that

the battery be placed on standby in order to

protect it and optimise its service life.

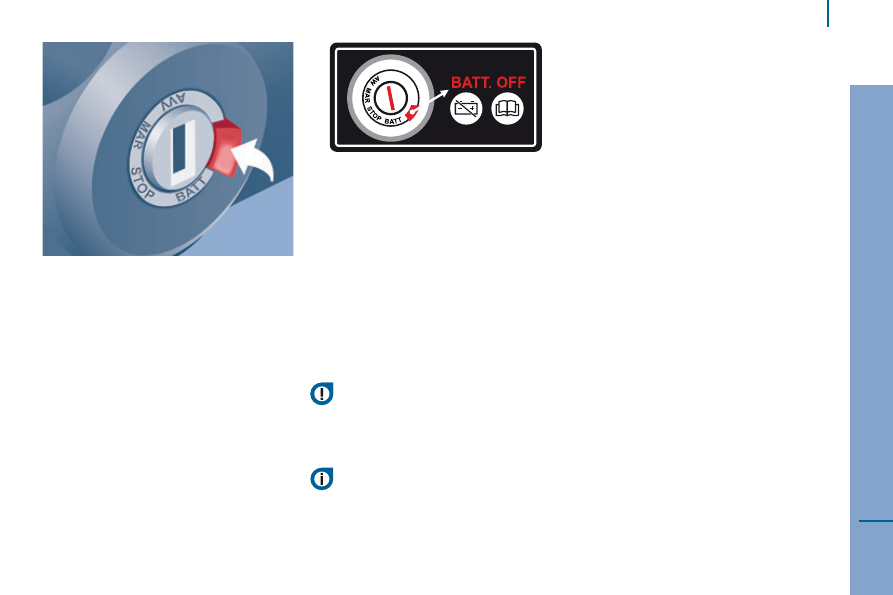

  To place the battery on standby:
   -

Switch  off  the  engine  (

STOP   position).

  -   Press the red button, then turn the key

to the

BATT   position.

 The battery goes into standby about

7 minutes later.
 This time is necessary to:
   -   Allow the user to get out of the vehicle

and lock the doors with the remote

control.

  -   Ensure that all of the vehicle's electrical

systems are deactivated.

 When the battery is on standby,

access to the vehicle is only possible

by unlocking the vehicle using the key in the

lock barrel in the driver's door.

 After placing the battery on standby,

settings (time, date, radio station

presets...) are memorised.

  To take the battery out of standby:
   -   Turn the key to the

MAR   position.

  -   Start the engine normally (

AVV   position).

   Steering  mounted  controls

boxer-post-it_en_Chap03_Ergo-et-confort_ed01-2015

ADAPTIVE LIGHTING

  System which automatically changes to main

beam according to the ambient light level

and the driving conditions, using a camera

located at the top of the windscreen

  This system is a driving aid.
 The driver remains responsible for

the vehicle's lighting, its correct use for the

prevailing conditions of light, visibility and

traffic and observation of driving and vehicle

regulations.

5

3

EASE OF USE

and

 COMFORT

   Steering  mounted  controls

boxer-post-it_en_Chap03_Ergo-et-confort_ed01-2015

  Activation

  Operation
 Once the function is activated, the system

operates as follows:
 If the ambient light level is sufficient and/or if

the traffic conditions do not allow illumination

of the main beam headlamps:

 Refer to the "Technology on board -

Vehicle configuration" section.



Flash the headlamps (going beyond the

point of resistance) to activate the function.

  If the situation requires a change of

headlamp beam, the driver can take over at

any time.


   Flashing the headlamps again pauses

the function and the system changes to

"automatic illumination of headlamps"

mode.

 The function is deactivated automatically

below 9 mph (15 km/h).
 If main beam is still needed, flash the

headlamps again; main beam will then

remain on until the vehicle reaches a speed

of 25 mph (40 km/h).
 Above 25 mph (40 km/h), the function is

reactivated automatically (provided that the

headlamps have not been flashed again in

the meantime, to change to dipped beam).

  Deactivation


   Turn the lighting control stalk ring to the

"

Dipped beam "  position.

  The system may suffer interference or

not work correctly:
   -

Under  conditions  of  poor  visibility

(falling snow, heavy rain or dense

fog, ...),

  -   If the windscreen is dirty, misted or

obscured (by a sticker, ...) in front

of the camera,

  -   If the vehicle is facing highly

reflective  signs.

  The system is not able to detect:
   -   Road users that do not have their

own lighting, such as pedestrians,

  -

Vehicles  whose  lighting  is

obscured, such as when running

behind a safety barrier on a

motorway, for example,

  -   Vehicles at the top or bottom of a

steep slope, on winding roads, on

crossroads.

   -

Dipped  beam  is  maintained,

this indicator lamp comes on

in the instrument panel.

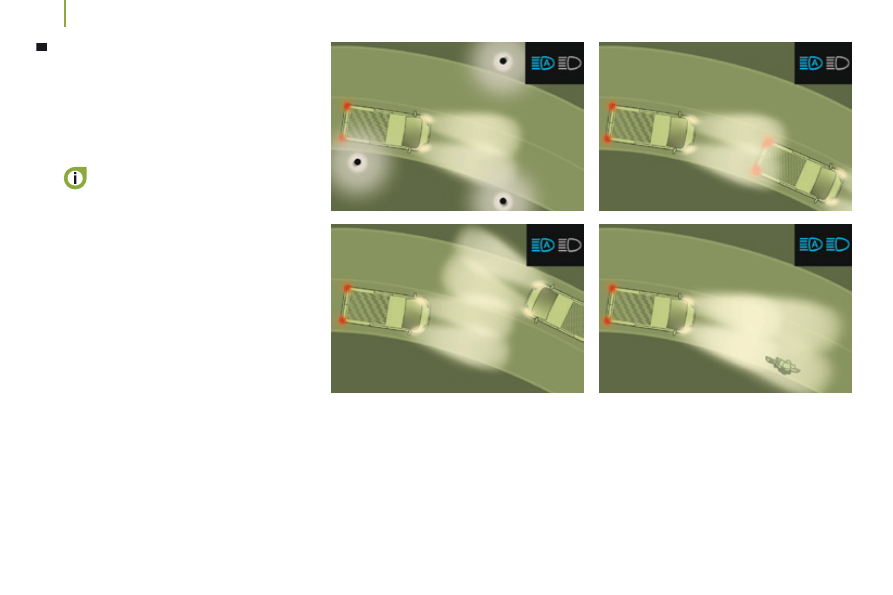

 If the ambient light level is very low and the

traffic conditions permit:

   -

Main  beam  comes  on

automatically: these

indicator lamps come

on in the instrument

panel.



   Turn the lighting control stalk

ring to this position.



   Activate the function with the

MODE

button; in the "Automatic headlamp

dipping" menu, select "ON".

 6

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

   Vehicle  configuration

PERSONALISATION - CONFIGURATION

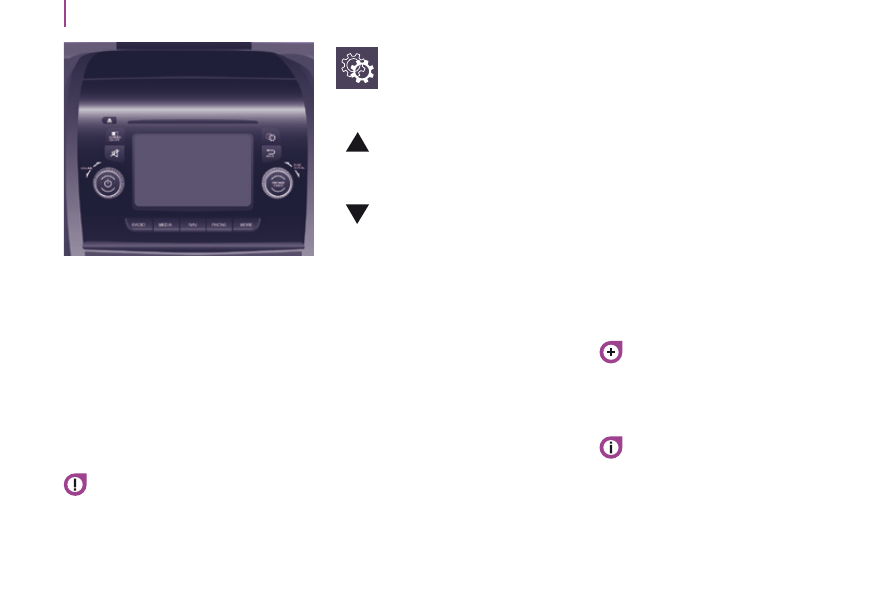

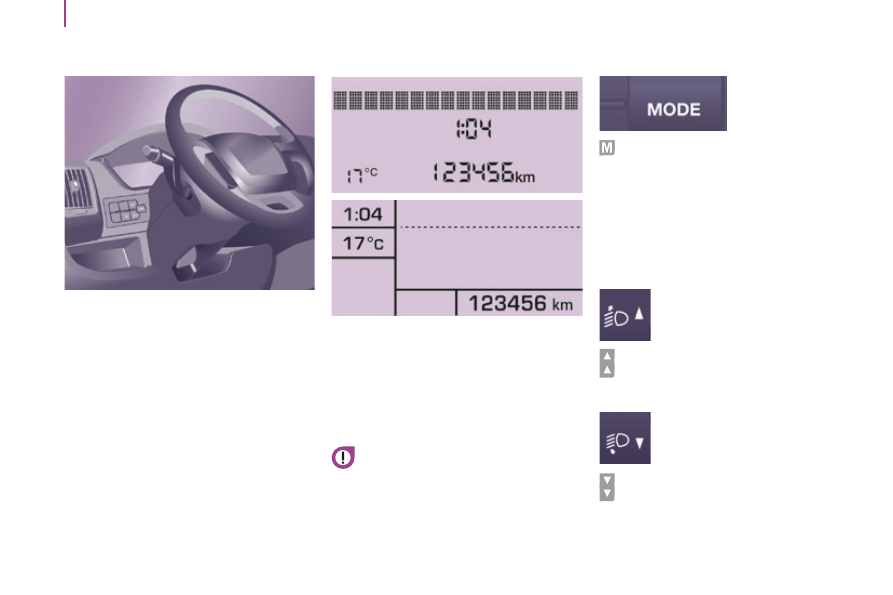

  Using the MODE control panel

 This control panel located alongside the

steering wheel provides access to menus for

the personalisation of some of the vehicle

systems.
 The corresponding information appears in

the instrument panel screen.
 Eleven languages are offered: Brazilian,

Dutch, English, French, German, Italian,

Polish, Portuguese, Russian, Spanish and

Turkish.

  You have access to all the menus if your

vehicle is fitted with an audio system.
 If your vehicle is fitted with a touch screen

audio system, certain menus are only

accessible using the audio system control

panel.

   -

scroll  down  through  a  menu,

  -

decrease  a  value.

This MODE button enables you to:
   -

access  the  menus  and  sub-menus,

  -   confirm your selections, within a

menu,

  -

quit  the  menus.

 A long press takes you back to the

home  screen.

This button enables you to:

This button enables you to:

   -

scroll  up  through  a  menu,

  -

increase  a  value.

   As a safety measure, some menus can

only be accessed when the ignition is

off.

 7

4

TECHNOLOGY

 on

 BOARD

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

   Vehicle  configuration

Menu...

Press...

Sub-menu…

Press...

Select…

Confirm

and quit

Enables you to...

1 Speed

beep

 ON

 Increase

 Activate / Deactivate the audible

signal indicating exceeding of

the programmed speed and

select the speed.

 Decrease

 OFF

2 Headlamp

sensor

 Increase

 Set the sensitivity of the

sunshine sensor (1 to 3).

 Decrease

3 Activation

Trip B

 Activate

 Display a second distance

"Trip B".

 Deactivate

4 Traffic Sign

 Activate

 Activate / Deactivate the reading

of traffic signs.

 Deactivate

5 Setting the

time

 Hours/Minutes

 Increase

 Set the clock.

 Decrease

 Time  format

 24

 Select the clock display mode.

 12

6 Setting the

date

 Year/Month/

Day

 Activate

 Set the date.

 Deactivate

7 Autoclose

 While  moving

 ON

 Activate / Deactivate automatic

door locking above approx

12 mph (20 km/h)

 OFF

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

   Vehicle  configuration

Menu…

Press...

Sub-menu…

Press...

Select…

Confirm

and quit

Enables you to...

8 Measurement

unit (Unit)

 Distance

 Km

 Select the distance display unit.

 Miles

 Fuel

consumption

 km/l

 Select the fuel consumption

display unit.

 l/100  km

 Temperature

 °C

 Select the temperature display

unit.

 °F

9 Languages

 List  of

languages

available

 Select the display language.

10 Volume of

announcements

(Buzz)

 Increase

 Increase / Decrease the volume

of the announcements or of the

audible warning.

 Decrease

11 Service

 Service  (Miles/

km before

service)

 Display the miles/kilometres

remaining before the next

service.

 Oil  (Miles/

Km before oil

change)

 Display the miles/kilometres to

the next oil change

 9

4

TECHNOLOGY

 on

 BOARD

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

   Vehicle  configuration

Menu…

Press...

Sub-menu...

Press...

Select...

Confirm

and quit

Allows you to...

12 Daytime

running lamps

 ON

 Activate / Deactivate daytime

running lamps.

 OFF

13 Automatic

headlamp

dipping

 ON

 Activate / Deactivate automatic

headlamp dipping.

 OFF

14 Passenger

airbag

(BAG P)

 ON

 Yes

 Activate the passenger airbag.

 No

 OFF

 Yes

 Deactivate the passenger

airbag.

 No

15 Quit menu

 Quit the menu.
 Press the arrow at the bottom to

go to the first menu.

 10

boxer-post-it_en_Chap04_Technologie-a-bord_ed01-2015

   Vehicle  configuration

Using the touch screen audio

system

 This audio system control panel, located in

the middle of the dashboard, gives access to

personalisation menus for certain systems.
 The corresponding information appears in

the touch screen.
 Nine languages are offered: Dutch, English,

French, German, Italian, Polish, Portuguese,

Spanish and Turkish.

  As a safety precaution, some menus

can only be accessed when the ignition

is  off.

  This control panel button gives

access to the "Settings" menu.

  "Settings"  menu
1.   "Display".
2.   "Voice  commands".
3.   "Time and Date".
4.   "Safety / Help".
5.   "Lighting".
6.   "Doors & locking".
7.   "Audio".
8.   "Telephone / Bluetooth".
9.   "Radio  settings".
10.  "Restore Settings" to return to factory

settings.

11.   "Del. pers. data" to delete all of your

personal data, related to the Bluetooth

equipment in the audio system.

 This button in the screen allows

you to go up a level in a menu or

increase a value.

 This button in the screen allows

you to go down a level in a menu

or decrease a value.

 For more information on the audio system,

the telephone, the radio and the navigation

system, the sub-menus

2 ,   7 ,   8 ,   9   and

11  are described in detail in the "Audio

equipment and telematics" section.

 The settings for sub-menus

4 ,   5

and

6  vary according to the equipment

installed on the vehicle.
