Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

Saloon

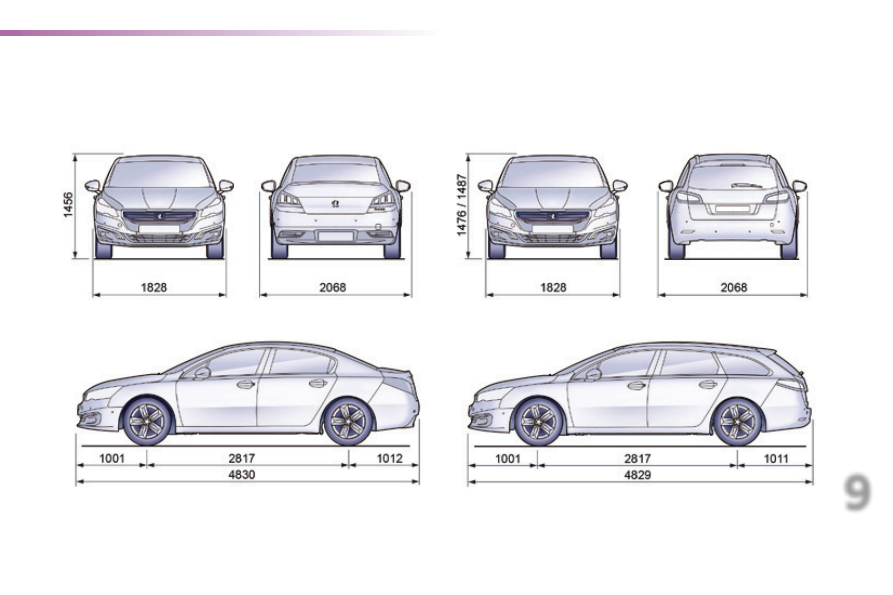

Dimensions (in mm)

272

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

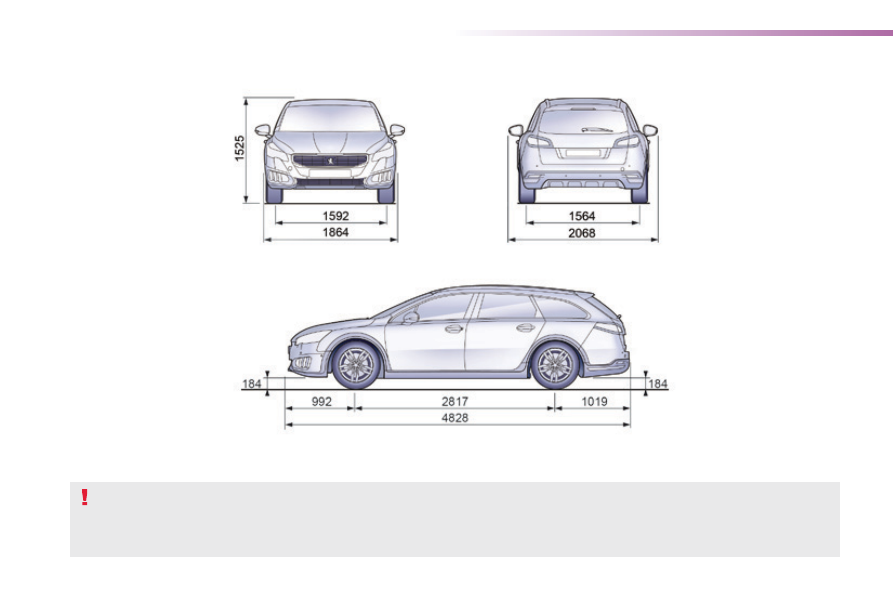

Non-hybrid RXH

Be aware of the ground clearance of your vehicle: around 184 mm (with the vehicle in working order: driver only and the fuel tank full) in ideal
conditions.
this value will vary with vehicle load, the nature of the ground surface and the surroundings.
If the driver considers that the vehicle can traverse an obstacle, they assume entire responsibility for this.

273

Technical data

508_en_Chap09_caracteristiques-techniques_ed01-2016

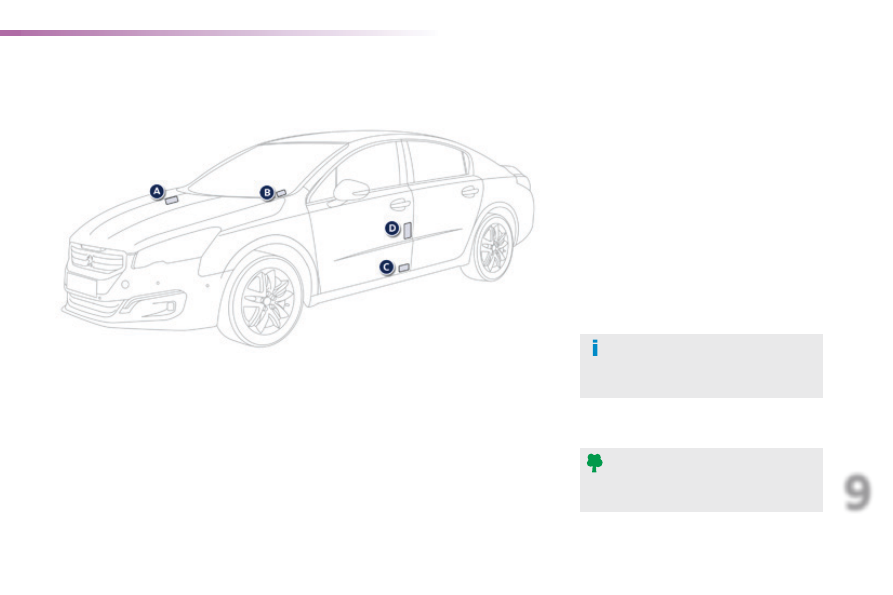

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle Identification Number (VIN)

under the bonnet.

this number is engraved on the bodywork
near the damper mounting.

the tyre pressures must be checked
when the tyres are cold, at least once
a month.

Low tyre pressures increase fuel
consumption.

B. Vehicle identification Number (VIN) on

the windscreen lower crossmember.

this number is given on a self-adhesive
label which is visible through the
windscreen.

C. Manufacturer's label.

the VIN is marked on a self-destroying
label affixed to the door aperture, on the
driver's side.

D. Tyre/paint label.

this label is fitted to the middle pillar, on
the driver's side.

It bears the following information:
-

the tyre inflation pressures with and without
load,

the tyre sizes,

the inflation pressure of the spare wheel,

the paint colour code.

274

Audio and Telematics

508_en_Chap10a_BtA_ed01-2016

emergency or assistance call

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

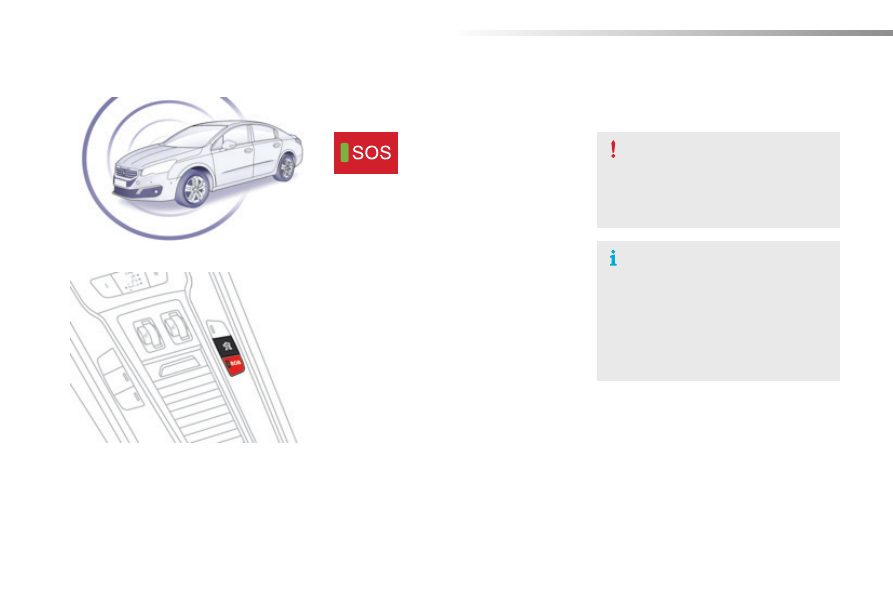

PEUGEOT Connect SOS

In an emergency, press this
button for more than 2 seconds.
Flashing of the green LeD and
a voice message confirm that
the call has been made to the
"PeugeOt Connect SOS" call
centre*.

Pressing this button again immediately cancels
the request.
the green LeD goes off.
Pressing this button for more than 8 seconds
cancels the request at any time.

the green LeD remains on (without flashing)
when communication is established.
It goes off at the end of the call.

"PeugeOt Connect SOS" immediately locates
your vehicle, starts communication with you in
your language**, and where necessary sends
the appropriate public emergency services**. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location.

** Depending on the geographical cover of

"PeugeOt Connect SOS", "PeugeOt
Connect Assistance" and the official national
language selected by the owner of the vehicle.
the list of countries covered and PeugeOt
CONNeCt services is available from dealers
or at www.peugeot.co.uk.

* Subject to the general conditions for the

service available from dealers and to
technological and technical limitations.

If you benefit from the PeugeOt
Connect Packs offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyPeugeOt personal space,
via the PeugeOt Internet website in
your country, accessible on
www.peugeot.co.uk.

275

Audio and Telematics

508_en_Chap10a_BtA_ed01-2016

PEUGEOT Connect Assistance

If you purchased your vehicle outside
the PeugeOt dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons and in particular
to improve the quality of "PeugeOt
CONNeCt services" services to
customers, the manufacturer reserves
the right to carry out updates to the
vehicle's on-board telematic system.

A fault with the system does not
prevent the vehicle being driven.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.

Pressing this button again immediately cancels
the request.
the cancellation is confirmed by a voice
message.

the orange LeD is on continuously: the backup
battery must be replaced.
In either case, the emergency and assistance
calls may not function.
Contact a qualified repairer as soon as
possible.

Operation of the system

When the ignition is switched
on, the green LeD comes on for
3 seconds indicating that the
system is operating correctly.

If the orange LeD flashes then
goes off: there is a system fault.

** Depending on the geographical cover of

276

Audio and Telematics

508_en_Chap10b_JBL_ed01-2016

JBL eQuIPMeNt

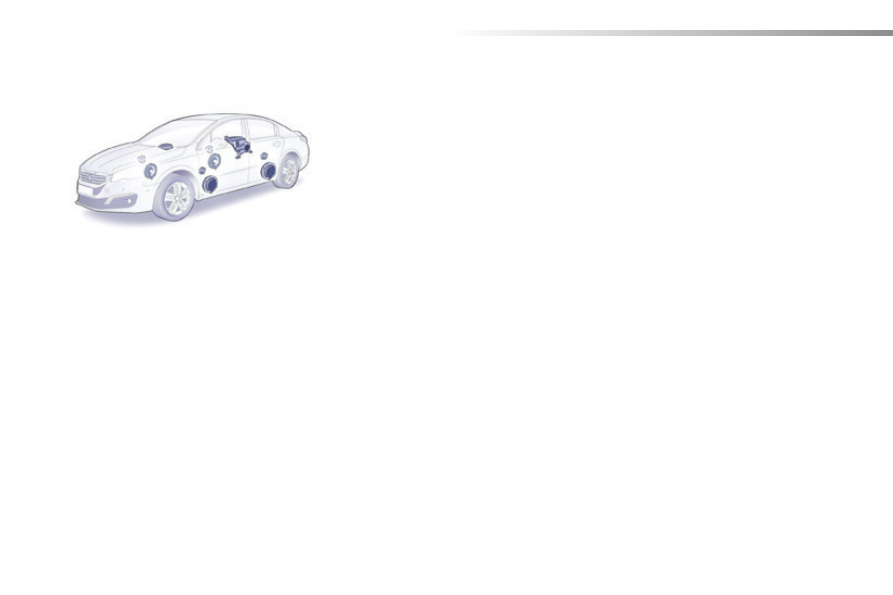

the Hi-Fi system is a 5.1 system developed by
PeugeOt in conjunction with JBL.

4 two-way speaker kits, separated by an active
filter, are fitted at front and rear.
these are based on a fabric dome tweeter
delivering stable and balanced treble
reproduction and a 50W RMS neodymium
magnet inverted motor medium-woofer
possessing a very high output of bass
frequencies.
the central acoustic path in the dashboard
improves reproduction of the musical
scene, putting the listener in a situation that
realistically reproduces the original musical
recording.
the bass unit located in the boot carries a
150W triple-coil true subwoofer in an optimised
space, giving depth and impact to the bass
ranges.
this set of speakers is controlled by a 10-way
500W RMS 2 ohm amplifier, using advanced
surround sound and sound distribution
handling, so as to deliver optimum performance
both for the driver and for the passengers in the
vehicle.

Audio and Telematics

277

508_en_Chap10c_SMegplus_ed01-2016

7-inch touch screen

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

278

Steering mounted controls

280

Menus 281
Media 282
Radio 288
DAB (Digital Audio Broadcasting) radio

290

Music 292
Navigation 296
Navigation - guidance

telephone 320
Frequently asked questions

328

the system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
the display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

Audio and Telematics

278

508_en_Chap10c_SMegplus_ed01-2016

First steps

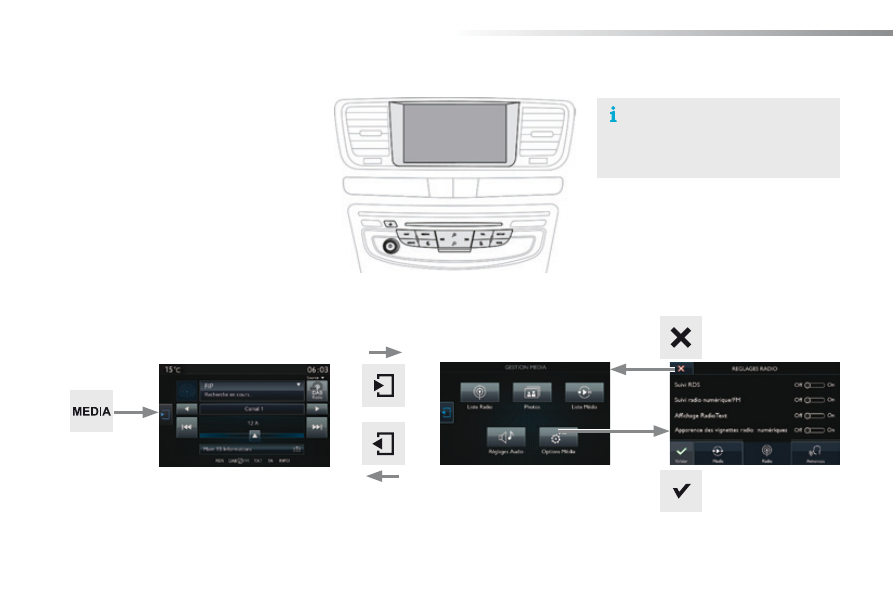

use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.

Audio and Telematics

279

508_en_Chap10c_SMegplus_ed01-2016

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including traffic
announcements (tA) and navigation
instructions).

Selecting the audio source (depending on
version):
-

"FM" / "DAB"* / "AM"* radio wavebands.

"uSB" memory stick.

CD player in the facade.

telephone connected by Bluetooth* and by
Bluetooth* audio streaming.

Media player connected to the auxiliary
socket (jack, cable not supplied).

* Depending on equipment.

Shortcuts: using virtual buttons in the top
band of the touch screen, it is possible to go
directly to the choice of audio source, the list of
stations (or titles depending on the source) or
to temperature adjustment.

the screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
the screen can be used when wearing
gloves. this technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. the
return to normal takes place when
the temperature in the passenger
compartment drops.

to clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

Audio and Telematics

280

508_en_Chap10c_SMegplus_ed01-2016

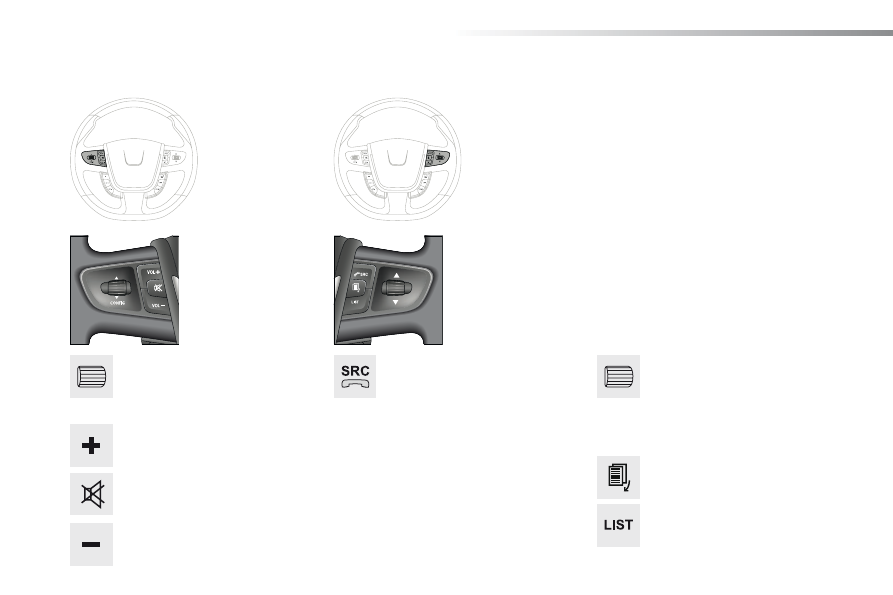

Steering mounted controls

Press: open the instrument panel
screen menu.
Rotate: navigate in the instrument
panel screen menu.

Increase volume.

Reduce volume.

Media: change the multimedia
source.
telephone: start call.
Call in progress: open the telephone
men (end call, Secret mode, Hands-
free mode).
telephone, press and hold: reject an
incoming call, end a call; other than
call in progress, open the telephone
menu.

Radio, rotate: automatic search for
the previous / next station.
Media, rotate: previous / next track.
Press: confirm a selection.

Mute/ restore sound.

Display the carousel of menus.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

Audio and Telematics

281

508_en_Chap10c_SMegplus_ed01-2016

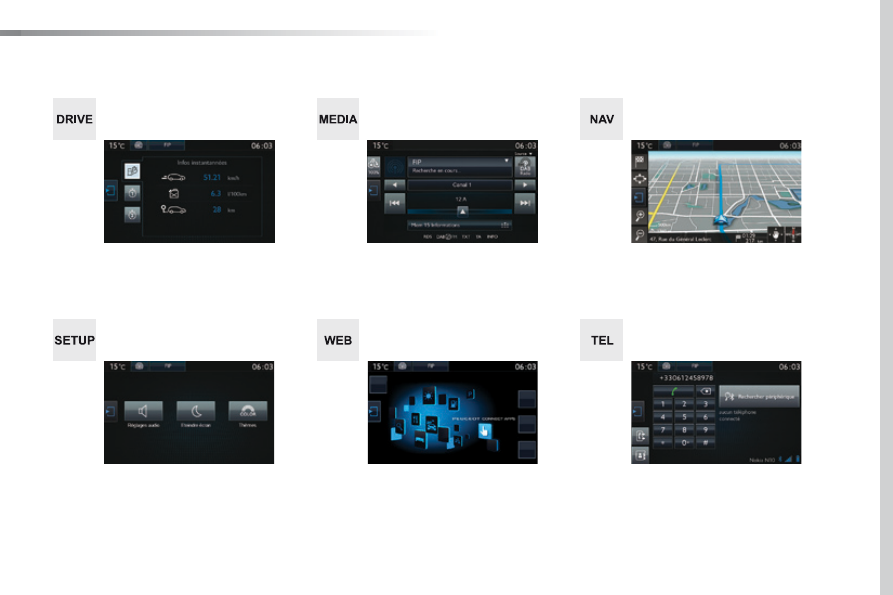

Menus

Media

Driving assistance

Navigation

Select an audio source, a radio station, display
photographs.

Access to the trip computer.
Activate, deactivate, adjust settings for certain
vehicle functions.

enter navigation settings and choose a
destination.

(Depending on equipment)

Configuration

Audio settings (balance, ambience...), color
scheme, brightness of the instruments, display
(language, units, time, ...).

Connected services

PeugeOt CONNeCt APPS
Connect to an applications portal to facilitate,
make safe and personalise journeys by means
of a connection key available on subscription
from a PeugeOt dealer.

(Depending on equipment)

Telephone

Connect a telephone by Bluetooth

Audio and Telematics

282

508_en_Chap10c_SMegplus_ed01-2016

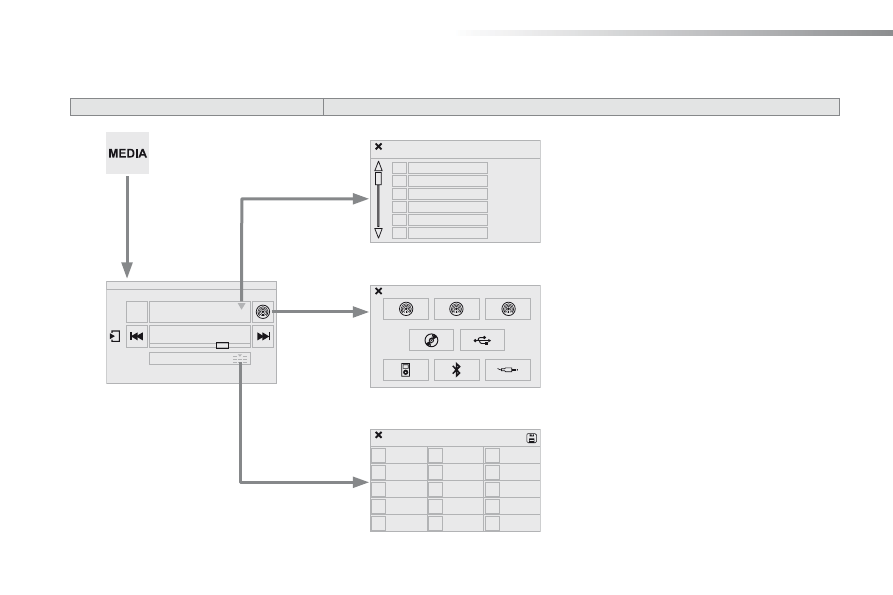

Media

Level 1

Level 2

List of FM stations

Save

"Media"

Primary page

Audio and Telematics

283

508_en_Chap10c_SMegplus_ed01-2016

Level 1

Level 2

Comments

Media

List

List of FM stations

Press on a radio station to select it.

Media

Source

FM Radio

Select change of source.

DAB Radio

AM Radio

USB

iPod

Bluetooth

AUX

Media

Save

Press on an empty location then on "Save".

Audio and Telematics

284

508_en_Chap10c_SMegplus_ed01-2016

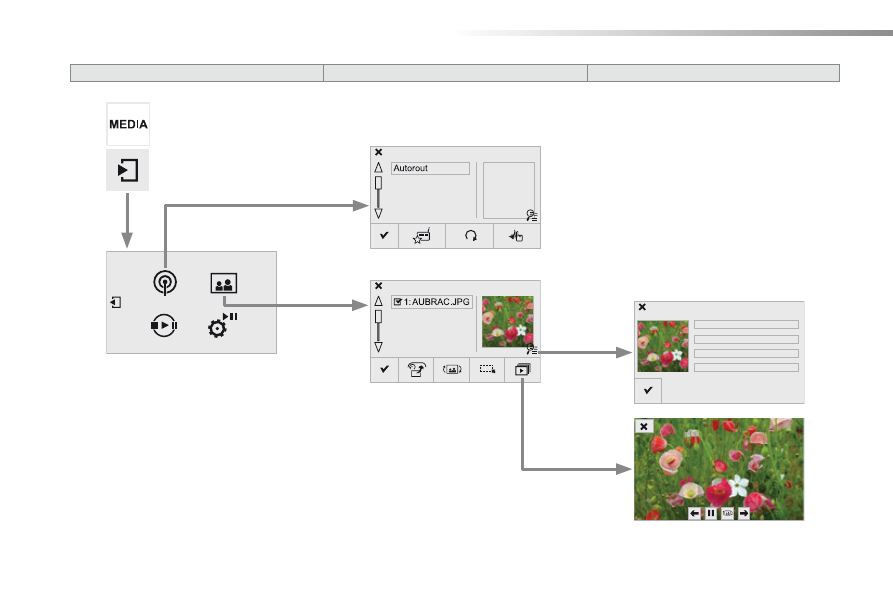

Level 1

Level 2

Level 3

Media

Photos

List of FM stations

"Media"

Secondary page

Audio and Telematics

285

508_en_Chap10c_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Media

Secondary page

Radio list

Save

Press on a radio station to select it.

Update list

update the list of stations received.

Frequency

enter the desired radio frequency.

Confirm

Save the settings.

Media

Secondary page

Photos

Page selection

Display the selected photo full screen.

Rotate

Rotate the photo 90°.

Select all

Select all the photos in the list.
Press again to deselect.

Slideshow

Previous photo.

Display the photos in sequence, full screen.

Pause / Play.

Next photo.

Confirm

Save the settings.

Audio and Telematics

286

508_en_Chap10c_SMegplus_ed01-2016

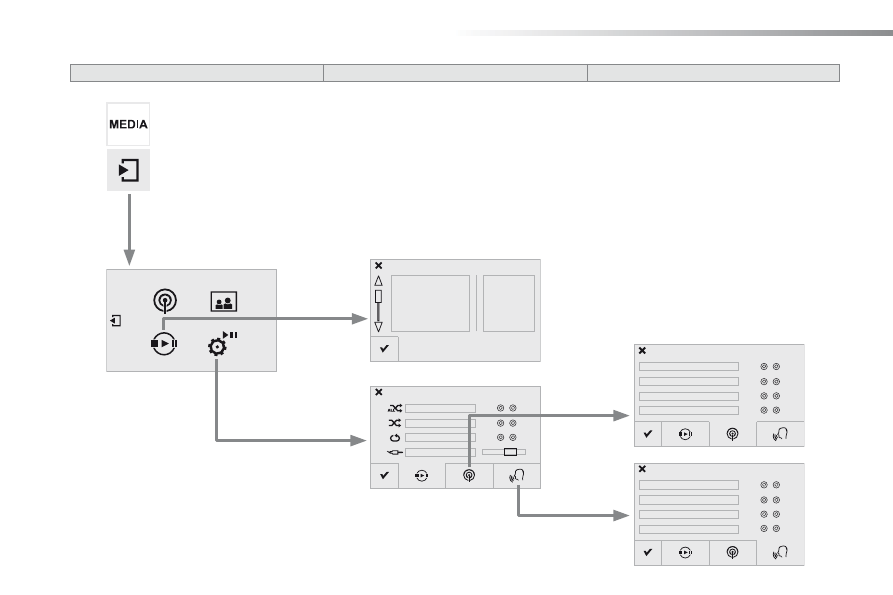

Level 1

Level 2

Level 3

Media

Settings

"Media"

Secondary page

Content .. 16 17 18 19 ..
