Lighting and visibility

508_en_Chap04_eclairage-et-visibilite_ed01-2016

Wiper controls

Programming

Various automatic wiper control modes are also
available according to the following options:
-

automatic rain sensitive windscreen wipers,

rear wiping on engaging reverse gear.

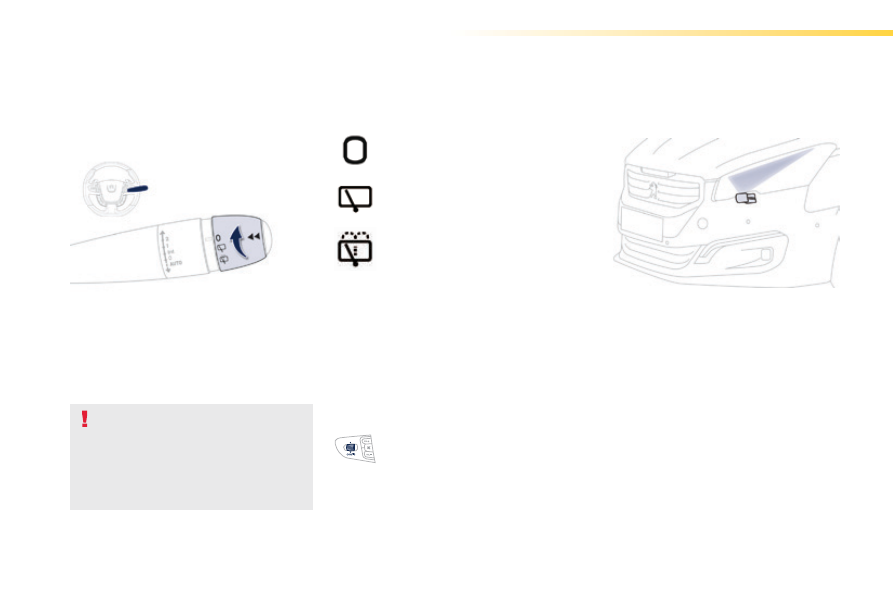

Manual controls

the wipers are controlled directly by the driver.

the vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.

Windscreen wipers

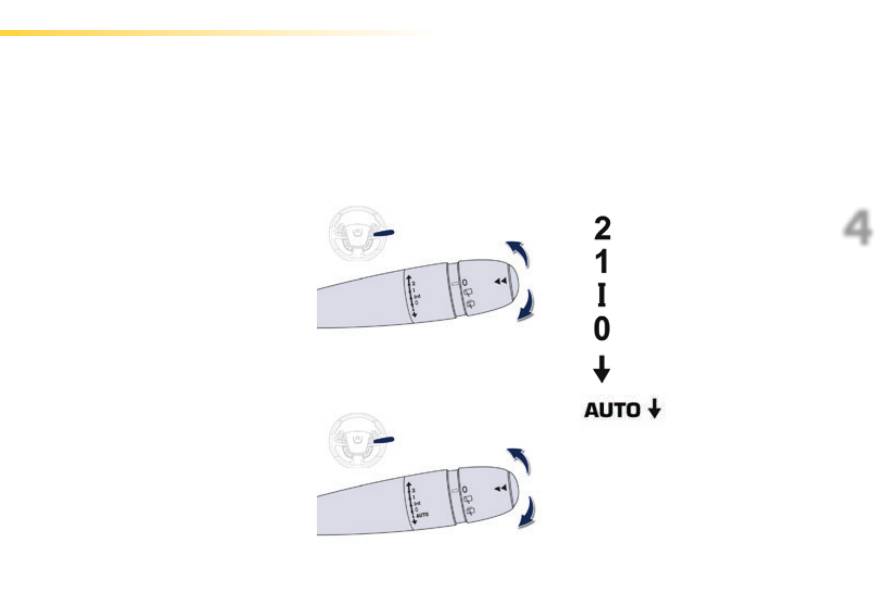

Wiping speed:

Model with manual wiping
(intermittent)

Model with AUTO wiping

fast (heavy rain),

normal (moderate rain),

intermittent (proportional to the
speed of the vehicle),

park,

single wipe (press down and
release),

automatic (press down and
release),
single wipe (pull the stalk
briefly towards you).

128

Lighting and visibility

508_en_Chap04_eclairage-et-visibilite_ed01-2016

Rear wiper

If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, deactivate the
automatic rear wiper via the instrument
panel screen configuration menu.

Rear wiper selection ring:

park,

intermittent wipe,

wash-wipe (set duration).

Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.

the function is activated or
deactivated via the instrument panel
screen configuration menu.
this function is activated by default.

Programming

F Pull the windscreen wiper stalk towards

you for a few seconds. the windscreen
wash then the windscreen wipers operate
for a fixed period.

the headlamp washers only operate when
the dipped beam headlamps are on and the
vehicle is moving.

Windscreen and headlamp
wash

129

Lighting and visibility

508_en_Chap04_eclairage-et-visibilite_ed01-2016

Screenwash/headlamp wash
level low

In the case of vehicles fitted with
headlamp washers, when the fluid
reservoir low level is reached this warning
lamp comes on in the instrument panel,
accompanied by an audible signal and a
message in the instrument panel screen.

Automatic rain sensitive
windscreen wipers

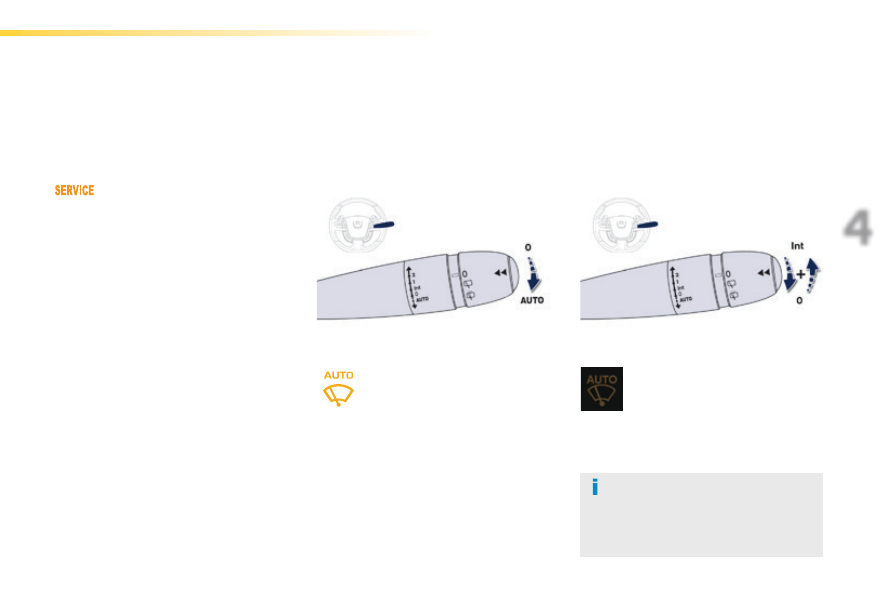

Switching on

Briefly push the control stalk
downwards.
A wiping cycle confirms that the
instruction has been accepted.
this warning lamp comes on in the
instrument panel and a message is
displayed.

Briefly push the control stalk
downwards again, or place the control
stalk in another position (Int, 1 or 2).
this warning lamp goes off in the
instrument panel and a message is
displayed.

Switching off

the automatic rain sensitive windscreen
wipers must be reactivated by pushing
the control stalk downwards, if the
ignition has been off for more than
one minute.

the windscreen wipers operate automatically, without any action on the part of the driver, if rain is
detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.

the warning lamp comes on when the ignition is
switched on, or every time the stalk is operated,
until the reservoir is refilled.
Next time you stop, refill the screenwash /
headlamp wash reservoir.

130

Lighting and visibility

508_en_Chap04_eclairage-et-visibilite_ed01-2016

Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.

Operating fault

If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by PeugeOt dealer or a
qualified workshop.

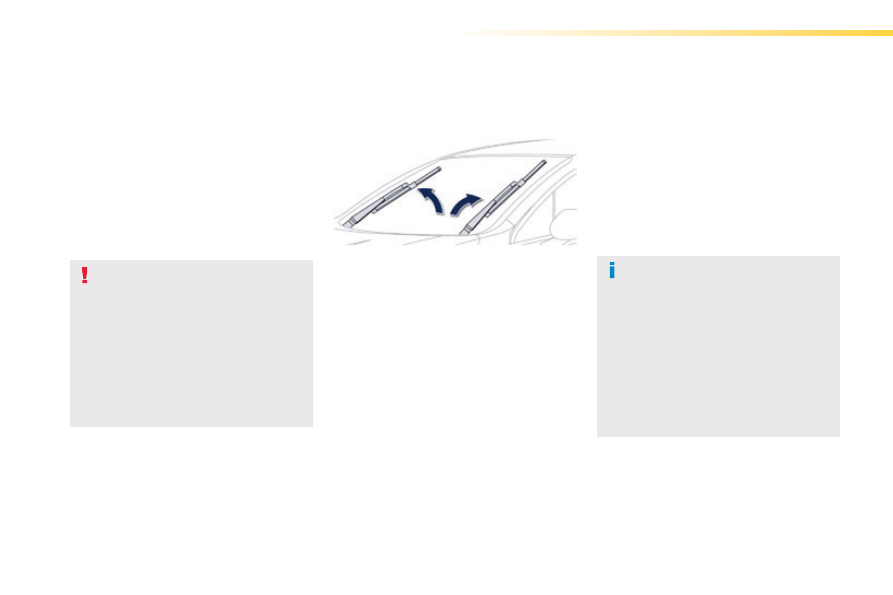

Special position of the
windscreen wipers

this position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
wiper blades. It can also be useful, in winter, to
release the wiper blades from the windscreen.

to maintain the effectiveness of the
wiper blades, it is advisable to:
-

handle them with care,

clean them regularly using soapy
water,

avoid using them to retain
cardboard on the windscreen,

replace them at the first signs of
wear.

F Any action on the wiper stalk within one

minute after switching off the ignition,
places the wiper blades vertically on the
screen.

F to park the wiper blades again, switch on

the ignition and operate the wiper stalk.

131

Safety

508_en_Chap05_securite_ed01-2016

Labels are applied at various
points on your vehicle. they carry
safety warnings as well as vehicle
identification information. Do not
remove them: they form an integral part
of your vehicle.

For any work on your vehicle, use
a qualified workshop that has the
technical information, skills and
equipment required, all of which a
PeugeOt dealer is able to provide.

We draw your attention to the following
points:
-

the fitting of electrical equipment
or accessories not listed by
PeugeOt may cause faults and
failures with the electrical system of
your vehicle. Contact a PeugeOt
dealer for information on the range
of recommended accessories.

As a safety measure, access to
the diagnostic socket, used for
the vehicle's electronic systems,
is reserved strictly for PeugeOt
dealers or qualified workshops,
equipped with the special
diagnostic tool required (risk
of malfunctions of the vehicle's
electronic systems that could cause
breakdowns or serious accidents).
the manufacturer cannot be held
responsible if this advice is not
followed.

Any modification or adaptation
not intended or authorised by
Automobiles PeugeOt or
carried out without meeting the
technical requirements defined
by the manufacturer would lead
to the suspension of the legal and
contractual warranties.

Installation of accessory
radio communication
transmitters

Before installing a radio communication
transmitter, you must contact a
PeugeOt dealer for the specification
of transmitters which can be fitted
(frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
electromagnetic Compatibility Directive
(2004/104/eC).

Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
the fitting of electrical equipment
or accessories which are not
recommended by PeugeOt may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Contact a PeugeOt dealer
for information on the range of
recommended equipment and
accessories.

general safety recommendations

132

Safety

508_en_Chap05_securite_ed01-2016

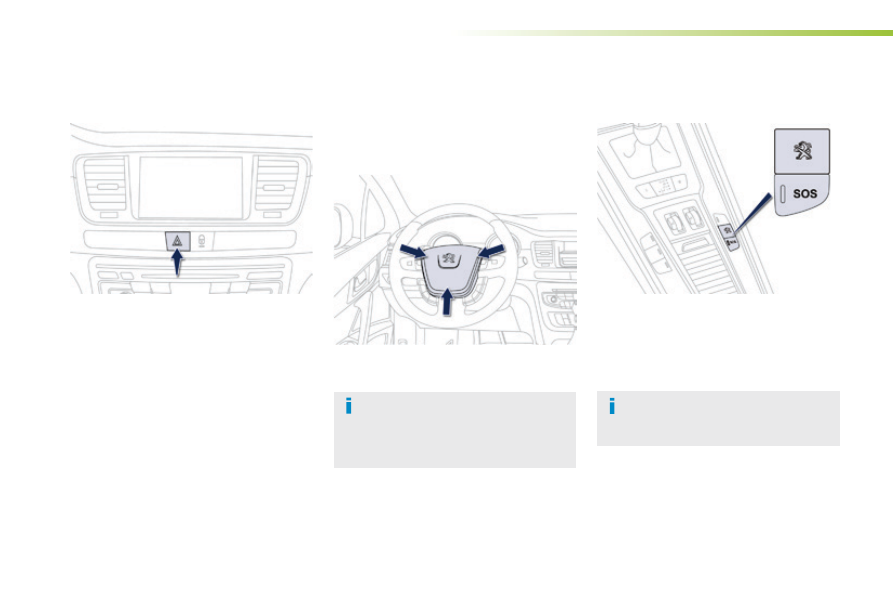

Hazard warning lamps

Press the button, all of the direction indicators
start flashing.
they can operate with the ignition off.

Automatic operation of
hazard warning lamps

When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
they switch off automatically the first time you
accelerate.
F You can also switch them off by pressing

the button.

Horn

F Press the central part of the multifunction

steering wheel.

Audible warning system to alert other road
users to an imminent danger.

use the horn moderately and only in
the circumstances allowed by the traffic
regulations in the country in which you
are driving.

emergency or
assistance call

this system allows you to make an emergency
or assistance call to the emergency services or
to the dedicated PeugeOt service.

For more information on the use of this
function, refer to the "Audio equipment
and telematics" section.

133

Safety

508_en_Chap05_securite_ed01-2016

electronic stability control (eSC) incorporating
the following systems:
-

anti-lock braking system (ABS) and
electronic brake force distribution (eBFD),

emergency braking assistance (eBA),

wheel anti-slip regulation (ASR) or traction
control,

dynamic stability control (DSC).

electronic stability control (eSC)

Definitions

Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)

this system improves the stability and
manoeuvrability of your vehicle when braking
and contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
the ABS prevents wheel lock in the event of
emergency braking.
the eBFD manages the braking pressure
wheel by wheel.

Emergency braking assistance
(EBA)

In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.
It is triggered according to the speed at which
the brake pedal is pressed. this is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.

Anti-slip regulation (ASR)

the ASR system (also known as traction
Control) optimises traction in order to limit
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.

Dynamic stability control (DSC)

If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.

134

Safety

508_en_Chap05_securite_ed01-2016

Snow driving assistance
(Intelligent Traction Control)

Your vehicle has a system to help driving on
snow: Intelligent Traction Control.
this automatic system continuously checks
for situations of difficult surface adhesion that
could make it difficult to move off or make
progress on deep fresh snow or compacted
snow.
In these situations, Intelligent Traction
Control limits the amount of wheel slip to
provide the best traction and trajectory control.
In extremely severe conditions (deep snow,
mud…), it can be useful to temporarily
deactivate the wheel anti-slip regulation
system to allow a degree of wheel spin and so
recover grip.
It is recommended that the system be
reactivated as soon as possible.
Snow tyres are strongly recommended on
surfaces offering low levels of adhesion.

Anti-lock braking system
(ABS) and electronic brake
force distribution (EBFD)

Operation

In emergency braking, press
very firmly without releasing the
pressure.

When changing wheels (tyres and rims),
make sure that these are approved for
your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.

the fixed illumination of this warning
lamp indicates that there is a fault
with the ABS.

When this warning lamp comes on,
coupled with the STOP and ABS warning
lamps, accompanied by an audible signal
and a message, it indicates that there
is a fault with the electronic brake force
distribution (eBFD).

the vehicle retains conventional braking. Drive
carefully at moderate speed.

You must stop as soon as it is safe to do so.
In both cases, have the system checked by a
PeugeOt dealer or a qualified workshop as
soon as possible.

135

Safety

508_en_Chap05_securite_ed01-2016

Activation

this system is activated automatically each
time the vehicle is started.
It comes into operation in the event of a
problem of grip.

this is indicated by the flashing of
this warning lamp in the instrument
panel.

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate the
ASR system, so that the wheels can turn freely
and regain grip.

Operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, this indicates a fault
with the system.

Reactivation

the system is reactivated automatically each
time the ignition is switched back on or from
12 mph (20 km/h).

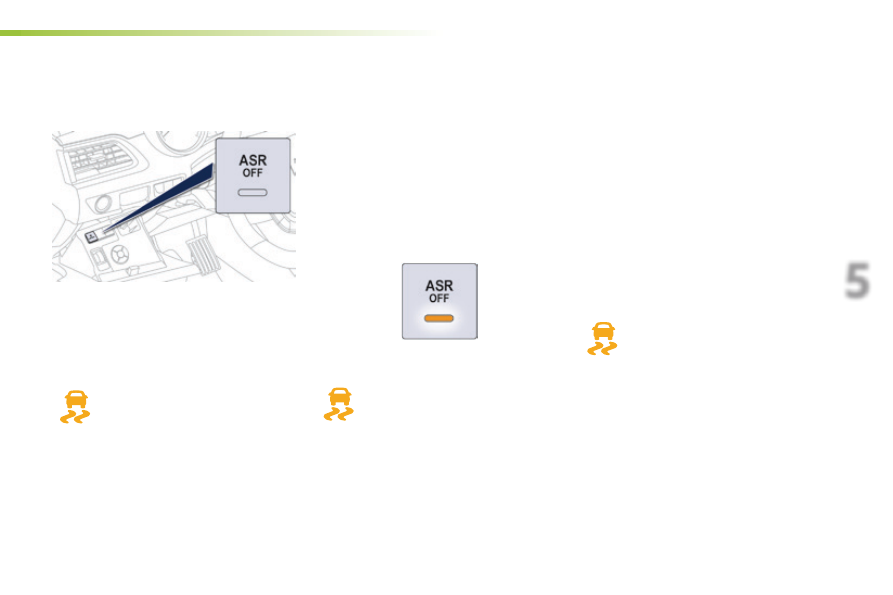

F Press the "ASR OFF" button again to

reactivate it manually.

F Press the "ASR OFF" button.

the indicator lamp in the button
comes on and the following message
appears in the instrument panel
screen "ASR deactivated"*: the
ASR system no longer acts on the
operation of the engine.

Anti-slip regulation (ASR)

Contact a PeugeOt dealer or a qualified
workshop to have the system checked.

* Depending on version.

136

Safety

508_en_Chap05_securite_ed01-2016

Seat belts

Front seat belts

Rear seat belts

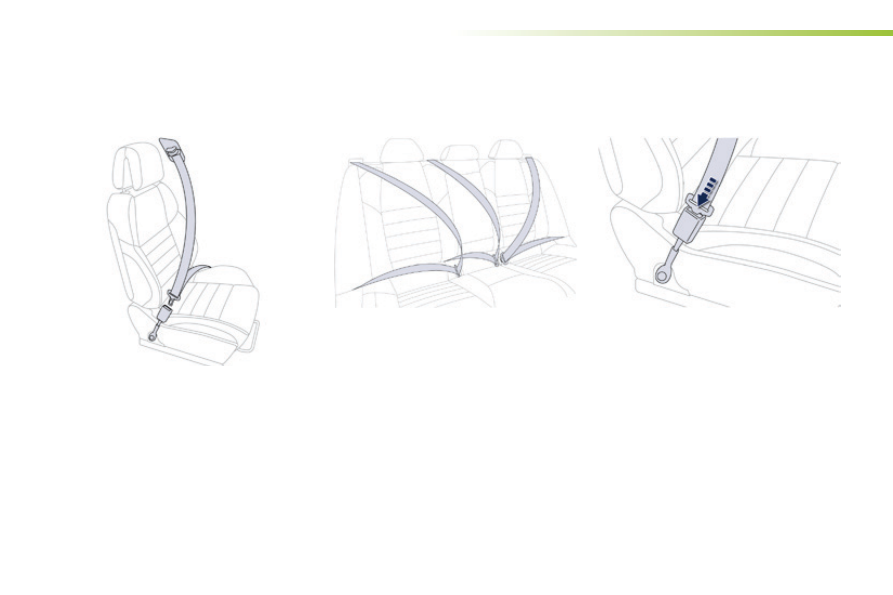

the rear seats are each fitted with a seat belt,
three-point anchorages with inertia reel and
force limiter (except for the centre rear seat).

Fastening

F Pull the strap, then insert the tongue in the

buckle.

F Check that the seat belt is fastened

correctly by pulling the strap.

Unfastening

F Press the red button on the buckle.
F guide the seat belt as it reels in.

the front seat belts are fitted with a
pretensioning and force limiting system.
this system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
the pretensioning seat belts are active when
the ignition is on.
the force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.

137

Safety

508_en_Chap05_securite_ed01-2016

Front seat belt height adjustment

F to adjust the anchorage point, squeeze the

control and slide it until you find a notch.

From approximately 12 mph
(20 km/h), the warning lamp(s) flash
for two minutes accompanied by an

Seat belt not fastened /
unfastened warning lamps

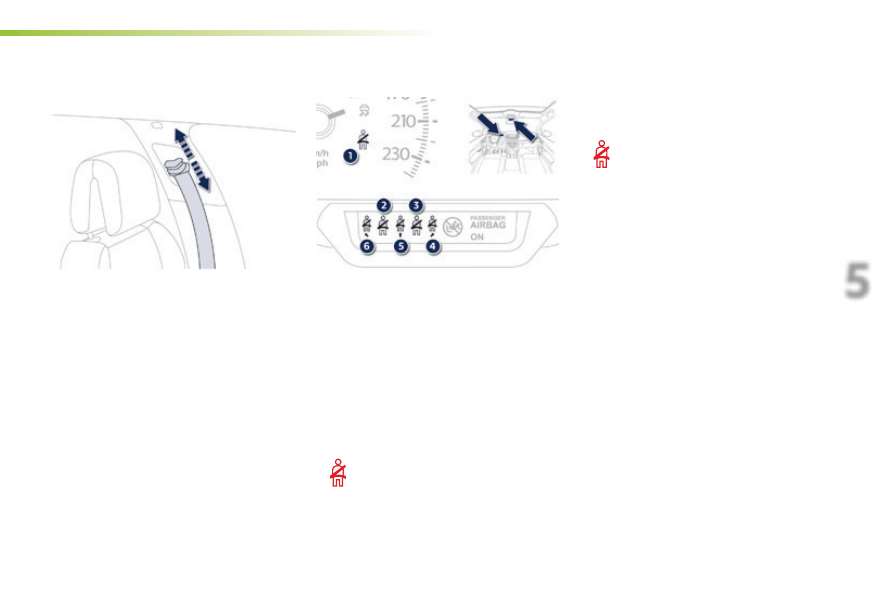

1. Front and/or rear seat belts not fastened /

unfastened warning lamp in the instrument
panel.

2.  Front left seat belt warning lamp.
3.  Front right seat belt warning lamp.
4.  Rear right seat belt warning lamp.
5.  Rear centre seat belt warning lamp.
6.  Rear left seat belt warning lamp.

Front and rear seat belt warning
lamps

On switching on the ignition, warning
lamp 1 comes on in the instrument
panel and the corresponding

audible signal. Once these two minutes have
elapsed, the warning lamp(s) remain on until
the driver or one or more passengers fasten
their seat belt.

warning lamp (2 to 6) comes on in red in the
passenger's seat belt and front airbag warning
lamp display if the corresponding seat belt is
not fastened or is unfastened.

138

Safety

508_en_Chap05_securite_ed01-2016

the driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
the seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. the seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
the lower part of the strap must be
positioned as low as possible on the pelvis.
the upper part must be positioned in the
hollow of the shoulder.
the inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and
then releasing it so that it reels in slightly.

Recommendations for children

use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on child seats, refer to
the corresponding section.

In order to be effective, a seat belt must:
-

be tightened as close to the body as
possible,

be pulled in front of you with a smooth
movement, checking that it does not
twist,

be used to restrain only one person,

not bear any trace of cuts or fraying,

not be converted or modified to avoid
affecting its performance.

In accordance with current safety
regulations, for all repairs on your vehicle's
seat belts, go to a qualified workshop with
the skills and equipment needed, which a
PeugeOt dealer is able to provide.
Have your seat belts checked regularly by a
PeugeOt dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
PeugeOt dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.

In the event of an impact

Depending on the nature and
seriousness of the impact, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp comes
on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a PeugeOt dealer or a qualified
workshop.

Advice

139

Safety

508_en_Chap05_securite_ed01-2016

Airbags

General information

System designed to contribute towards
improving the safety of the occupants (with
the exception of the rear centre passenger)
in the event of violent collisions. the airbags
supplement the action of the seat belts fitted
with force limiters (all except the centre rear
passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-

in the case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the
rear centre passenger); immediately after
the impact, the airbags deflate rapidly so
that they do not hinder visibility or the exit
of the occupants,

in the case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.

The airbags do not operate when the
ignition is switched off.

Deployment of one or more of the
airbags is accompanied by a slight
emission of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
this smoke is not harmful, but sensitive
individuals may experience slight
irritation.
the noise of detonation associated with
the deployment of one or more airbags
may result in a slight loss of hearing for
a short time.

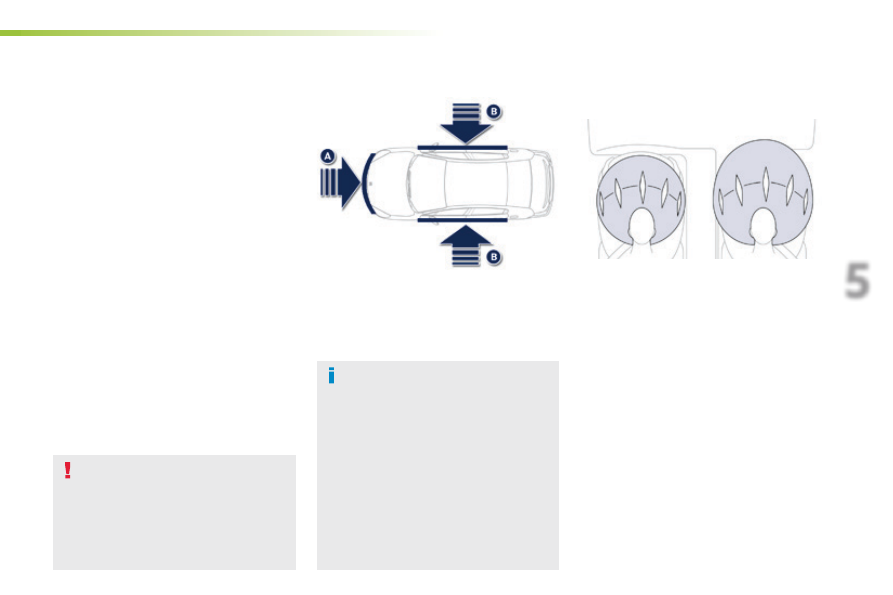

Impact detection zones

A. Front impact zone.
B. Side impact zone.

Front airbags

Deployment

the airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A, in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
the front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steering wheel, driver's side, and the
dashboard, passenger's side to cushion their
forward movement.

System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
the driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.

this equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.

140

Safety

508_en_Chap05_securite_ed01-2016

Deactivation

Only the passenger's front airbag can be
deactivated:

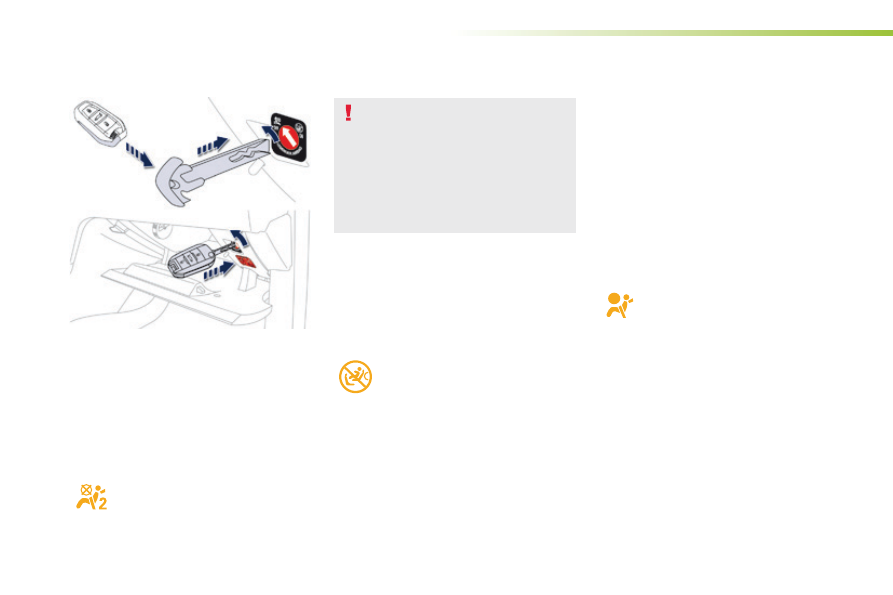

F insert the key in the passenger airbag

deactivation switch,

F turn it to the "OFF" position,
F then, remove the key keeping the switch in

the new position.

According to version, this warning
lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning
lamp display when the ignition is on
and until the airbag is reactivated.

to assure the safety of your child,
the passenger's front airbag must be
deactivated when you install a rearward
facing child seat on the front passenger
seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.

Reactivation

When you remove the child seat, with the
ignition off, turn the switch to the "ON"
position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.

With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamp display for approximately one
minute, if the passenger's front
airbag is activated.

Operating fault

If this warning lamp comes on in the
instrument panel, accompanied by
an audible warning and a message

in the instrument panel screen, contact a
PeugeOt dealer or a qualified workshop to
have the system checked. the airbags may no
longer be deployed in the event of a serious
impact.

141

Safety

508_en_Chap05_securite_ed01-2016

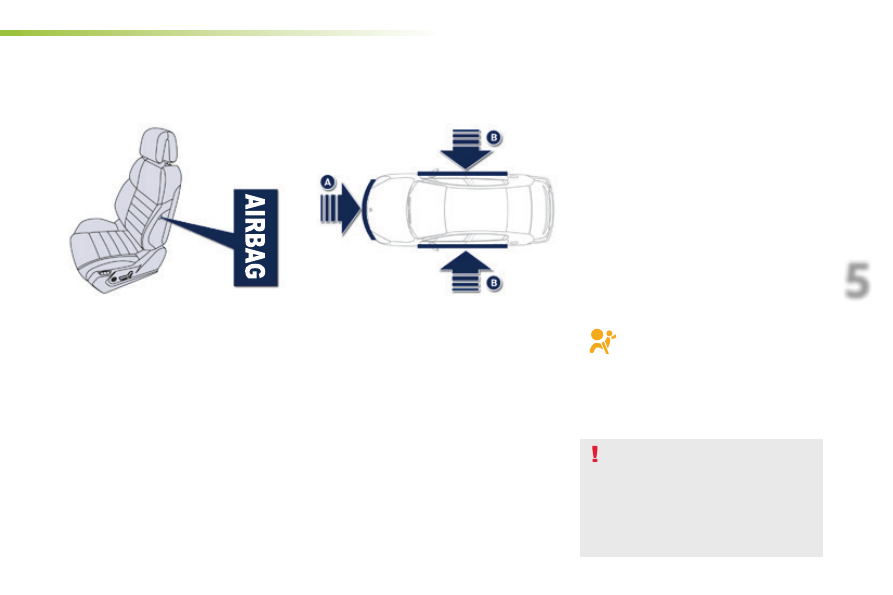

Lateral airbags

Deployment

A lateral airbag is deployed unilaterally in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
the lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel.

System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
each lateral airbag is fitted in the seat backrest
frame, door side.

Impact detection zones

A. Front impact zone.
B. Side impact zone.

Curtain airbags

System which protects the driver and
passengers (with the exception of the rear
centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
each curtain airbag is built into the pillars and
the upper passenger compartment area.

In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision,
the lateral and curtain airbags are not
deployed.

Deployment

the curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
the curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.

If this warning lamp comes on in the
instrument panel, accompanied by an
audible signal and a message in the

Operating fault

instrument panel screen, contact a PeugeOt
dealer or a qualified workshop to have the
system checked. the airbags may no longer be
deployed in the event of a serious impact.

142

Safety

508_en_Chap05_securite_ed01-2016

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a PeugeOt dealer or a
qualified workshop.
even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. the
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.

Lateral airbags

use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a PeugeOt dealer.
For more information on accessories, refer
to the corresponding section.
Do not fix or attach anything to the seat
backs (clothing...). this could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.

Front airbags

Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause
injuries with deployment of the airbags.

Advice

Curtain airbags

Do not fix or attach anything to the roof. this
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.

For the airbags to be fully effective, observe the safety recommendations below:

Content .. 7 8 9 10 ..
